Brother TC 211 CNC X 300 – Y 220 – Z 200MM Machining Center()
- Listing No
- 960649
- Year
- Manufacturer
- Brother
- Model
- TC 211 CNC X 300
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Brother TC 211 CNC X:300 - Y:220 - Z:200mm Table dimensions: 600 x 300 mm Max weight on the table: 150 kg Depth of throat (uprights-spindlecenter): 450 mm Admission in spindle (ISO): ISO 30 Power on the spindle: 4.1 kW Drilling-capacity: Ø 25 mm Tapping-capacity: M18 Number of axes: 3 axes Toolchanger: ATC Number of toolholders: 10 positions Number of rotations: max 6000 rpm Cooling-system: yes
About this machine

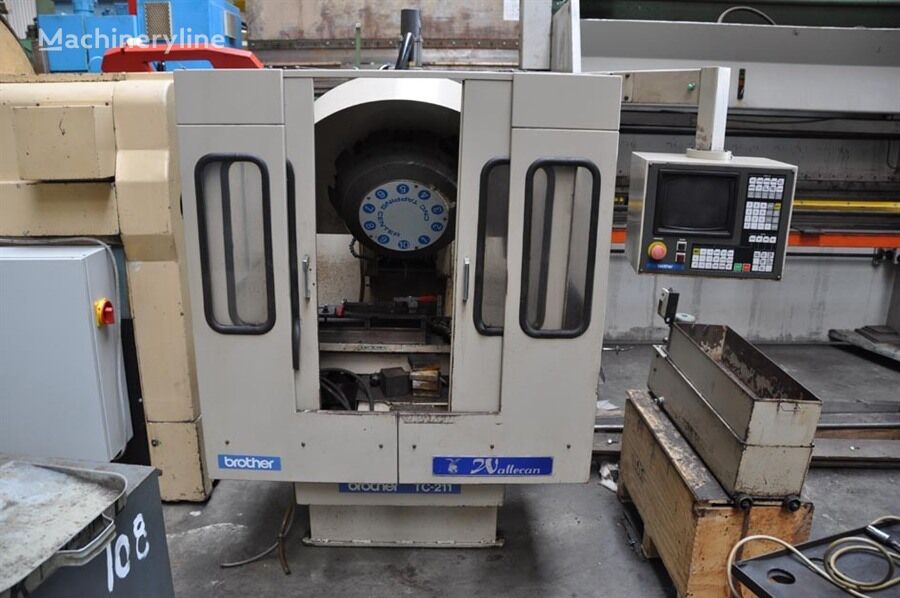

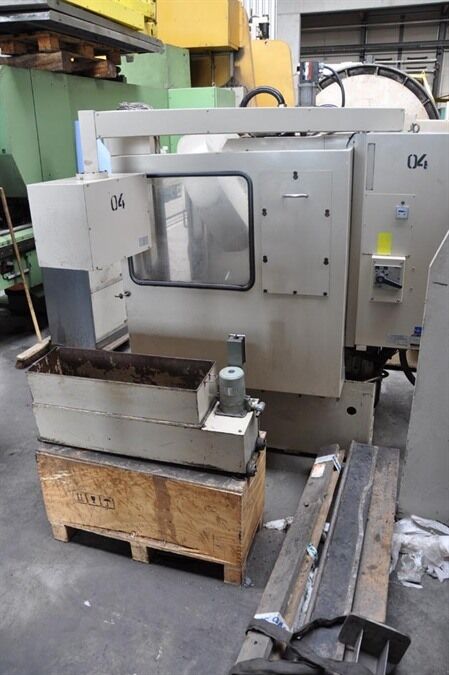

This Brother TC 211 is a used machining center — sometimes referred to as a CNC machining center or milling center — a computer-controlled machine tool designed to perform multiple precision metal-cutting operations such as drilling, tapping, and milling within a single setup. Brother is a well-established Japanese manufacturer with a strong reputation in the field of compact, high-speed CNC machine tools, serving industries including precision engineering, electronics, automotive components, and general metalworking.

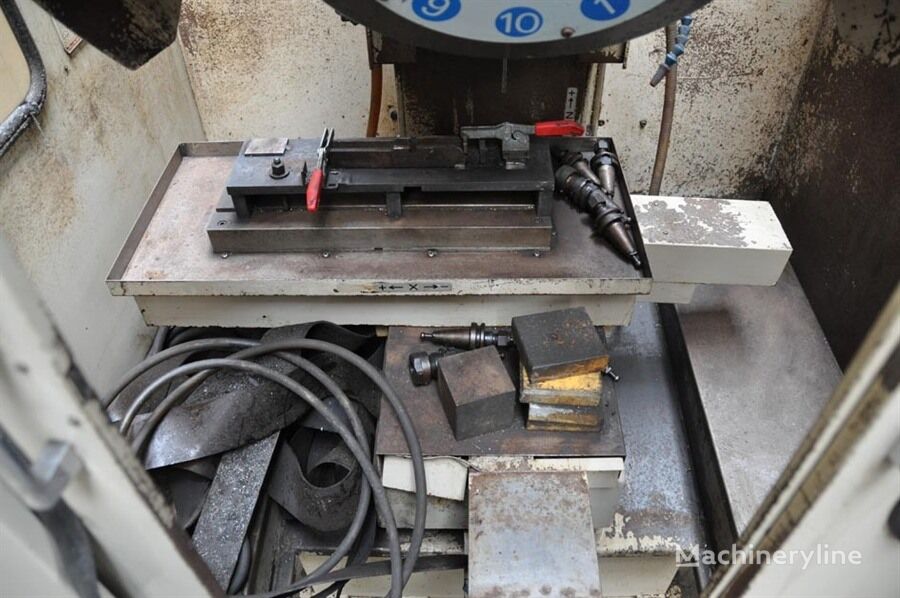

The machine operates across three axes, with travels of 300 mm on the X-axis, 220 mm on the Y-axis, and 200 mm on the Z-axis. The work table measures 600 × 300 mm and is rated to support a maximum workpiece weight of 150 kg. The distance from the uprights to the spindle centre — the throat depth — is 450 mm, giving a useful indication of how far a workpiece can reach into the working area.
The spindle accepts ISO 30 tooling and is driven by a 4.1 kW motor, reaching a maximum rotational speed of 6,000 rpm. In terms of cutting capacity, the machine is specified for drilling up to 25 mm in diameter and tapping up to M18. An automatic tool changer (ATC) is fitted with a ten-position tool magazine, allowing the machine to switch between tools without manual intervention and keeping cycle times short. A coolant system is also installed, helping to manage heat and chip evacuation during cutting operations.
This machine is located in Belgium and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
