2010 - Buhler OTW 150 – Flui Mixer Blender()
- Listing No
- 1177005
- Year
- 2010
- Manufacturer
- Buhler
- Model
- OTW 150 - Flui
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-

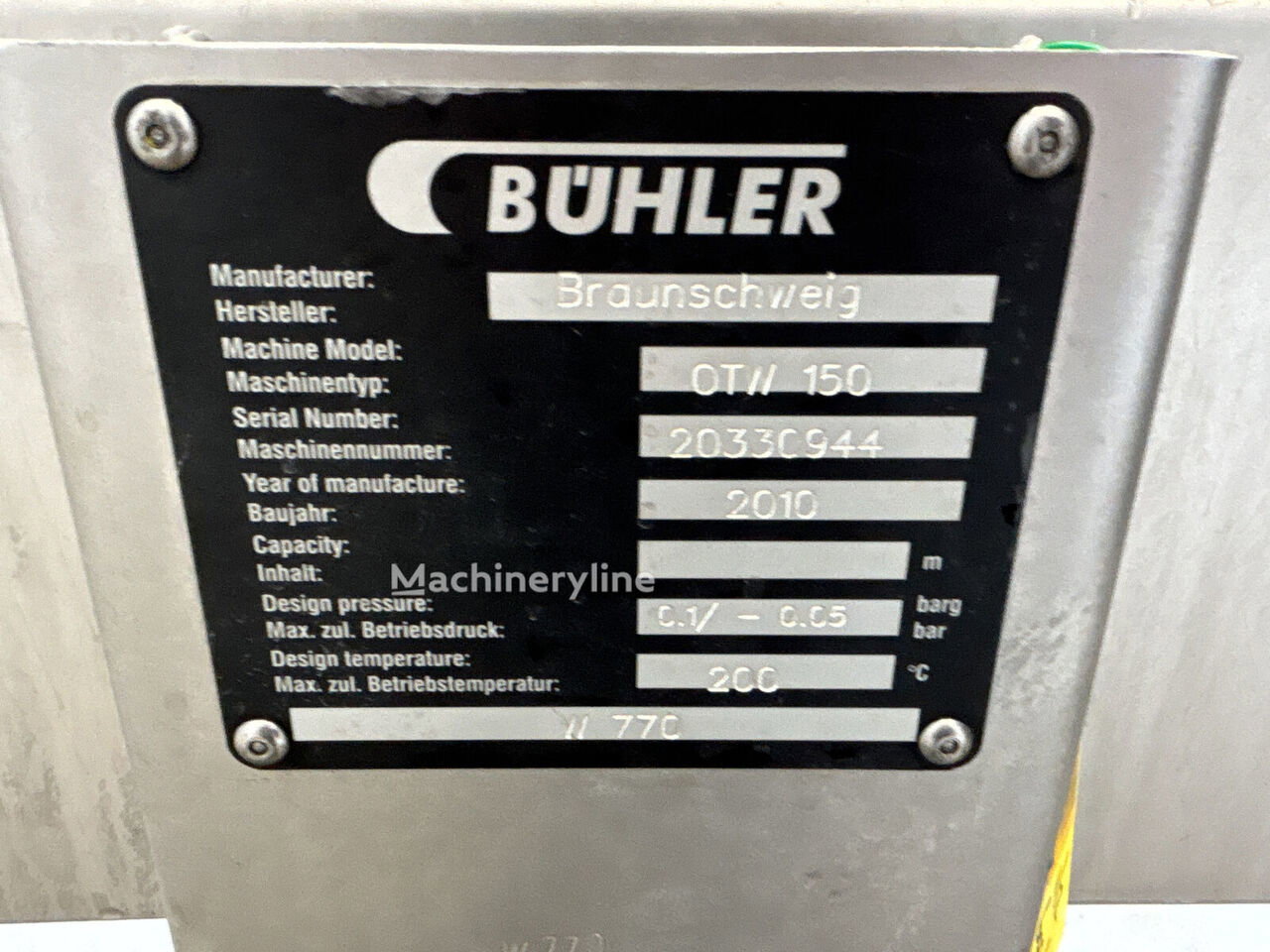

Location: Barneveld CE: check Type: OTW 150 Material: Stainless steel 1.4541 (321) Motor: 75 kW, 290/500 V, 2970 rpm, (Ex) Surface: 1,5 m² Continuous fluidbed dryer: check Product inlet: DN200 Product outlet: DN200 Number of sections: 1 Air inlet: DN400 Air outlet: DN400 Vibro motor: check With variable speed drive: check (34 — 171 rpm) With fan: check Capacity: 2250 kg/h Cleaning by air pulse: check Max. temperature: 200 °C No: 20.330.944 Mounted on frame: check Floorspace: 3,35 x 1,0 m Total height: 1,90 m Extra Specifications: Cooling air volume: approx. 8100 m³/h Throughput capacity: max. 2250 kg/h Product General Main Features Specified Features - Fluid bed dryer continuous Information
About this machine

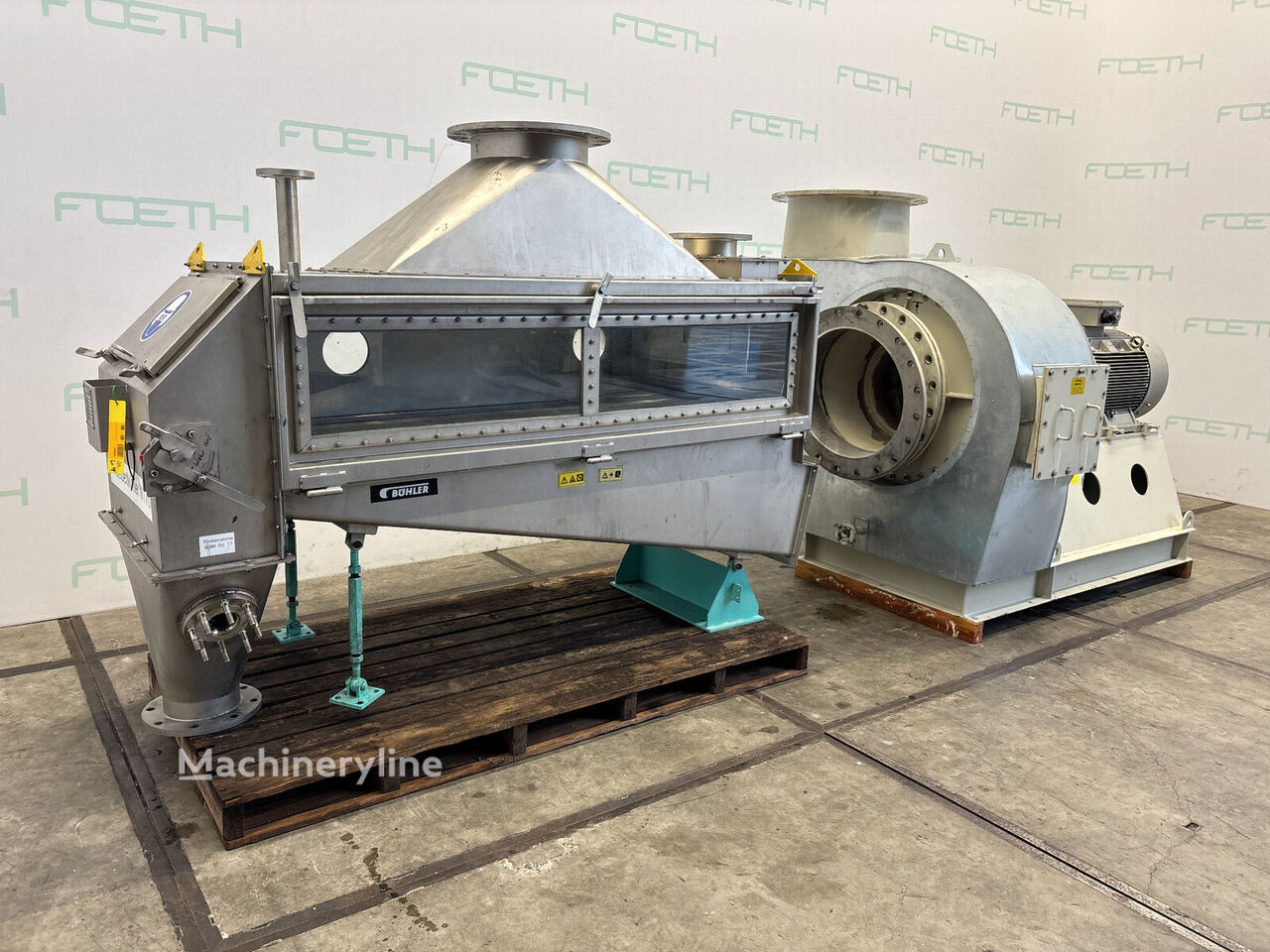

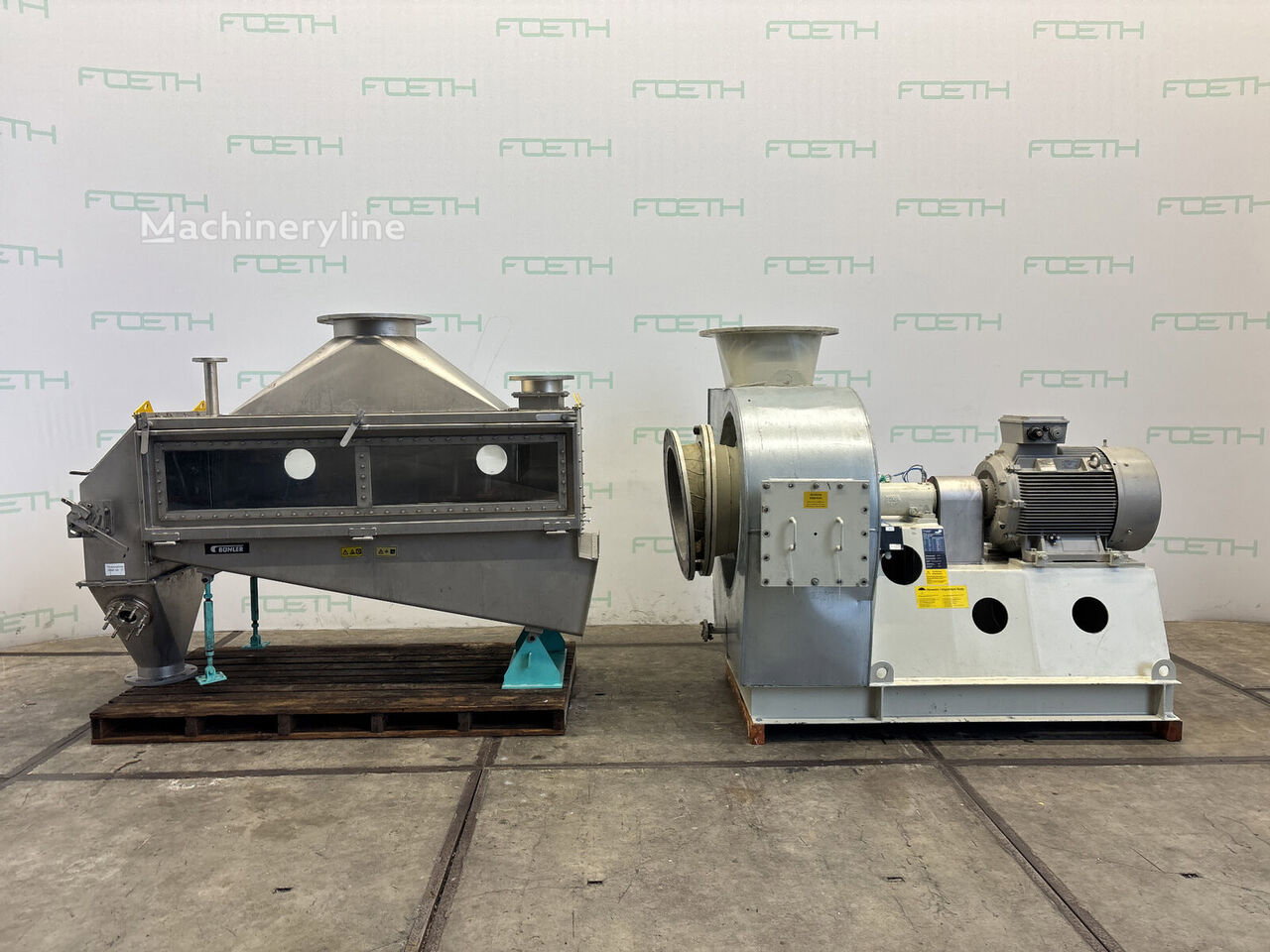

This Buhler OTW 150 is a continuous fluid bed dryer — a type of industrial mixer and blender used to dry, cool, and homogenise bulk materials by passing a controlled stream of air through a fluidised product bed. Buhler is a globally recognised Swiss engineering group with a long-established presence in grain processing, food production, and related industries, known for delivering high-capacity bulk-handling and processing equipment to demanding industrial applications.
Built in 2010 and located in Barneveld, Netherlands, this unit is constructed in stainless steel grade ), making it suitable for food-grade and chemically resistant process environments. It carries CE certification and is mounted on a structural frame with a compact footprint of 3.35 × 1.0 metres and a total height of 1.90 metres, giving it a relatively modest floorspace for the throughput it delivers.

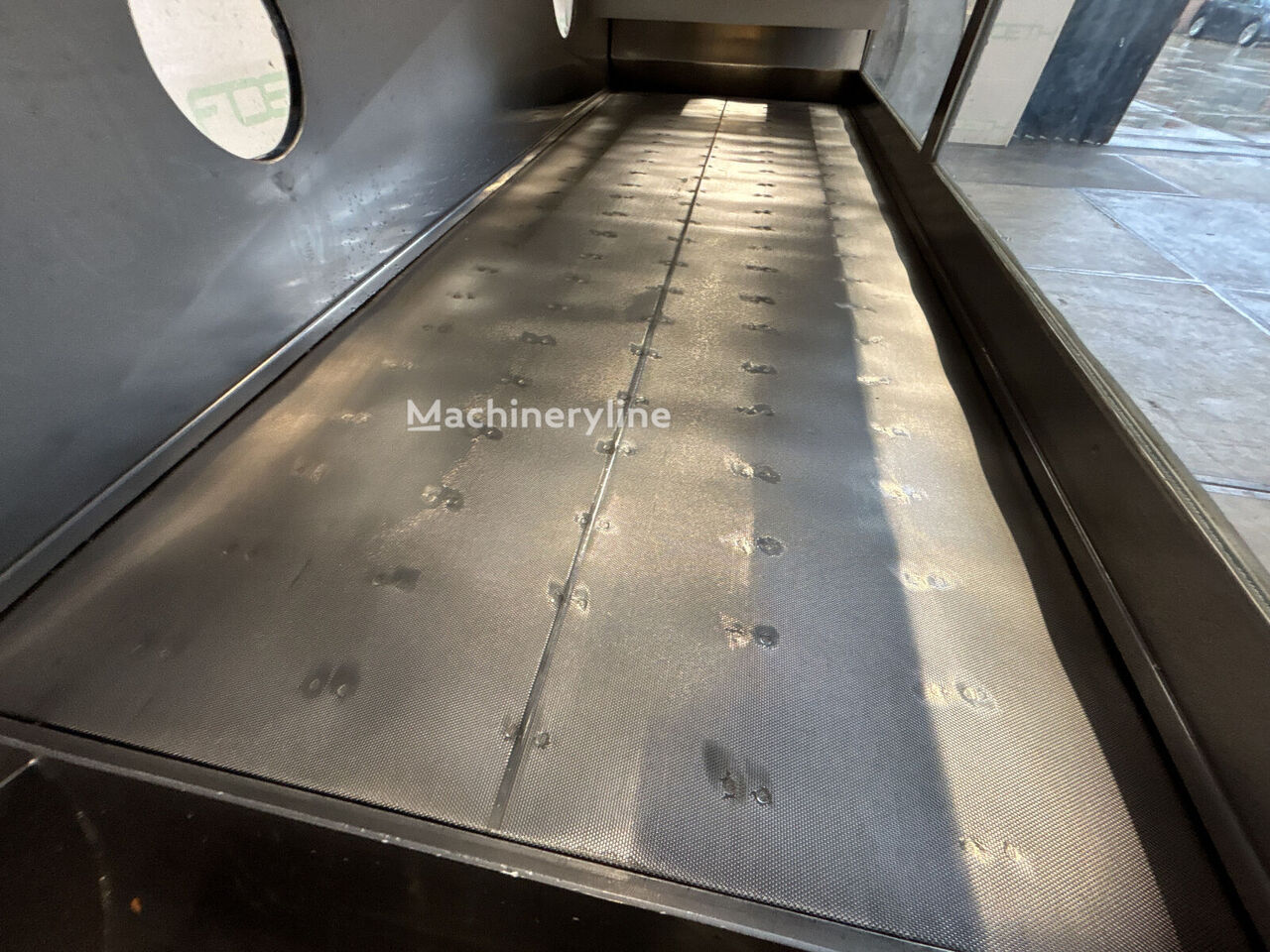

The dryer is configured as a single-section continuous fluidbed unit with a heat-exchange surface of 1.5 m². Product enters and exits through DN200 connections, while the air circuit uses DN400 ducting for both inlet and outlet. Air cleaning is handled by pulse-jet (air pulse) cleaning, keeping the unit operating efficiently between cycles. A vibro motor is fitted to assist product flow through the bed.

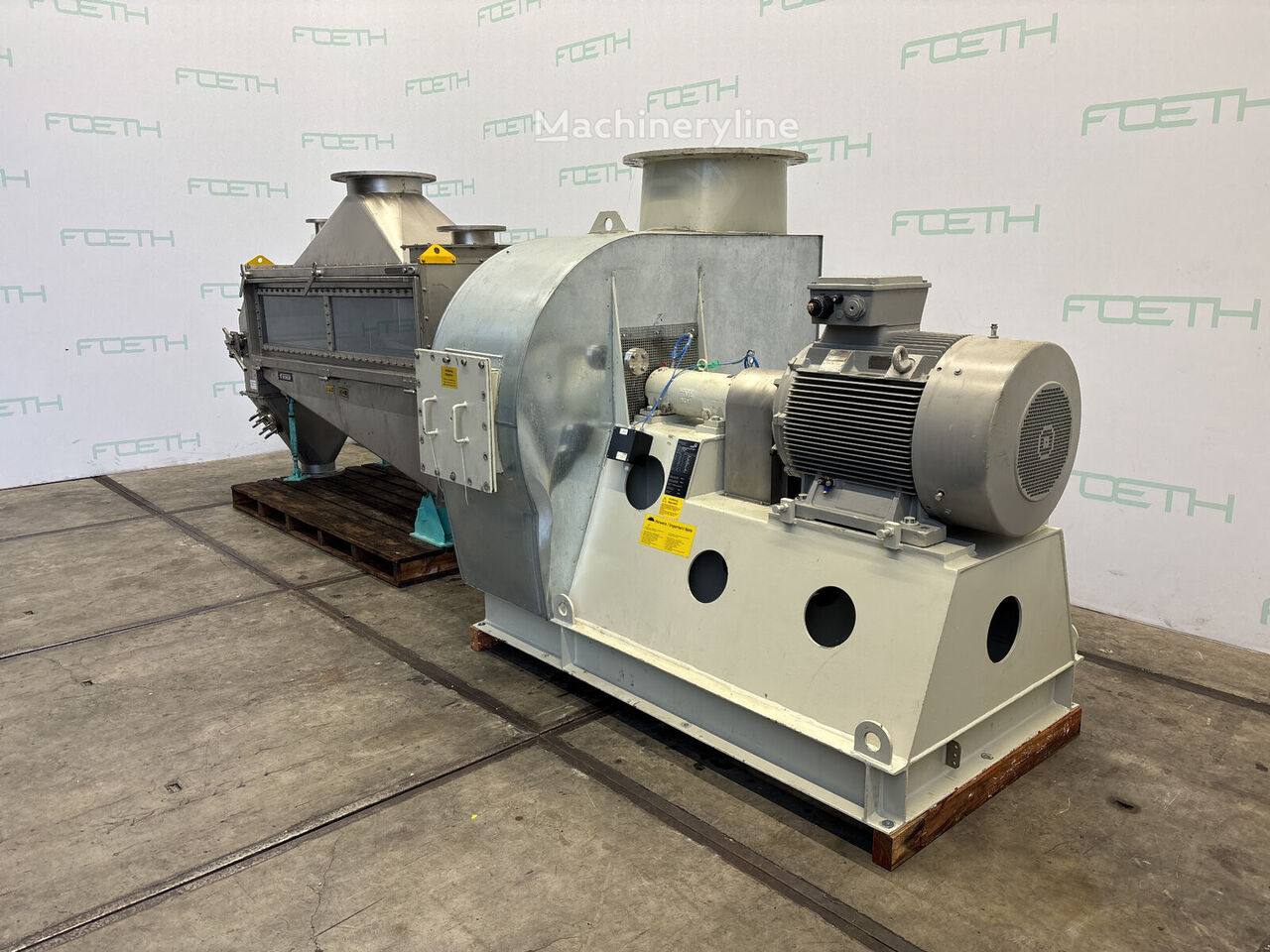

The drive system includes a variable speed drive with a working range of 34 to 171 rpm, and a dedicated fan is included with the unit. The main motor is rated at 75 kW, configured for 290/500 V at 2,970 rpm, and is specified to Ex (explosion-proof) standard — an important detail for applications involving flammable dusts or atmospheres.
Processing performance is well documented: throughput capacity reaches a maximum of 2,250 kg/h, and the cooling air volume is approximately 8,100 m³/h. The unit is rated to a maximum operating temperature of 200 °C, broadening its suitability across both drying and thermal processing applications. The machine carries serial number and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
