2005 - Cincinnati CFV 550 I Machining Center()
- Listing No
- 964410
- Year
- 2005
- Manufacturer
- Model
- CFV 550 I
- Condition
- Used
- Location
- Price
- POA
- Description
-
Working Range -cubic- number of processing axes (excl parallel axes): 4 X-axis travel: 540 mm Y-axis travel: 540 mm Z-axis travel: 560 mm Table table surface (left-right): 700 mm table surface (front-back): 520 mm spindle / head spindle revolutions (max): 8000 /min tool fixture: ISO SK 40 Axis drives feed velocity (max): 20000 mm/min rapid traverse: 30000 mm/min Tool magazine number of positions: 21 tool diameter max.: 80 mm - with free neighbour positions: 160 mm tool length max.: 385 mm tool weight max.: 6.8 kg Electrical specifications mains voltage: 400 V mains frequency: 50 Hz Dimensions / weights space requirements -left/right-: 3000 mm space requirements -front/back-: 2600 mm total height: 2700 mm total weight approx.: 4200 kg
About this machine

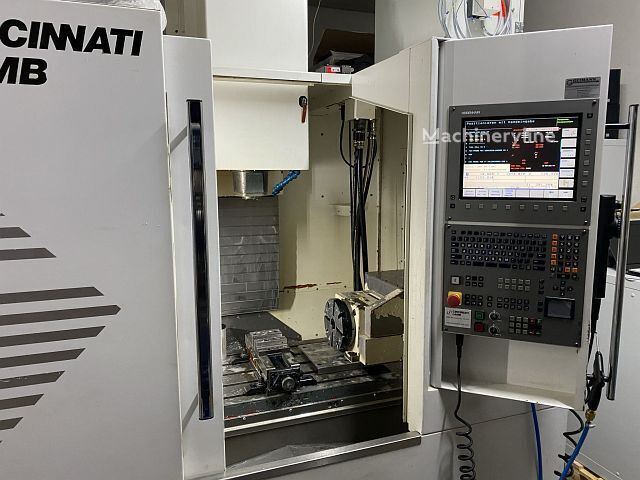

The Cincinnati CFV 550 I is a used machining center — sometimes referred to as a CNC machining center or vertical machining center — a machine tool designed to perform multiple cutting, drilling, boring, and milling operations on a workpiece in a single setup under computer numerical control. Cincinnati is a long-established American manufacturer with a heritage in precision machine tools, supplying equipment to aerospace, automotive, die and mould, and general engineering industries worldwide. This example was built in 2005 and is offered in used condition.

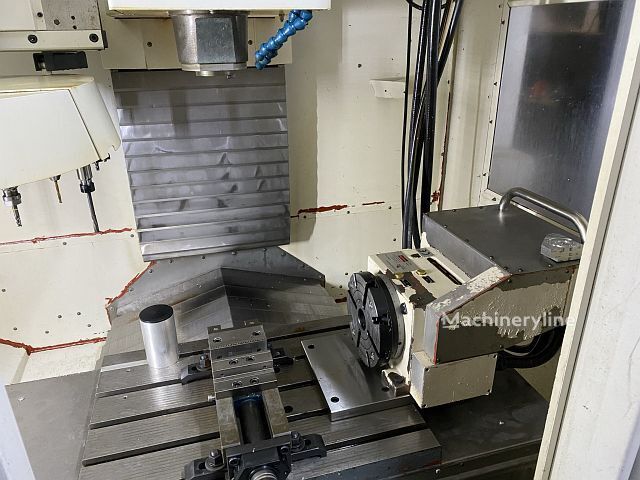

The machine operates across four processing axes, with linear travels of 540 mm in X, 540 mm in Y, and 560 mm in Z, giving a well-proportioned working envelope suited to a broad range of mid-sized components. The worktable measures 700 mm left-to-right and 520 mm front-to-back, providing a generous clamping surface relative to the axis travels.
The spindle accepts tooling on an ISO SK 40 taper and reaches a maximum speed of 8,000 rpm, making it capable of handling both ferrous and non-ferrous materials across a wide range of cutting conditions. Axis drives deliver a maximum feed velocity of 20,000 mm/min and a rapid traverse rate of 30,000 mm/min, supporting efficient cycle times and reduced non-cutting movements.
Tool management is handled by a 21-position magazine. Standard tool positions accept diameters up to 80 mm, expanding to 160 mm where adjacent positions are kept free, with a maximum tool length of 385 mm and a maximum tool weight of 6.8 kg per tool — figures that accommodate a practical variety of milling, drilling, and boring tools without requiring manual changeovers between operations.
The machine is wired for a 400 V, 50 Hz supply, consistent with standard European three-phase industrial power. Its footprint is 3,000 mm left-to-right by 2,600 mm front-to-back, with an overall height of 2,700 mm and a total weight of approximately 4,200 kg, dimensions that will inform floor space planning and any lifting or installation requirements.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
