1998 - Cincinnati Milacron 7050-F00-RA-0019 Machining Center()
- Listing No
- 955910
- Year
- 1998
- Manufacturer
- Model
- Milacron 7050
- Condition
- Used
- Location
- Portugal
- Price
- POA
- Description
-
Approximate weight: 7.000 kg Automatic Tool Change: 21 positions * Capacity: 20 tools CNC control: Acramatic 2100 Cone (spindle taper): SK 40 * Cutting speed: 10 m / min Height: 2.500 mm Length: 3.800 mm * Load capacity: (700 kg) Machine weight: 12 kg Maximum Spindle Speed: 8.000 rpm Maximum Table Load Capacity: 1.000 kg Model: HPM-30 * Power: 15 HP * Speed: 8,000 rpm * Spindle: BT-40 Spindle Cone Type: BT-40 Spindle Power: 11 kW spindle power: 20,9 kW spindle speed: 8,000 rpm Spindle speed: 8,000 rpm table capacity: 2 ton Table depth: ~548.6 mm Table Dimensions: 1,270mm × 635mm Table dimensions: 914 × 400 mm table width: 1 193.8 mm Tool Magazine (ATC): 30 positions, BT-40 spindle Tool magazine capacity: 24 tools Wattage: 50 kW * Weight: 3,890 kg Width: 2.200 mm * Work table: 899 × 450 mm X axis: 1.250 mm X-axis: 1200 mm Y axis: 635 mm y-axis: 1000 mm Z axis: 635 mm z-axis: 550 mm CINCINATI MILACRON 7050-F00-RA-0019 machining center Note: There may be differences between the data presented and the actual values. You must confirm the characteristics by visiting the equipment. Show the whole comment
About this machine

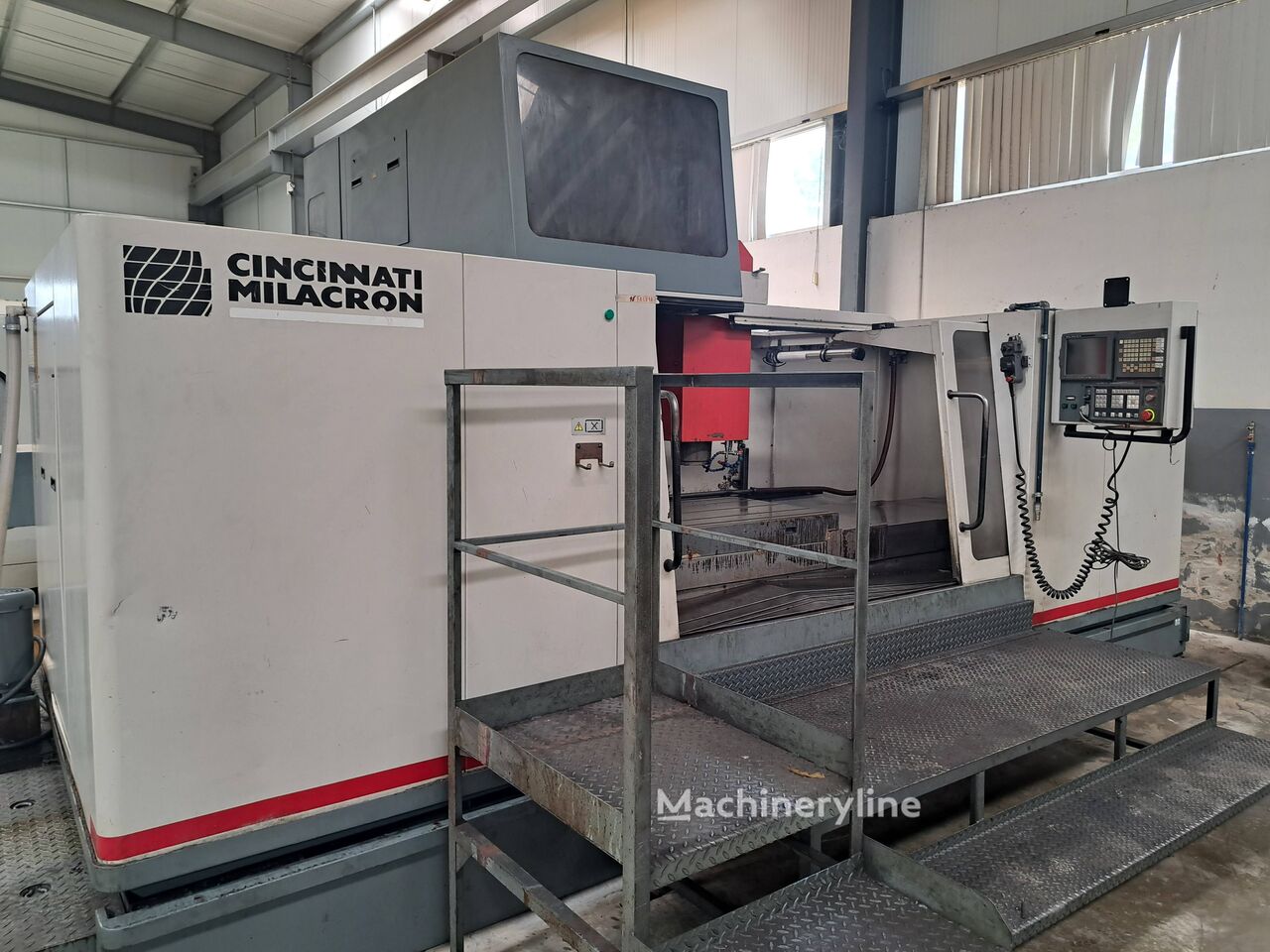

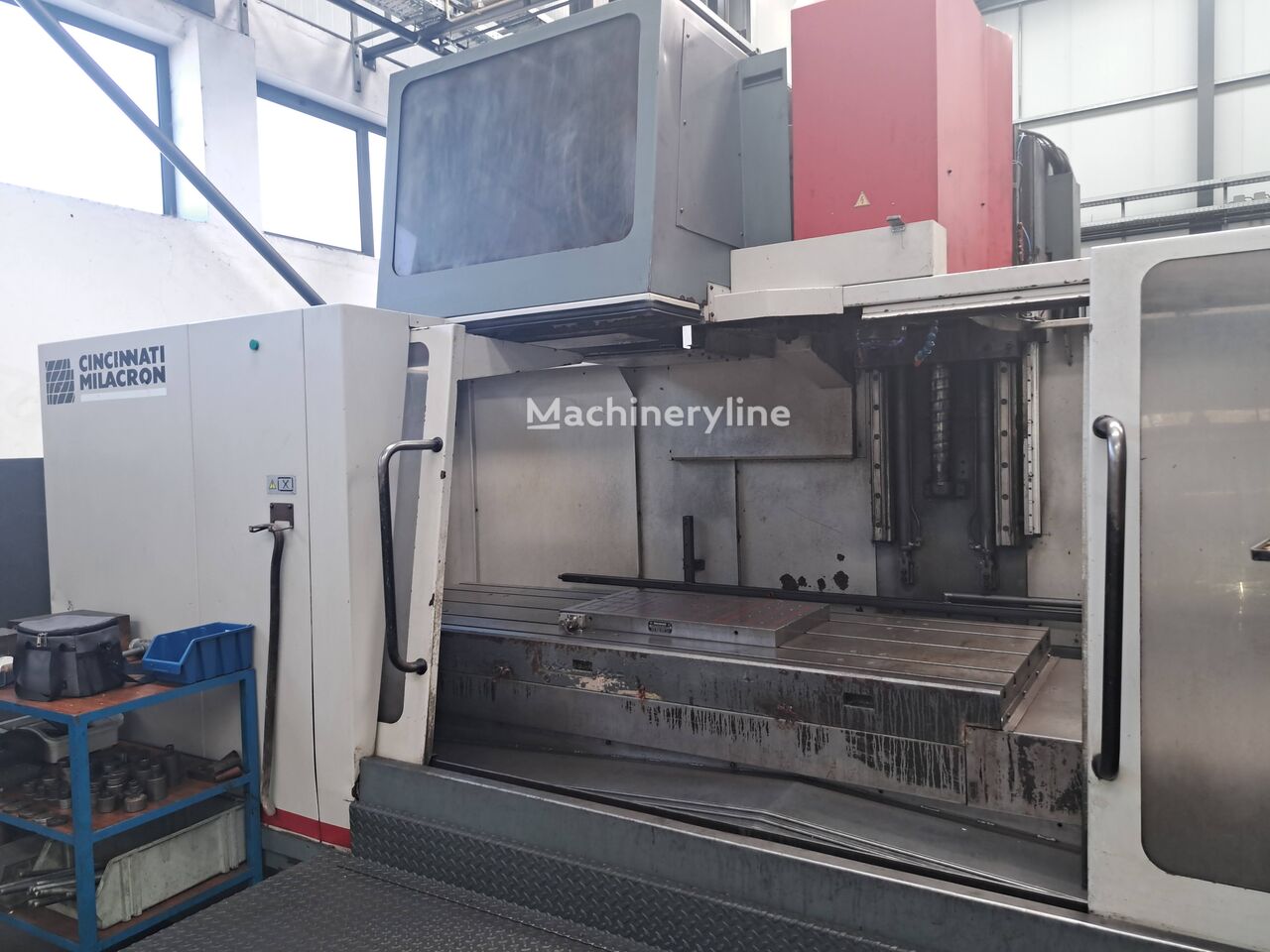

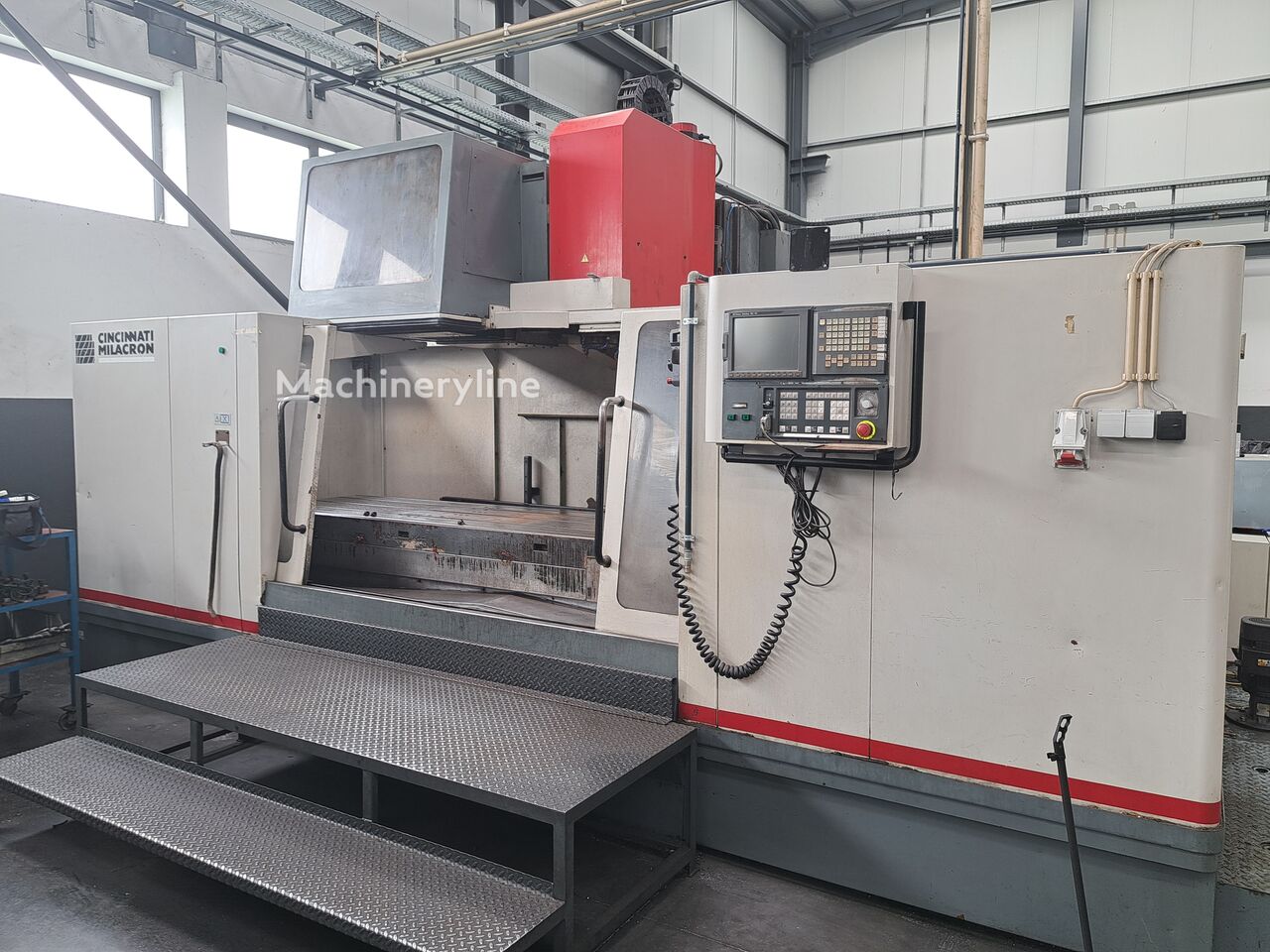

This Cincinnati Milacron 7050-F00-RA-0019 is a used machining center — sometimes referred to as a CNC machining center or vertical machining center — a machine tool designed to perform multiple cutting and milling operations on metal workpieces under computer numerical control, with automatic tool changing to carry out drilling, boring, tapping, and contouring in a single setup. Cincinnati Milacron is a long-established American manufacturer with deep roots in precision machine tools, serving the metalworking, aerospace, automotive, and general engineering industries.
This machine is fitted with an Acramatic 2100 CNC control system, which was Cincinnati Milacron's own control platform, offering full multi-axis programmability. The spindle accepts BT-40 tooling and reaches a maximum speed of 8,000 rpm, with spindle power quoted at 11 kW. The tool magazine accommodates 30 positions with an automatic tool changer, giving the operator a broad selection of cutters available without manual intervention.
Axis travels are quoted as 1,250 mm in X, 635 mm in Y, and 635 mm in Z, indicating a substantial working envelope suited to medium-to-large workpieces. The table measures 1,270 mm × 635 mm and is rated to carry a maximum load of 1,000 kg. Overall machine dimensions are approximately 3,800 mm in length, 2,200 mm in width, and 2,500 mm in height, with an approximate weight of 7,000 kg, reflecting the robust cast construction typical of machines in this class.
The machine is located in Portugal and dates from 1998. As the seller notes, there are discrepancies between some of the figures presented in the listing, and prospective buyers are advised to verify all specifications in person before making a purchasing decision.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
