About this machine

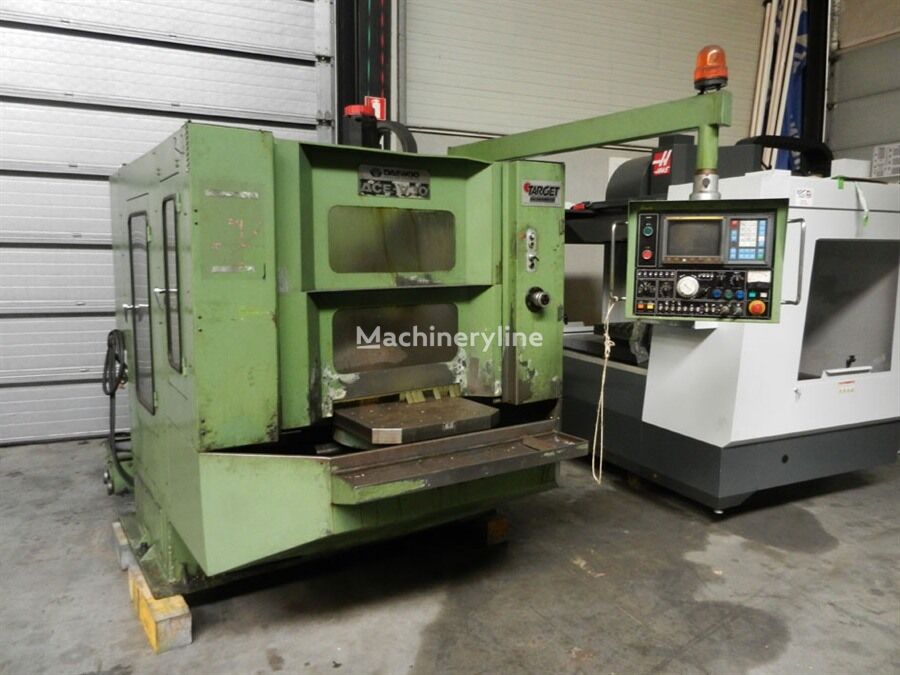

This Daewoo ACE-V30 is a used machining center — sometimes referred to as a machining centre or CNC milling center — a type of machine tool designed to perform multiple metal-cutting operations such as milling, drilling, boring, and tapping on a workpiece in a single setup. Daewoo is a well-established South Korean industrial manufacturer with a long history of producing machine tools, heavy equipment, and precision machinery for metalworking and manufacturing industries worldwide.

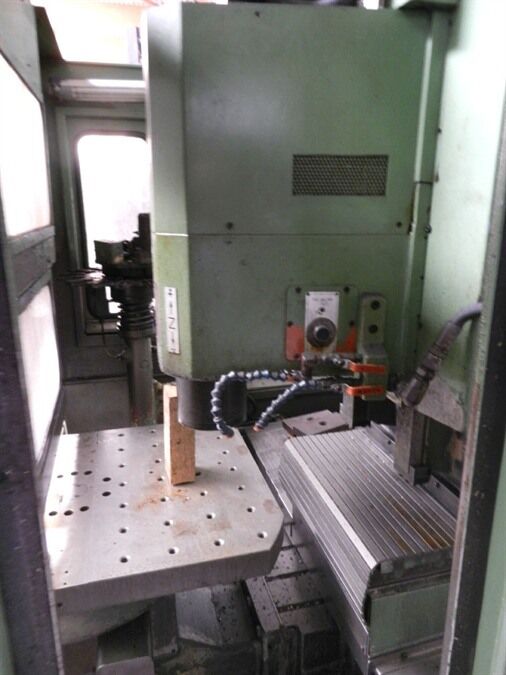

The machine is equipped with two worktables, each measuring 600 × 400 mm, providing a combined working surface suited to a range of part sizes. Each table has a maximum load capacity of 200 kg, making it appropriate for medium-weight workpieces. The distance from the column uprights to the spindle centre — the depth of throat — measures 330 mm, which governs how far into the machine a workpiece can be positioned.

The spindle accepts ISO 40 toolholders, a widely used taper standard in mid-range machining centers that offers a good balance between rigidity and tool-change compatibility. The spindle speed range runs from 45 to 6,000 rpm, accommodating both heavier, lower-speed cutting operations and lighter, higher-speed finishing work. The principal motor delivers 5.5 kW of power. Tapping capacity reaches M16 at a pitch of 2 mm, confirming the machine's ability to cut threads directly under CNC control.

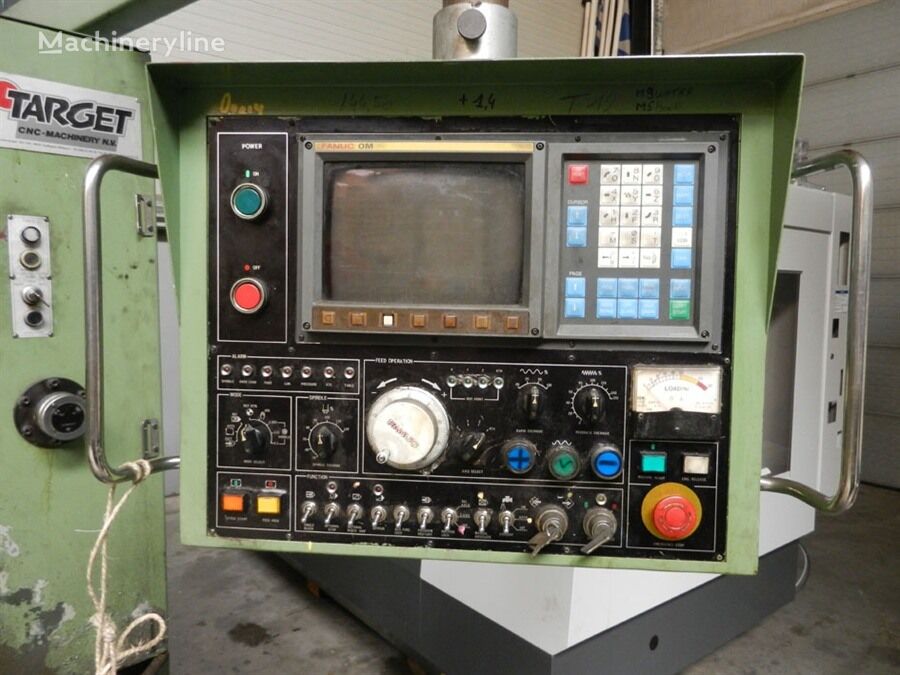

Tool management is handled by an automatic tool changer with a capacity of 12 toolholders, allowing the machine to cycle through a variety of cutting tools without manual intervention and reducing setup time between operations. The control system is a Fanuc OM, a proven CNC controller widely supported in the industry and familiar to many operators and service technicians. The machine is located in Belgium.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
