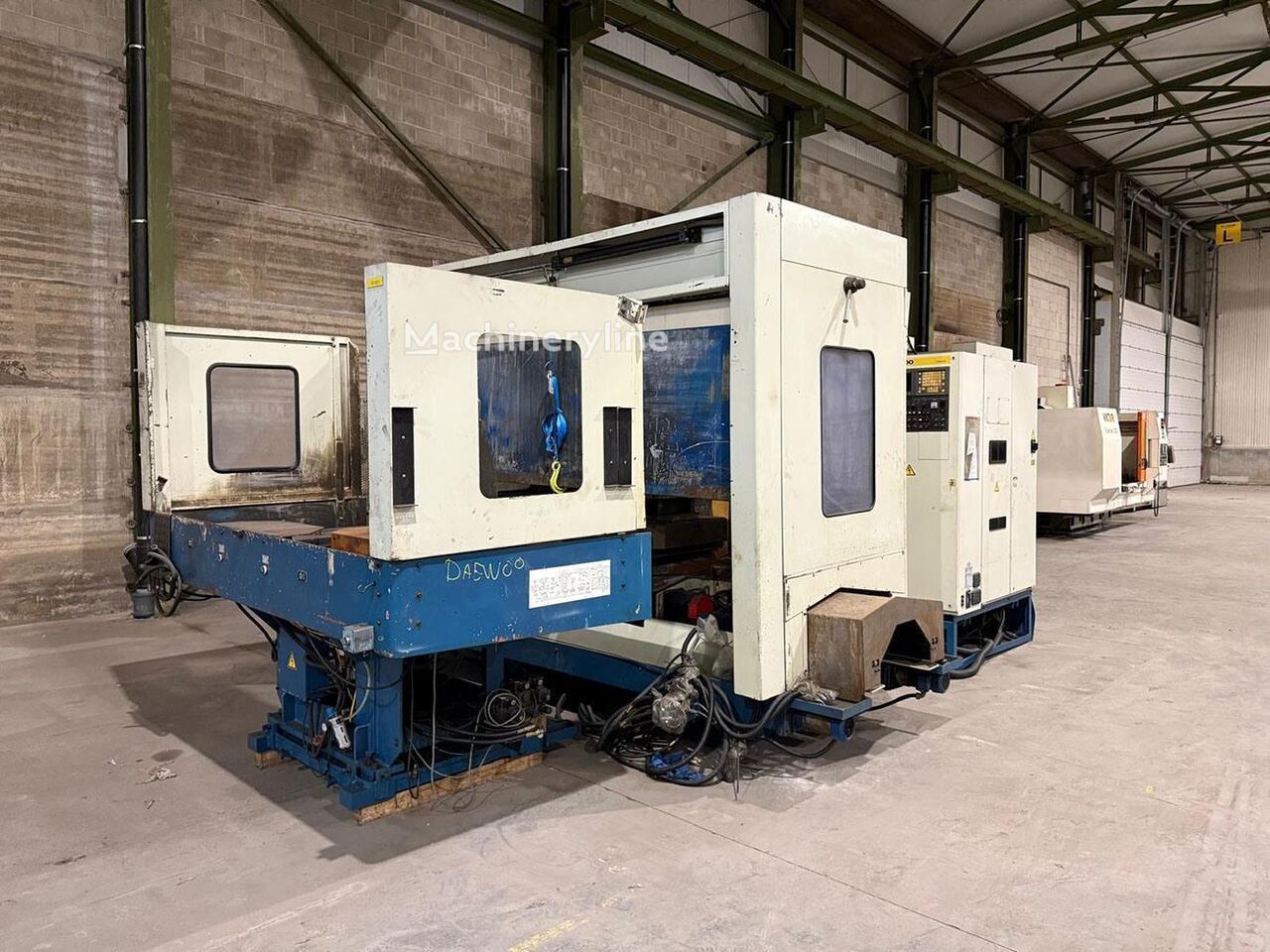

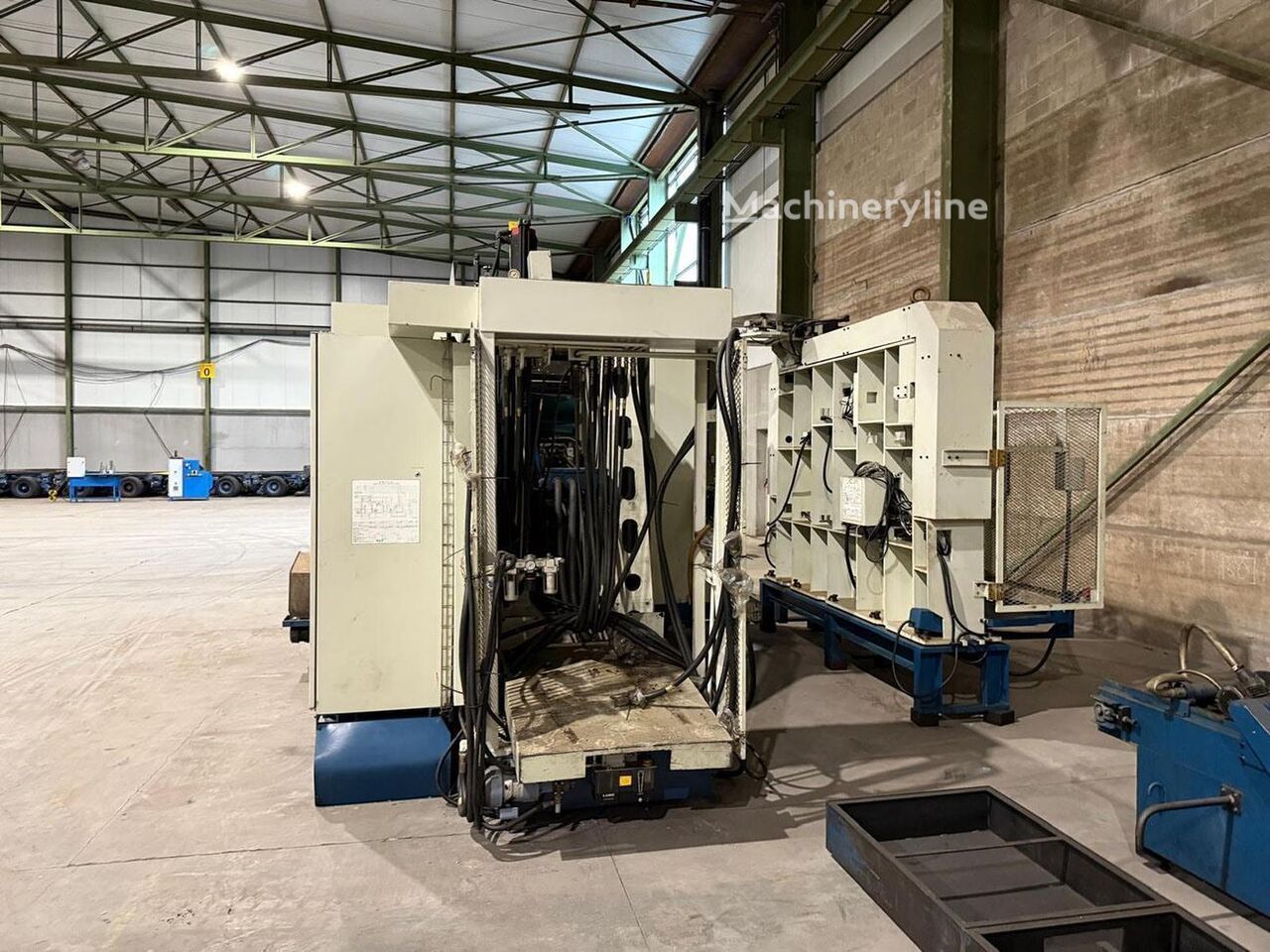

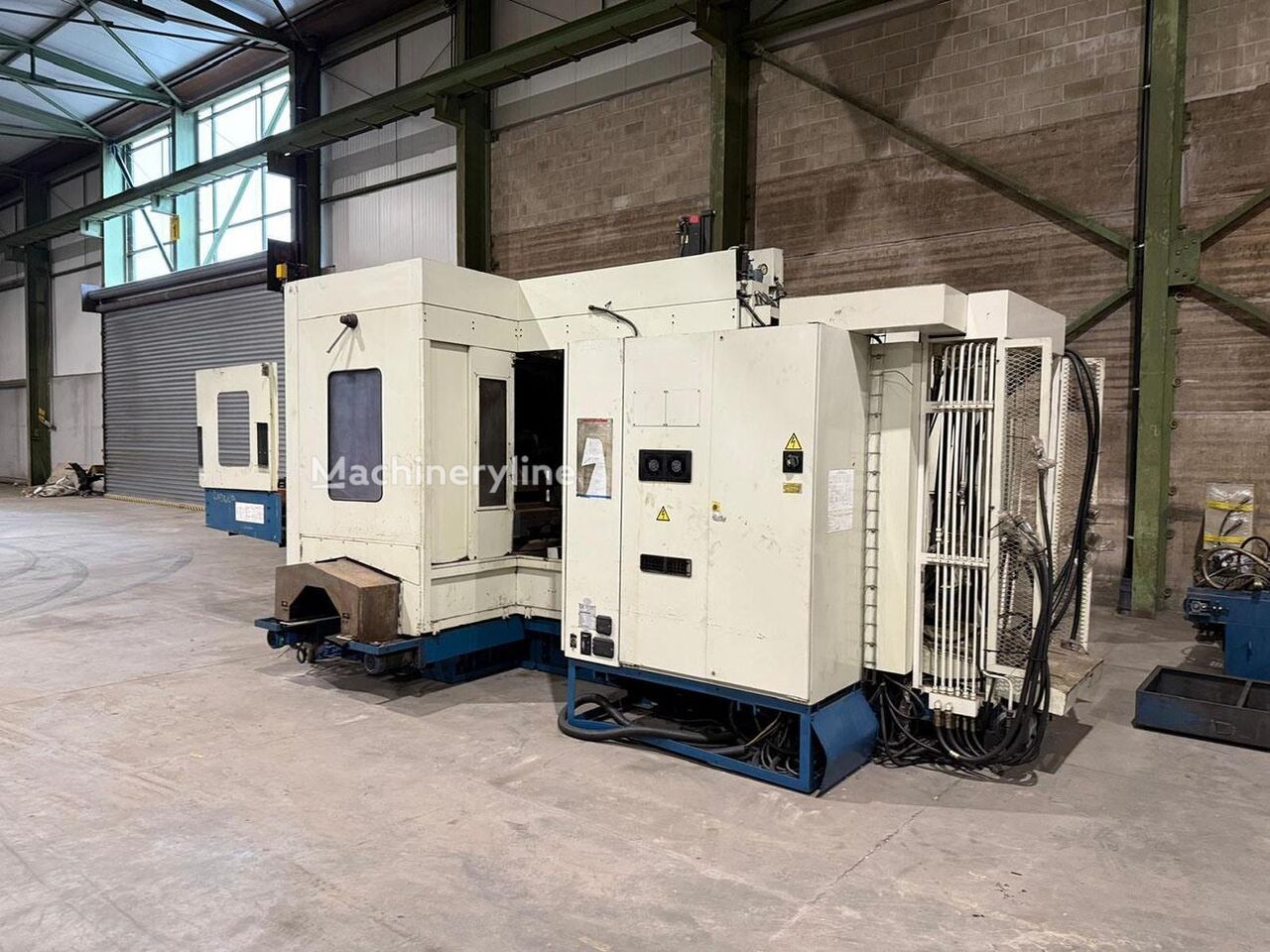

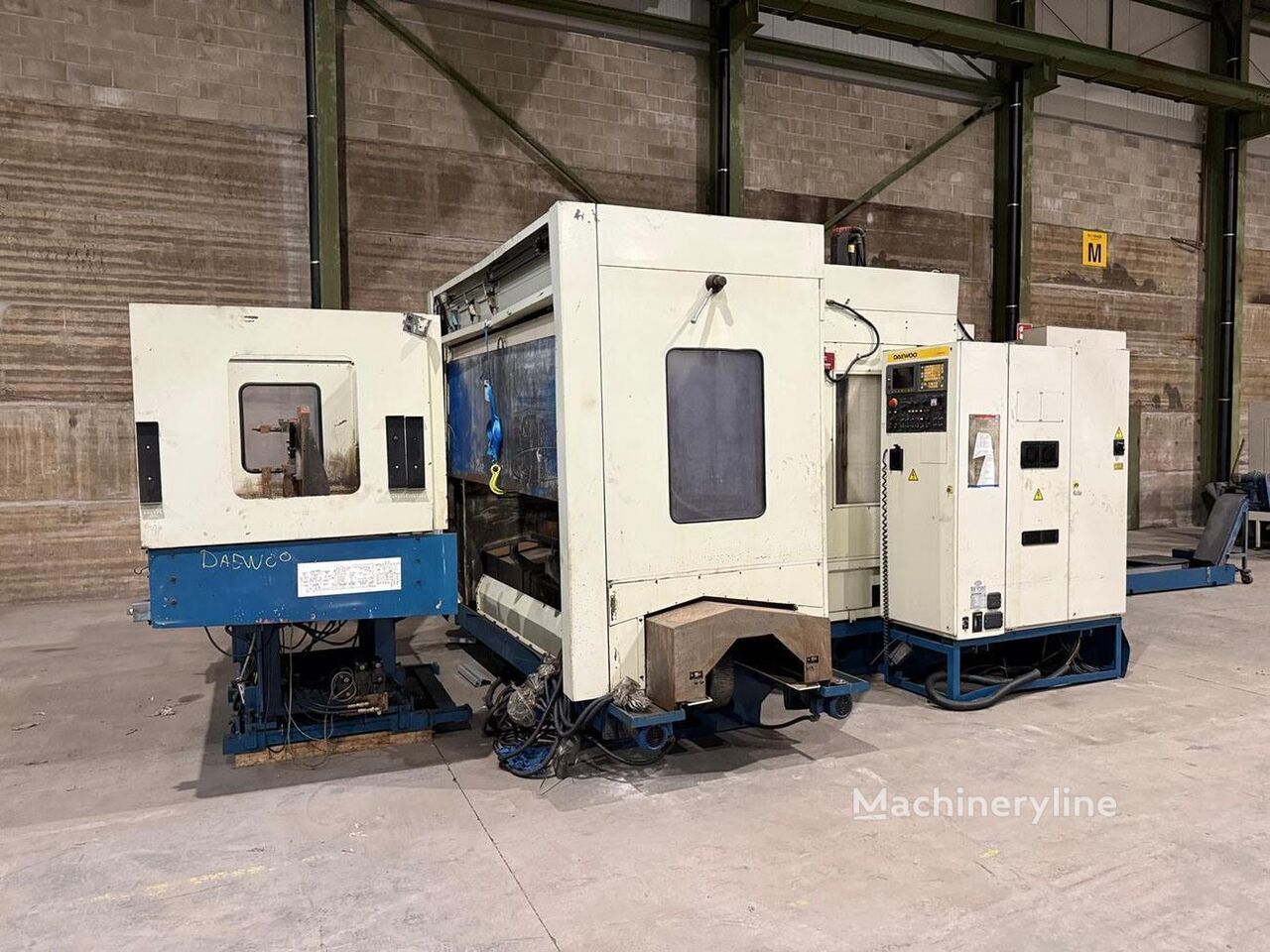

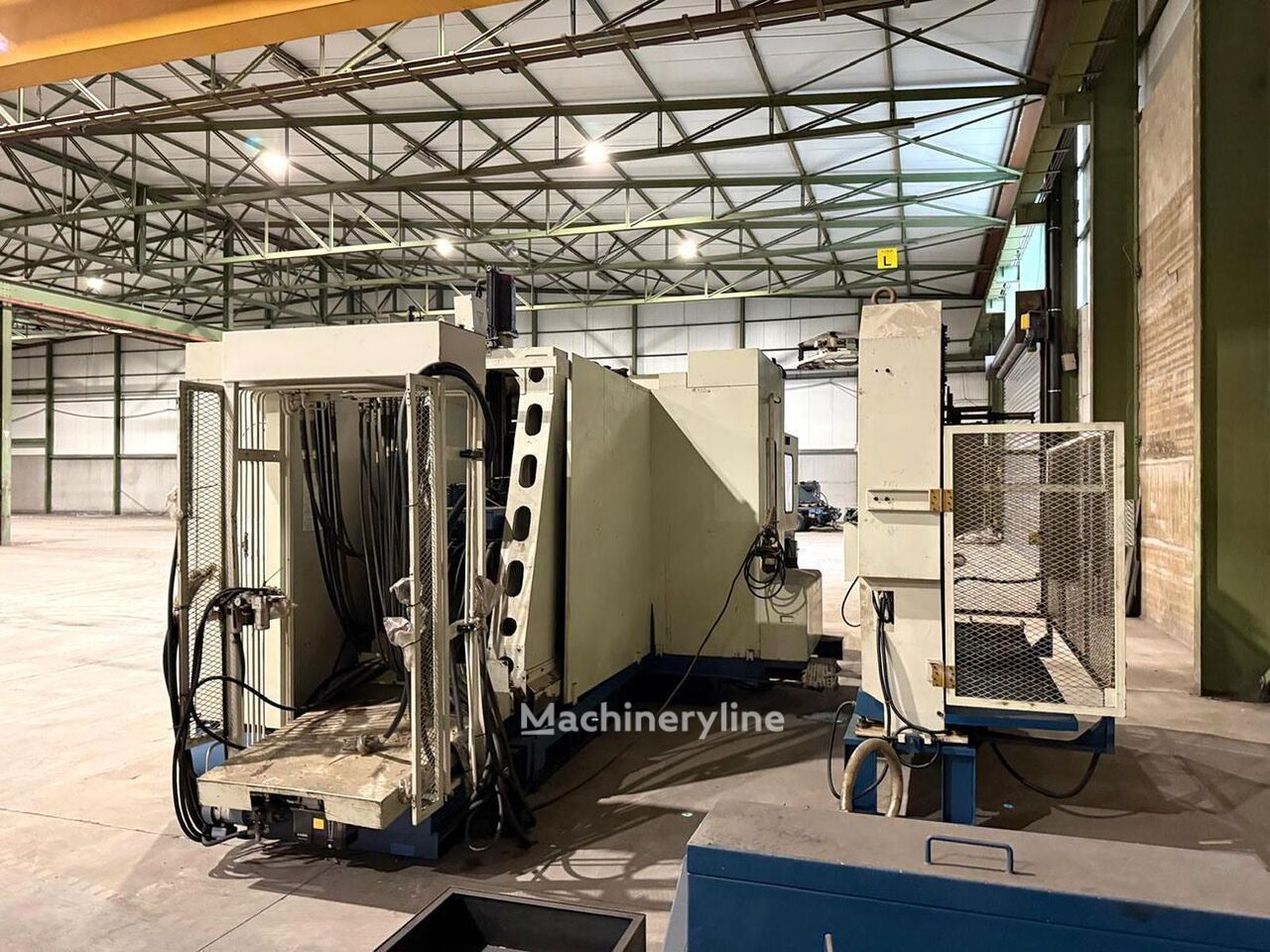

Daewoo X 1250 – Y 1000 – Z 1000 MM CNC Machining Center()
- Listing No
- 960607
- Year
- Manufacturer
- Daewoo
- Model
- X 1250 - Y 1000 - Z 1000
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
Daewoo X: 1250 - Y: 1000 - Z: 1000 mm CNC Table dimensions: 800 x 800 mm Max weight on the table: 2000 kg Admission in spindle (ISO): ISO 50 Power on the spindle: 25 kW Control: Fanuc OM Number of axes: 4 axes: X,Y,Z,B Toolstore: yes Tools: 90 positions Frequency : 20 -> 4500 rpm Number of pallets : 2x Power principal motor: 70 kva ACCESSORIES: yes Cooling-system: yes
About this machine
This used Daewoo machining center — also known as a machining centre or CNC machining center — is a multi-axis computer-numerically controlled machine tool designed for precision milling, drilling, boring, and tapping operations on complex workpieces. Daewoo is a well-established manufacturer with a long history of producing heavy-duty industrial machine tools serving the aerospace, automotive, die and mould, and general engineering sectors.
The machine offers a substantial working envelope with axis travels of 1,250 mm in X, 1,000 mm in Y, and 1,000 mm in Z, making it well suited to large-format part production. The table measures 800 x 800 mm and is rated to carry a maximum workpiece weight of 2,000 kg, reflecting the robust construction typical of machines intended for heavy-duty cutting tasks.
The spindle accepts ISO 50 toolholders and is driven by a 25 kW spindle motor, with a speed range of 20 to 4,500 rpm covering a broad spectrum of materials and cutting strategies from heavy roughing at low speed to finer finishing passes at higher revolutions. The principal motor is rated at 70 kVA, underlining the machine's capacity for sustained, high-demand operation.
Control is provided by a Fanuc OM system, a well-proven CNC controller widely used in production environments and supported by a broad base of operators and engineers. The machine operates on four axes — X, Y, Z, and B — giving it rotary capability for complex multi-face machining without repositioning.
The automatic toolstore holds 90 tool positions, enabling extended unmanned runs and reducing manual intervention between operations. Two pallets are fitted, allowing one workpiece to be loaded and prepared while another is being machined, which significantly improves throughput and reduces cycle times. A cooling system is included, and accessories are present with the machine. The machine is located in Belgium and is available in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
