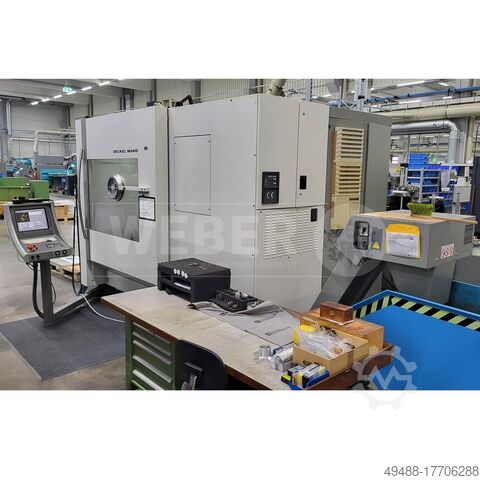

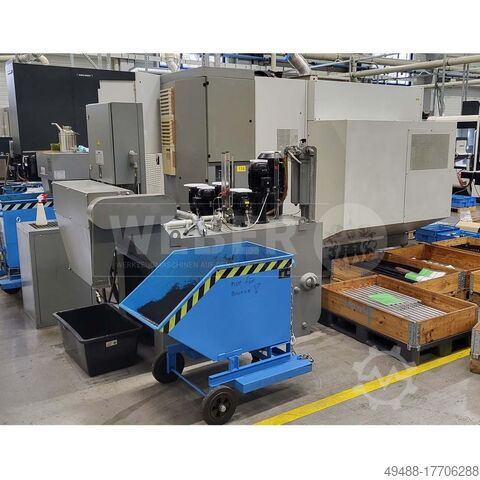

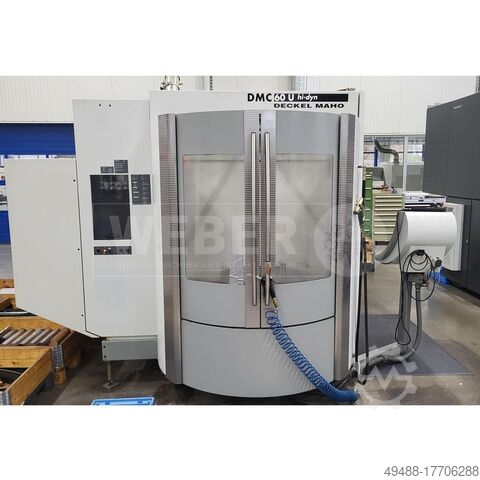

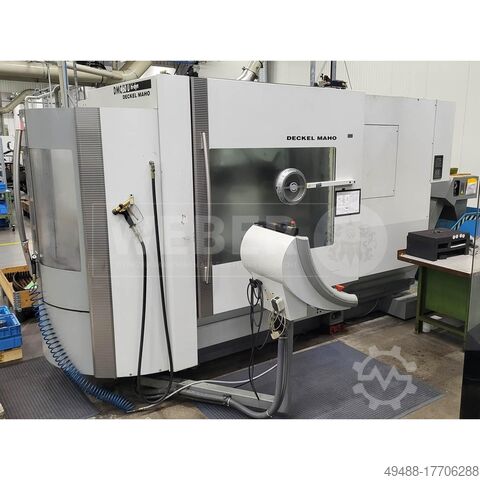

2001 - Deckel Maho DMC 60U HI-DYN Machining Center()
- Listing No
- 944460
- Year
- 2001
- Manufacturer
- Deckel Maho
- Model
- DMC 60U HI-DYN
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Deckel Maho DMC 60U Hi-dyn Machining Center Condition: Used Year of manufacture: 2001 Power-on hours: 56,376 Spindle hours: 26,451 Technical Data: Travel X/Y/Z: 600 / 600 / 700 mm Motor power: 15 kW (40% duty cycle); 10 kW (100% duty cycle) Speed: 18,000 rpm Tool holder: SK 40 Magazine positions SK 40: 60 Equipment: - 3D path control MillPlus IT - Horizontal double gripper tool changer - Automatic swiveling milling head - Rotating viewing window - NC rotary table with pallet support - Rotary pallet changer - 2 pallets 630 x 500 mm - Universal milling head with controlled B-axis SK 40 (only in combination with motor spindle SK 40) - Tool holder for HSK-A63 according to DIN 69893 - Electronic handwheel - Operating mode 4 Extended manual intervention Gbec Htou Rnlue Tmrfeg - Rinsing gun with pump - Tool breakage monitoring SK 40, mechanical version, range: 63...310 mm / +/- 3 mm - Interval control for chip conveyor - Internal coolant supply switchable from 40 bar to 80 bar The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
About this machine
This Deckel Maho DMC 60U HI-DYN is a used machining center — also known as a machining centre or CNC machining center — manufactured in 2001 and currently located in Germany. Machining centers are multi-axis CNC machine tools designed to perform milling, drilling, boring, and related metal-cutting operations on complex workpieces, often with automatic tool changing and minimal manual intervention between operations. Deckel Maho is a well-established German manufacturer of precision machine tools, long recognised in the metalworking and manufacturing industries for high-quality milling machines and machining centers serving aerospace, automotive, mould-making, and general engineering applications.
The machine has accumulated 56,376 power-on hours and 26,451 spindle hours since new. Axis travels are 600 mm in X, 600 mm in Y, and 700 mm in Z. The spindle delivers 15 kW at 40% duty cycle and 10 kW at continuous 100% duty cycle, with a maximum speed of 18,000 rpm. The tooling interface is SK 40, and the integrated tool magazine holds 60 SK 40 positions. A horizontal double-gripper tool changer handles automatic tool exchange.

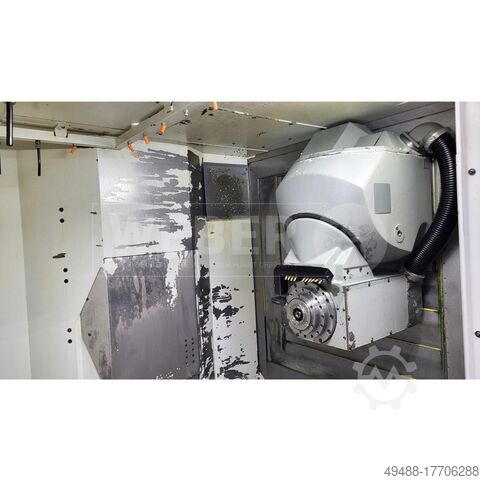

Control is provided by a 3D path MillPlus IT CNC system. The machine is equipped with an automatic swivelling milling head and a universal milling head featuring a controlled B-axis for SK 40 (compatible exclusively with the motor spindle SK 40). A tool holder for HSK-A63 to DIN 69893 is also included. Workholding and pallet handling is supported by an NC rotary table with pallet support, a rotary pallet changer, and two pallets each measuring 630 × 500 mm.
Additional equipment includes an electronic handwheel, operating mode 4 for extended manual intervention, a rotating viewing window, a rinsing gun with pump, an interval control for the chip conveyor, and mechanical tool breakage monitoring for SK 40 with a measuring range of 63 to 310 mm and a tolerance of ±3 mm. Internal coolant supply is fitted and switchable between 40 bar and 80 bar, allowing adaptation to different machining strategies and materials.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
