1994 - Deckel Maho DMC 70 V Machining Center()
- Listing No
- 943153
- Year
- 1994
- Manufacturer
- Deckel Maho
- Model
- DMC 70 V
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

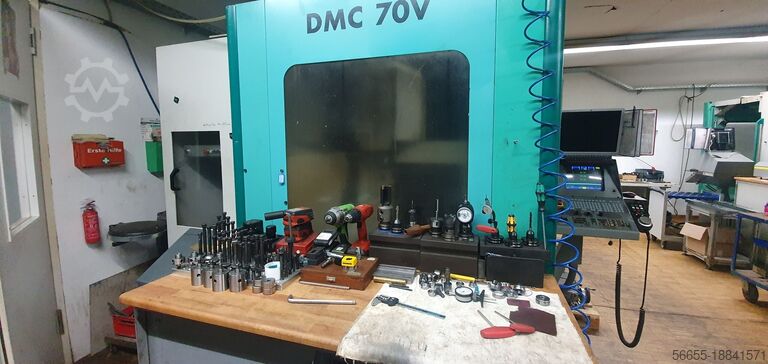

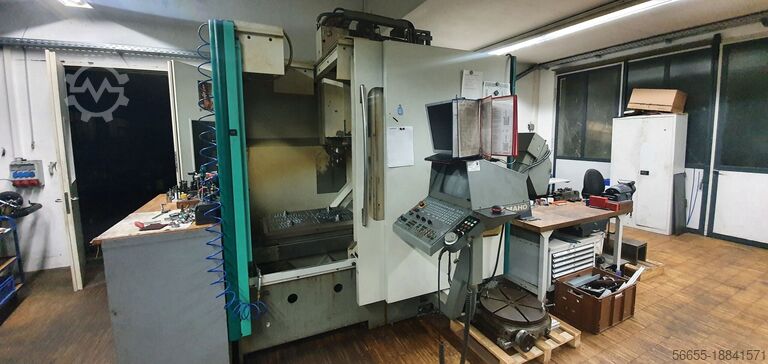

For sale is a Deckel Mori 70 V gantry machining center. The machining center is ready for immediate use and fully functional. Technical specifications: Year of manufacture: 1994 Grundig Dialog 112 control system X travel 700 mm Y travel 550 mm Z travel 500 mm SK 40 chuck mount Brushless AC servo motor Drive type: Continuously variable 0-8000 rpm Feed speed: Continuously variable 10000 mm/min Table size: 900 x 550 mm Table load: 0.8 t Machine weight: approx. 7.2 t Knoll scraper conveyor belt Internal cooling system Rapid traverse x/y 30000 mm/min Rapid traverse z 20000 mm/min Transport and loading can be arranged throughout Europe upon request for an additional charge. Prices plus VAT. Viewings available by appointment. Contact us; our team will be happy to assist you. Trade-ins or exchanges are available! Machine Purchase/Sale PURCHASE/SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality, yet affordable metalworking machine for your production? Or do you want to sell yours? For further information or to contact us, visit our website. Fewv Hjv T U Udei S Repb The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
About this machine
This Deckel Maho DMC 70 V is a used machining center — sometimes referred to as a CNC machining center or vertical machining center — a machine tool designed for precision milling, drilling, boring, and related metal-cutting operations on a wide range of workpiece geometries. Deckel Maho is a well-established German manufacturer with a long history of producing high-precision machine tools for the metalworking and engineering industries, serving sectors from aerospace and automotive to toolmaking and general manufacturing.

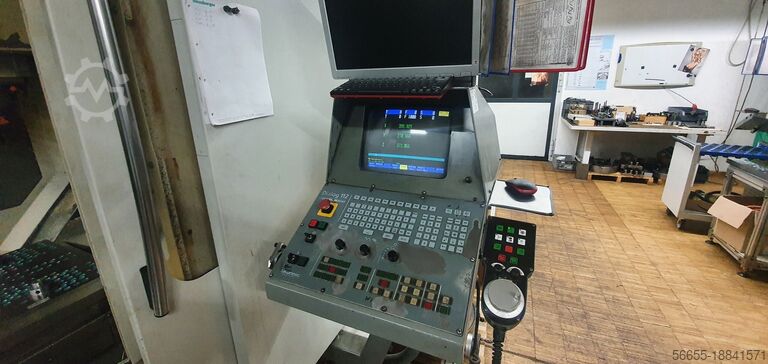

Dating from 1994, this machine is described as fully functional and ready for immediate use. It runs on a Grundig Dialog 112 control system and is equipped with brushless AC servo motors, driving a continuously variable spindle speed range of 0 to 8,000 rpm with an SK 40 tool mount interface. The feed speed is continuously variable up to 10,000 mm/min, while rapid traverse rates reach 30,000 mm/min on the X and Y axes and 20,000 mm/min on the Z axis, allowing fast, efficient positioning between cuts.

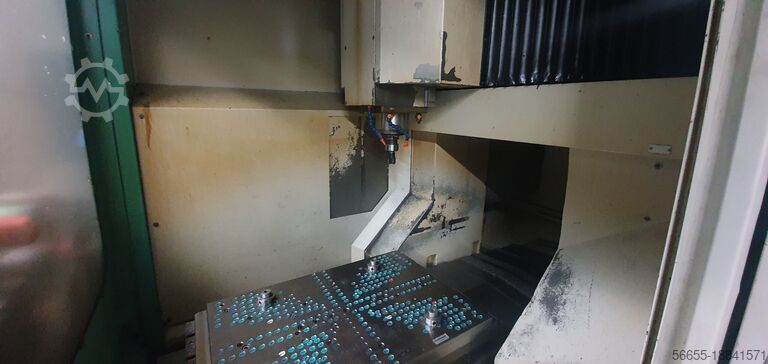

The machine's axis travels measure 700 mm in X, 550 mm in Y, and 500 mm in Z, giving a solid working envelope for medium-sized components. The work table measures 900 x 550 mm and is rated to carry loads of up to 0.8 tonnes. Overall machine weight is approximately 7.2 tonnes.

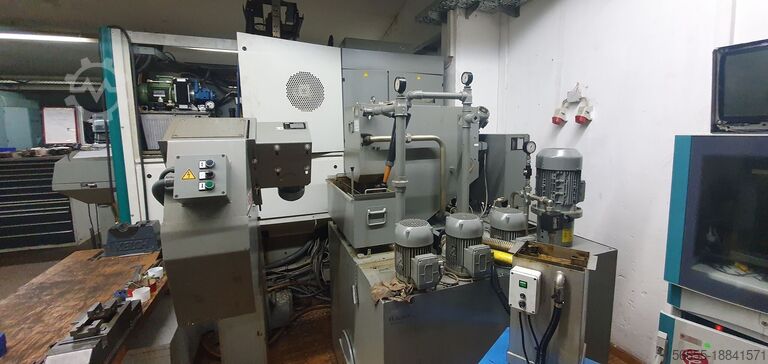

Ancillary equipment included with the machine comprises a Knoll scraper conveyor belt for chip removal and an internal cooling system. The machine is located in Germany.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
