2000 - Deckel Maho DMU 125 P HI-DYN Machining Center()
- Listing No
- 945848
- Year
- 2000
- Manufacturer
- Deckel Maho
- Model
- DMU 125 P HI-DYN
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
Year of construction: 2000 CNC controller: '3D contouring control Millplus Gec Ht Tmexvrbisrfobg Axes X-axis travel mm: 1250 Y-axis travel mm: 880 Z-axis travel mm: 800 C-axis degrees: 360º (0,001) Feed rates m/min: 40 Rapid traverse m/min: 40 Milling/turning table nc: Number of pallets: 1 Table dimensions mm: Ø1000 Max. workpiece weight kg: 1000 max. torque Nm: 7900 Spindle Spindle speed rpm: 18000 Spindle drive power kW: 15/10 (40%ED/cont) Cooling Tank capacity: 600 Tool system Tool holder: CAT 40 Tool magazine slots: 60 Tool changer: Doeble gripper Equipment Electronic Handwheel Chip conveyor Internal cooling lubricant supply Rotating inspection windows Rinsing gun Preapared for RENISHAW sonde Accuracy package Ready for internal cooling (40/80 bar) Paper band filter Machine running times Under power: 33831 Spindle Working: 6328 Rated power kVA: 55 Basic machine dimensions / weight Length mm: 7000 Width mm: 3500 Height mm: 3902 Request more information Request more information Already requested
About this machine
This Deckel Maho DMU 125 P HI-DYN is a used machining center — sometimes referred to as a machining centre or CNC machining center — built in 2000 and currently located in Germany. Machining centers are versatile multi-axis machine tools used for milling, drilling, boring, and related cutting operations on metal and other materials, typically under full CNC control. Deckel Maho is a well-established German manufacturer of precision machine tools, long recognised for producing high-quality milling machines and machining centers for the aerospace, automotive, die-and-mould, and general engineering industries.

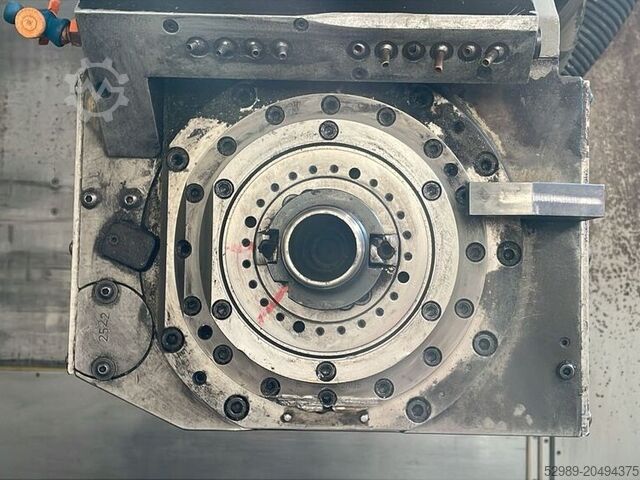

The machine is controlled by a 3D contouring Millplus CNC system and operates across four axes. Linear travels are 1,250 mm in X, 880 mm in Y, and 800 mm in Z. The C-axis provides full 360-degree rotation with a resolution of 0.001 degrees, and the table is described as an NC milling/turning table, indicating combined milling and turning capability. Feed rates and rapid traverse both reach 40 m/min, which is consistent with the HI-DYN designation in the listing name. The round table has a diameter of 1,000 mm and is supported by a single-pallet configuration, accepting workpieces weighing up to 1,000 kg. Maximum table torque is rated at 7,900 Nm.
The spindle reaches a maximum speed of 18,000 rpm and is driven by a motor rated at 15 kW at 40% duty cycle and 10 kW continuous. Tooling is via a CAT 40 tool holder interface, and the automatic tool magazine holds 60 tools, served by a double-gripper tool changer. The coolant system has a tank capacity of 600 litres and includes an internal cooling lubricant supply prepared for high-pressure internal through-spindle cooling at 40 or 80 bar. A paper band filter and chip conveyor are included for swarf management.
Additional equipment fitted to this machine includes an electronic handwheel, rotating inspection windows, a rinsing gun, and a preparation for a Renishaw measuring probe. An accuracy package is also noted. The machine's electrical supply requirement is 55 kVA rated power.
Regarding recorded running hours, the machine shows 33,831 hours under power and 6,328 spindle working hours. The overall footprint is 7,000 mm long, 3,500 mm wide, and 3,902 mm tall.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
