Deckel Maho DMU 35 M Machining Center()
- Listing No
- 941189
- Year
- Manufacturer
- Deckel Maho
- Model
- DMU 35 M
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
DECKEL Milling Machine, Tool Milling Machine DMU 35 M 3 x 2-axis CNC milling machine With SIEMENS 810 D – ShopMill software Year of manufacture: 2001-2003 Travel distances X/Y/Z: 350 x 240 x 340 mm Infinitely variable spindle speed: 20 – 6,300 rpm Spindle taper: SK 40 DIN 69871 Drawbar: DIN 69872 Drive power: 6.3 / 10 kW (100/40% duty cycle) Torque: 55/80 Nm max. Universal swivel/rotary table: 400 x 290 mm Table load capacity: 100 kg Distance spindle nose to table: min./max. 145/485 mm Feed rates: 3,000 mm/min Rapid traverse: 5,000 mm/min Input increment: 0.01 mm Rotation range: 360 degrees Swivel range: degrees Total power requirement: kVA Weight: approx. 1,750 kg Technical data subject to change! Equipment / Accessories: Direct position measuring system for 3 axes Fpjc N Aqhjxz Rdajpsb Spindle drive via servo motor with toothed belt 2 gearbox stages Full safety enclosure with sliding door Swiveling control panel Coolant nozzles on vertical head Coolant system Chip tray with coolant tank Electronic handwheel Machine feet Machine lamp Interface Serial RS232C, LAN (RJ45) The machine is perfect for prototyping, toolmaking, training, mechanical workshops, gunsmiths, etc. It impresses with its versatility, with the additional manually operated rotary-swivel table allowing 5-sided machining. Available in March 2026 A total of 3 machines are available. Condition: Good to very good from a vocational training center, see pictures The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
About this machine

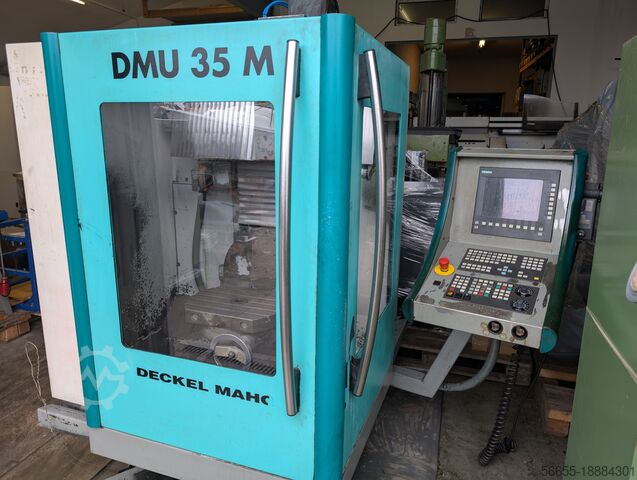

The Deckel Maho DMU 35 M is a used machining center — sometimes referred to as a CNC milling center — designed for precision multi-axis metal cutting operations including milling, drilling, and contouring. Machining centers of this type are workhorses in toolmaking, prototyping, mechanical workshops, and vocational training environments. Deckel Maho is a well-established German manufacturer of high-precision milling and machining equipment, long associated with demanding applications in toolrooms, aerospace, medical engineering, and general precision engineering.

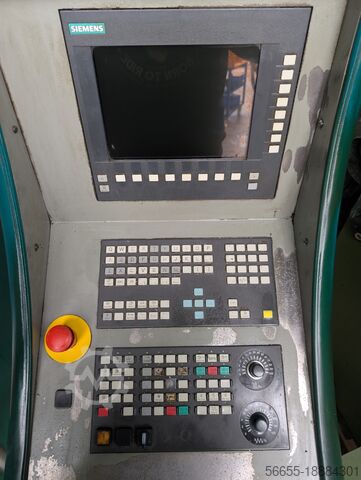

This listing offers a total of three machines, all sourced from a vocational training center and described as being in good to very good condition. They were manufactured between 2001 and 2003 and are available from March 2026. Each machine runs the Siemens 810D control with ShopMill conversational software, a widely used and capable CNC platform well suited to both skilled operators and training environments.

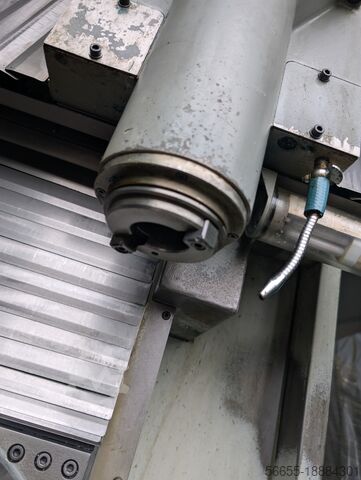

The working envelope covers 350 mm in X, 240 mm in Y, and 340 mm in Z. The spindle operates over an infinitely variable speed range of 20 to 6,300 rpm, driven by a servo motor via toothed belt through two gearbox stages. The spindle taper is SK 40 to DIN 69871 with a drawbar to DIN 69872. Drive power is rated at 6.3 kW continuous and 10 kW at 40% duty cycle, with maximum torque figures of 55 Nm and 80 Nm respectively. Feed rate is 3,000 mm/min and rapid traverse reaches 5,000 mm/min, with an input increment of 0.01 mm.

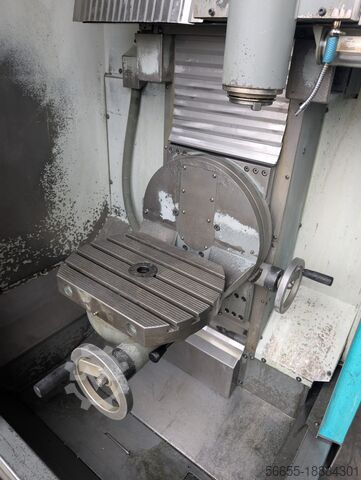

A key feature is the universal swivel and rotary table measuring 400 x 290 mm, with a table load capacity of 100 kg and a rotation range of 360 degrees. This manually operated rotary-swivel unit enables five-sided machining, considerably extending the machine's versatility for complex workpiece geometries. Spindle nose to table distance ranges from 145 mm to 485 mm. Direct position measuring is fitted to all three axes, supporting high positioning accuracy.

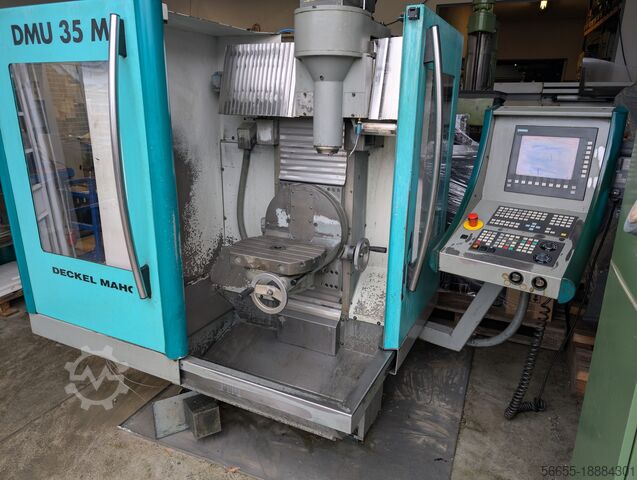

Each machine comes with a full safety enclosure with sliding door, swiveling control panel, coolant nozzles on the vertical head, a coolant system with chip tray and coolant tank, an electronic handwheel, machine feet, and a machine lamp. Connectivity is provided via serial RS232C and LAN (RJ45) interfaces. Machine weight is approximately 1,750 kg.
