2002 - Deckel Maho DMU 50 M TNC 124 Machining Center()
- Listing No
- 942587
- Year
- 2002
- Manufacturer
- Deckel Maho
- Model
- DMU 50 M TNC 124
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
For sale is a Deckel Maho machining center, type DMU 50 M with path control and manual rotation axes The machine is in very good condition, fully functional and ready for immediate use. Particularly noteworthy is the possibility of working in an open cabin Technical data: Year of construction: 2002 Control: Heidenhain TNC 124 X-axis: 500 mm Y-axis: 400 mm Z-axis: 400 mm Feed speed: 5,000 mm/min Rapid traverse: 5 m/min Tool holder: SK 40 Clamping surface: Ø 700 x 500 mm Fpewv Hiisu Unh Ishsb Rotation range: 360 ° (mechanical) Swivel range: +90/ - 15 ° (mechanical) Max. load: 200 kg Space requirement: 4,000 x 3,500 x 2,518 mm Transport dimensions: approx. 2,500 x 1520 x 2,200 mm Weight: 2,600 kg Additional tool holders available on request Transport and loading can be organized on request, at an extra charge. can be organized throughout Europe. Prices plus VAT Viewing possible by appointment. Contact us, our team will be happy to help you. Trade-in or exchange possible! Machines purchase / sale PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MUCH MORE. Do you need a high-quality but inexpensive metalworking machine for your production? Or do you want to sell yours? For further information or contact options, please visit our website The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
About this machine

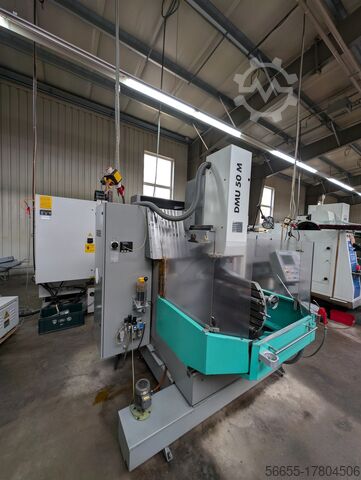

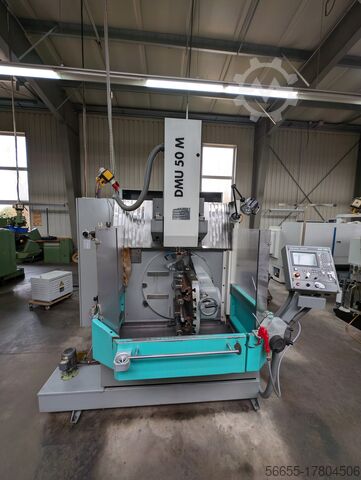

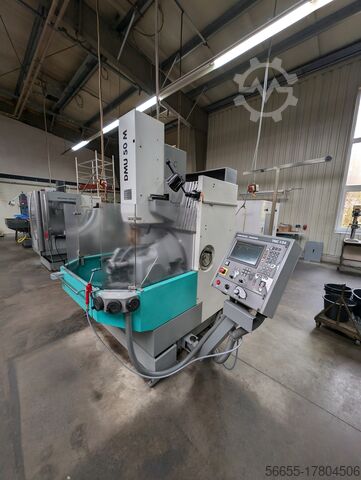

This Deckel Maho DMU 50 M TNC 124 is a used machining center — sometimes referred to as a machining centre or CNC milling machine — built in 2002 and currently located in Germany. Machining centers are multi-axis machine tools used in metalworking and precision manufacturing to perform milling, drilling, boring, and contouring operations under computer numerical control. Deckel Maho is a well-established German manufacturer of high-precision machine tools, serving industries such as aerospace, automotive, toolmaking, and general engineering.

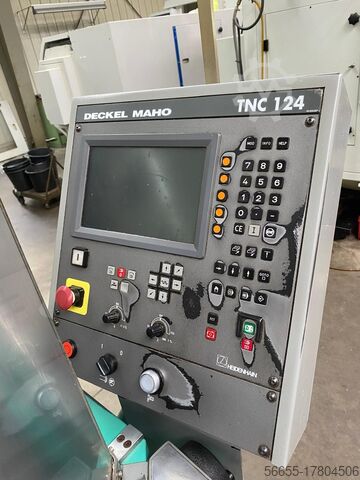

The machine is controlled by a Heidenhain TNC 124 path control system and features manually operated rotation and swivel axes. The linear travels are 500 mm in X, 400 mm in Y, and 400 mm in Z. Feed speed reaches 5,000 mm/min, with a rapid traverse rate of 5 m/min. Tooling is accommodated via an SK 40 tool holder interface, and additional tool holders are available separately.

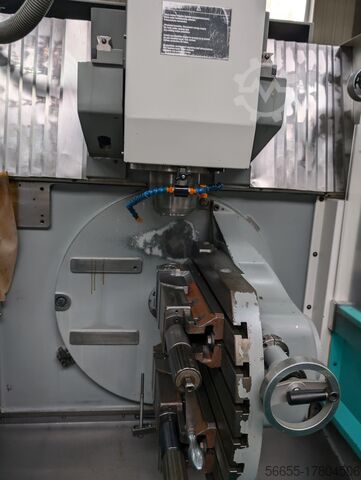

The rotary table offers a full mechanical rotation range of 360° and a swivel range of +90° to −15°, enabling angular and compound-angle work. The clamping surface measures Ø 700 × 500 mm and supports a maximum workpiece load of 200 kg. A notable feature is the option to operate with an open cabin configuration.
The machine has a floor footprint of 4,000 × 3,500 mm and stands 2,518 mm tall. Transport dimensions are approximately 2,500 × 1,520 × 2,200 mm, and the machine weighs 2,600 kg. The seller describes the condition as very good, fully functional, and ready for immediate use.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
