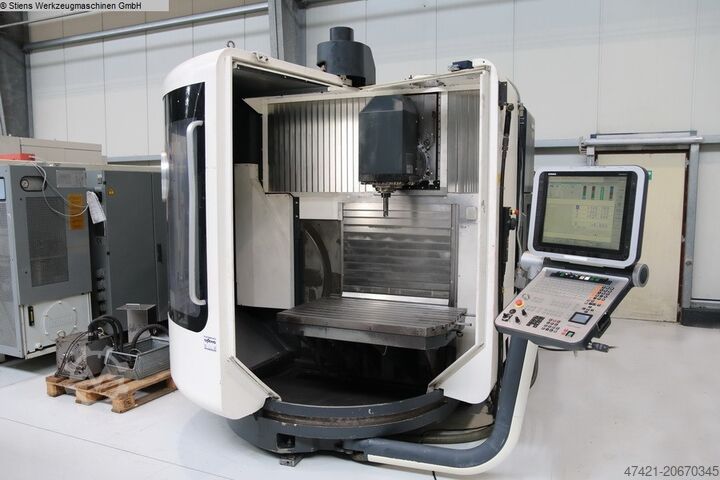

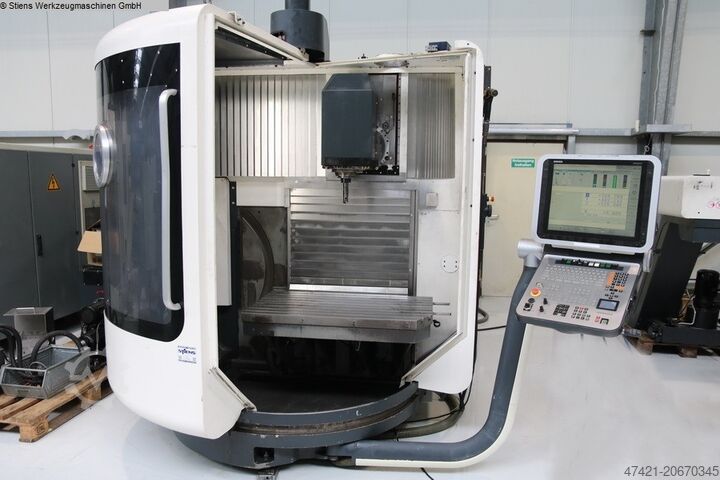

2008 - Deckel Maho DMU 60 Monoblock Machining Center()
- Listing No
- 944426
- Year
- 2008
- Manufacturer
- Deckel Maho
- Model
- DMU 60 Monoblock
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
x-travel 630 mm y-travel 560 mm z-travel 560 mm control iTNC 530 Heidenhain turning speed range - main spindle max. 18.000 min/-1 power capacity - main spindel 10 / 15 kW Gbswv Hjx A H Rleiihsg max. Torque 130 / 87 Nm tool taper HSK-A63 swivellable NC: ° table surface area 1.000 x 600 mm T-slots 9x 14 x H7 max. table load 700 kg number of toolpositions 60 pos. tool taper HSK-A63 total power requirement 49,7 kVA weight of the machine ca. ca. 11,0 t dimensions of the machine ca. 4,5 x 4,5 x 3,5 m CNC - MachiningCenter Universal DECKEL MAHO - DMU 60 monoBLOCK - 5 Axis - Swivel-Millinghead Request more information Request more information Already requested
About this machine
The Deckel Maho DMU 60 Monoblock is a used five-axis universal machining center — sometimes referred to as a CNC machining center or milling center — manufactured in 2008 and currently located in Germany. Machining centers of this type are precision machine tools designed to perform complex milling, drilling, boring, and contouring operations on a wide range of workpiece geometries, including contoured and undercut surfaces that demand simultaneous multi-axis movement. Deckel Maho is a well-established German manufacturer with a long heritage in high-precision milling and machining technology, serving industries such as aerospace, automotive, die and mould making, and general precision engineering.

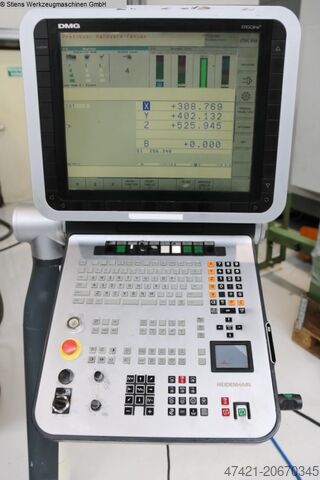

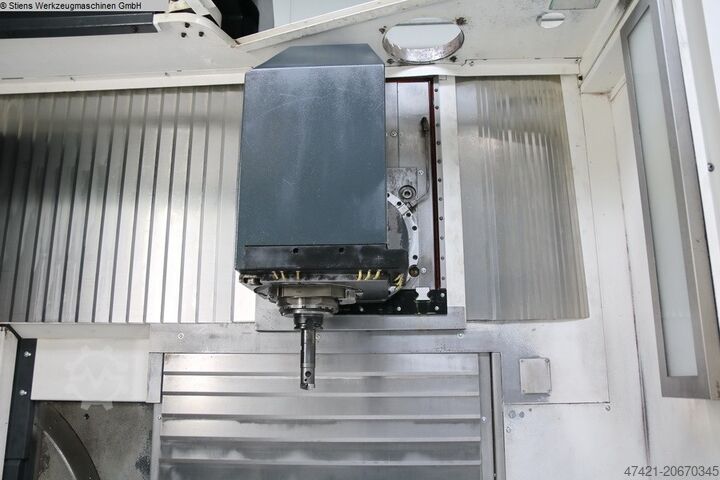

This machine is configured for five-axis work and is equipped with a swivelling milling head, enabling it to approach complex part geometries without repositioning the workpiece. The control system is a Heidenhain iTNC 530, a widely used conversational CNC controller known for its flexibility in both workshop programming and DNC operation.
The main spindle operates at speeds up to 18,000 rpm and is rated at 10 kW continuous and 15 kW peak power, with a maximum torque of 130 Nm at lower speeds and 87 Nm at higher speeds. The spindle accepts HSK-A63 toolholders, a short-taper interface standard that provides high rigidity and accurate tool location at elevated spindle speeds.
Linear axis travels measure 630 mm in X, 560 mm in Y, and 560 mm in Z. The machine table measures 1,000 mm by 600 mm and is fitted with nine T-slots in a 14 mm H7 tolerance profile, accommodating a maximum table load of 700 kg. The tool magazine holds 60 positions, all using the same HSK-A63 taper. Total connected power requirement is 49.7 kVA. The machine weighs approximately 11.0 tonnes and has an overall footprint of approximately 4.5 m × 4.5 m × 3.5 m, figures that are relevant to floor loading calculations and installation planning.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
