About this machine

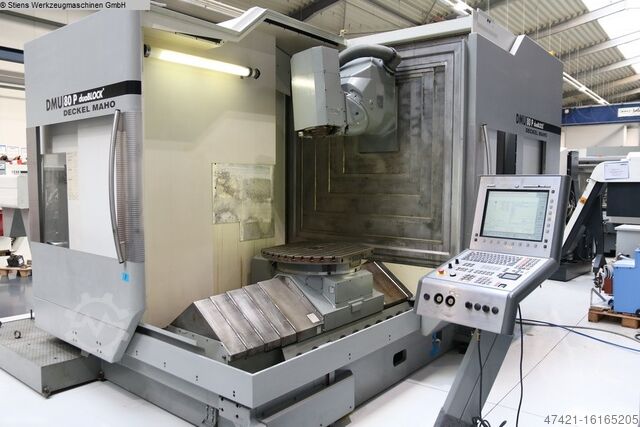

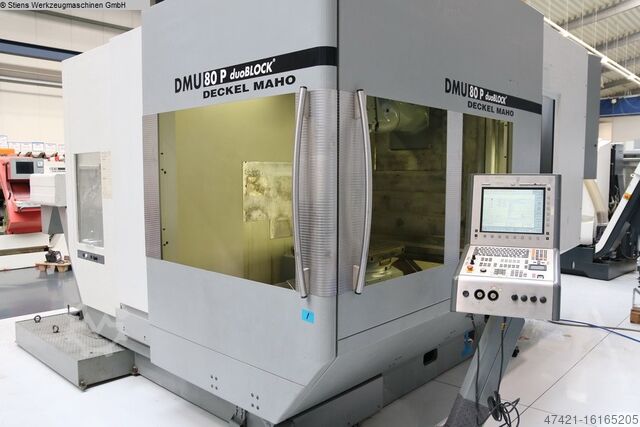

This Deckel Maho DMU 80 P Duoblock is a used five-axis machining center — sometimes referred to as a CNC machining center or universal milling center — designed for complex, high-precision multi-surface machining in a single setup. Machining centers of this type are widely used in aerospace, automotive, mould-making, and precision engineering, where the ability to machine intricate geometries without repositioning the workpiece is essential. Deckel Maho is a well-established German manufacturer of high-performance CNC machine tools, long recognised for producing precision milling and machining equipment for demanding industrial applications.

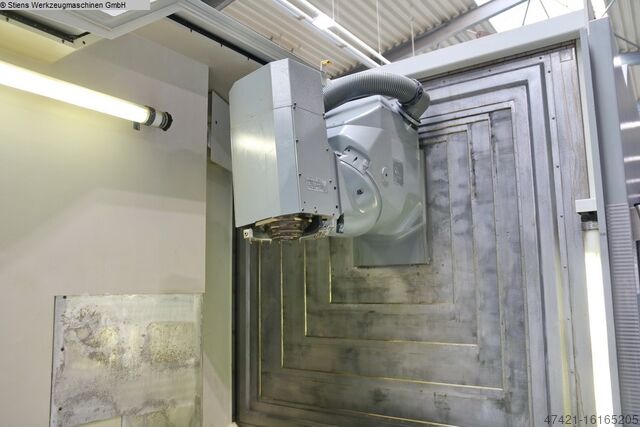

The machine was built in 2008 and is located in Germany. Its five-axis capability is delivered through a swivel milling head with a B-axis range of 0 to 190 degrees and a swivel time of 1.2 seconds, combined with a fully rotatable C-axis of 360 degrees. This configuration allows continuous five-axis contouring and high-angle undercut machining without manual intervention.

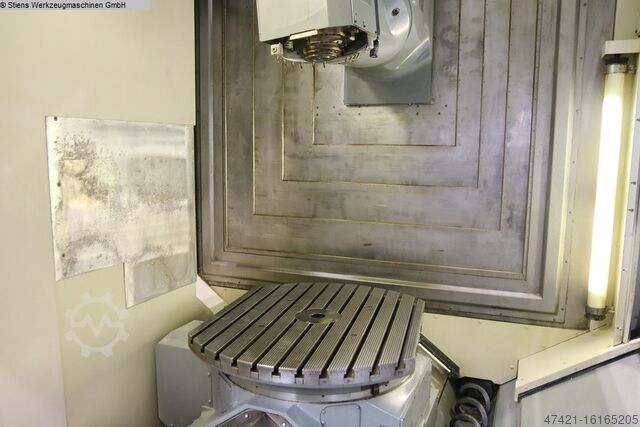

Linear travels measure 800 mm in each of the X, Y, and Z axes, giving a substantial working envelope suited to medium-to-large components. The rotary table has a surface measuring 900 x 700 mm and is rated for a maximum table load of 1,400 kg, making it capable of handling heavy workpieces. The tool interface is HSK-A63, a short-taper spindle connection standard well suited to high-speed and high-rigidity applications.

The main spindle reaches a maximum speed of 18,000 rpm and is driven by a motor rated at 28 kW (continuous) and 19 kW, with peak torque figures of 121 Nm and 82 Nm respectively. Rapid traverse rates are 60 m/min in the linear axes, with B and C axes each reaching 30 m/min, and maximum feed speed is 60,000 mm/min — figures that support highly productive cycle times. Chip-to-chip tool change time is approximately 5.0 seconds, and the automatic tool changer accommodates 40 tool positions.

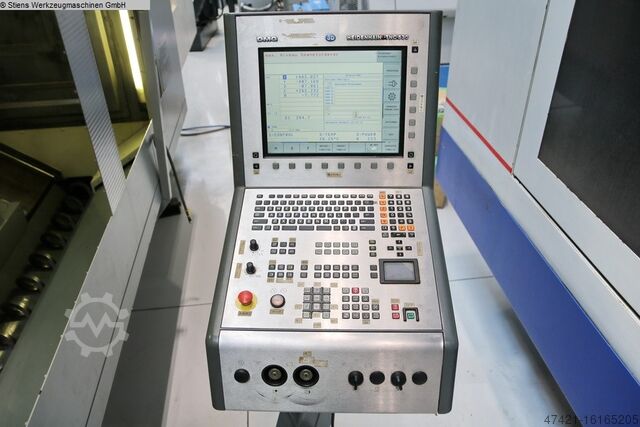

The machine is controlled by a Heidenhain iTNC 530, a conversational CNC control widely used in high-precision milling applications and known for its five-axis contouring capability and shop-floor programming flexibility. Total power requirement is 64 kVA. The machine weighs approximately 14.0 tonnes and has an installed footprint of approximately 6.5 x 6.5 x 3.5 metres.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
