1987 - Diessel Hildesheim 370 Ltr – Stirring vessel Mixer Blender()
- Listing No
- 1178779
- Year
- 1987
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-

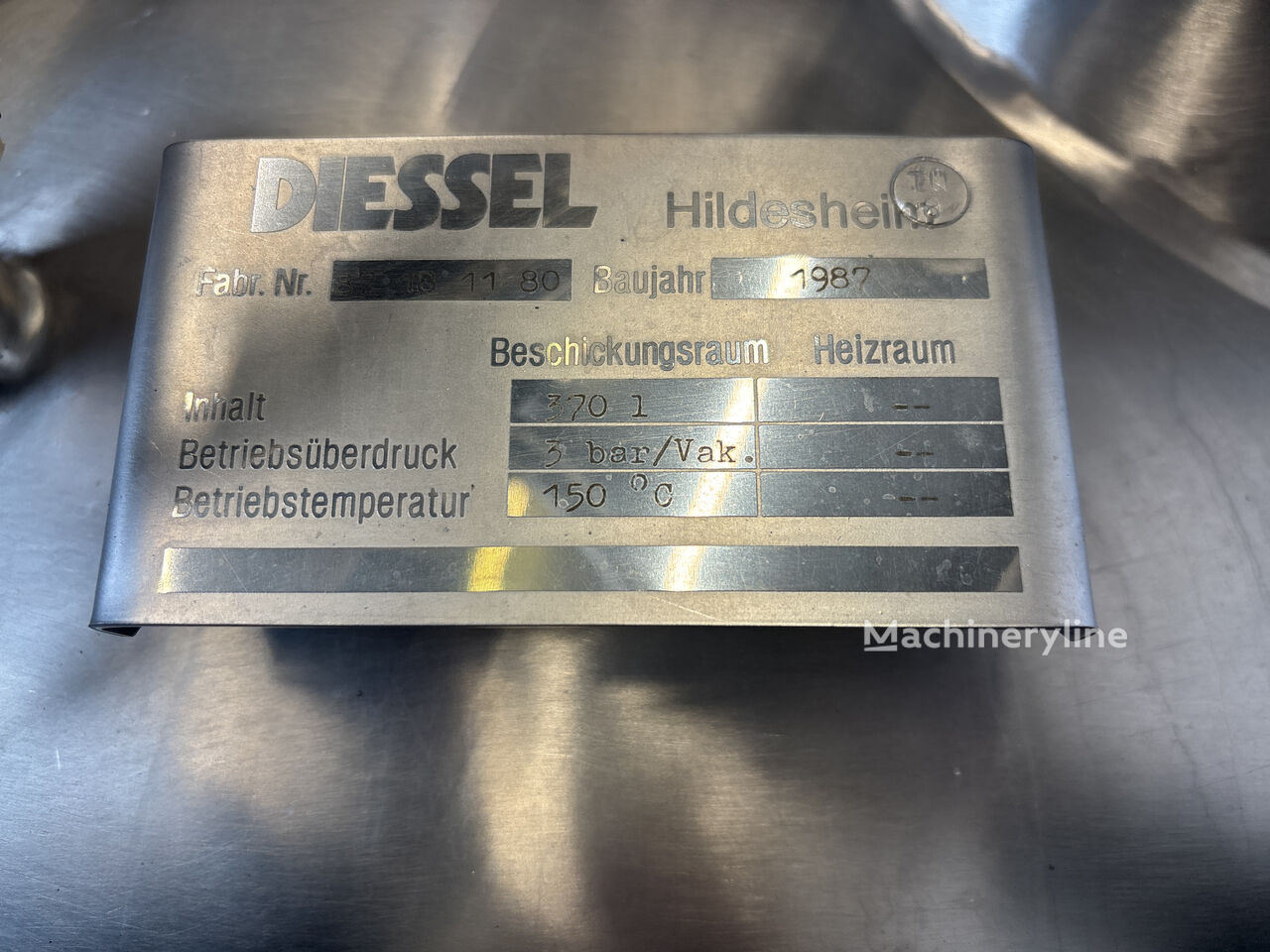

Location: Barneveld No: 87181180 Material finish: Polished inside Working pressure: 3 Bar Vacuum possible: check Material: Stainless steel 1.4571 (316Ti) Volume: 370 Ltr Motor: 0,55 KW, 220/380 Volt Closed stirring vessel: (1x) Capacity: 370 Ltr Vessel sizes: dia. 800x600mm, Vessel insulated Dished bottom: check Dished top side: check Manhole: dia. 340mm Top connections: (6x) Outlet: dia. 25mm Max. temperature: 150 Degr. C With propellor stirrer: check Speed mixing shaft: 460 Rpm Mounted on legs: check Floorspace: 1,0x1,0 M Total height: 2,1 M merk: Diessel Hildesheim General Specified Features - Stirring vessel Pressure Main Features Stirring vessels Information
About this machine

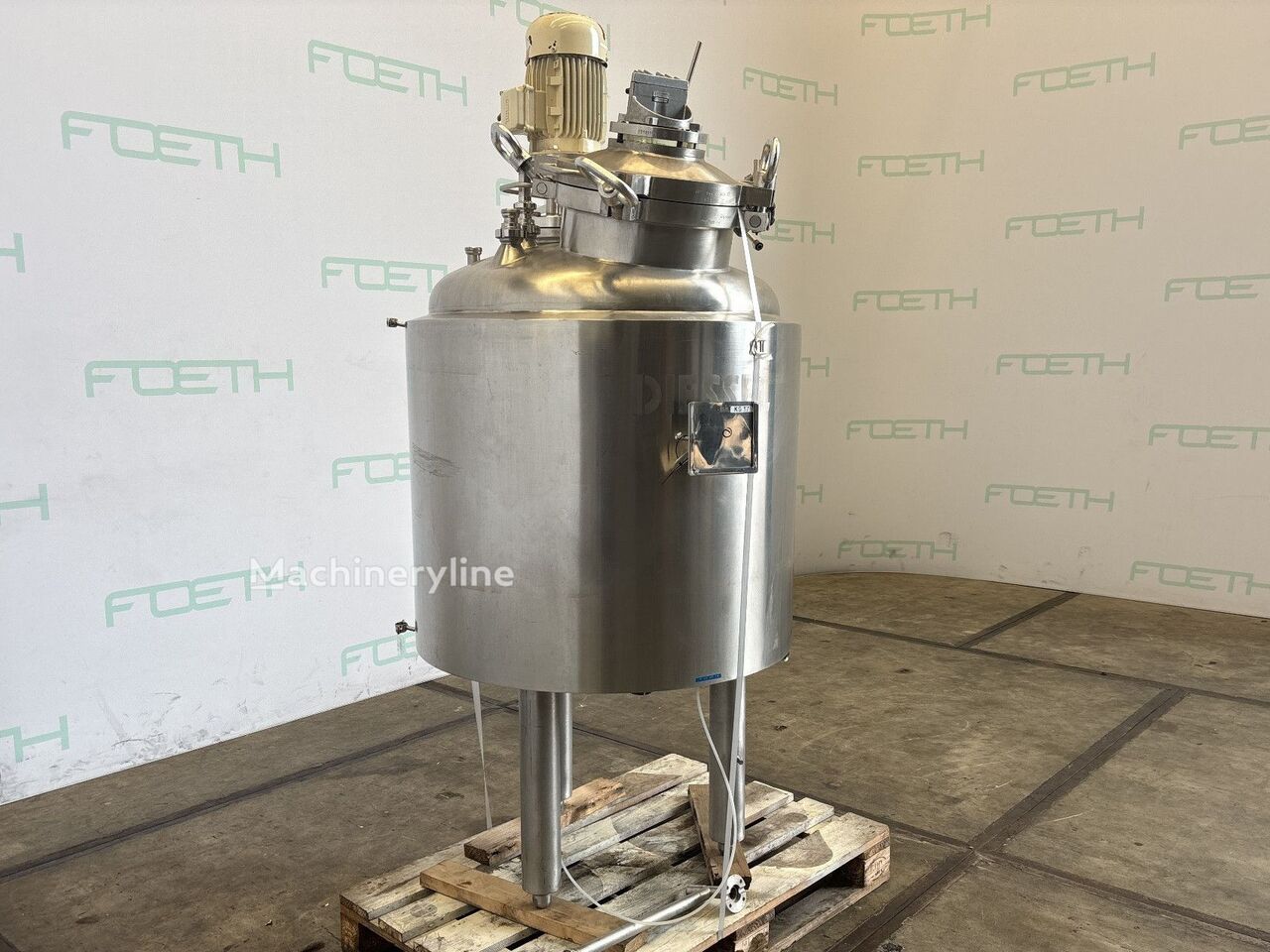

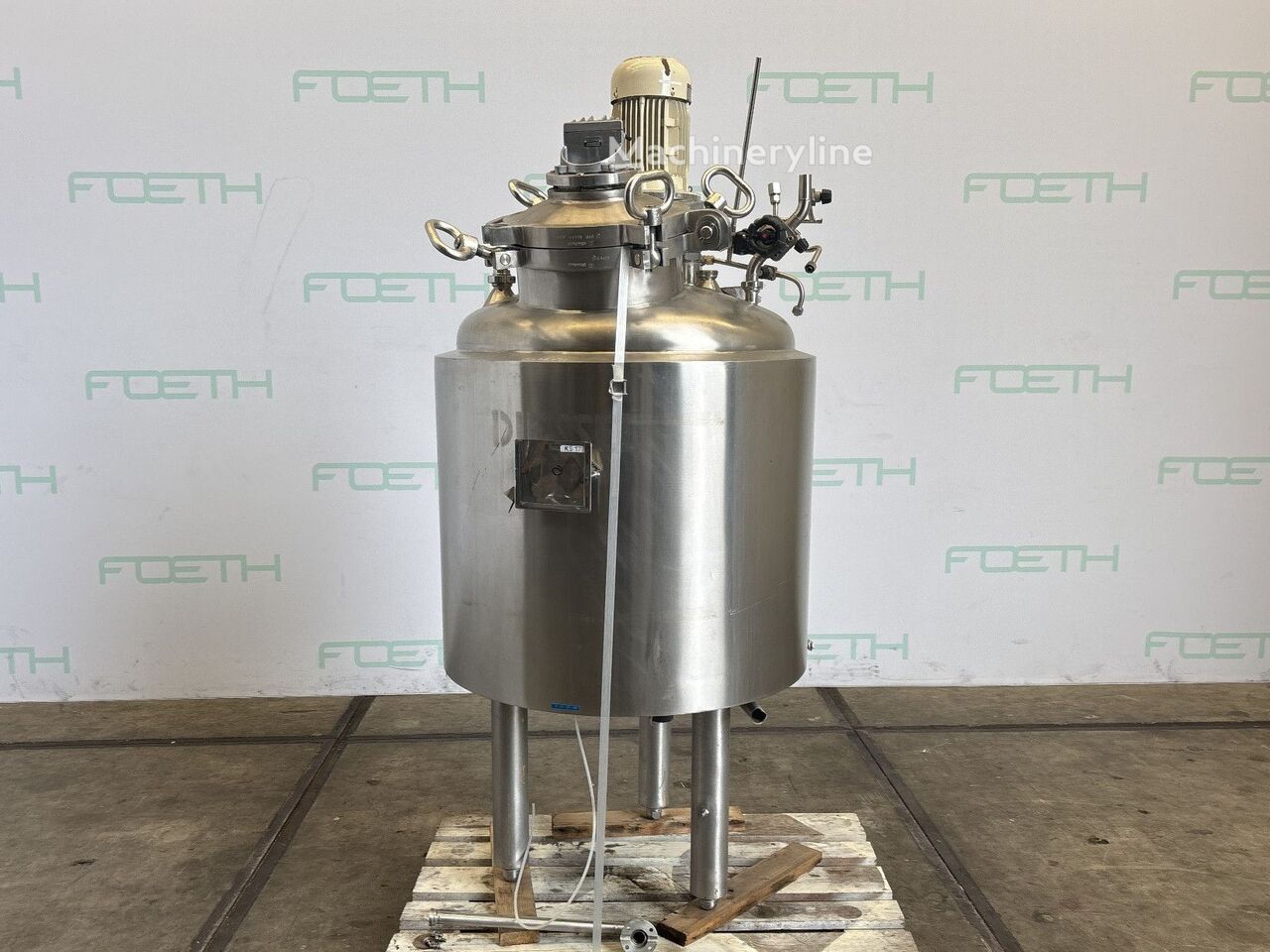

This Diessel Hildesheim 370 Ltr is a mixer and blender — a closed stirring vessel, sometimes referred to as a mixing tank — used in process industries for blending, homogenising, and agitating liquid or semi-liquid products under controlled conditions of temperature, pressure, and speed.
The vessel has a capacity of 370 litres and is constructed from stainless steel grade Ti), a titanium-stabilised austenitic alloy well suited to corrosive or high-purity process environments. The interior carries a polished finish, which supports hygiene and ease of cleaning. The vessel is fully insulated and features both a dished bottom and a dished top, configurations that promote efficient draining and structural integrity under pressure. A manhole of 340 mm diameter provides access to the interior, and six connections are fitted to the top of the vessel, with an outlet of 25 mm diameter at the base.

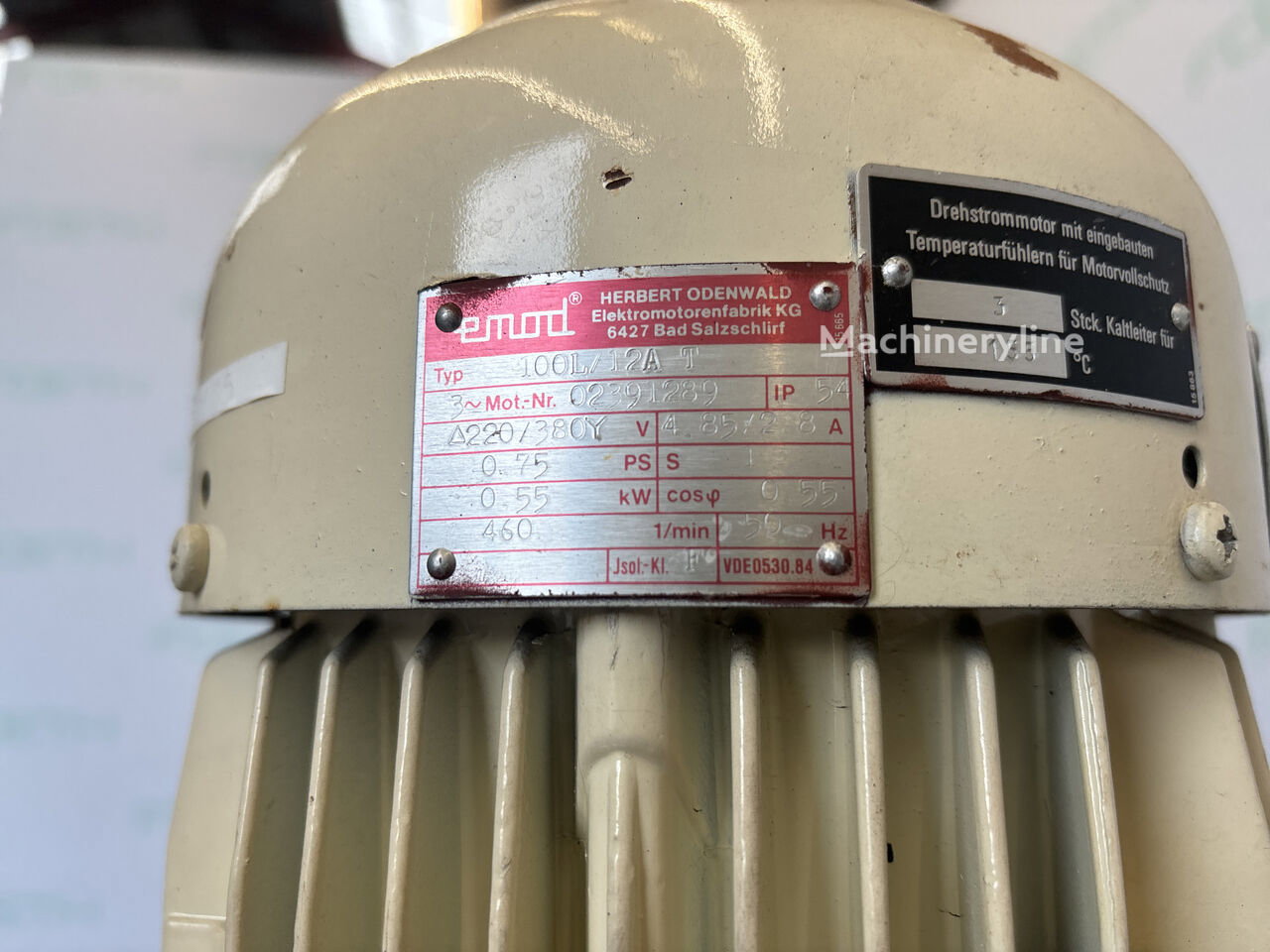

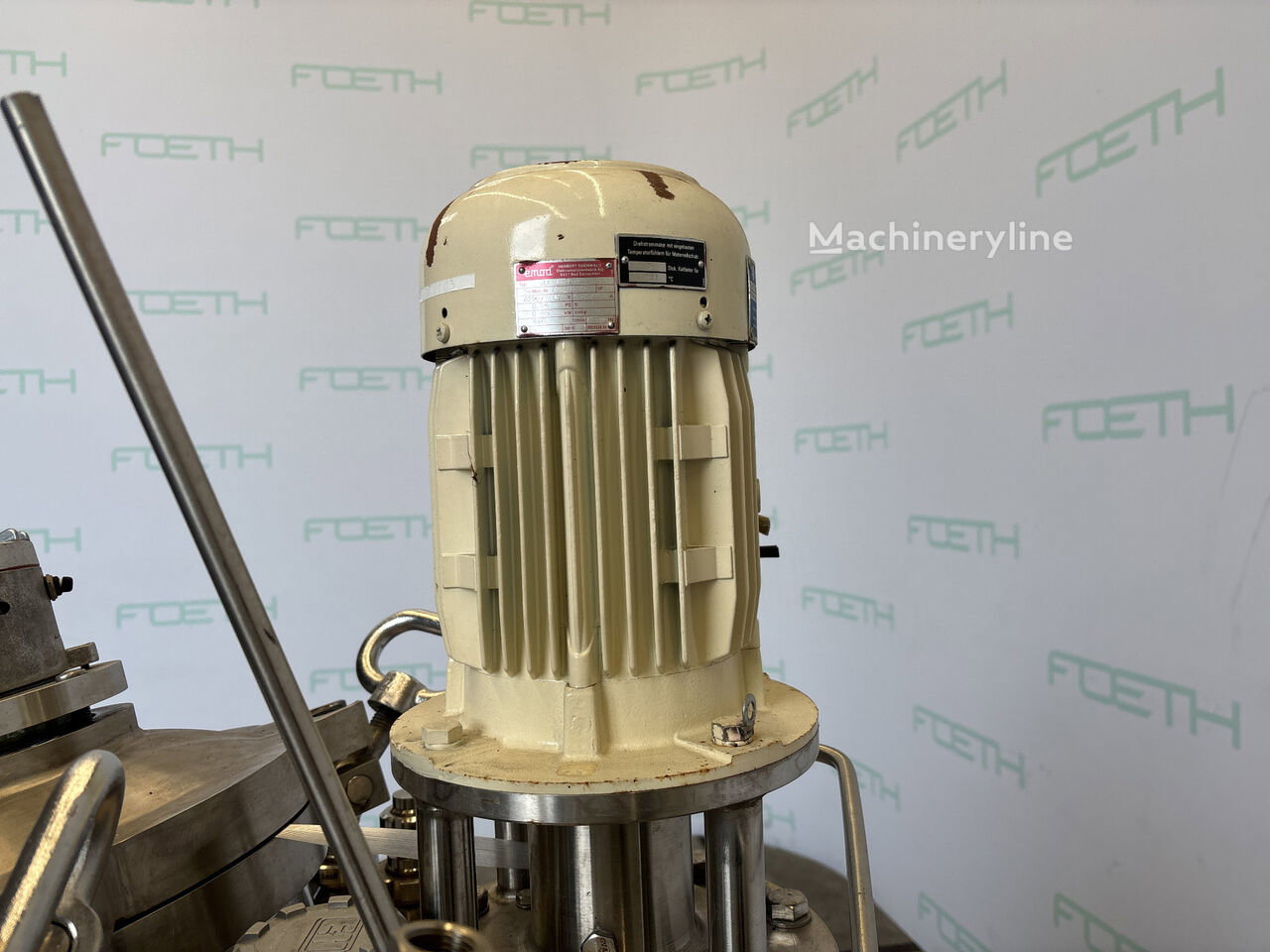

The unit operates at a working pressure of 3 bar and is capable of vacuum operation. Maximum process temperature is rated at 150 °C, making it suitable for a range of heated mixing applications. Agitation is provided by a propeller stirrer driven by a 0.55 kW motor running on 220/380 volt supply, with the mixing shaft turning at 460 rpm.
The vessel is mounted on legs and has a footprint of 1.0 × 1.0 metres, with a total installed height of 2.1 metres. The vessel body measures 800 mm in diameter by 600 mm in height. This is a single unit, manufactured in 1987, offered in used condition and currently located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
