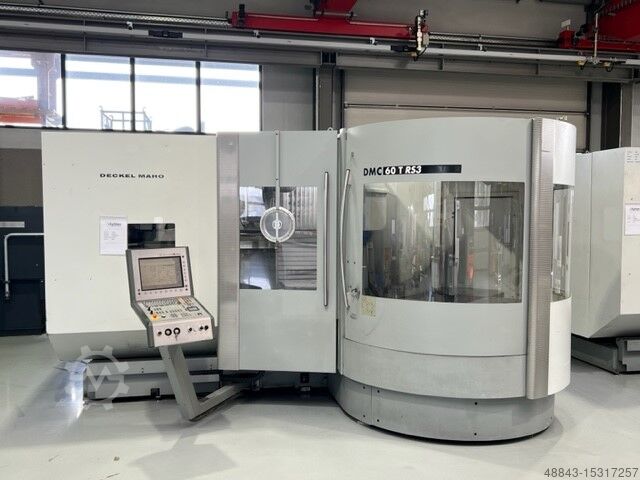

2003 - DMG Mori DMC 60T RS3 Machining Center()
- Listing No
- 942687
- Year
- 2003
- Manufacturer
- DMG Mori
- Model
- DMC 60T RS3
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
DMG DMC 60T RS3 with Heidenhain iTNC 530, no maintenance backlog, in good condition. Ideal machine for unmanned operation, geometrically within new-machine tolerance. The machine can be inspected and measured on site by arrangement. Machine Data: Machine description: Machining centre with pallet storage Manufacturer: DMG MORI Model: DMC 60T RS3 Year of manufacture: 2005 Condition: good Equipment: - Direct linear measurement in X/Y/Z (glass scales) - Chip conveyor - High-pressure coolant system 40 bar (IKZ) - Extraction unit - NC rotary table - Tool magazine, 120 positions - Heidenhain measuring probe - Rotating viewing window - High-pressure coolant 40 bar - Signal lamp - Chip flushing - Operating mode 4 Technical Data: Number of axes: 5-axis Control: Heidenhain iTNC 530 NC rotary table clamping surface: 500 mm x 630 mm Weight: approx. 9,000 kg Chip conveyor: Yes Coolant system: Yes Internal coolant supply: Yes Travels and axes: X-axis: 780 mm Y-axis: 560 mm Z-axis: 560 mm C-axis: 360° B-axis: -90°/+12° Feed rates and rapid traverse: X-axis: 50 m/min Y-axis: 50 m/min Z-axis: 50 m/min B-axis: - C-axis: 30 m/min Fpowv Herxrklei S Rob Motor spindle: Max. speed: 18,000 rpm Spindle taper: HSK A63 Tool changer: Automatic tool changer: Yes Number of magazine positions: 120 Pallet changer: 5 pallets The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
About this machine
This DMG Mori DMC 60T RS3 is a used machining center — sometimes referred to as a machining centre or CNC machining center — a machine tool designed to perform multiple cutting, drilling, boring, and milling operations on a workpiece through automatic tool changing and precise multi-axis movement. DMG Mori is a globally recognised manufacturer of high-precision CNC machine tools, supplying industries including aerospace, automotive, medical technology, and general engineering.
This particular machine is a five-axis horizontal-style machining center equipped with a pallet storage system and configured for unmanned or lights-out operation. It is controlled by a Heidenhain iTNC 530, a well-regarded CNC control known for its conversational programming and suitability for complex contouring work. The seller reports that the machine is in good condition, carries no maintenance backlog, and is geometrically within new-machine tolerances. It is available for on-site inspection and measurement by arrangement. The year of manufacture stated in the seller's technical documentation is 2005, and the machine is located in Germany.

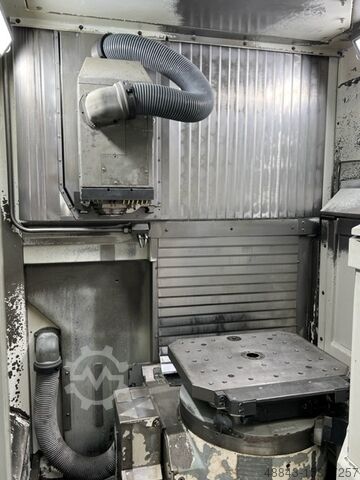

Linear travel covers 780 mm in X, 560 mm in Y, and 560 mm in Z, with direct linear measurement via glass scales in all three axes, ensuring high positional accuracy. The rotary axes extend to a full 360° in C and a range of −90° to +12° in B, giving the machine its five-axis capability. Rapid traverse rates reach 50 m/min on all three linear axes, and the C-axis achieves 30 m/min. The NC rotary table has a clamping surface of 500 mm × 630 mm.

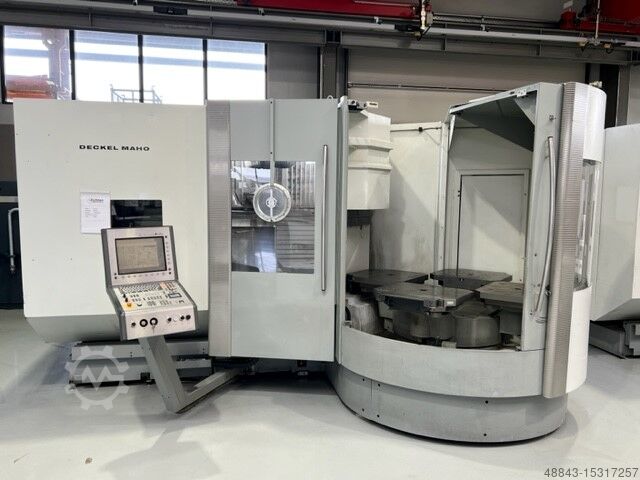

The motor spindle runs to a maximum of 18,000 rpm and accepts HSK A63 tooling. The automatic tool changer is served by a 120-position magazine, providing substantial capacity for complex multi-operation work. A five-pallet changer is fitted, which is the core feature enabling extended unmanned running cycles. The machine weighs approximately 9,000 kg.
The equipment specification is comprehensive. Internal coolant supply (IKZ) is provided at 40 bar, supporting through-spindle coolant delivery for demanding cutting operations. A chip conveyor and chip flushing system manage swarf removal, while a dedicated extraction unit addresses airborne particles. Additional equipment includes a Heidenhain measuring probe for in-process measurement, a rotating viewing window, a signal lamp, and operating mode 4.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
