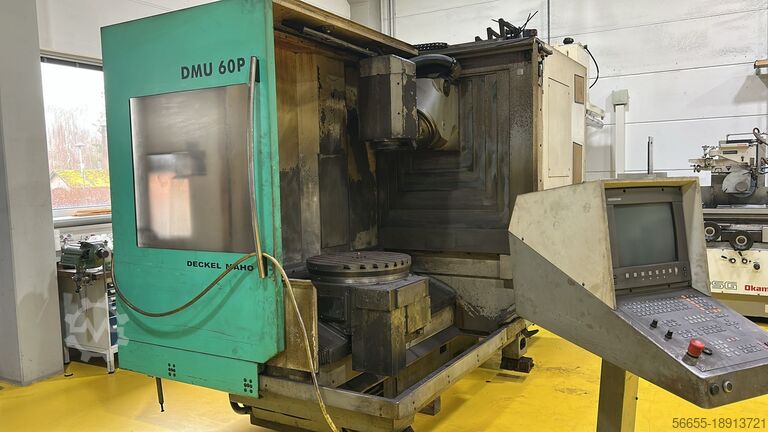

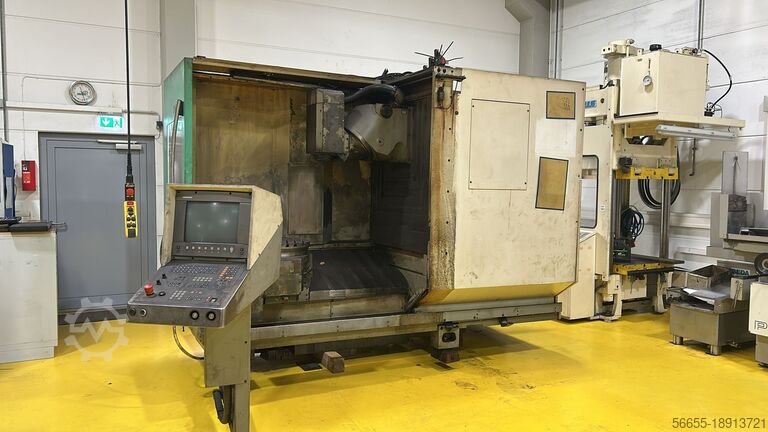

1998 - DMG Mori DMU 60 P 60 WKZ Wechsler Machining Center()
- Listing No
- 942483
- Year
- 1998
- Manufacturer
- DMG Mori
- Model
- DMU 60 P
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-
For sale: CNC 5-Axis Machining Centre, manufacturer DMG, model DMU 60 P The machine is fully operational and ready for immediate use. In 2021, a new spindle was installed, and all required maintenance has been carried out. History: 2019: New ball screw (KGT) 2021: New spindle 2022: Single-shift operation 2023: Occasional job orders 2024: Taken out of operation but remained connected to power 12/2025: Dismantled, cleaned, and stored Fewv Hiowbhq Hoipepb Technical Specifications: X travel: 600 mm y travel: 650 mm z travel: 550 mm Control unit: Heidenhain TNC 426 Spindle speed: max. 12,000 rpm Spindle drive power: 15 kW Max. torque: 130 Nm Tool holder: SK 40 Table diameter: 630 mm Max. table load: 500 kg Number of tool pockets: 60 positions Max. tool length: 350 mm Rapid traverse (X/Y/Z): 24 m/min Feed rate: 20 - 10,000 mm/min Total connected load: 44 kVA Space requirements: approx. 7.0 x 6.0 x 2.7 m Machine weight: approx. 7.5 t Please note: Vices or clamping fixtures are not included in this offer. Upon request, we can organise transport and loading, at an additional cost. Europe-wide service available. All prices are subject to VAT. Inspection is possible by appointment. Please contact us—our team is happy to assist you. Trade-in or exchange possible! Machinery Purchase / Sales PURCHASE / SALE OF PRODUCTION & METALWORKING MACHINES AND MORE. Are you looking for a high-quality yet affordable metalworking machine for your manufacturing needs? Or are you looking to sell yours? For more information or contact options, please visit our website. The listing was translated automatically. Translation errors are possible. Request more information Request more information Already requested
About this machine
This DMG Mori DMU 60 P 60 WKZ Wechsler is a used machining center — sometimes referred to as a CNC machining center or mill-turn center — manufactured in 1998 and currently located in Germany. Machining centers are multi-axis CNC machine tools used to perform milling, drilling, boring, and tapping operations on metal and other engineering materials, typically in a single setup. DMG Mori is one of the world's leading manufacturers of precision machine tools, supplying cutting, turning, and milling equipment to aerospace, automotive, medical, and general engineering industries worldwide.
This is a five-axis configuration, giving it the ability to machine complex geometries and contoured surfaces in a single clamping. The machine is controlled by a Heidenhain TNC 426 unit, a well-regarded contouring control system known for its precision and reliability in five-axis applications.

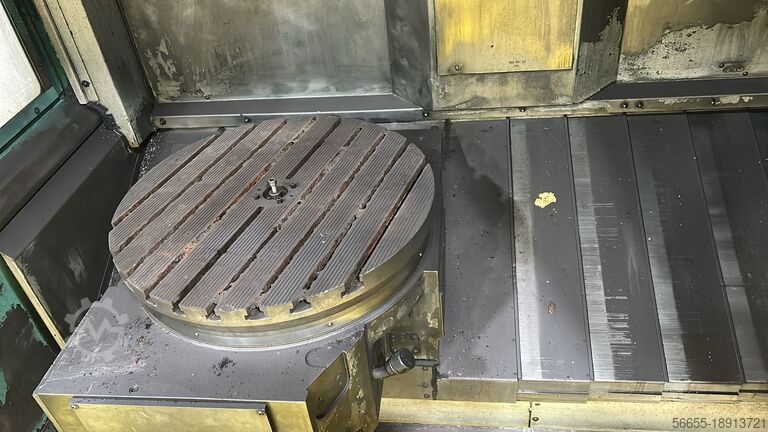

The axis travels measure 600 mm in X, 650 mm in Y, and 550 mm in Z, accommodating a broad range of workpiece sizes. The rotary table has a diameter of 630 mm and is rated to carry a maximum load of 500 kg. The spindle reaches a maximum speed of 12,000 rpm and is driven by a 15 kW motor, delivering a maximum torque of 130 Nm. Tooling is held via an SK 40 taper interface. The automatic tool changer accommodates 60 tool positions, with a maximum tool length of 350 mm, making it well suited to complex or varied machining programs without manual intervention.
Rapid traverse rates on all linear axes (X, Y, and Z) reach 24 m/min, while the feed rate is variable across a wide range of 20 to 10,000 mm/min. Total connected electrical load is 44 kVA. The machine weighs approximately 7.5 tonnes and requires a floor space of approximately 7.0 × 6.0 metres with a height clearance of 2.7 metres.
The machine has a documented service history. A new ball screw (KGT) was fitted in 2019, and a new spindle was installed in 2021. The machine ran in single-shift operation in 2022, handled occasional job orders in 2023, and was taken out of production in 2024, remaining connected to power. In December 2025 it was dismantled, cleaned, and placed into storage. The seller reports it is fully operational and ready for immediate use. Vices and clamping fixtures are not included. The machine is offered from Germany with Europe-wide transport and loading available at additional cost.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
