2020 - Dragon Machinery CPD20 Order Picker
()- Listing No
- 774654
- Year
- 2020
- Manufacturer
- Dragon
- Model
- Condition
- Used
- Location
- China
- Price
- €11,850
- Description
-
2.0T counterbalanced battery forklift, 2.0T counterbalanced electric forklift, 2.0T counterbalance battery forklift, 2.0T counterbalance electric forklift, 2.0T battery forklift, 2.0T electric forklift, 2.0T electric forklift truck, 2.0 ton battery forklift, 2.0T capacity battery forklift, 2.0T capacity electric forklift, 2.0T battery fork lift truck, 2.0T battery powered forklift, 2.0T battery operated forklift, counterbalanced battery forklift capacity 2000kg, counterbalanced electric forklift capacity 2000kg, counterbalance battery forklift capacity 2000kg, counterbalance electric forklift capacity 2000kg, 2000kg capacity battery forklifts, 2000kg capacity battery forklifts, 2.0T battery fork lift, 2.0T electric fork lift, 2.0 ton capacity battery fork lift truck, 2.0 ton capacity electric fork lift truck, 2T electric forklift truck, 2 ton electric forklift truck, 2T battery powered forklift Features: 1. Double-motor and Dual-controller; The double-motor and dual-controller electric power distribution system has two motors and two controllers that can realize independent control and operation respectively, which is highly reliable and easy to maintain. 2. Super Capacity Battery Array; Equipped with super capacity battery array, this battery forklift truck can work for a longer time and is more durable. 3. Separately Excited DC Motor Control System; The separately excited DC motor control system can achieve anti-slide function when parked on ramps, the function the traditional series excited motor control system cannot achieve. The current fluctuation of battery and motor will be reduced greatly, and the running speed cannot be changed with the loads. 4. Hydraulic Dynamic Load Sensing Technique (HDLT); Adopting the advanced hydraulic dynamic load sensing technique, the new type integrated load-sensing steering gear can achieve single pump shunt to make the whole hydraulic system of the forklift more efficient and energy saving. 5. Intelligent Protection System of the Electric Control The electric controller is equipped with intelligent protection system, such as protection in improper sequence of operation, seat power-off protection, steering function keeping in service braking, and emergency braking under special circumstances, etc. Technical Specifications: Power Type: Electric (Battery) Rated Capacity: 2000kg Load Center: 500mm Lifting Height: 3000mm Mast Tilt Angel (F/R): 6/12Deg Front Overhang: 465mm Wheel Base: 1500mm Wheel Tread (F/R): 970/950mm Dead Weight: 3970kg Free Lift Height: 140mm Min. Turning Radius: 2050mm Min. Ground Clearance - Under Mast: 110mm Min. Ground Clearance - Wheelbase Center: 120 mm Service Brake: Hydraulic-Foot Pedal Parking Brake: Mechanical-Hand Lever Lifting Speed (full-load): 260mm/s Lowering Speed: Full-load < 600 mm/s, No-load > 300 mm/s Travel Speed (no-load): 12km/h Max. Gradeability (full-load): 10% Max. Tractive Force (full-load/no-load): 9.4/7.5kN Weight Distribution with load (F/R): 5250/720kg Weight Distribution without Load (F/R): 1720/2250kg Traction Motor Model: XQ-6.3-1T Traction Motor Rated Power: 6.3kW/1200rpm Working Motor Model: XQD-8.6-C Working Motor Rated Power: 8.6kW/1550rpm Controller Manufacturer: GE Controller Type: MOSFET Battery Voltage: 48V Battery Capacity: 630Ah Gearbox Transmission Type: Mechanical Tyre Type: Pneumatic Tyres Tyre Model – Front: 7.00-12-12PR Tyre Model – Rear: 18x7-8-14PR Fork Dimension: 40x125x1070mm Overall Length (Without Fork): 2380mm Overall Width: 1150mm Overall Height Mast Extended: 4030mm Overall Height Mast Lowered: 1995mm Overall Height Overhead Guard: 2150mm Optional Batter: 48V/580Ah Note: 1. Technical specifications are for standard models only. 2. Other optional accessories, functions and requirements are available upon request. 3. All specifications and design characteristics are subject to change without prior notice.
About this machine
This Dragon CPD20 is a used order picker — sometimes referred to as a stock picker — a battery-electric warehouse machine designed to lift an operator and goods simultaneously to elevated picking locations, enabling efficient order fulfilment across racking systems and storage facilities. Built in 2020 and located in China, this unit is priced at €11,850.
At its core, the machine runs on a 48-volt, 630-amp-hour battery pack, giving it extended duty cycles between charges. An optional 48V/580Ah battery configuration is also available. Power is managed through a dual-motor, dual-controller arrangement in which each motor and its paired controller operate independently, improving both reliability and ease of maintenance. The traction motor is an XQ-6.3-1T rated at 6.3 kW at 1,200 rpm, while the working (hydraulic lift) motor is an XQD-8.6-C rated at 8.6 kW at 1,550 rpm. Both controllers are GE-manufactured MOSFET units.

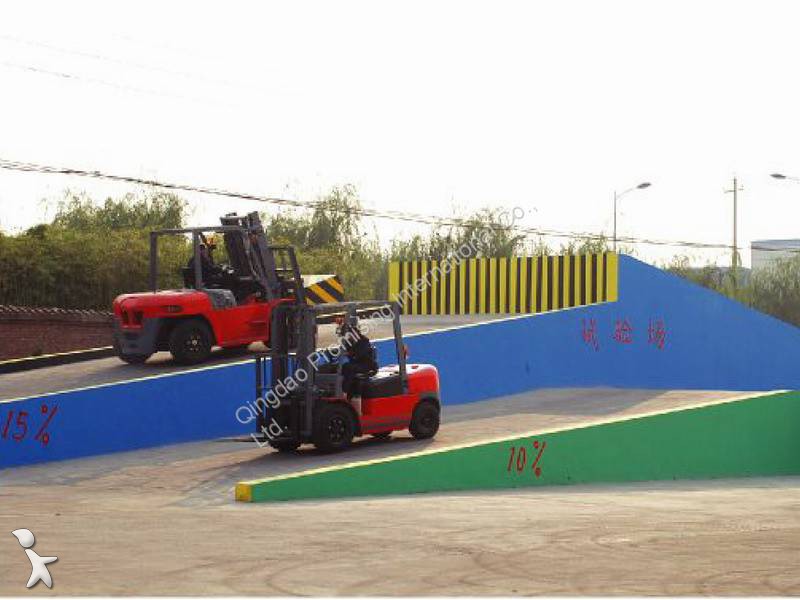

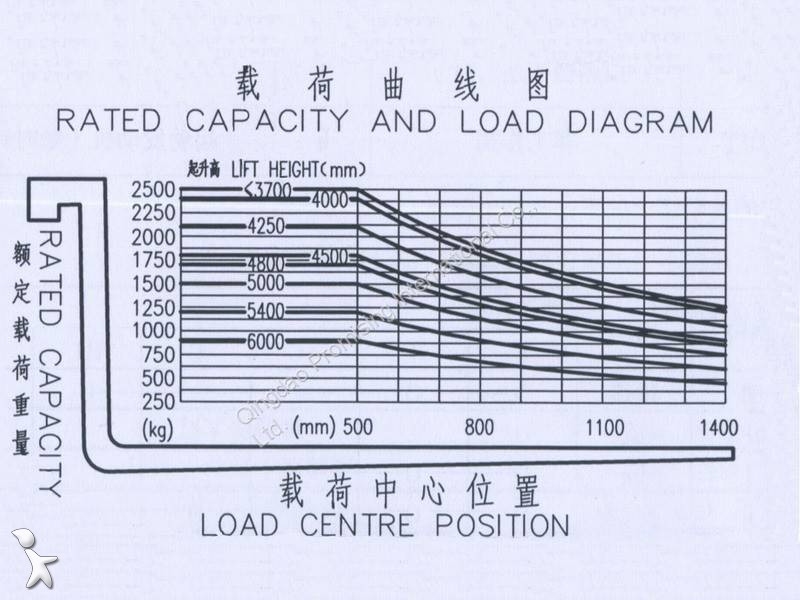

The rated load capacity is 2,000 kg at a 500 mm load centre, with a standard lifting height of 3,000 mm and a free-lift height of 140 mm. The mast tilts 6 degrees forward and 12 degrees rearward. Full-load lifting speed is 260 mm/s, and lowering speed is under 600 mm/s with load and over 300 mm/s without. Maximum travel speed unladen is 12 km/h, and maximum gradeability under full load is 10%. Maximum tractive force is 9.4 kN loaded and 7.5 kN unladen.
The separately excited DC motor control system provides a notable functional advantage over conventional series-excited systems: it maintains consistent travel speed regardless of load variation, reduces current fluctuation in both battery and motors, and delivers an anti-rollback function when the machine is parked on a gradient. The hydraulic system employs Hydraulic Dynamic Load Sensing Technique (HDLT), using an integrated load-sensing steering gear with single-pump flow splitting to improve overall hydraulic efficiency and reduce energy consumption.
An intelligent electric protection system is fitted as standard, covering safeguards for incorrect operating sequences, seat-activated power cutoff, steering retention during service braking, and emergency braking under abnormal conditions. Service braking is hydraulic, operated by foot pedal; the parking brake is a mechanical hand-lever type.

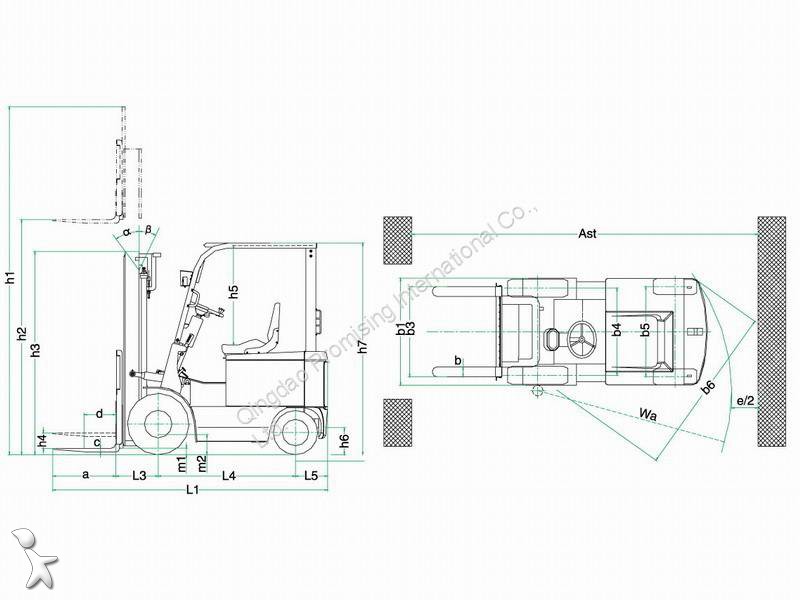

Dimensionally, the machine has an overall length without forks of 2,380 mm, an overall width of 1,150 mm, a lowered mast height of 1,995 mm, an extended mast height of 4,030 mm, and an overhead guard height of 2,150 mm. The wheelbase is 1,500 mm, the front and rear wheel treads are 970 mm and 950 mm respectively, and the minimum turning radius is 2,050 mm. Ground clearance under the mast is 110 mm and at the wheelbase centre is 120 mm. Machine dead weight is 3,970 kg. The front axle bears 5,250 kg loaded and 1,720 kg unladen; the rear axle bears 720 kg loaded and 2,250 kg unladen. Front tyres are pneumatic PR units; rear tyres are 18x7-8-14PR pneumatic. The forks measure 40 × 125 × 1,070 mm. Gearbox transmission is mechanical type.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
