2020 - Dragon Machinery THA10 Order Picker
()- Listing No
- 774743
- Year
- 2020
- Manufacturer
- Dragon
- Model
- THA10
- Condition
- Used
- Location
- China
- Price
- €11,550
- Description
-
Electric Order Picker THA Series High Level Electric Order Picker electric high-level order picker, high level battery order picker, narrow aisle electric order picker, high-level electric stock picker, electric forklift order picker, high-level electric order picker, high level electric order picker, high level electric stock picker, electric order picker forklift, high level battery powered order picker, battery high level order picker, high-level battery stock picker, battery forklift order picker, high lift electric order picker, high lift order picker, electric high lift order picker Rated Load: 1.0T Lifting Height: 3.0m - 4.5m Overall Length: 2536mm Overall Width: 1080mm Fork Size: 930 x 100mm Applications: Warehousing, Furniture Picking, Piece Picking and High Level Picking Electric Order Picker also called electric stock picker or battery order picker is an electric indoor forklift capable of picking. This high-level electric order picker is commonly used in a warehouse where pallets need to be stored on shelves. Features: 1. Driving direction display to make it easy to know the driving direction even at a high level; 2. Having driving alarm and safety belt to ensure the safe driving; 3. Mast Buffering function; 4. The high level order picker has optional automatic high-level order picker and semi-automatic high level order picker; Technical Specifications: Model: THA10 Power Type: Electric Operation Type: Stand-on Rated Load Capacity: 1000kg Load Center: 450mm Wheel (Tyre) Type: Polyurethane Rear (Driving) Wheel: Φ230*70mm Front (Load) Wheel: Φ150*90mm Auxiliary (Balance) Wheel: Φ150*50mm Number of Wheels Front/Rear (X=Driving): 4 / 1X+2 Standard Lifting Height: 3000mm Free Lift: / Height of Mast Lowered: 2250mm Height of Mast Extended: 3745mm Height of Mast Extended (with Overhead Guard): 5237mm Height of Overhead Guard: 2247mm Max. Platform Height: 3205mm Min. Platform Height: 215mm Min. Ground Clearance: 30mm Overall Length: 2536mm Length to Fork Face: 1606mm Wheelbase: 1235mm Front Overhang: 193mm Overall Width: 1080mm Front/Rear Wheel Tread: 942/702mm Fork Dimensions (L*W*T): 930*100*35mm Fork Spread: 700mm Aisle Width with 1000*1200 Pallet across Forks: 2975mm Aisle Width with 800*1200 Pallet along Forks: 2800mm Min. Turning Radius: 1440mm Max. Travel Speed (Full-load/No-load): 4/4.8km/h Lifting Speed (Full-load/No-load): 110/125mm/s Drive Motor: 1.1kW (AC) Lift Motor: 3.0kW (DC) Steering Motor: 0.75KW (DC) Battery: 24V/480Ah Battery Weight: 390kg Service Weight (with Battery): 2340kg Type of Steering: Hydraulic Service Brake: Regenerative Parking Brake: Electromagnetic Note: 1. Specifications are for standard models only. 2. Other optional accessories and requirements are available upon request. 3. All specifications and design characteristics are subject to change without prior notice.
About this machine

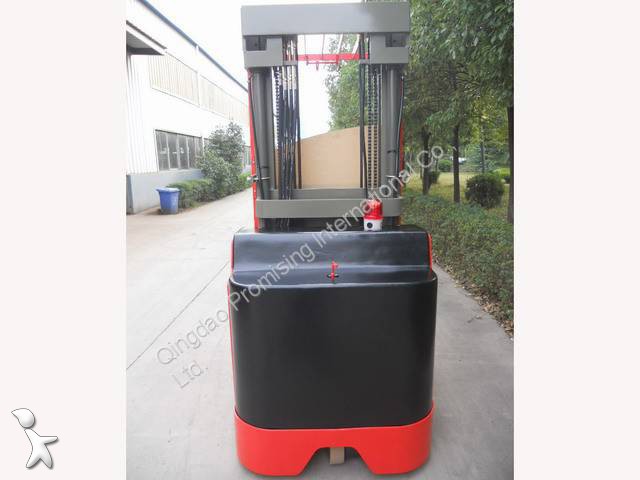

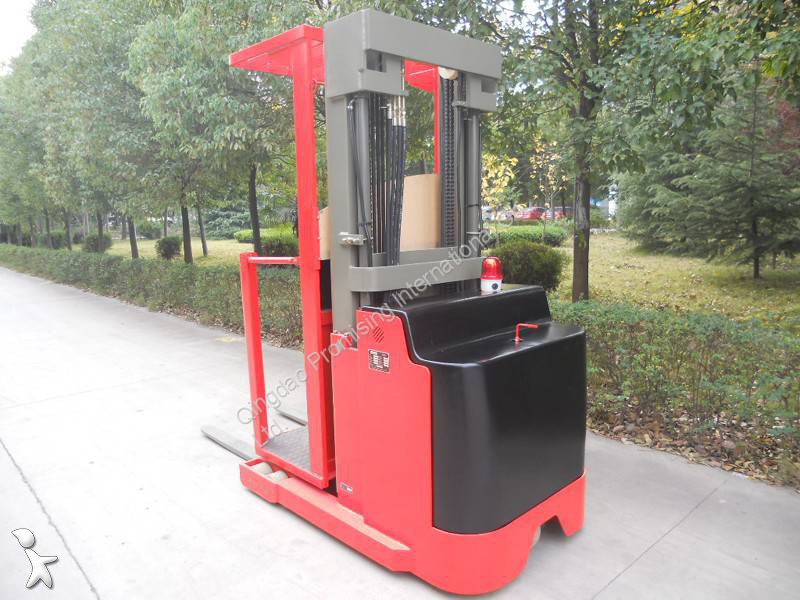

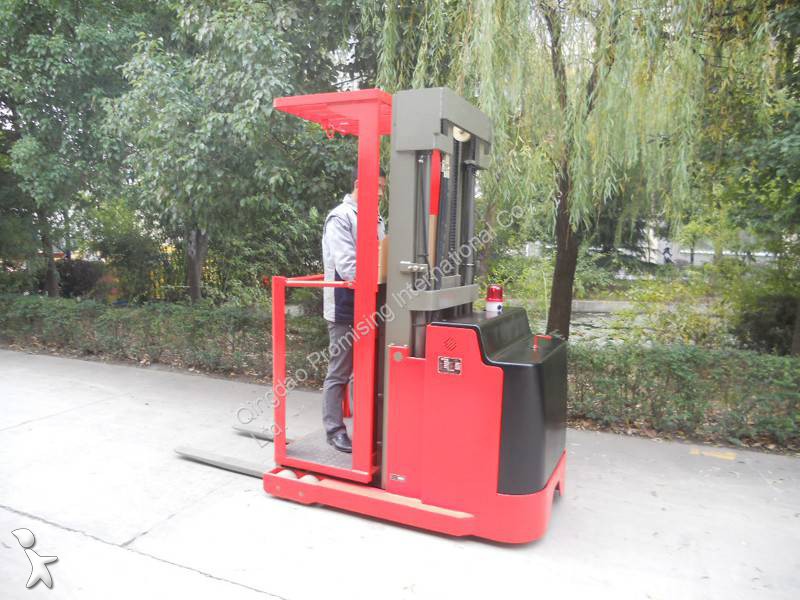

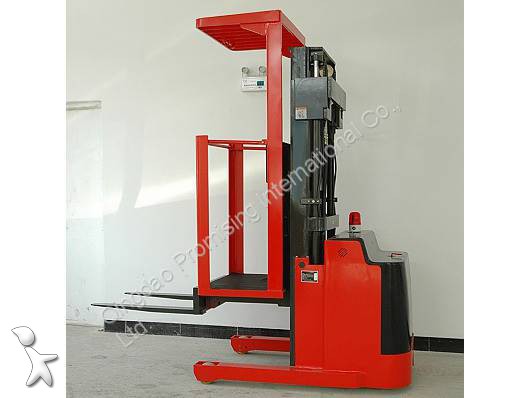

This Dragon Machinery THA10 is an order picker — a stand-on electric forklift designed for high-level warehouse picking operations, sometimes referred to as a stock picker — built in 2020 and offered here in used condition from a location in China. Order pickers are purpose-built for environments where operators need to be elevated alongside the load, allowing individual items or cases to be selected directly from racking rather than moving entire pallets at ground level. They are a staple of warehousing, distribution, furniture storage, and piece-picking operations.
The THA10 is an electrically powered, stand-on machine with a rated load capacity of 1,000 kg and a load centre of 450 mm. Its standard lifting height is 3,000 mm, with the range extending to 4,500 mm depending on configuration, and the platform can be raised to a maximum height of 3,205 mm, with a minimum platform height of 215 mm. The mast stands 2,250 mm when lowered and extends to 3,745 mm, or 5,237 mm when measured to the top of the overhead guard. The overhead guard itself has a height of 2,247 mm.
The machine runs on a 24 V / 480 Ah battery, which accounts for 390 kg of the total service weight of 2,340 kg. Power is distributed across three motors: a 1.1 kW AC drive motor, a 3.0 kW DC lift motor, and a 0.75 kW DC steering motor. Maximum travel speed is 4.0 km/h under full load and 4.8 km/h unloaded, while lifting speed is 110 mm/s under load and 125 mm/s unloaded. Steering is hydraulic, the service brake is regenerative, and parking is handled by an electromagnetic brake.
All wheels are polyurethane. The rear driving wheel measures Φ230×70 mm, the front load wheels Φ150×90 mm, and the auxiliary balance wheels Φ150×50 mm, in a 4/1X+2 wheel arrangement. The fork dimensions are 930×100×35 mm with a spread of 700 mm. Overall machine length is 2,536 mm, length to fork face is 1,606 mm, and overall width is 1,080 mm. The wheelbase is 1,235 mm, front overhang is 193 mm, front and rear wheel treads are 942 mm and 702 mm respectively, and minimum ground clearance is 30 mm. The minimum turning radius is 1,440 mm, with working aisle widths of 2,975 mm for a 1,000×1,200 mm pallet placed across the forks and 2,800 mm for an 800×1,200 mm pallet along the forks.
Noted features include a driving direction display to assist the operator when elevated, a driving alarm and safety belt, and a mast buffering function to cushion movement at height. The machine is offered in both semi-automatic and fully automatic high-level variants as optional configurations.
