2020 - Dragon Machinery TH03-30 Order Picker
()- Listing No
- 774710
- Year
- 2020
- Manufacturer
- Dragon
- Model
- TH03-30
- Condition
- Used
- Location
- China
- Price
- €2,250
- Description
-
Semi-Electric Order Picker Capacity 300kg Semi-electric high-level order picker, semi-automatic high level order picker, narrow aisle semi-electric order picker, high-level semi-electric stock picker, semi-electric forklift order picker, high-level semi-electric order picker, high level semi-electric order picker, high level semi-electric stock picker, semi-electric order picker forklift Rated Load: 300kg Lifting Height: 2.4m - 3.0m Overall Length: 1520mm Overall Width: 890mm Load Platform Size: 600 x 600mm Applications: Warehousing, Furniture Picking, Piece Picking and High Level Picking Semi-Electric Order Picker also called semi-automatic stock picker is a semi-electric indoor forklift capable of picking. This high-level semi-electric order picker is commonly used in warehouse, library and supermarket etc. places where goods are stored on shelves or storage racks. Features: 1. Driving direction display to make it easy to know the driving direction even at a high level; 2. Having driving alarm and safety belt to ensure the safe driving; 3. Mast Buffering function; 4. The high level order picker has optional automatic high-level order picker and semi-automatic high level order picker. This series semi-automatic high level order picker is broadly accepted by our clients due to their superior finish, durability, high load bearing capacity and longer service life without any hassles. Offered in various technical specifications, this range of order picker is available at the most reasonable prices. Technical Specifications: Model: TH0324 Power Type: Semi-Electric Operation Type: Stand-on Rated Load Capacity: 300kg Load Center: 500mm Wheel (Tyre) Type: Polyurethane Front (Load) Wheel: Ø150*50mm Rear Wheel: Ø180*50mm Number of Wheels, Front/Rear: 2 / 2 Max. Lifting Height: 2400mm Height of Mast Lowered: 1690mm Height of Mast Extended: 2620mm Height of Overhead Guard: 3410mm Min. Height of Load Platform: 540mm Min. Height of Stand Platform: 345mm Overall Length: 1520mm Wheelbase: 1025mm Overall Width: 890mm Rear Wheel Tread: 686mm Front Wheel Tread: 485mm Load Platform Size: 600*600mm Stand Platform Size: 450*600mm Min. Turning Radius: 1380mm Lifting Speed (Full-load/No-load): 80/85mm/s Lift Motor: 1.5 kW (DC) Battery: 12V/115Ah Battery Weight: 33kg Service Weight (with Battery): 405kg Type of Steering: Mechanical Service Brake: Mechanical Parking Brake: Foot Brake Technical Specifications: Model: TH0330 Power Type: Semi-Electric Operation Type: Stand-on Rated Load Capacity: 300kg Load Center: 500mm Wheel (Tyre) Type: Polyurethane Front (Load) Wheel: Ø150*50mm Rear Wheel: Ø180*50mm Number of Wheels, Front/Rear: 2 / 2 Max. Lifting Height: 3000mm Height of Mast Lowered: 1990mm Height of Mast Extended: 3220mm Height of Overhead Guard: 4010mm Min. Height of Load Platform: 540mm Min. Height of Stand Platform: 345mm Overall Length: 1520mm Wheelbase: 1025mm Overall Width: 890mm Rear Wheel Tread: 686mm Front Wheel Tread: 485mm Load Platform Size: 600*600mm Stand Platform Size: 450*600mm Min. Turning Radius: 1380mm Lifting Speed (Full-load/No-load): 80/85mm/s Lift Motor: 1.5 kW (DC) Battery: 12V/115Ah Battery Weight: 33kg Service Weight (with Battery): 517kg Type of Steering: Mechanical Service Brake: Mechanical Parking Brake: Foot Brake Note: 1. Specifications are for standard models only. 2. Other optional accessories and requirements are available upon request. 3. All specifications and design characteristics are subject to change without prior notice.
About this machine

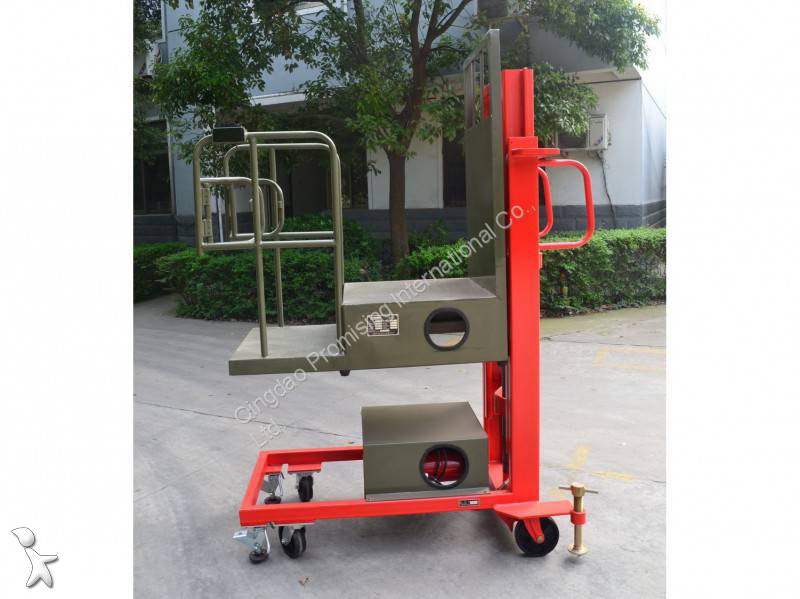

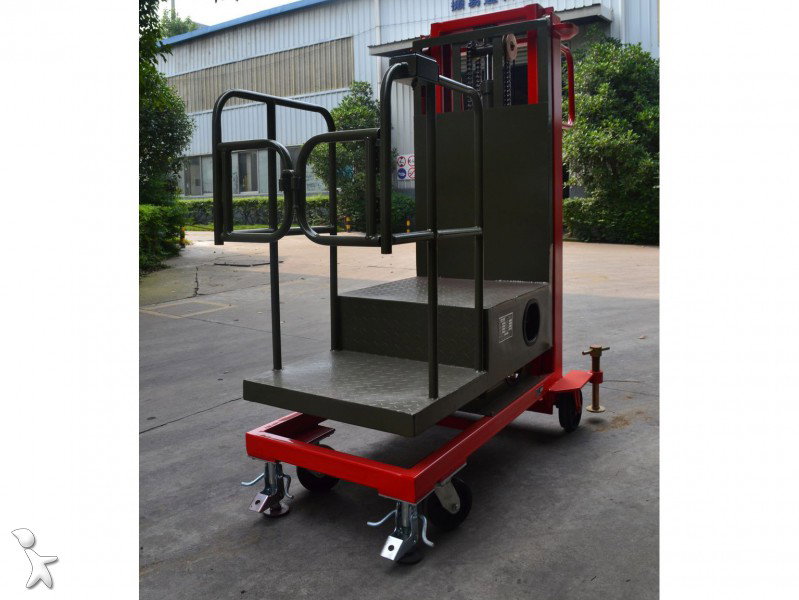

This Dragon Machinery TH03-30 is a semi-electric order picker — sometimes referred to as a stock picker — designed for high-level picking operations in warehouses, libraries, supermarkets, and similar environments where goods are stored on shelving or racking systems. As a stand-on, semi-electric machine, it combines electrically powered lifting with manual propulsion, making it well suited to indoor picking tasks such as piece picking, furniture picking, and general high-level order fulfilment.
Two model variants are covered by the seller's technical data, the TH0324 and the TH0330, differing primarily in their maximum lifting height. The TH0324 reaches a maximum lifting height of 2,400 mm, while the TH0330 — which corresponds to this listing — reaches 3,000 mm. Both share the same footprint, rated capacity, and drivetrain. The rated load capacity is 300 kg with a load centre of 500 mm, and the 600 × 600 mm load platform is complemented by a 450 × 600 mm stand platform for the operator. Overall machine length is 1,520 mm and overall width is 890 mm, giving a compact profile suited to narrower aisles, with a minimum turning radius of 1,380 mm.
For the TH0330 variant, the mast sits at a lowered height of 1,990 mm and extends to 3,220 mm, with the overhead guard reaching 4,010 mm. The minimum height of the load platform is 540 mm and the stand platform sits at a minimum of 345 mm. Wheelbase measures 1,025 mm, rear wheel tread 686 mm, and front wheel tread 485 mm. All wheels are polyurethane: front load wheels measure Ø150 × 50 mm and rear wheels Ø180 × 50 mm, in a 2/2 front/rear configuration.
Lifting is powered by a 1.5 kW DC motor, achieving a lifting speed of 80 mm/s under full load and 85 mm/s unloaded. The machine is powered by a 12 V / 115 Ah battery weighing 33 kg. Service weight including the battery is 517 kg for the TH0330. Steering is mechanical, the service brake is mechanical, and the parking brake operates via a foot brake.
Safety and operational features include a driving direction display to allow the operator to monitor travel direction at height, a driving alarm, and a safety belt. The mast incorporates a buffering function to reduce impact during lifting and lowering cycles. This used example was manufactured in 2020, is located in China, and is offered at a price of €2,250.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
