1982 - Drais Mannheim HT-1000 – Powder turbo mixer Mixer Blender()
- Listing No
- 1182768
- Year
- 1982
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: HT-1000 No: 50766 Material: Stainless steel 1.4541 (321) Volume: 1000 Ltr Motor: 18,5 KW, 380/660 Volt Powder turbo mixer: (1x) Capacity: 1000 Ltr Trough sizes: dia. 1060x1180mm Top connections: dia. 340mm + dia. 260mm + dia. 135mm Inspection hatch: 710x500mm Outlet: 500x300mm Speed mixing shaft: 80/30 Rpm With lump breaker: type EMS-180 (2x) merk: Drais Mannheim General Main Features Specified Features - Powder turbo mixer T-arms Glands air purged Information With switchgear
About this machine

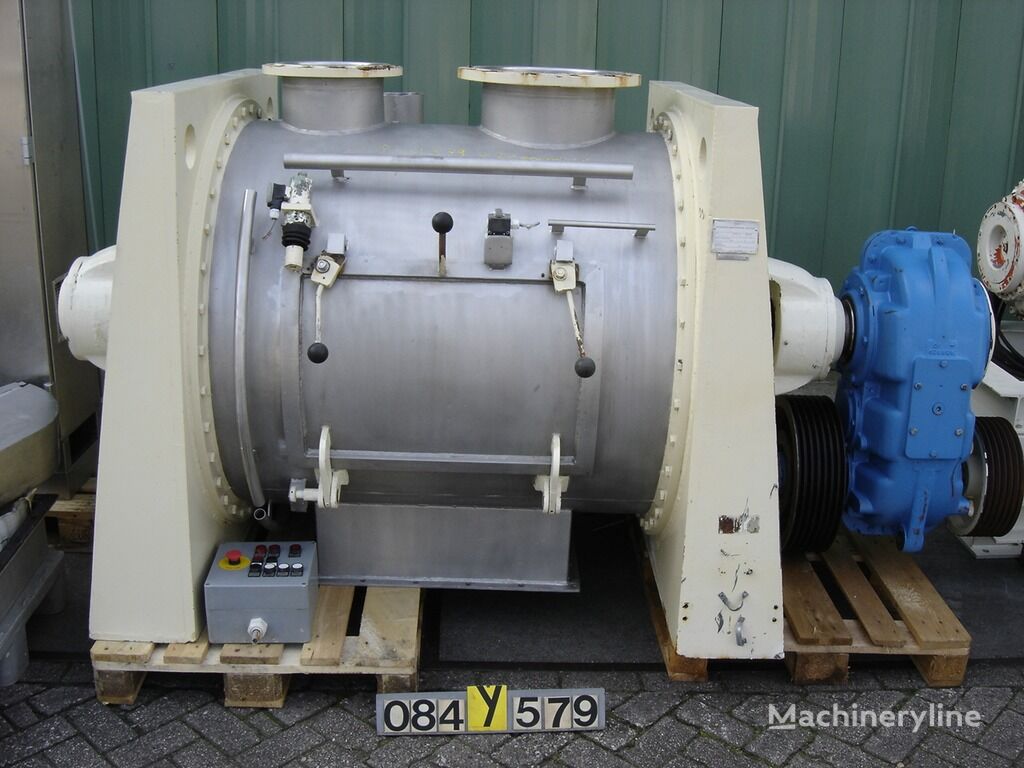

This Drais Mannheim HT-1000 is a mixer and blender — sometimes referred to as a powder mixer or turbo mixer — designed for the intensive blending of bulk powders and dry materials. Drais Mannheim, headquartered in Mannheim, Germany, has a long-established reputation as a manufacturer of industrial mixing, kneading, and size-reduction equipment, with its machines widely used in the chemical, pharmaceutical, food, and plastics industries.
This used example dates from 1982 and is located in Barneveld, Netherlands. It is a single unit, serial number 50766, built in stainless steel grade 1.4541 (equivalent to AISI 321), which offers good corrosion resistance and is suitable for a range of process applications. The vessel has a working volume of 1,000 litres, with a trough measuring 1,060 mm in diameter by 1,180 mm in depth.

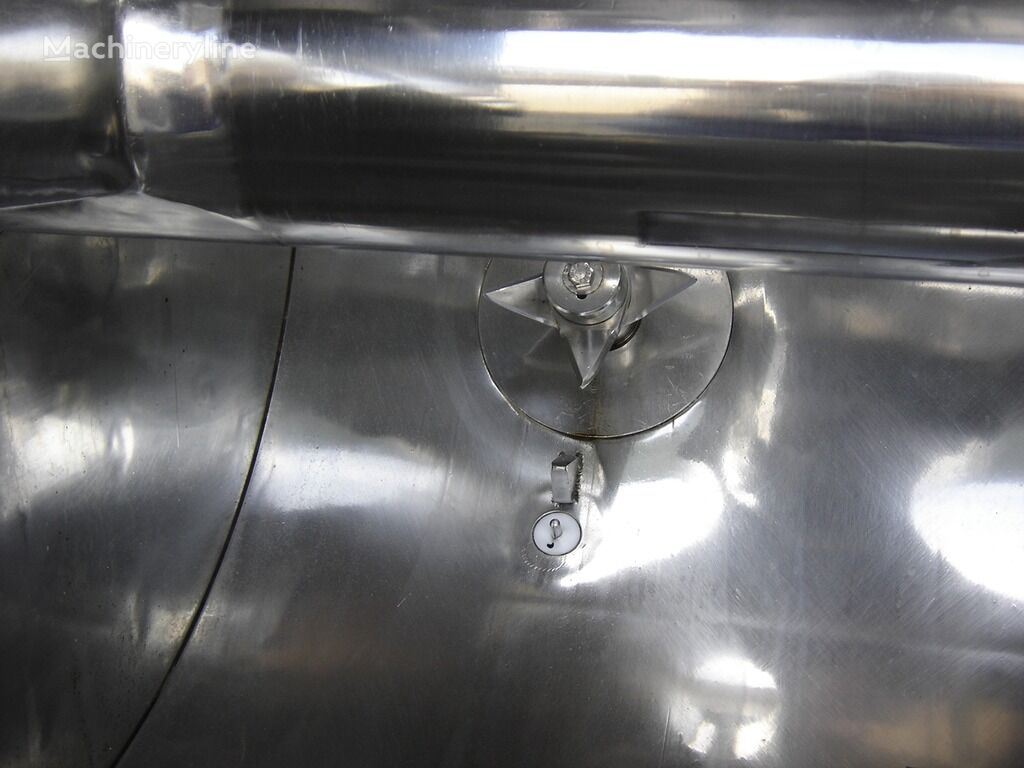

The mixing shaft runs at two selectable speeds — 80 and 30 rpm — allowing the process to be adapted to different materials or mixing stages. Drive is provided by an 18.5 kW motor rated for 380/660 volt supply. The mixer is fitted with T-arms and air-purged glands, the latter helping to prevent product ingress into the shaft seals during operation. Two lump breakers of type EMS-180 are included, fitted to assist in breaking down agglomerates within the mix.

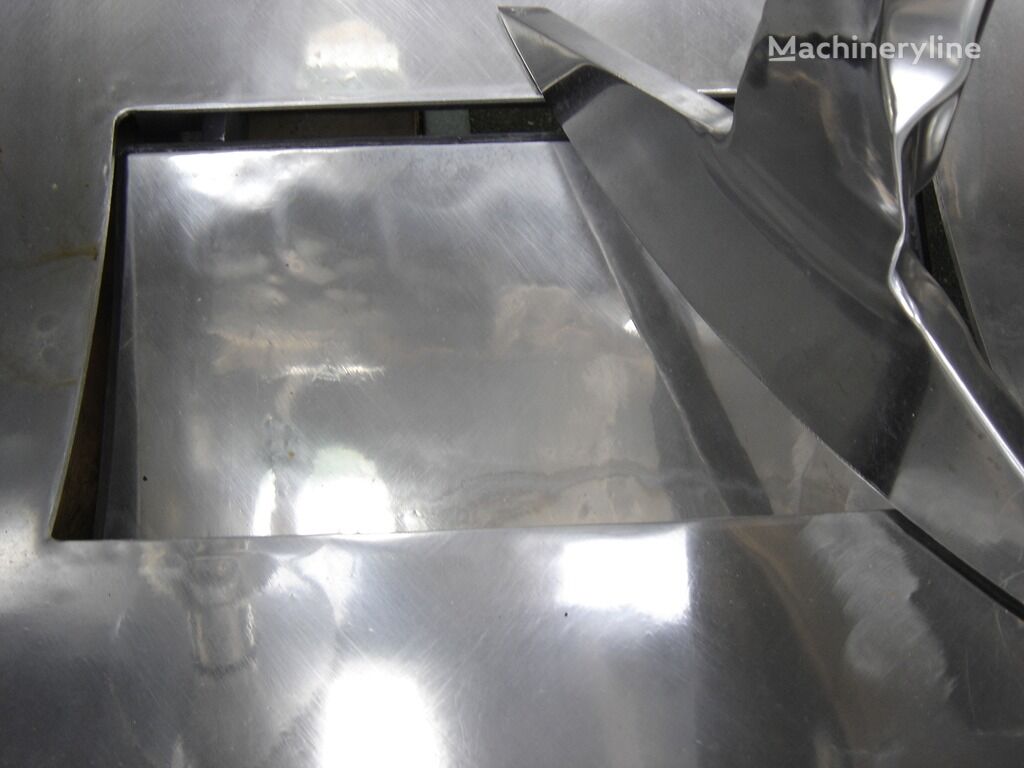

Access to the vessel interior is through an inspection hatch measuring 710 × 500 mm. The top of the vessel carries three connections: one at 340 mm diameter, one at 260 mm, and one at 135 mm, providing flexibility for charging, venting, or auxiliary connections. Product discharge is through an outlet of 500 × 300 mm. The unit is supplied complete with its switchgear cabinet.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
