About this machine

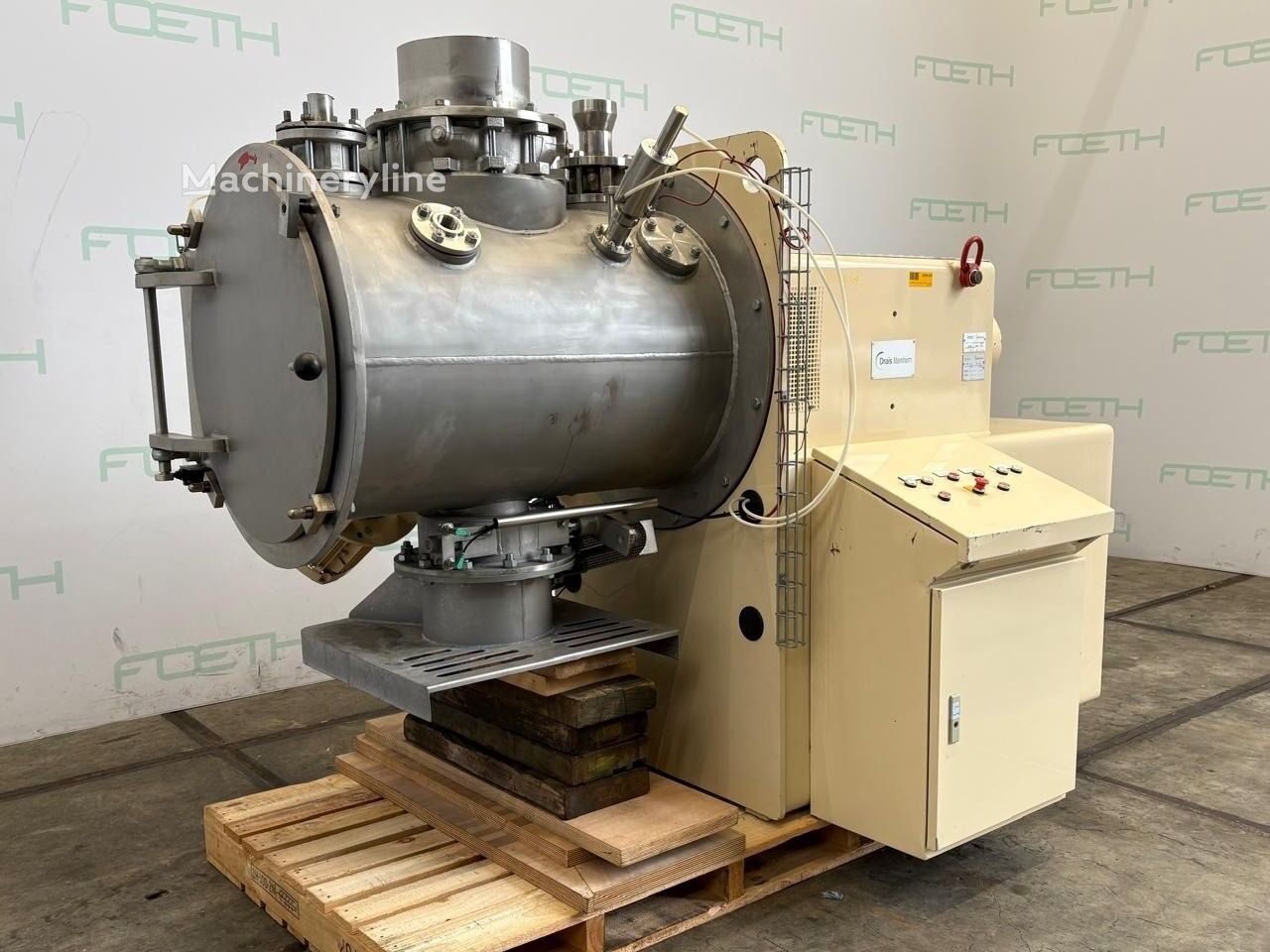

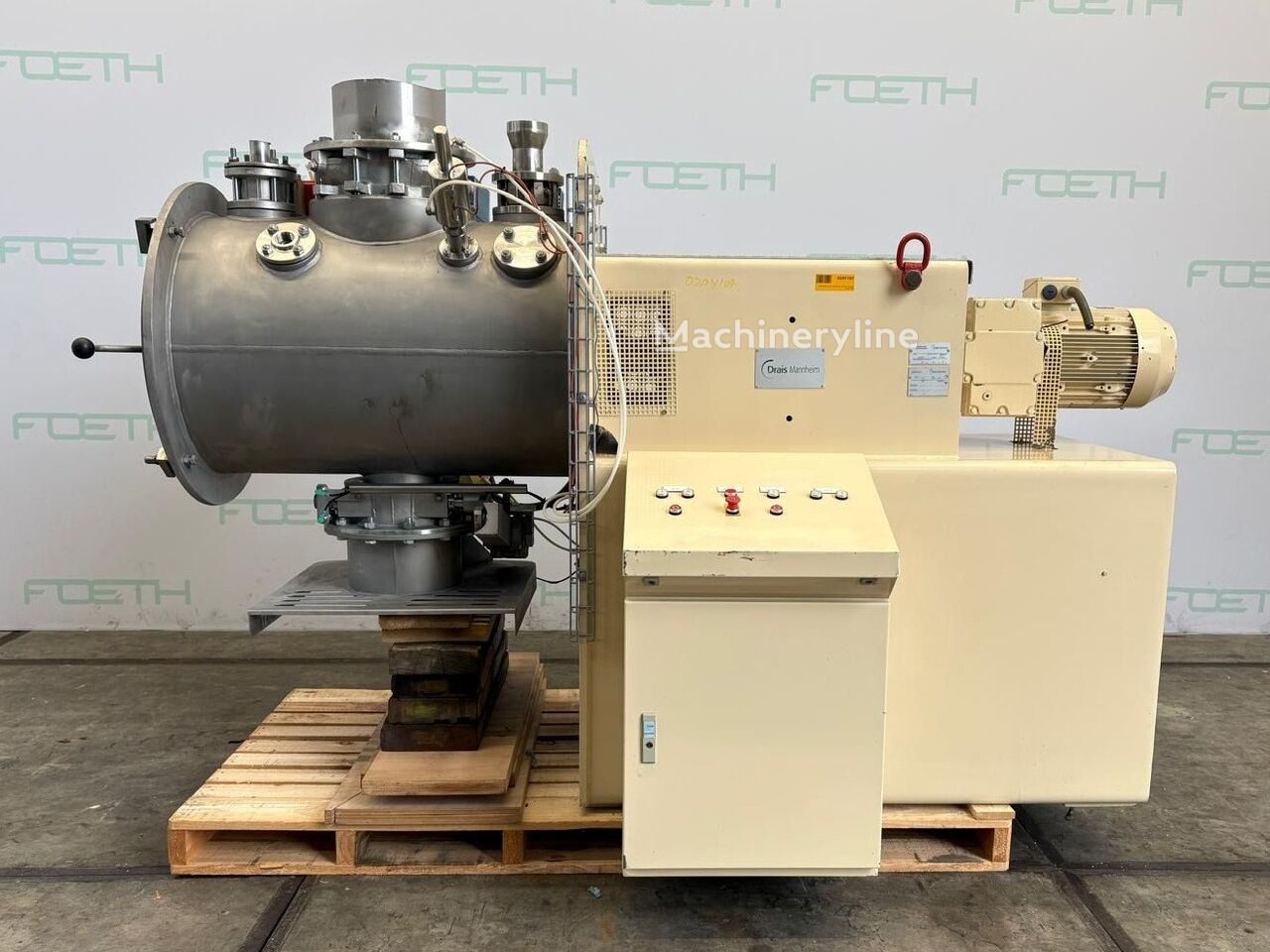

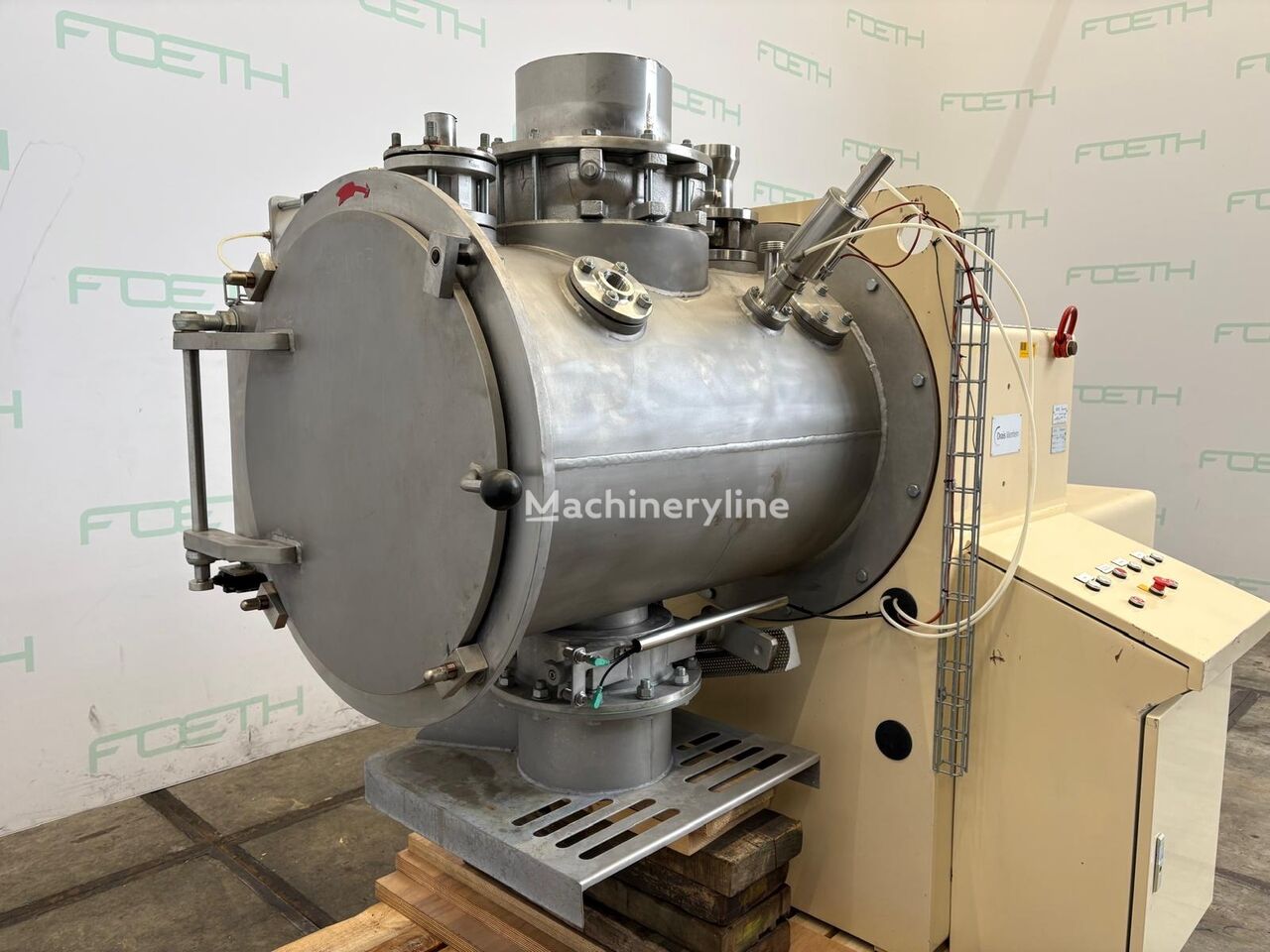

The Drais Mannheim TURBUMIX TM-400 is a used powder turbo mixer — sometimes referred to as a turbo blender — built for the intensive mixing and blending of powders and bulk dry materials. Drais Mannheim is a well-established German manufacturer with a long history of producing high-performance mixing and dispersing equipment for the chemical, pharmaceutical, and food processing industries. This machine dates from 1999 and is currently located in Barneveld, Netherlands.

The mixer is identified by the manufacturer as type TurbuMix TM-400E FM1, serial number 56009. It is constructed from two grades of stainless steel — 1.4541 (AISI 321) and 1.4571 (AISI 316Ti) — both of which offer strong corrosion resistance and suitability for demanding process environments. The vessel has a total volume of 400 litres, with a working or useful capacity ranging from 120 to 300 litres, giving operators meaningful flexibility in batch size.

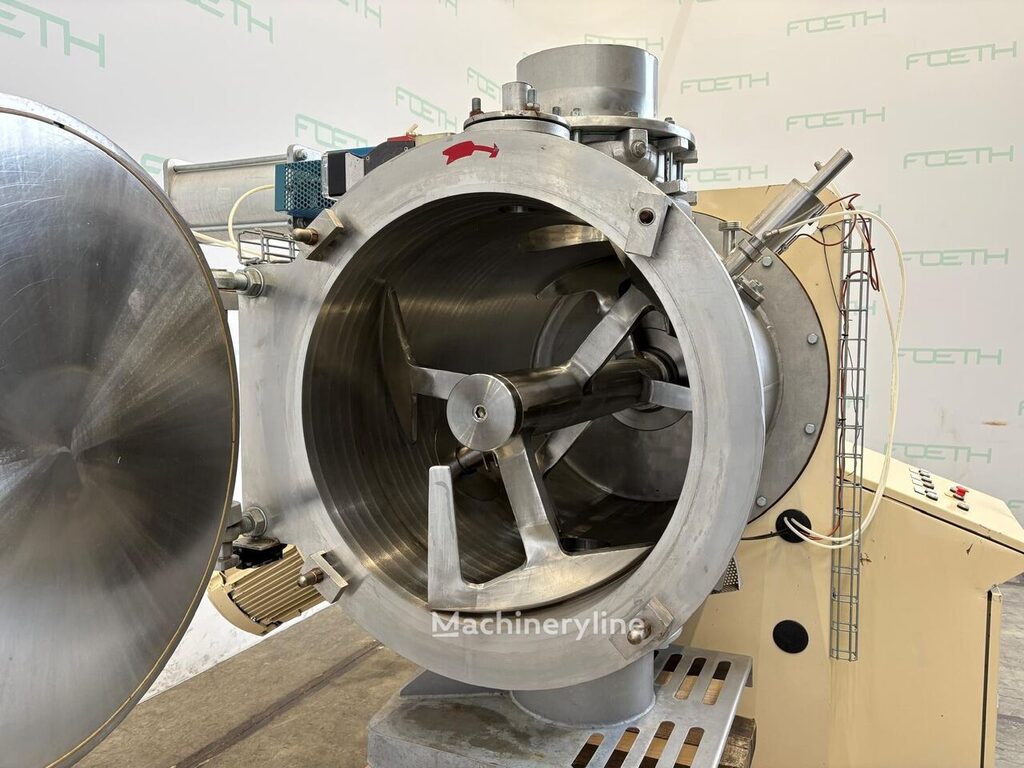

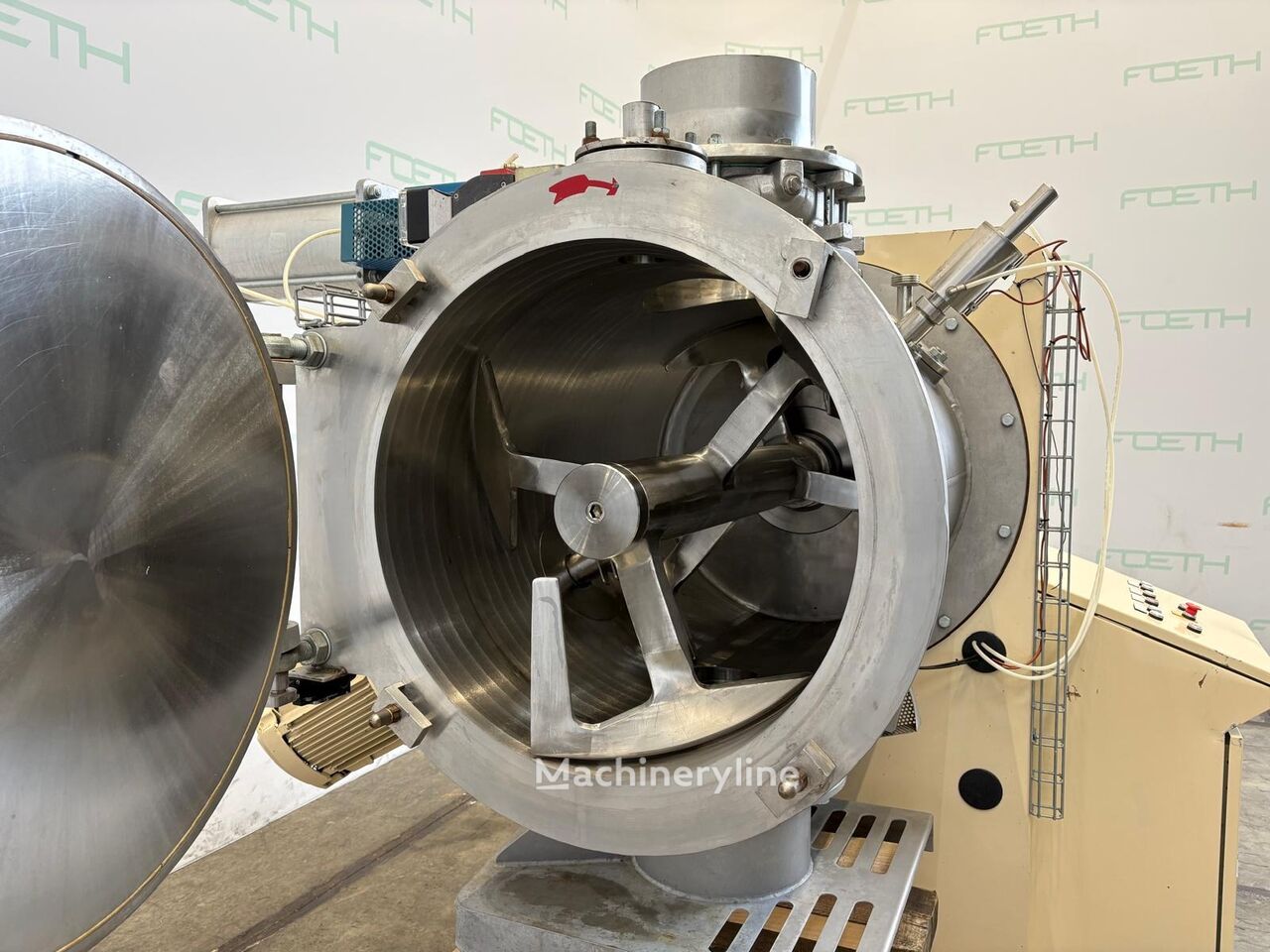

The trough dimensions are 700 mm in diameter by 1,050 mm in length. The top of the vessel is fitted with three connections: one at 300 mm diameter, one at 80 mm, and one at 65 mm, accommodating various inlet, feed, or instrumentation requirements. An inspection hatch of 700 mm diameter provides access to the interior, and the discharge outlet measures 125 mm in diameter. Mixing is carried out by T-arms, and the machine is equipped with an integrated lump breaker running at 1,450 rpm to break down agglomerates during or after the mixing process.

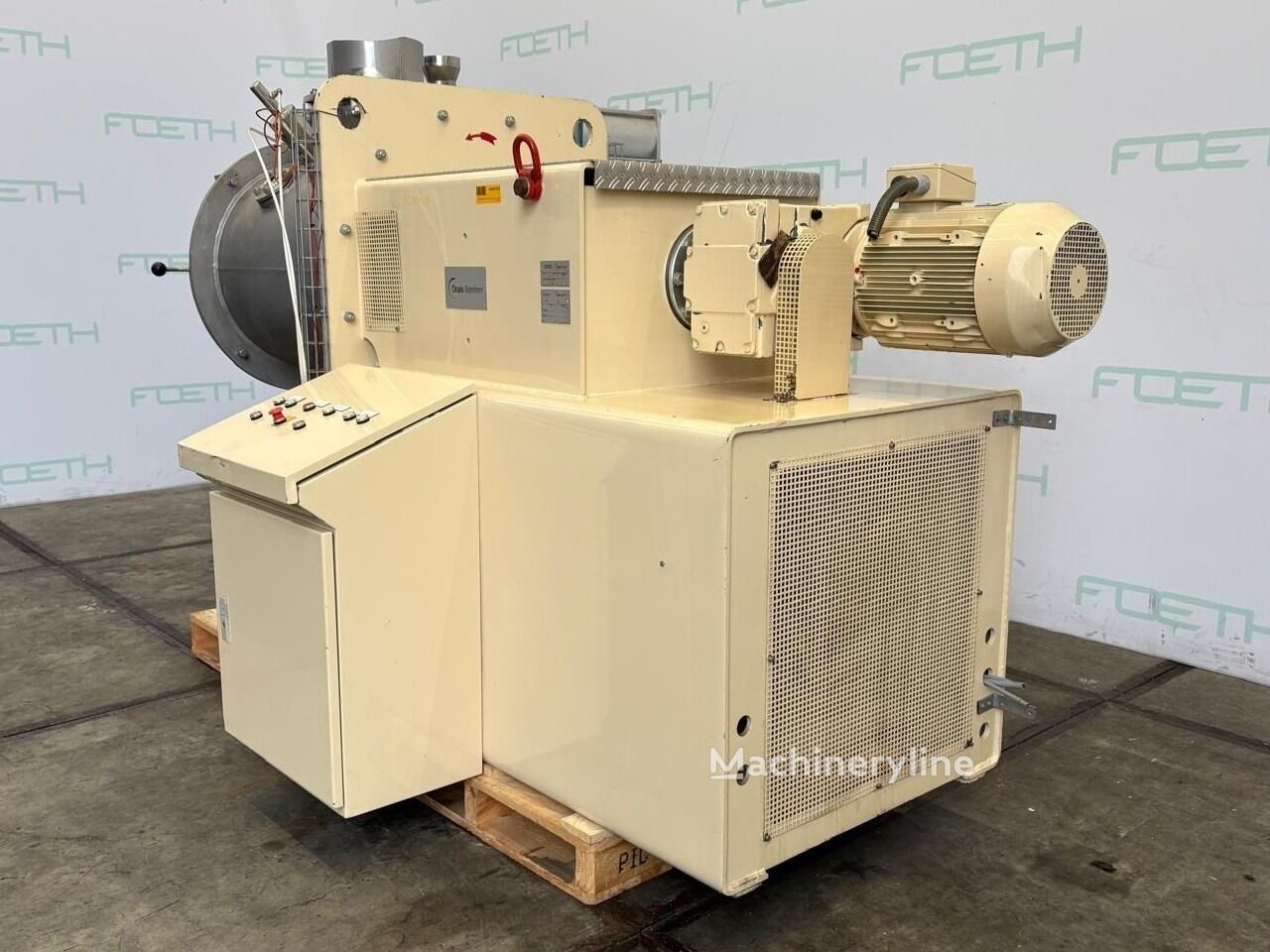

The drive motor is rated at 7.5 kW and operates on 400/690 volt supply. Switchgear is included with the machine. The overall floor footprint is 3.0 by 2.1 metres, and the total installed height is 1.9 metres, making this a compact yet substantial unit suitable for installation in standard industrial processing facilities.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
