About this machine

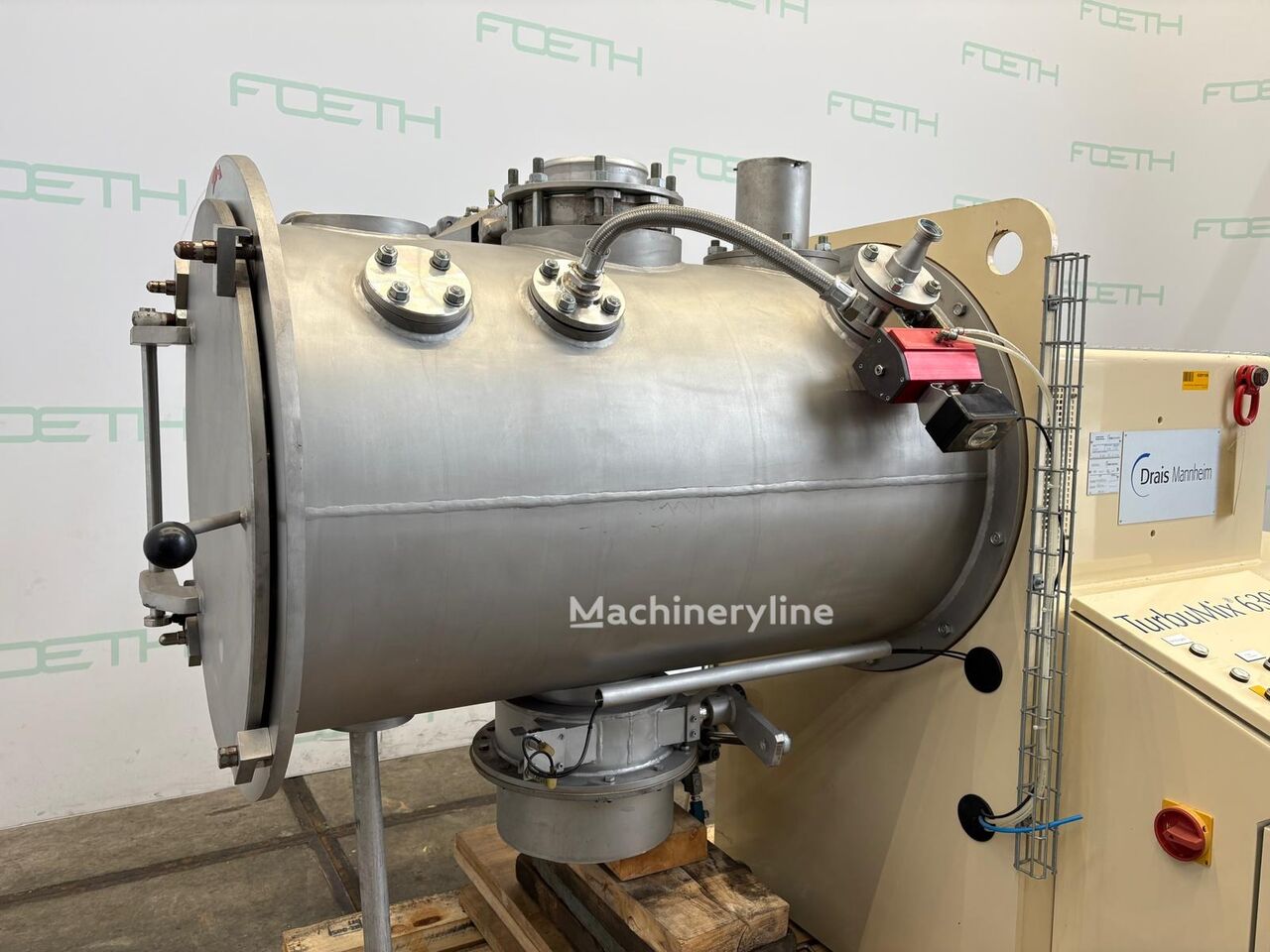

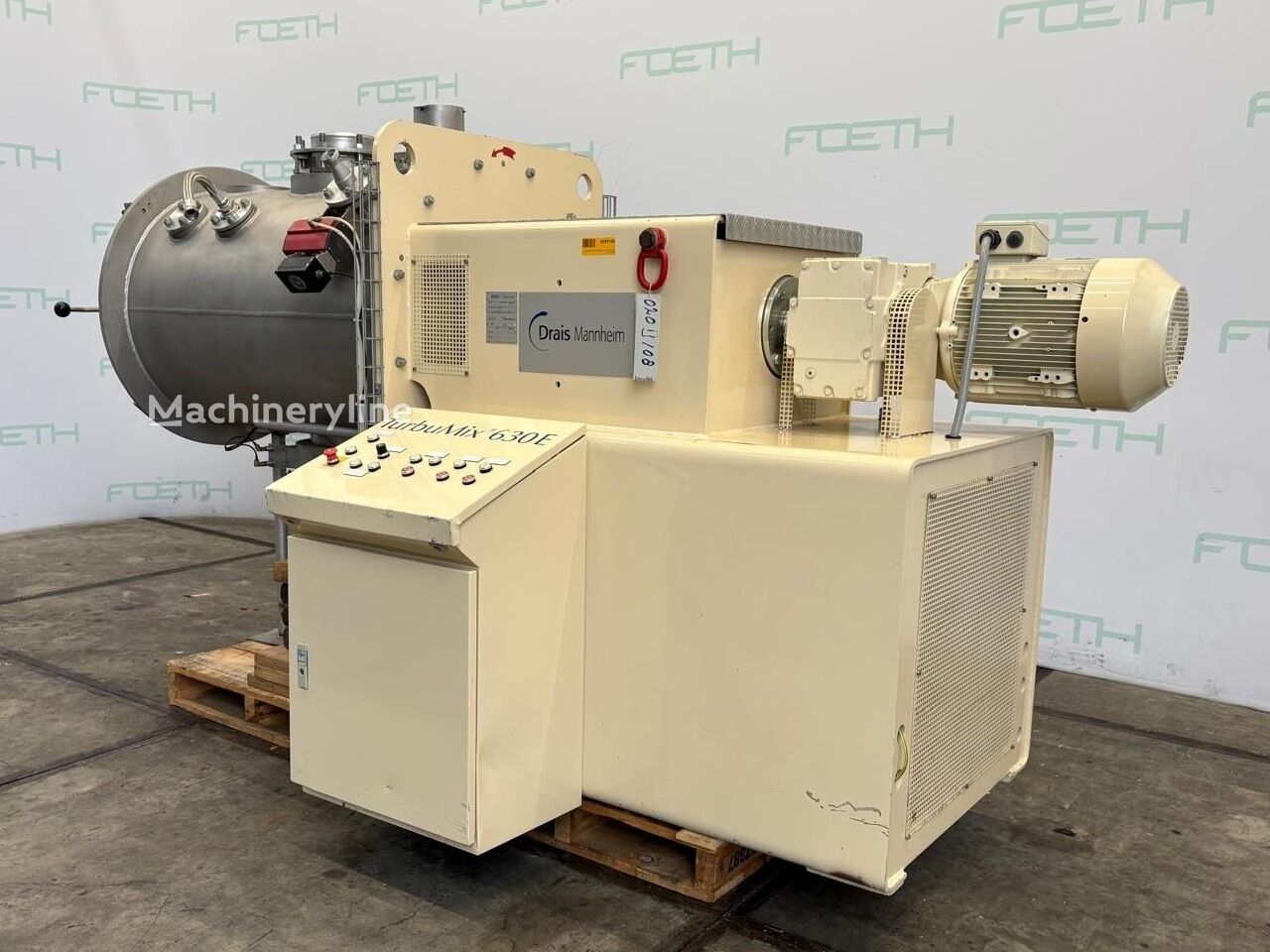

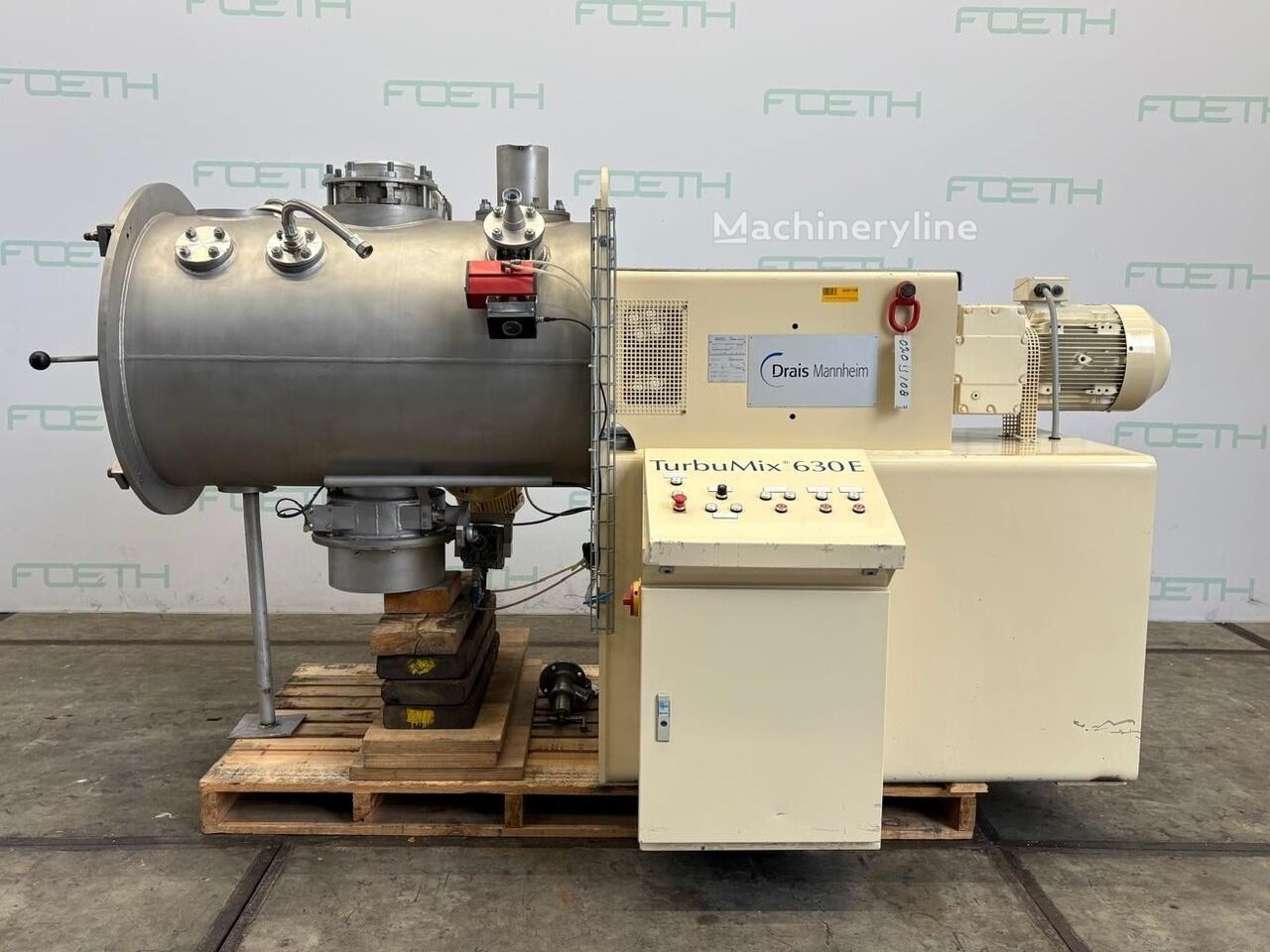

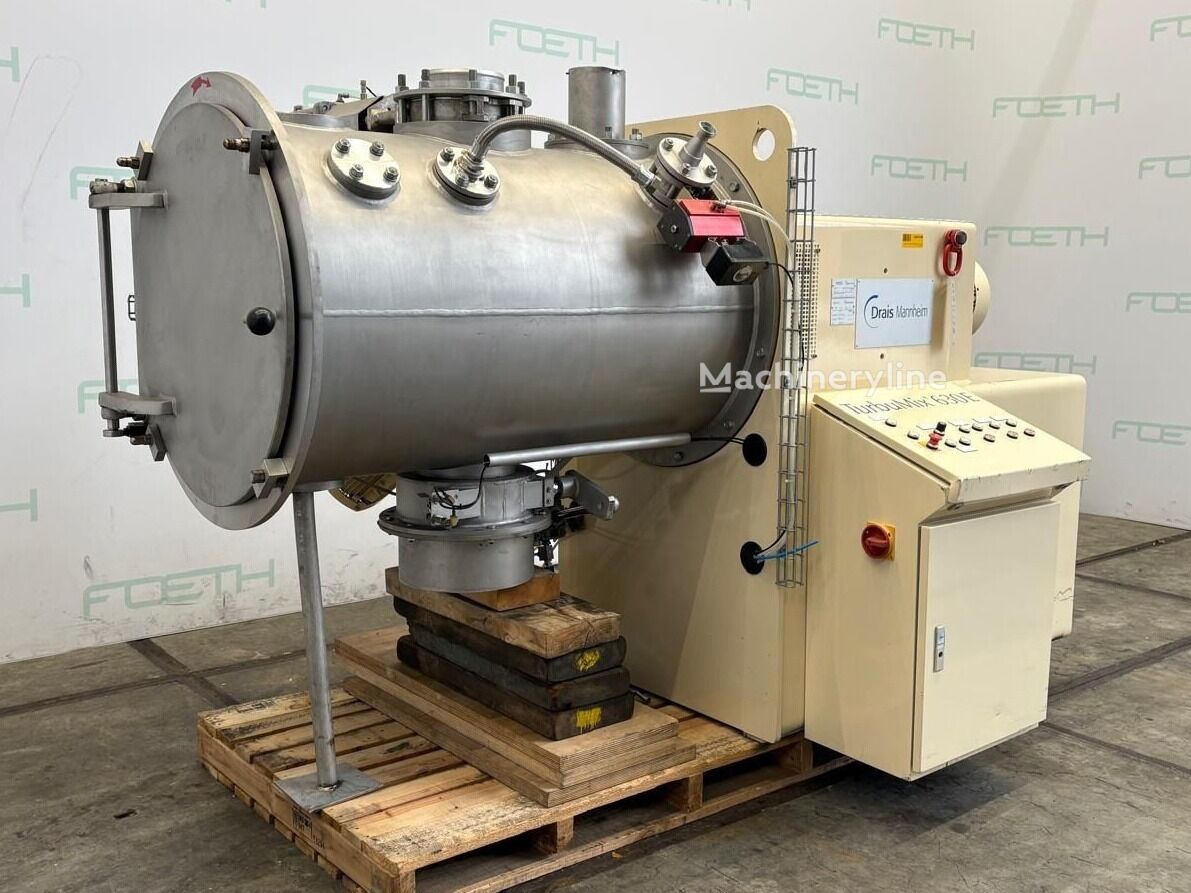

This Drais Mannheim TurbuMix TM-630 is a powder turbo mixer — also referred to as a powder blender — a type of industrial mixer designed to blend, homogenise, and process dry powders and bulk solids. These machines are widely used across the chemical, pharmaceutical, food, and plastics industries wherever consistent, high-throughput powder mixing is required. Drais Mannheim is a well-regarded German manufacturer with a long history of producing intensive mixers and blenders for demanding process industries.

This unit, serial number 56082, is a TM-630E FM1 variant and dates from the year 2000. It is offered in used condition from a location in Barneveld, Netherlands. The mixing vessel is constructed from a combination of stainless steel grade 1.4541 (AISI 321) and 1.4571 (AISI 316Ti), both of which are corrosion-resistant austenitic stainless steels commonly selected for process equipment handling aggressive or sensitive materials.

The trough has a total volume of 630 litres, with a useful working capacity ranging from 189 to 470 litres depending on the application and fill level. The cylindrical vessel measures 800 mm in diameter by 1,300 mm in length. The main mixing shaft is driven by a 7.5 kW motor rated for 380–420 / 660–690 volt supply and operates at two selectable speeds of approximately 63 and 126 rpm. The machine is additionally equipped with two lump breakers, each running at 1,450 rpm, which serve to break down agglomerates and ensure a fine, uniform blend.

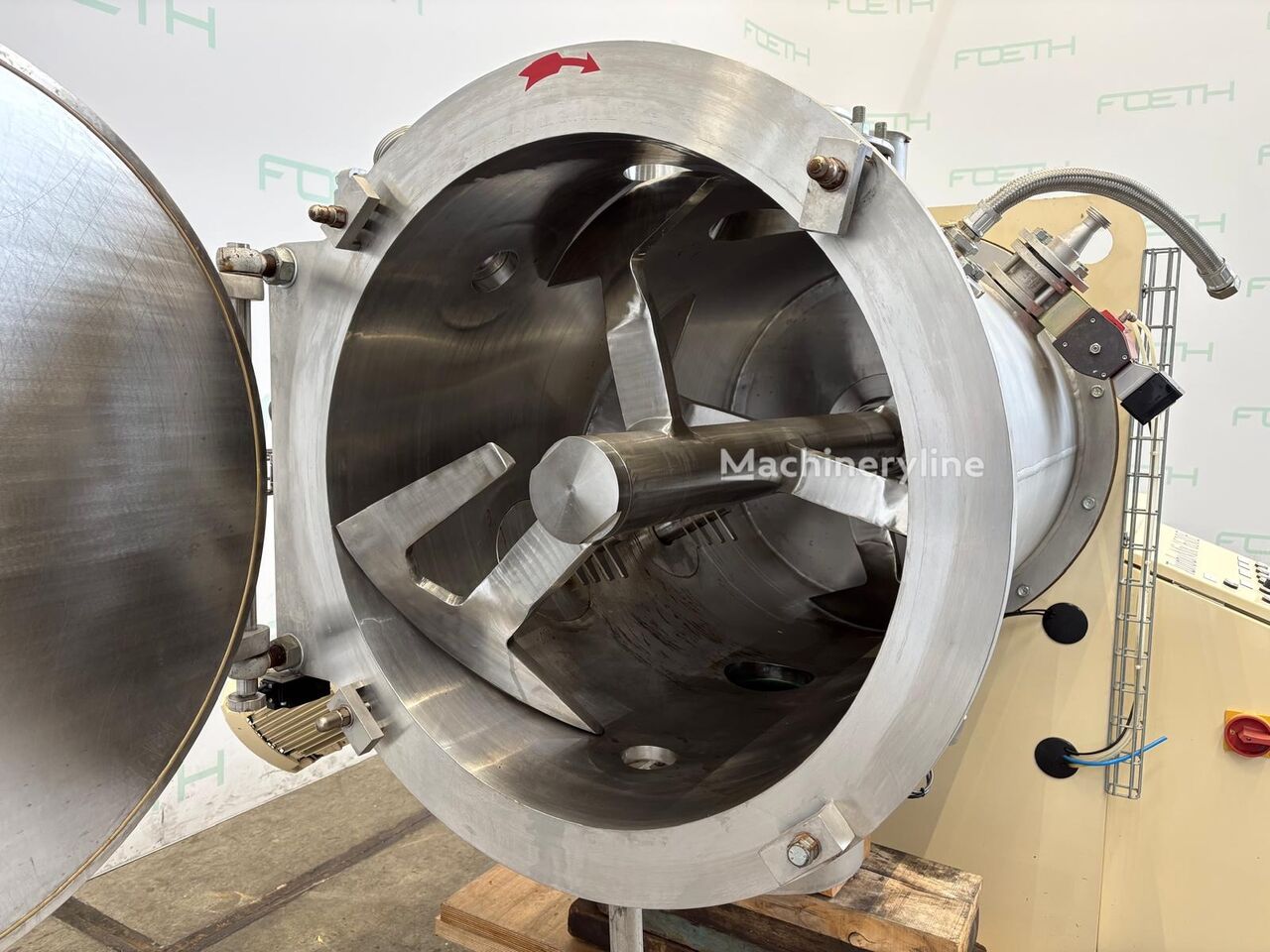

The vessel features several connections and access points: two top inlet connections measuring 250 mm and 150 mm in diameter respectively, a further 100 mm top connection, and an 800 mm inspection hatch for cleaning and maintenance access. Product discharge is provided through two outlets of 160 mm and 75 mm diameter. The mixing tool configuration includes T-arms. The machine is supplied complete with its switchgear panel.

The overall floor footprint is 3.4 by 2.2 metres, with a total installed height of 1.8 metres, giving a useful indication of the space required for installation and operation.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
