About this machine

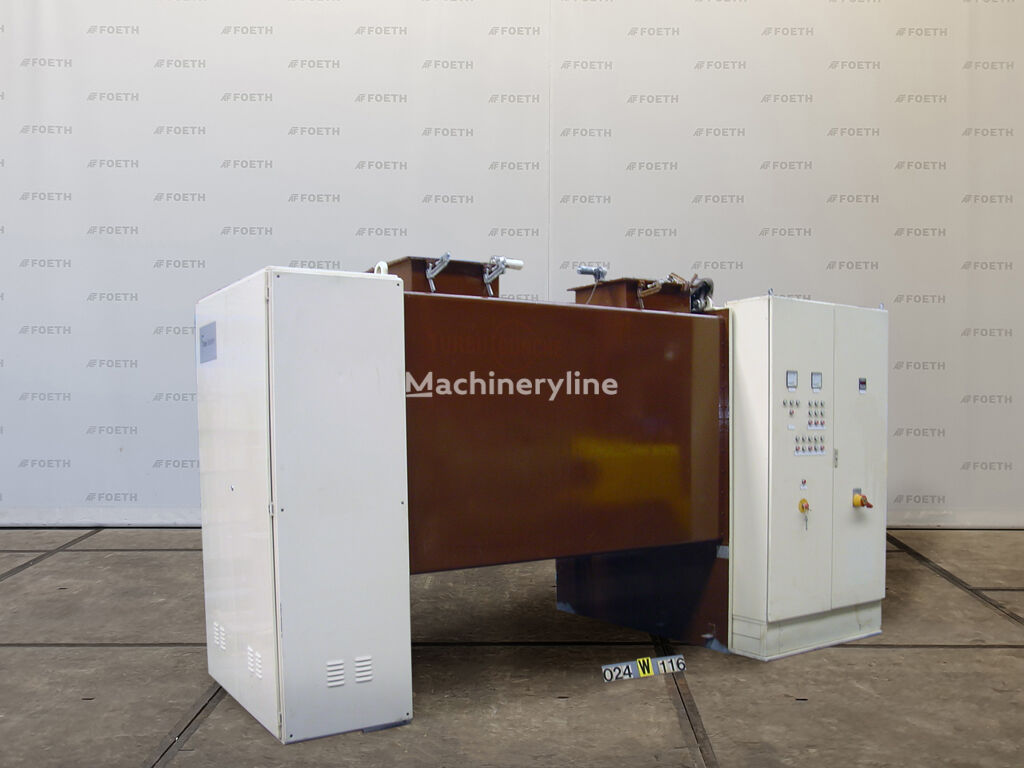

This Drais TC-1600 is a used mixer and blender — sometimes referred to as a powder blender or turbo mixer — designed for the intensive mixing and blending of bulk powders and granular materials. Drais is a well-established German manufacturer with a long history of producing industrial mixing, kneading, and size-reduction equipment for the chemical, pharmaceutical, food, and plastics industries.

The machine is a single unit of type TC-1600 FM I, serial number 54940, built in 1994 and located in Barneveld, Netherlands. It is constructed throughout in stainless steel grade Ti), which offers strong resistance to corrosion and is widely specified for processing applications involving aggressive or sensitive materials.

The mixer has a working volume of 1,600 litres, housed in a trough measuring 1,000 mm in diameter by 2,000 mm in length. The working pressure of the vessel is rated at 1 bar, while the jacket — with a volume of 120 litres — is rated for a working pressure of 6 bar, enabling efficient heating or cooling of the product. The maximum permissible temperature is 164 °C. Two square inlets, each measuring 500 × 500 mm, provide product feed access, and the outlet has a diameter of approximately 150 mm.

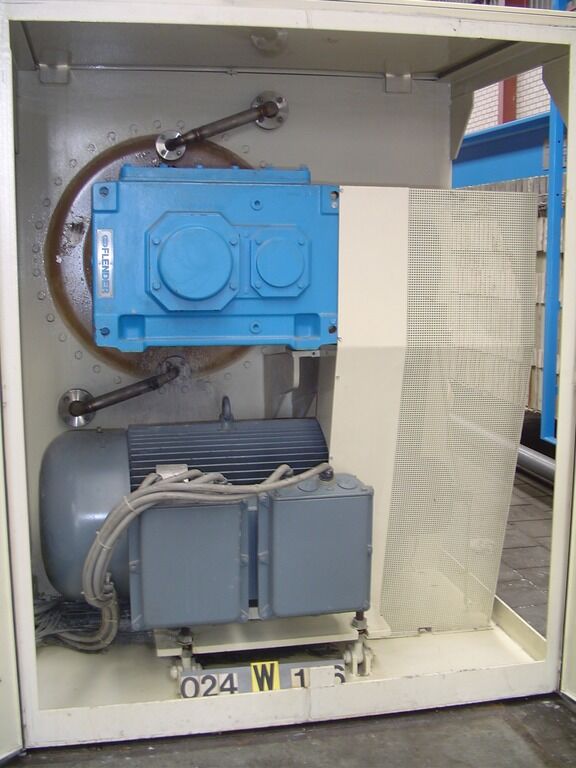

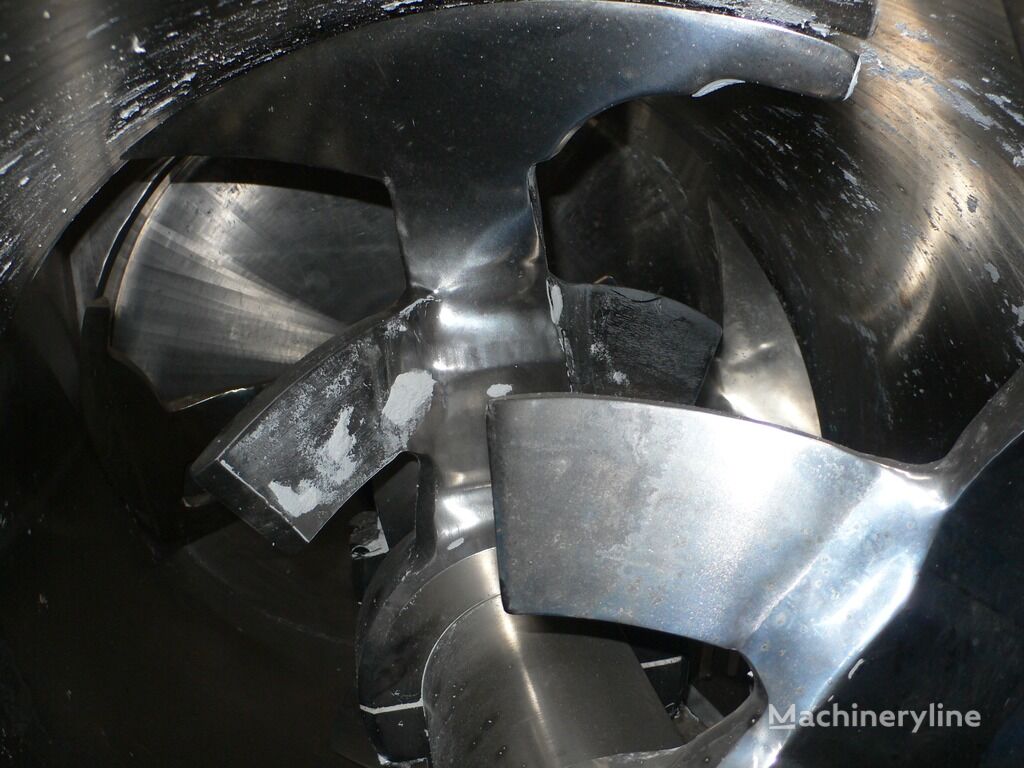

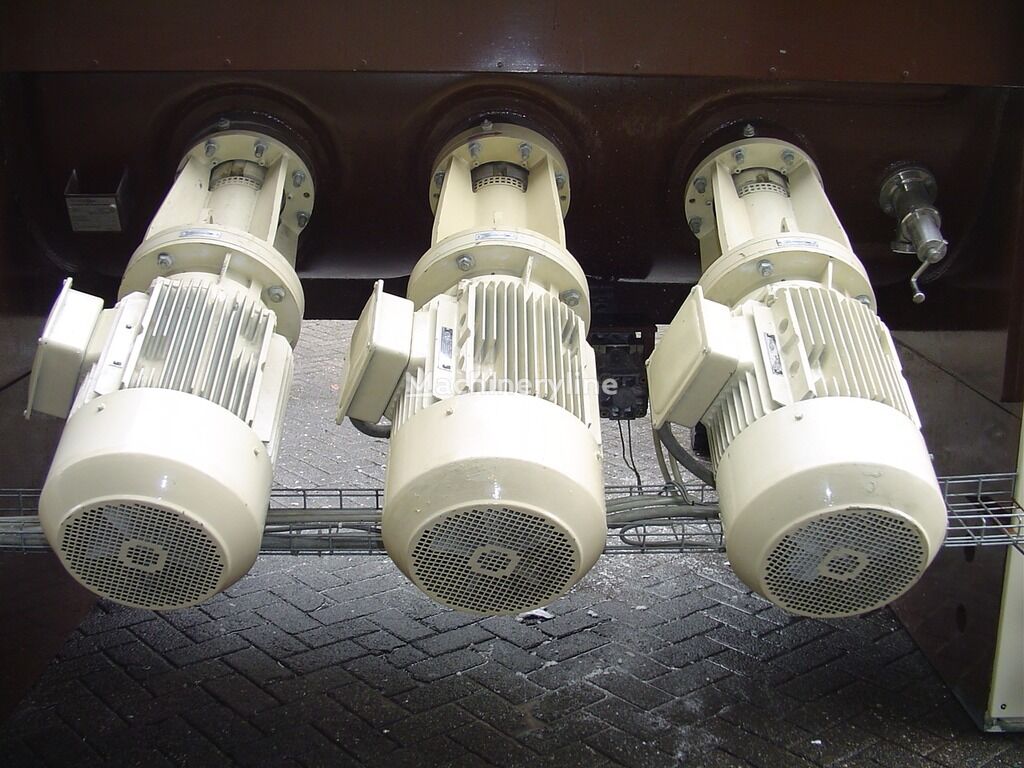

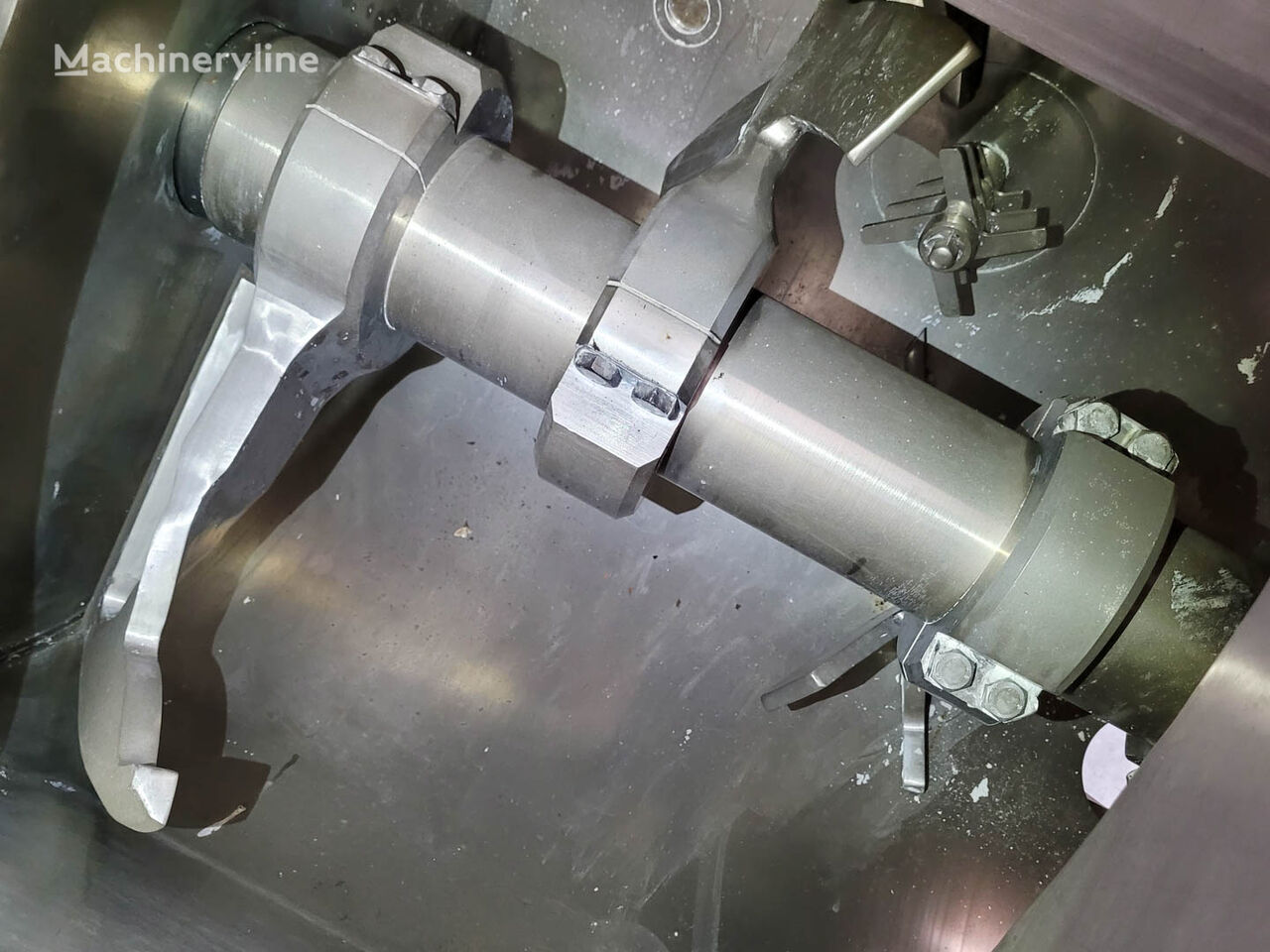

The main mixing shaft is driven by a motor rated at 17.5/23.0 kW at 400 volts and offers three selectable speeds: 30, 60, and 90 rpm. The machine is fitted with three lump breakers running at 1,500 or 3,000 rpm, allowing simultaneous de-agglomeration during the mixing cycle. The mixing shaft is equipped with T-arms and adjustable packing glands to maintain a reliable seal under varying process conditions.

The machine includes a jacket for temperature control, switchgear for electrical control, and has a floor footprint of 4.1 × 2.5 metres. It is offered in used condition.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
