1985 - Drais Werke GmbH Powder turbo mixer Mixer Blender()
- Listing No
- 1183323
- Year
- 1985
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: T-2000 SM No: 52000 Working pressure: 8.2 Bar Material: Stainless steel 1.4541 (321) Volume: 2000 Ltr Motor: 24 kW 380 Volt Capacity: 2118 Ltr Useful capacity: 2000 Ltr Trough sizes: dia. 1200x1900mm Inlet: dia. 170mm Top connections: dia. 80mm (2x) , dia. 100mm (1x) Outlet: 200x200mm Speed mixing shaft: 34 rpm Floorspace: 4,2x1,5 M Total height: 1,7 M without filter Extra Specifications: including rotating valve J. Engelsman AG type 400 V2A nr 6648 year 1985, motor 0.75 kW 220/380 Volt inlet dia. 290mm including filter brand Bucher type AJN 304S content 5200 Ltr. max 100 degr. C height filter 3.7 M dia. 1.6 merk: Drais Werke GmbH General Pressure Main Features Specified Features - Powder turbo mixer Powder turbo mixer Glands air purged Information
About this machine

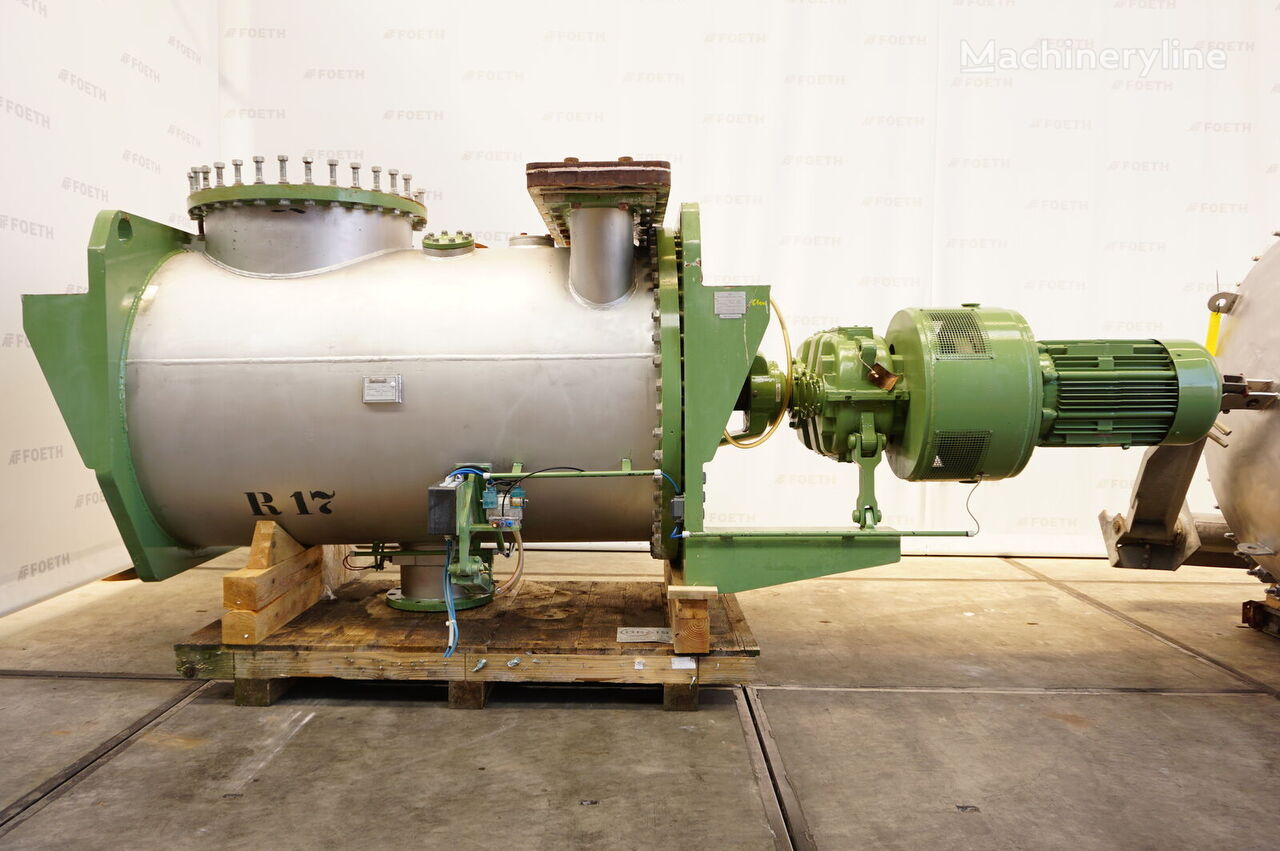

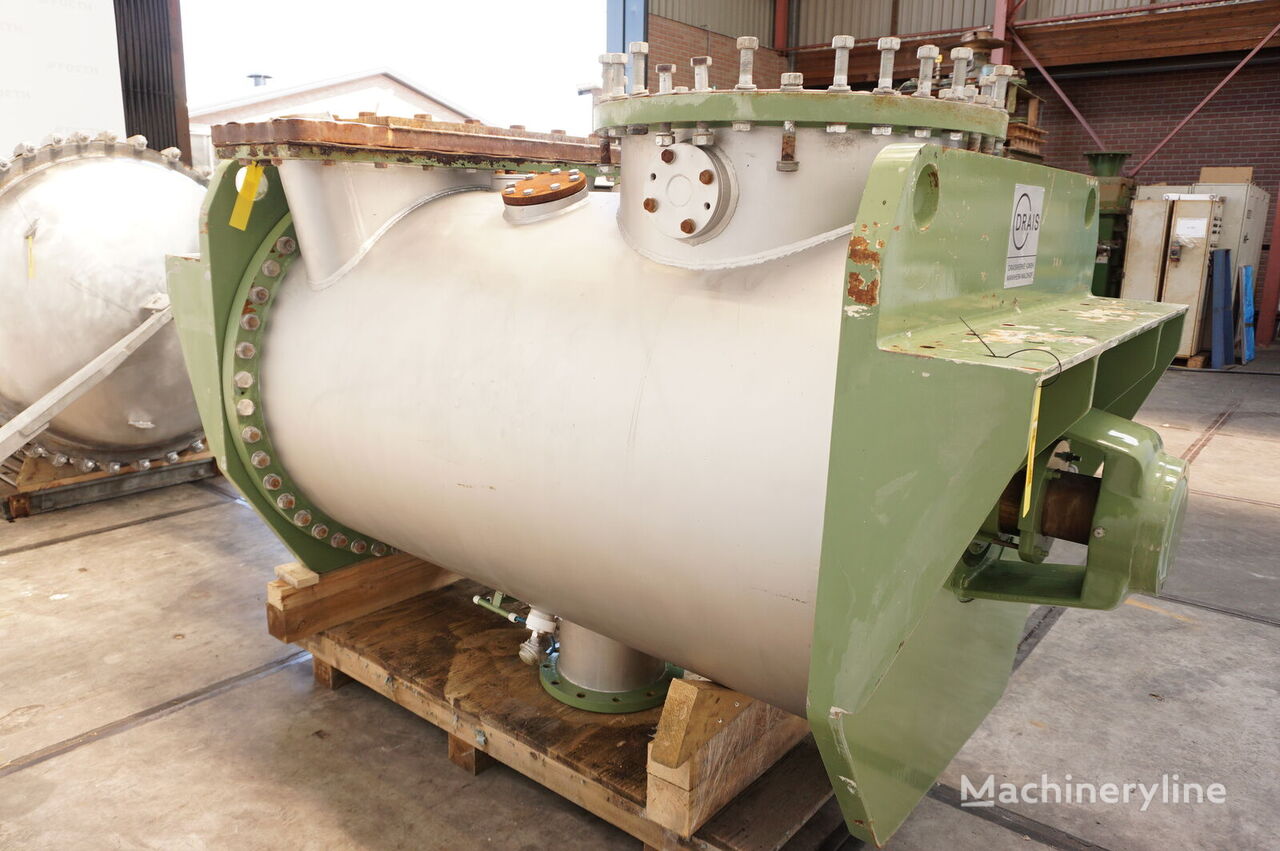

This Drais Werke GmbH Powder Turbo Mixer is a used mixer and blender — sometimes referred to as a turbo mixer or powder blender — designed for the mixing and blending of powder and bulk materials in industrial processing applications. Drais Werke GmbH is a well-regarded German manufacturer with a long history of producing industrial mixing, dispersing, and blending equipment for the chemical, pharmaceutical, and food processing industries. This unit dates from 1985 and is currently located in Barneveld, Netherlands.

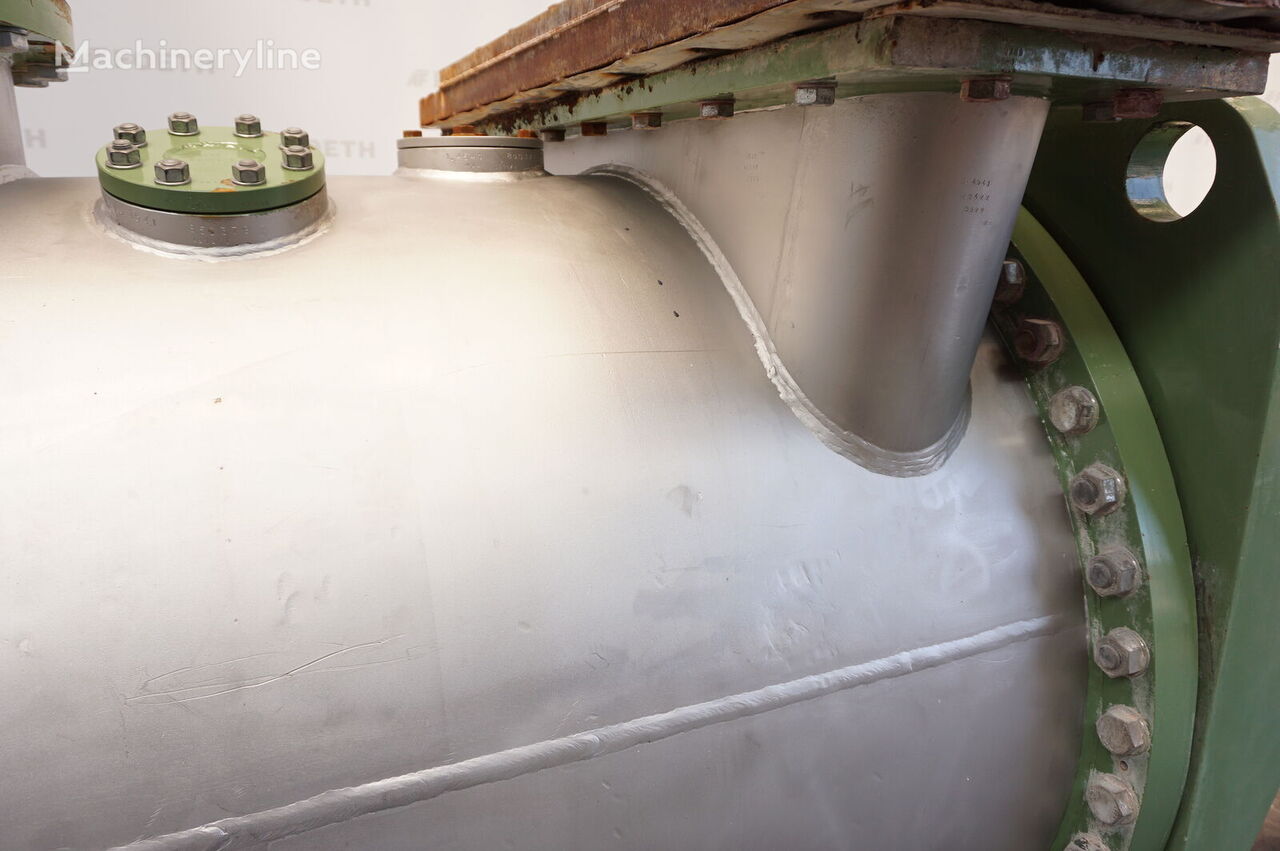

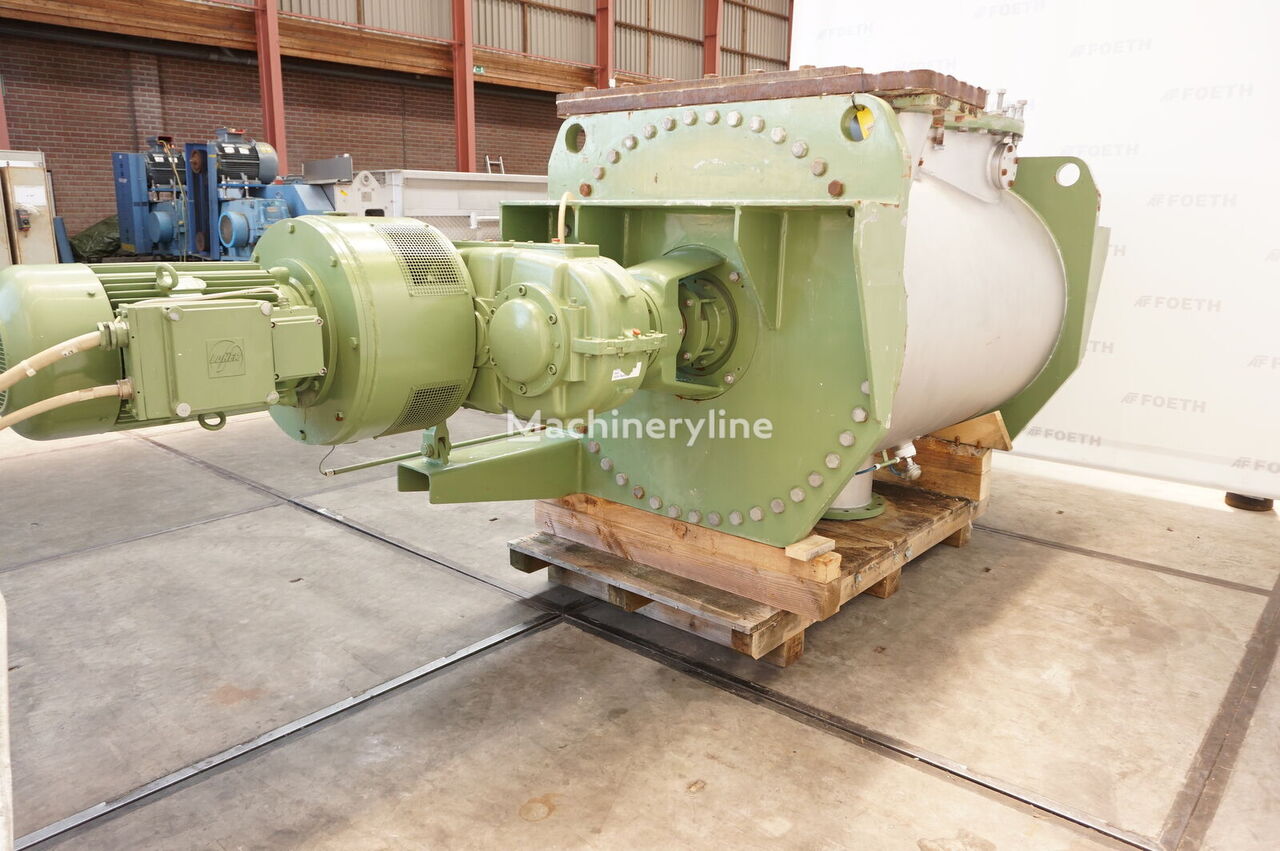

The machine carries the designation T-2000 SM, serial number 52000, and is constructed entirely in stainless steel grade 1.4541 (equivalent to AISI 321), making it suitable for demanding hygienic or chemically resistant applications. The vessel has a total capacity of 2,118 litres with a useful working capacity of 2,000 litres. The trough dimensions are 1,200 mm in diameter by 1,900 mm in length. The mixing shaft operates at 34 rpm, and the main drive motor is rated at 24 kW on 380 V. The machine is rated to a working pressure of 8.2 bar. Air-purged glands are fitted to the shaft seals, an important feature when processing fine or sensitive powders.
Port connections are as follows: the inlet is 170 mm in diameter, there are two top connections of 80 mm diameter and one of 100 mm diameter, and the outlet measures 200 × 200 mm. The machine's floor footprint is 4.2 × 1.5 m, and the total height of the mixer itself is 1.7 m, not including the filter assembly.

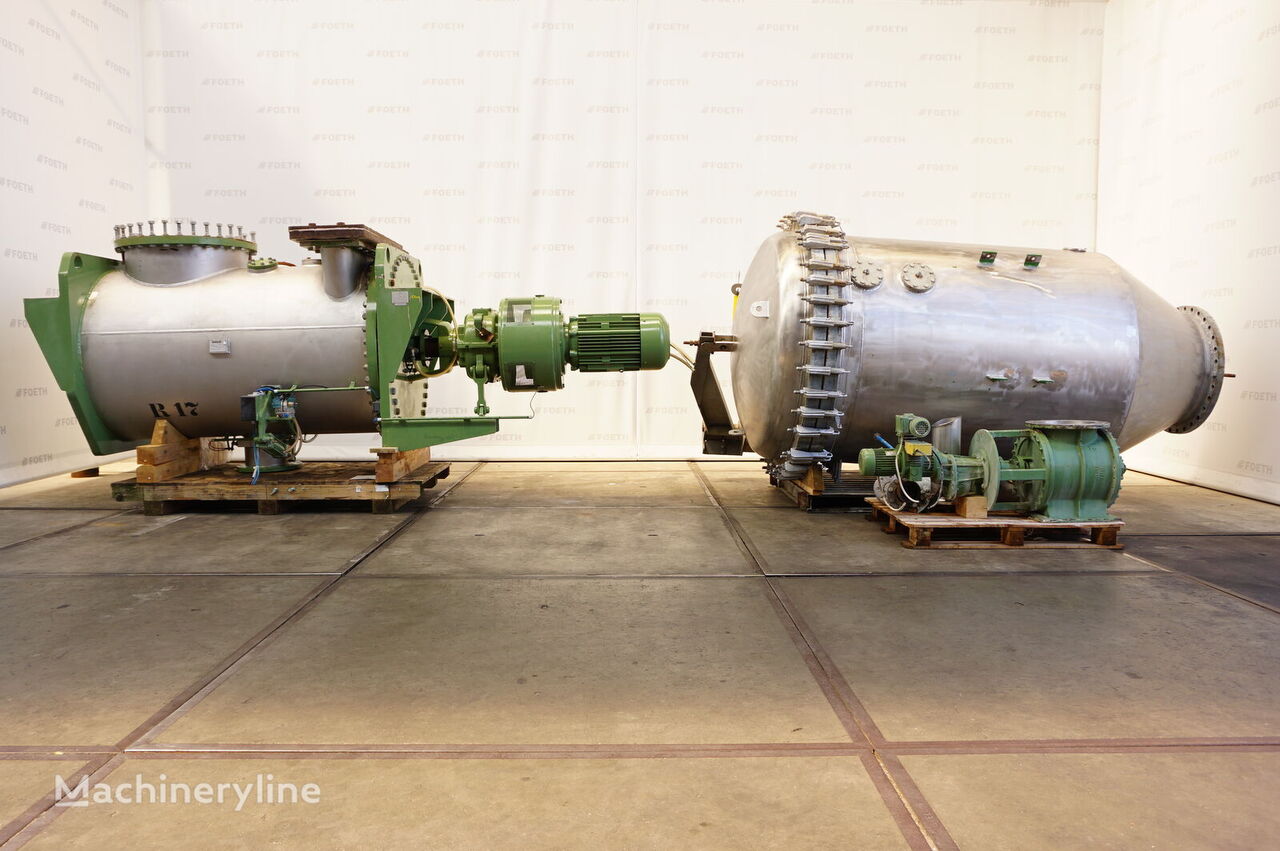

The unit is offered with two significant ancillary items. A rotating valve manufactured by J. Engelsman AG, type 400 V2A, serial number 6648 (also dated 1985), is included; this valve features a 0.75 kW motor rated at 220/380 V and an inlet diameter of 290 mm. Also included is a Bucher filter, type AJN 304S, with a content volume of 5,200 litres, a maximum operating temperature of 100°C, a height of 3.7 m, and a diameter of 1.6 m. The combined filter height brings the overall installation height considerably above that of the mixer unit alone, which should be taken into account when assessing installation space requirements.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
