2004 - Ekato Unimix SRT 50 Mixer Blender()
- Listing No
- 1177150
- Year
- 2004
- Manufacturer
- Ekato
- Model
- Unimix SRT 50
- Condition
- Used
- Location
- Germany
- Price
- POA
- Description
-

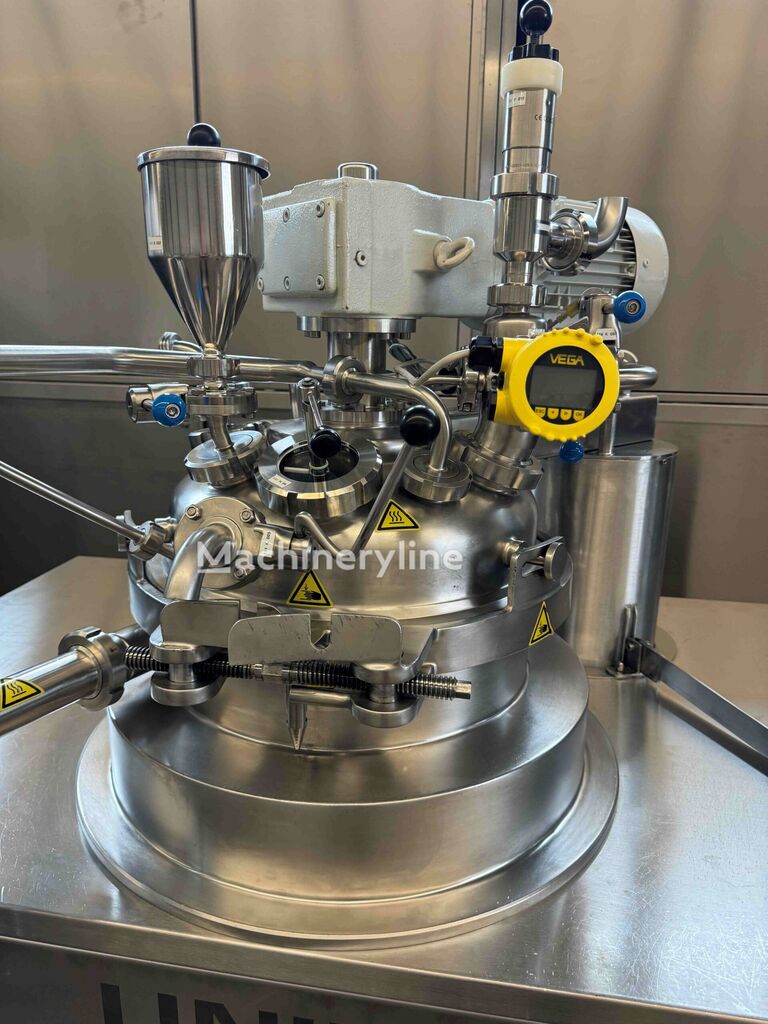

Vacuum processing unit Manufacturer Ekato Unimix Type SRT 50 Machine description – GMP-compliant – EKATO PARAVISC agitator with EKATO UNIMIX scraper system Power 3 Kw 5.2 Kw at 87 Hz Speed 21-121 rpm – Patented EKATO UNIMIX S-JET homogeniser positioned at the lowest point of the tank for internal and external homogenisation Power 5.5 kW 9.5 Kw at 87 Hz Speed 1,000 – 4,800 rpm – Swivelling lid lifting device – Integrated CIP cleaning system – Integrated heating/cooling system Electric heating 12 Kw Siemens S7 control system with OP 17 Pressure and vacuum-proof with integrated vacuum system Product chamber Pressure -1/2 bar Temperature 10/152 °C Thermal system / double jacket Pressure -1/+4 bar Temperature 10/152 °C Complete documentation including IQ / OQ Machine is mobile weight approx. 1,400 kg Previous use: Homeopathic medicines
About this machine
The Ekato Unimix SRT 50 is a used mixer and blender — sometimes referred to as a mixing vessel or process mixer — manufactured by Ekato in 2004 and currently located in Germany. Mixer and blenders of this type are used across the pharmaceutical, cosmetic, and chemical industries to combine, homogenise, and process liquid, semi-solid, and viscous products under controlled conditions. Ekato is a well-established German manufacturer known for precision mixing and agitation technology, supplying equipment to demanding process industries where hygiene, accuracy, and reproducibility are critical.

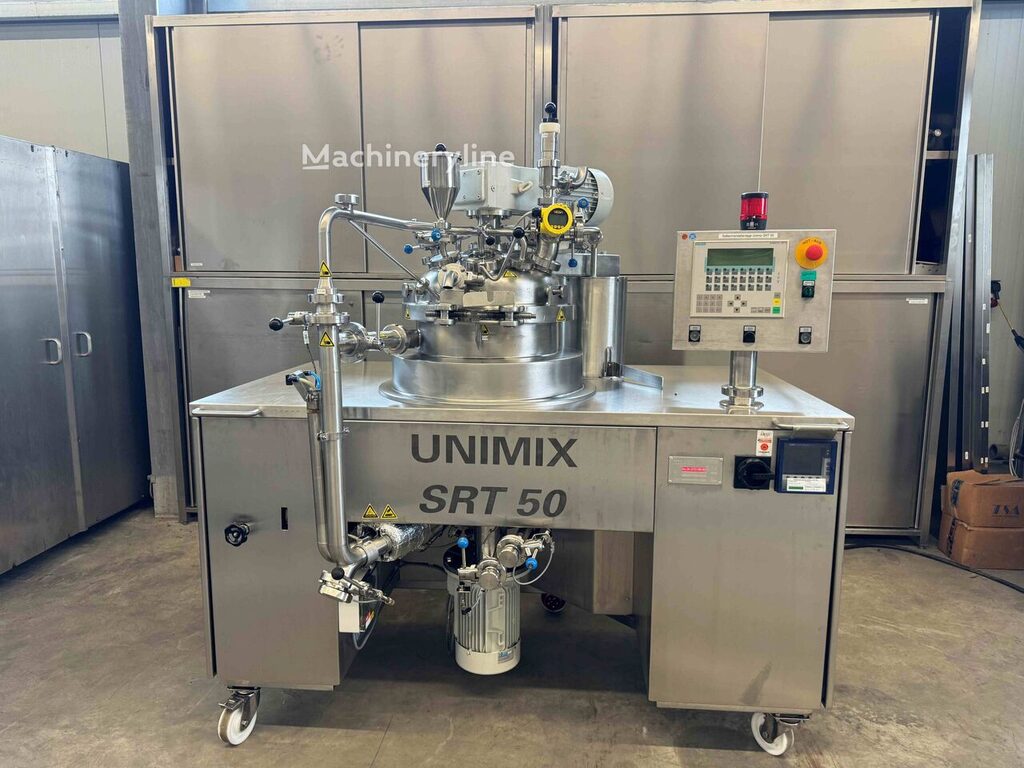

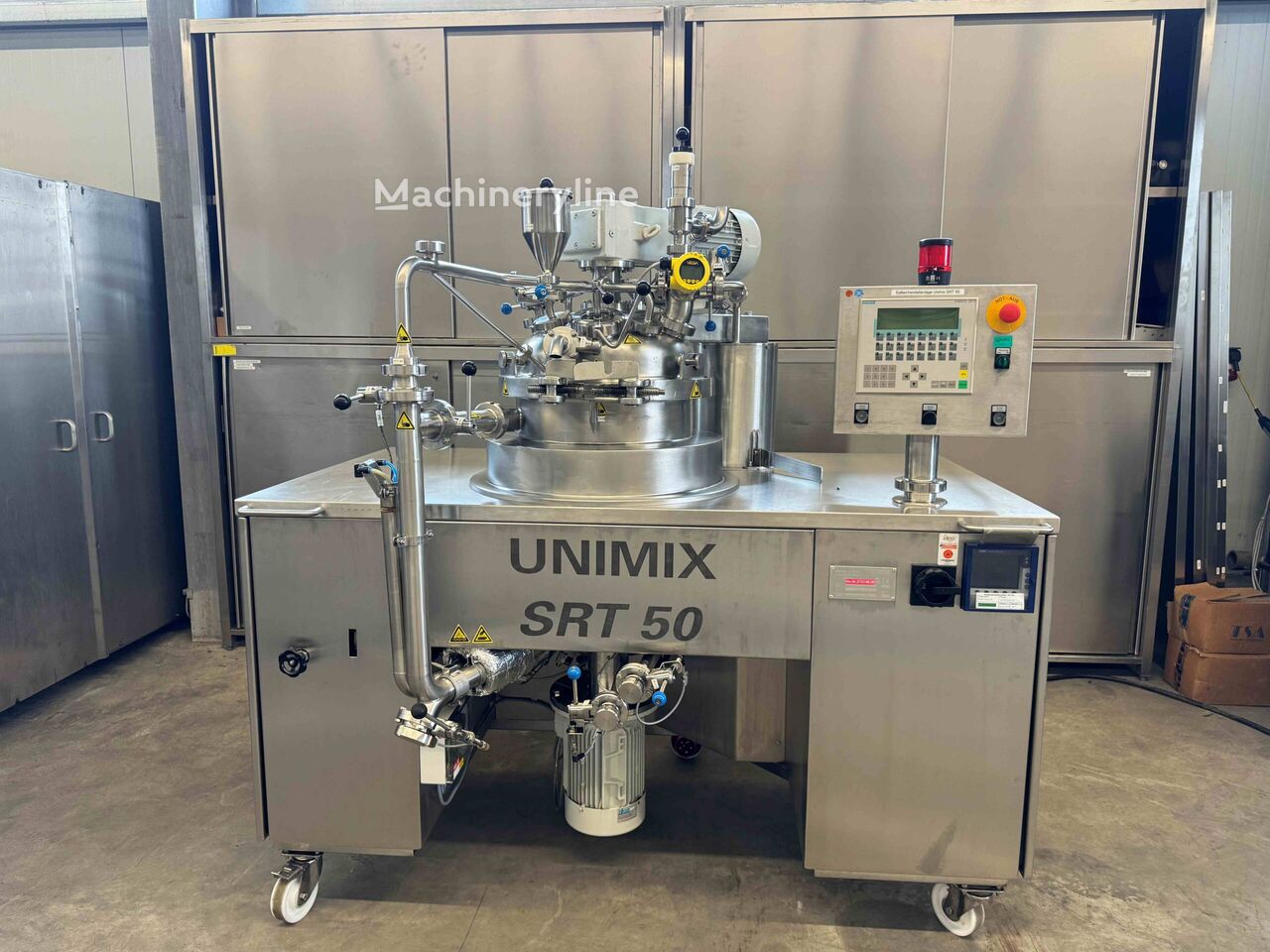

This unit is a vacuum processing vessel designed and built to GMP standards, making it well suited to regulated production environments. It was previously used in the manufacture of homeopathic medicines. The machine is mobile and weighs approximately 1,400 kg.

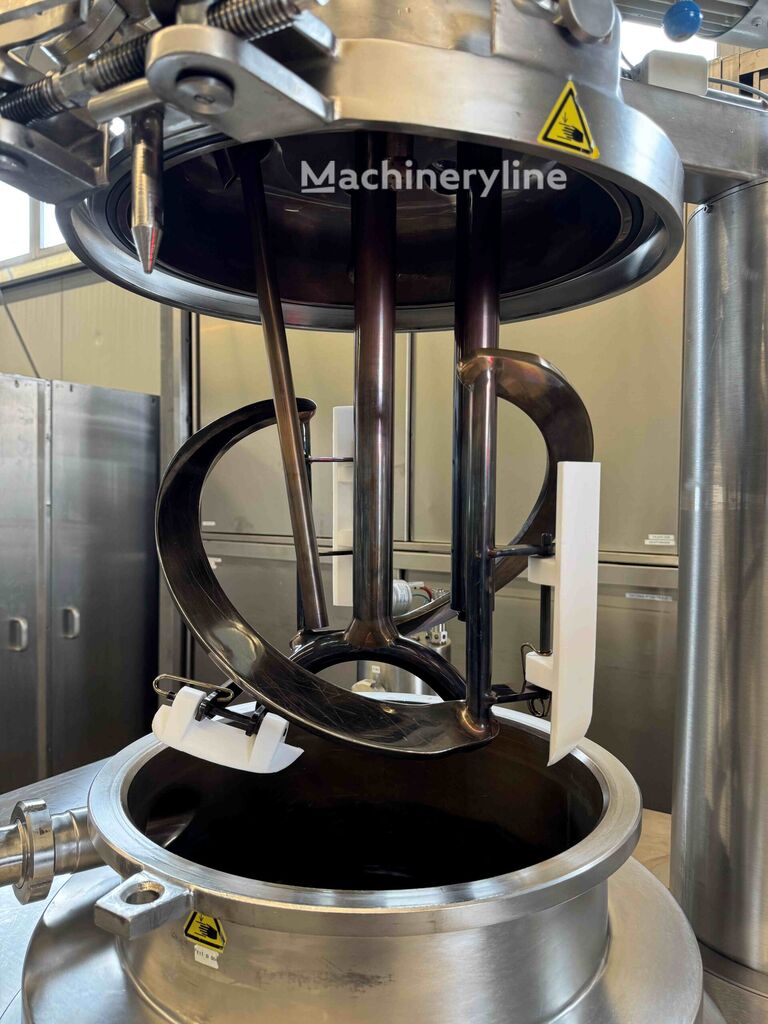

The agitation system comprises an EKATO PARAVISC agitator fitted with the EKATO UNIMIX scraper system. This agitator runs at speeds between 21 and 121 rpm, with a motor rated at 3 kW standard and 5.2 kW at 87 Hz. A patented EKATO UNIMIX S-JET homogeniser is positioned at the lowest point of the tank, enabling both internal and external homogenisation. The homogeniser operates across a wide speed range of 1,000 to 4,800 rpm, with a motor rated at 5.5 kW standard and 9.5 kW at 87 Hz.
The product chamber is rated for pressure and vacuum operation, with a working pressure range of -1 to +2 bar and a temperature range of 10 to 152 °C. The thermal double-jacket system operates at pressures between -1 and +4 bar across the same temperature range of 10 to 152 °C. Electric heating is provided at 12 kW. An integrated CIP cleaning system is included, as is a swivelling lid lifting device.

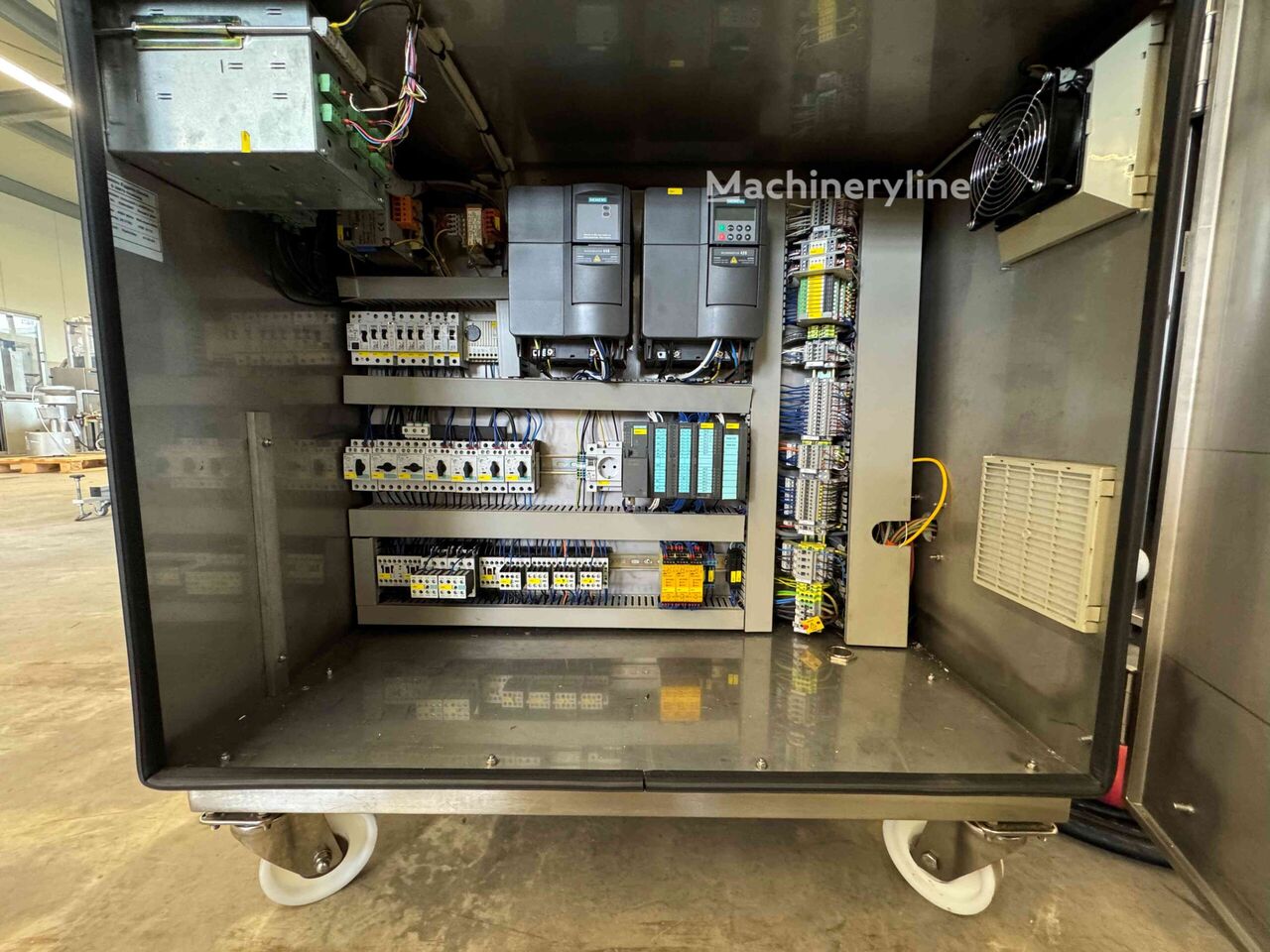

Process control is handled by a Siemens S7 system with an OP 17 operator panel. The machine is equipped with a vacuum system integrated into the vessel design. Complete documentation is available, including IQ and OQ qualification records, which supports validation requirements in regulated industries.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
