1978 - Estrella A.G 395 Ltr – Stirring vessel Mixer Blender()
- Listing No
- 1179711
- Year
- 1978
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 114033 & 17630/4 Lining material: Glass - Enamel Working pressure: 2.5 Bar Vacuum possible: check Material: Glass Volume: 395 Ltr Motor: 0,09 KW, 220/380 Volt (Ex) Closed stirring vessel: (3x) Capacity: 395 Ltr Vessel sizes: dia. 800x800mm Dished bottom: check Dished top side: check With cover: check Manhole: hand hole dia. 110mm, NO BOTTOM OUTLET Max. temperature: 120 Degr. C With propellor stirrer: check Speed mixing shaft: variable Mounted on legs: check With switch: check Floorspace: 0,9x0,8 M Total height: 1,7 M ATEX compatible: check merk: Estrella A.G General Material Pressure Main Features Specified Features - Stirring vessel Information
About this machine

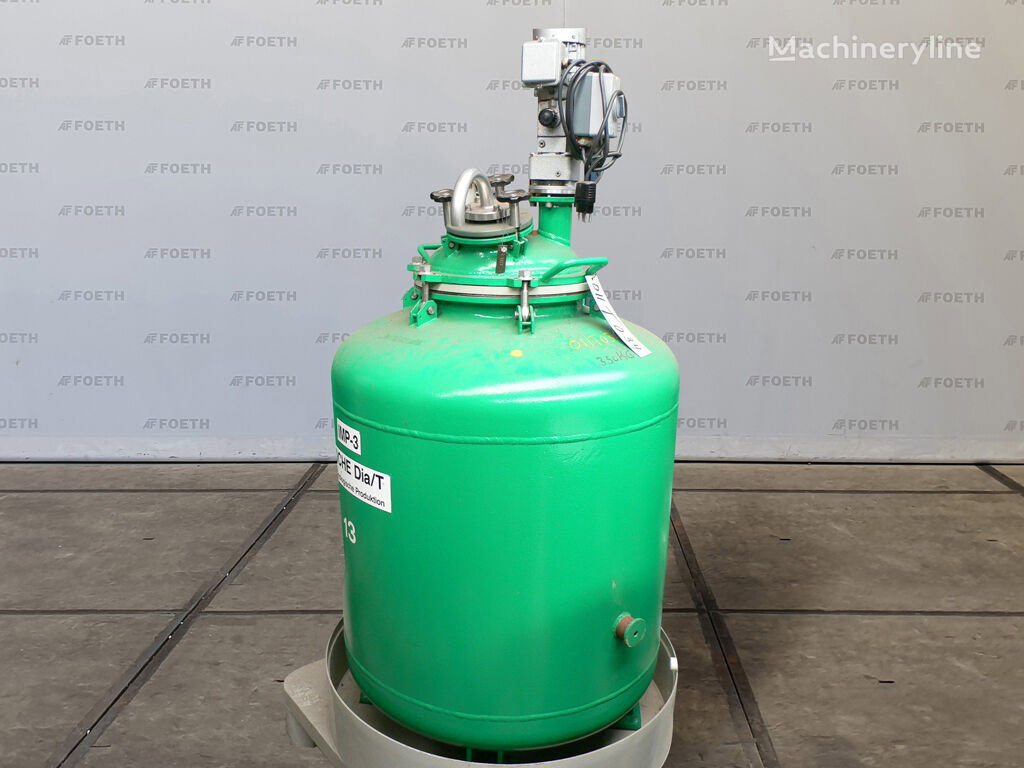

This Estrella A.G blender and mixer — also referred to as a stirring vessel — is a closed, agitated tank designed for mixing, blending, and processing liquid or semi-liquid products under controlled pressure and temperature conditions. The listing covers three units, each with a capacity of 395 litres.
Each vessel is constructed from glass-lined enamel, a material chosen for its chemical resistance and ease of cleaning, making it well suited to food, pharmaceutical, chemical, and cosmetic processing applications. The internal volume is 395 litres, with a vessel diameter and height of 800 × 800 mm, a dished bottom, and a dished top, both of which promote efficient drainage and hygienic operation. The unit is mounted on legs, giving it a floor footprint of 0.9 × 0.8 metres and a total height of 1.7 metres.

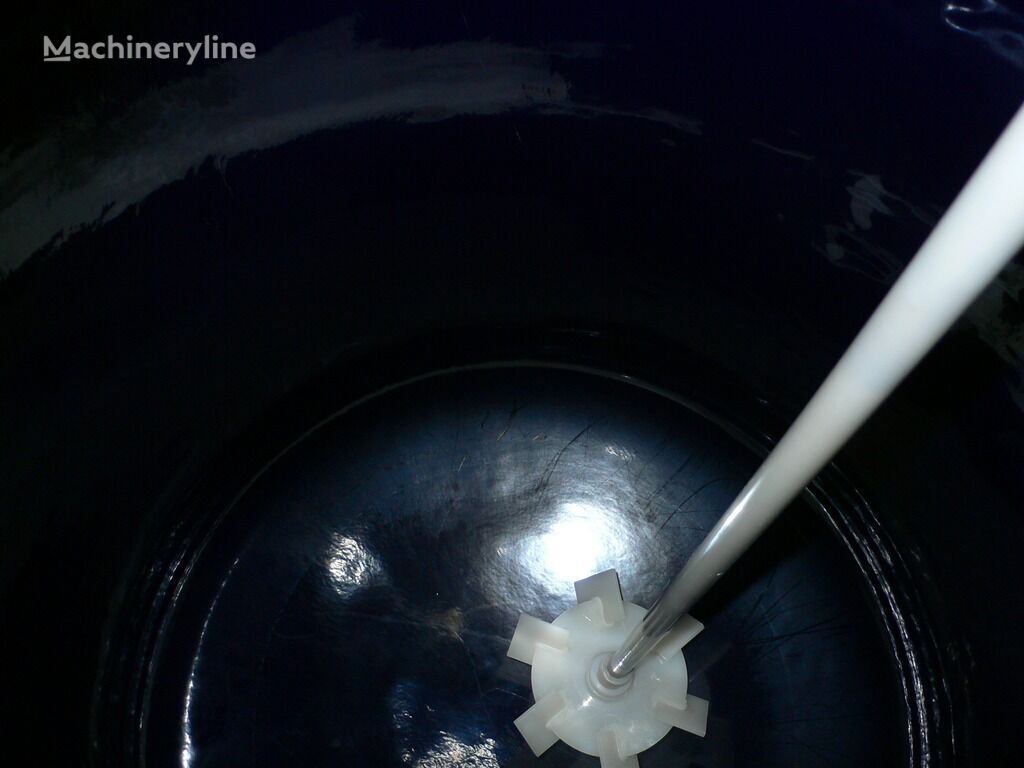

Each vessel is fitted with a cover and a hand hole with a diameter of 110 mm for access and inspection. There is no bottom outlet on these units. A propeller stirrer is installed, driven by a 0.09 kW motor rated at 220/380 volt in an ATEX-compliant (explosion-proof) configuration, suitable for use in hazardous environments. The speed of the mixing shaft is variable, allowing adjustment to suit different product viscosities and process requirements. A switch is included on the unit.
The vessel is rated for a maximum working pressure of 2.5 bar and is capable of operating under vacuum conditions. The maximum permissible temperature is 120°C. The combination of pressure, vacuum, and temperature capability makes these vessels versatile for a range of process applications. All three units are located in Barneveld, Netherlands, and date from 1978.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
