1997 - Fadal 907-1 Machining Center()
- Listing No
- 954998
- Year
- 1997
- Manufacturer
- Fadal
- Model
- 907-1
- Condition
- Used
- Location
- Portugal
- Price
- $16,000
- Description
-
Auto Mode (Z axis): 36/min Control: Heidenhain 6951/6951/11519N course x: 1300 MM course y: 400 MM course z: 500 MM Electric: 230V/3PH Head (Z axis): 610 mm iso: 50 kW power: 0.04/0.053 Kw spindle power: 3 Longitudinal advance mm/min: (8) 30 - 740 Longitudinal course: 1000 mm main engine: 15 / 22.5 hp mandrel cone: ISO40 Maximum height on the table: 820 mm Maximum spindle speed: 12,000 rpm Maximum spindle torque: 121 Nm Maximum tool diameter: 80 mm Maximum tool length: 300 mm Maximum weight on the table: 1500 kg Max spindle power: 14,5 kW Minimum Increment: 0,001mm Minimum spindle speed: 20 rpm mm dimensions: 2300x2200x2115 net weight kg: 2000 number of speeds: 11 Number of T-Slots: 5 piston displacement mm: MANUAL Quantity in Stock: 2 Quantity in Stock: 2 Ram stroke mm: 600 Saddle (Y axis): 610mm spindle speed: 0 - 10,000 RPM spindle taper: CAT40 Table Capacity: 3,300 pounds. Table dimensions: 1400 x 750 mm Table feed mm/min: Automatic table load: 900kg table rotation: +/-35 table size: 60" x 30" Table (X axis): 1020mm Tool storage capacity: 20 pcs. total machine weight: 8800 kg Transverse feed mm/min: (8) 30-740 Transverse slide displacement: 280 mm T-slots: 3x14 mm Vertical advance mm/min: 10-168 Vertical slides mm/min: 600 work surface: 1200 x 600mm X Axis Course: 60″ x/y/z acceleration: 6/5/4m/s2 X/Y/Z axis: 1150/700/550 mm X,Y,Z axis speed: 36 m / min Y Axis Course: 30″ Z Axis Course: 30″ Vertical machining center Fadal 907-1 VMC 6030 CNC. Show the whole comment
About this machine

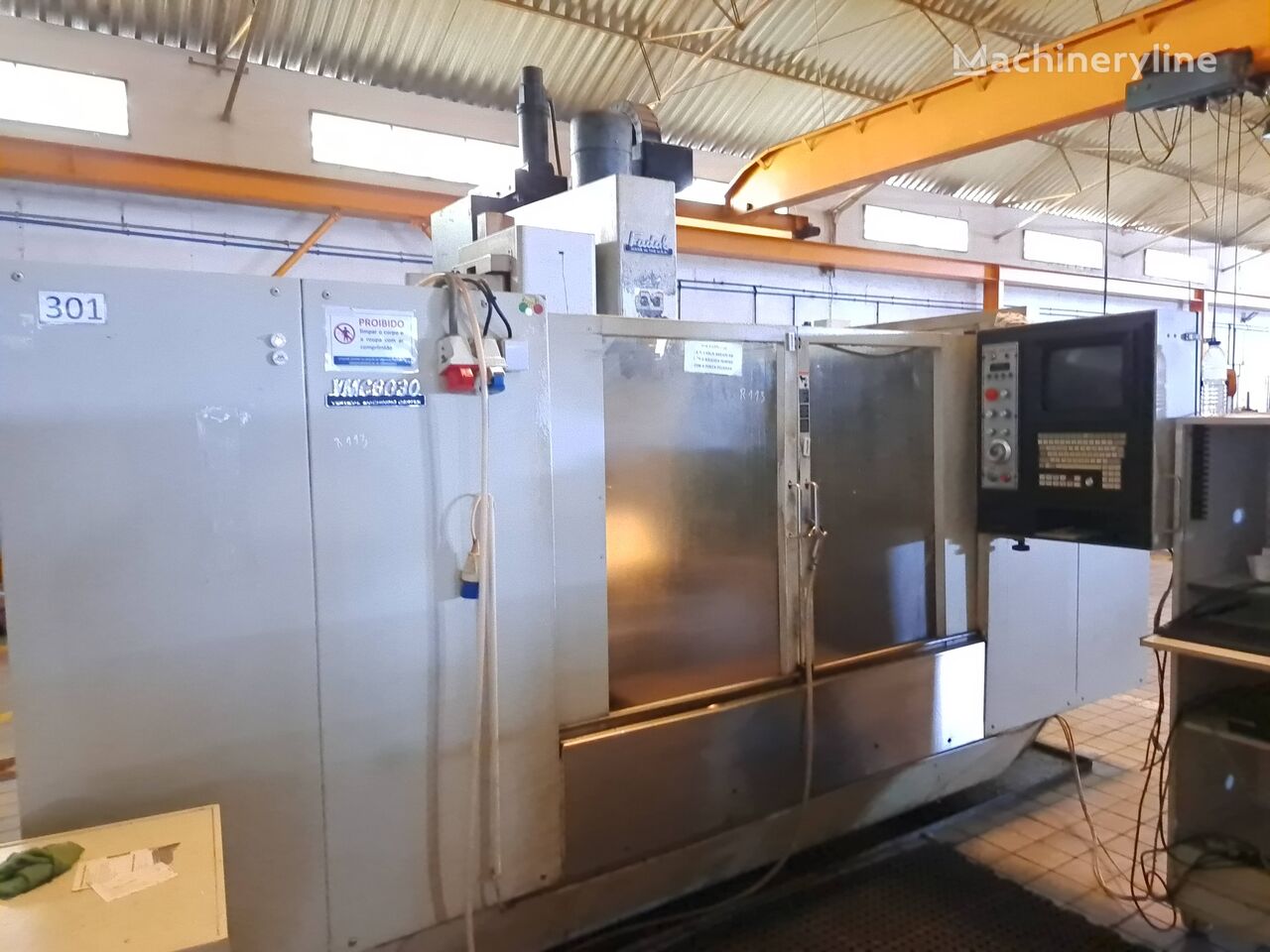

This Fadal 907-1 is a used vertical machining center — sometimes referred to as a VMC — built in 1997 and currently located in Portugal, with two units available at $16,000. Vertical machining centers are multi-axis CNC machine tools used in precision metal cutting operations including milling, drilling, boring, and tapping across a wide range of components. Fadal is a well-established American manufacturer of CNC machining equipment, long recognised in the metalworking and manufacturing industries for producing robust vertical machining centers suited to job shops and production environments alike.
The machine is equipped with a Heidenhain control unit and features a spindle taper of CAT40 / ISO 50, with a maximum spindle speed of 12,000 rpm and a minimum of 20 rpm across eleven selectable speed steps. Maximum spindle power is rated at 14.5 kW, with a main motor output of 15 / 22.5 hp, and maximum spindle torque reaches 121 Nm. The tool storage carousel holds 20 tools, with a maximum tool diameter of 80 mm and a maximum tool length of 300 mm.

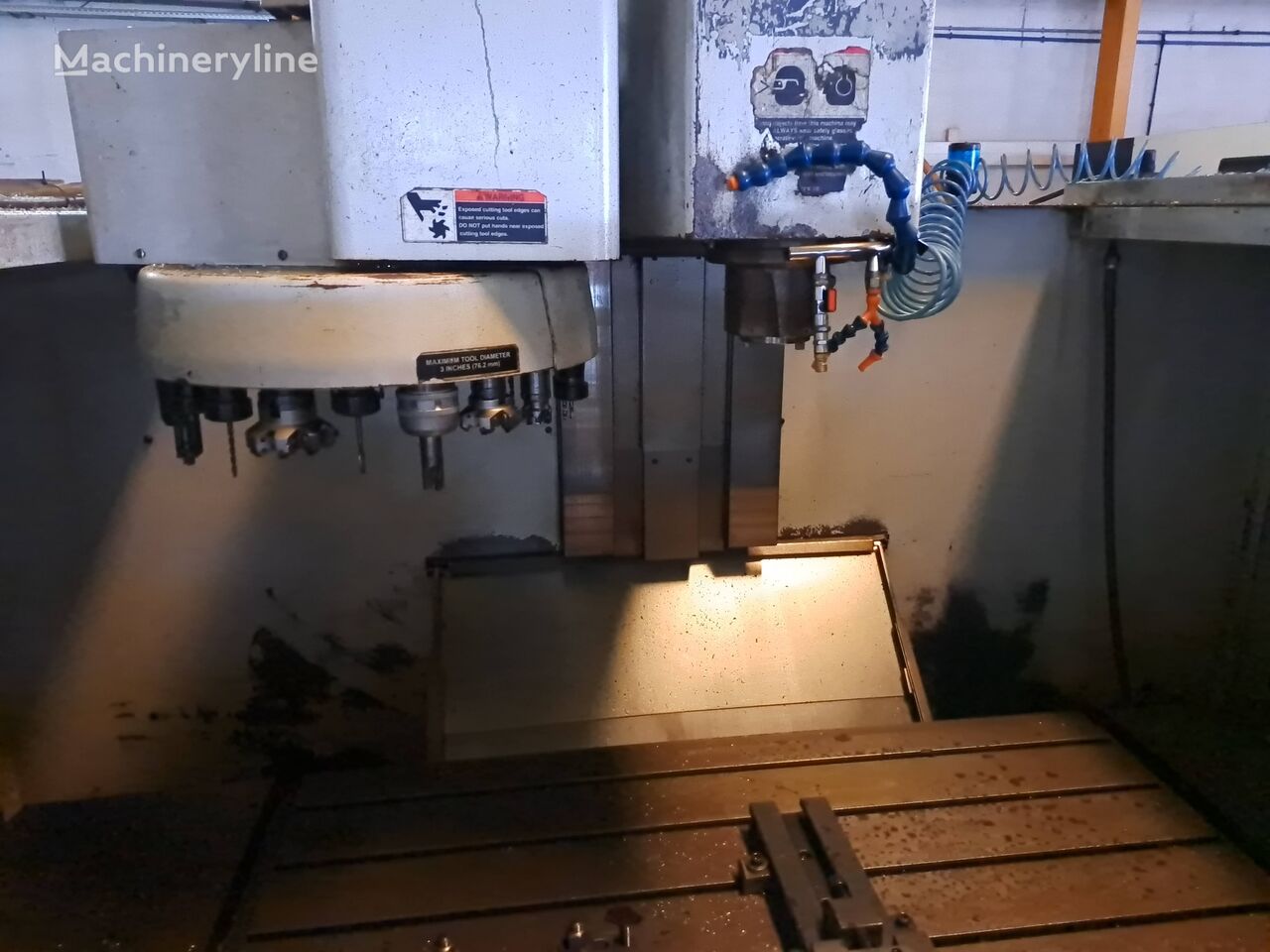

The working table measures 1,400 × 750 mm with a work surface of 1,200 × 600 mm, accommodating a maximum load of 1,500 kg. The table features five T-slots sized 3 × 14 mm and offers a rotation of ±35 degrees. Axis travels are 1,150 mm in X, 700 mm in Y, and 550 mm in Z, with a rapid traverse speed of 36 m/min across all three axes and axis acceleration of 6 / 5 / 4 m/s² in X, Y, and Z respectively. Longitudinal and transverse feed rates are selectable across eight steps in the range of 30 to 740 mm/min, while vertical feed ranges from 10 to 168 mm/min. Minimum positioning increment is 0.001 mm, reflecting the precision expected of a machine of this class.
The maximum component height on the table is 820 mm, and the machine accepts components up to 1,500 kg. The head (Z axis) and saddle (Y axis) each measure 610 mm. The electrical supply requirement is 230 V, three-phase. Overall machine dimensions are 2,300 × 2,200 × 2,115 mm, with a total machine weight of 8,800 kg and a net weight of 2,000 kg.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
