2012 - FIB industries B.V. Leeuwarden Mixer Blender()
- Listing No
- 1181831
- Year
- 2012
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: R-101.200 No: 730406-05 Working pressure: 10 Bar Vacuum possible: check Working pressure jacket: 5.5 Bar Vacuum possible jacket: check Material: Stainless steel 1.4404 (316L) Volume: 9500 Ltr Motor: 11 kW, 400 volt, 1465 rpm, (Ex) Reactor: check Capacity: 9500 l Vessel sizes: Dia. 2200x1800 mm Dished bottom: check Dished top side: check Manhole: DN600 Top connections: (2x) dia. 80 mm, (2x) dia. 50 mm Outlet: Dia. 100 mm With jacket: Volume 900 l Max. temperature: 140°C/70°C (vessel/jacket) With paddle stirrer: check (2-stage) Speed mixing shaft: 72 rpm Total height: 5,2 m merk: FIB industries B.V. Leeuwarden General Pressure Main Features Specified Features - Stainless Steel Reactor Stainless Steel Reactors Information CE
About this machine
This FIB Industries B.V. Leeuwarden mixer and blender — sometimes referred to as a mixing vessel or blending reactor — is a heavy-duty, large-capacity industrial unit designed for the mixing, blending, and processing of liquid and semi-liquid materials under controlled temperature and pressure conditions. FIB Industries B.V., based in Leeuwarden in the Netherlands, is a specialist manufacturer of process equipment, producing stainless steel vessels, reactors, and mixing systems for the food, chemical, and pharmaceutical industries.
Built in 2012 and offered in used condition from a location in Barneveld, the Netherlands, this machine carries the type designation R-101.200 and serial number . The vessel is constructed throughout in stainless steel grade L), offering strong resistance to corrosion and compatibility with a wide range of process media.
The vessel has a total working capacity of 9,500 litres, with vessel dimensions of 2,200 mm diameter by 1,800 mm height and a total installed height of 5.2 metres. Both the top and bottom of the vessel feature dished ends. The working pressure of the main vessel is rated at 10 bar, with vacuum capability also provided. Access is via a DN600 manhole on the top, which is supplemented by two 80 mm diameter and two 50 mm diameter top connections, along with a 100 mm diameter outlet.
The vessel is fitted with a jacket, which has its own volume of 900 litres and a working pressure of 5.5 bar, again with vacuum capability. Maximum operating temperature is 140°C for the vessel and 70°C for the jacket, allowing for precise thermal management of the process. The unit is configured as a reactor.

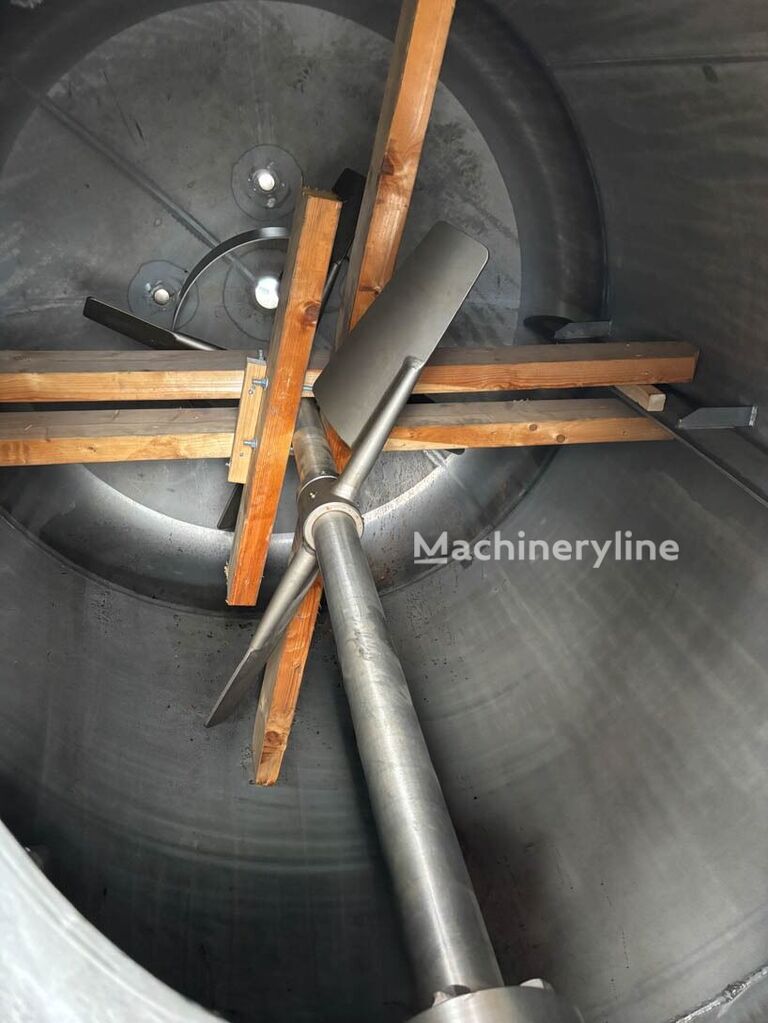

Agitation is provided by a two-stage paddle stirrer driven by an 11 kW motor operating at 400 volts and 1,465 rpm, delivering a mixing shaft speed of 72 rpm. The motor is specified to ATEX (Ex) standard, making it suitable for use in potentially explosive atmospheres. The machine carries CE marking.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
