About this machine

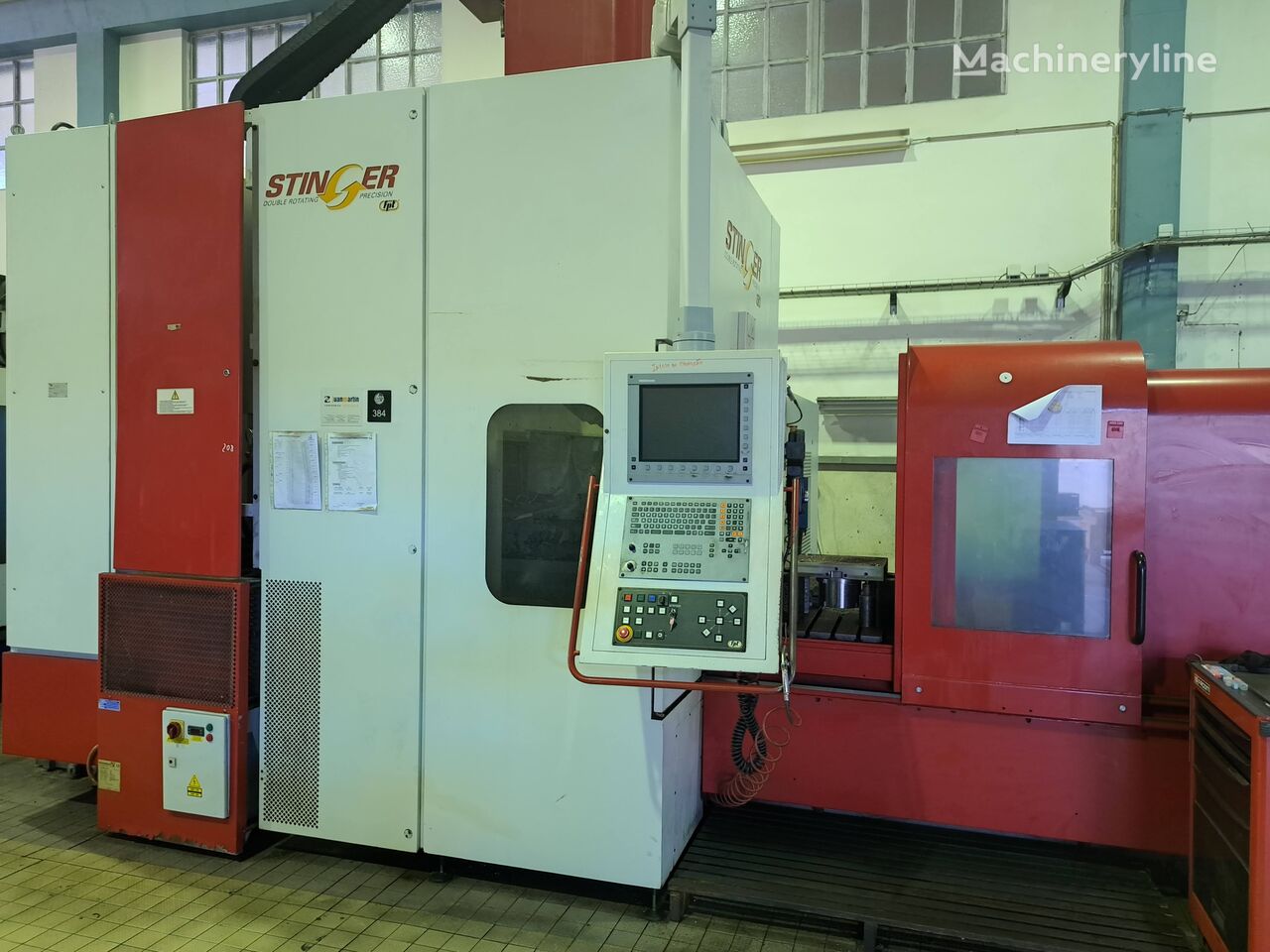

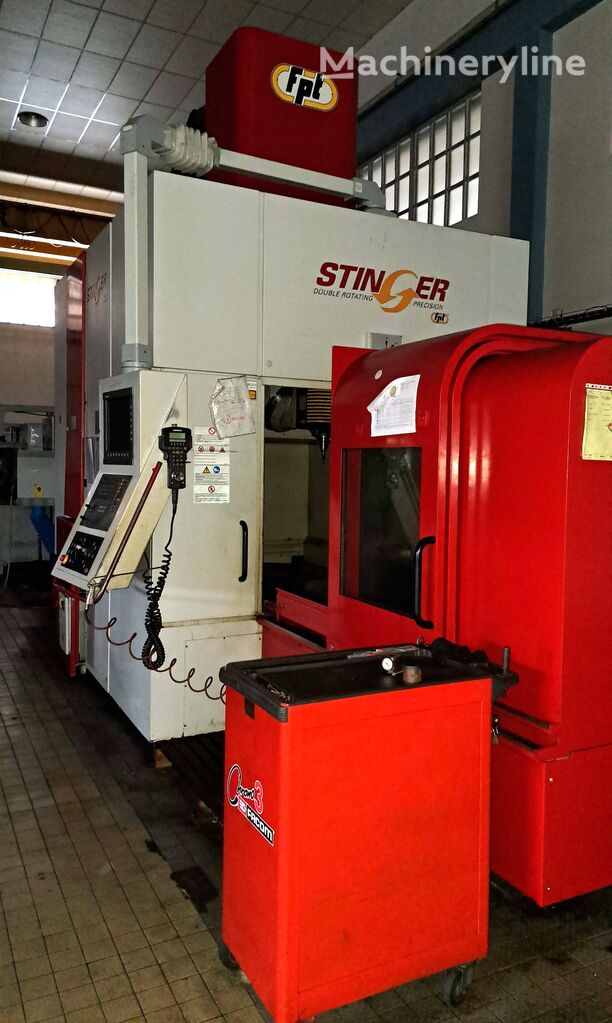

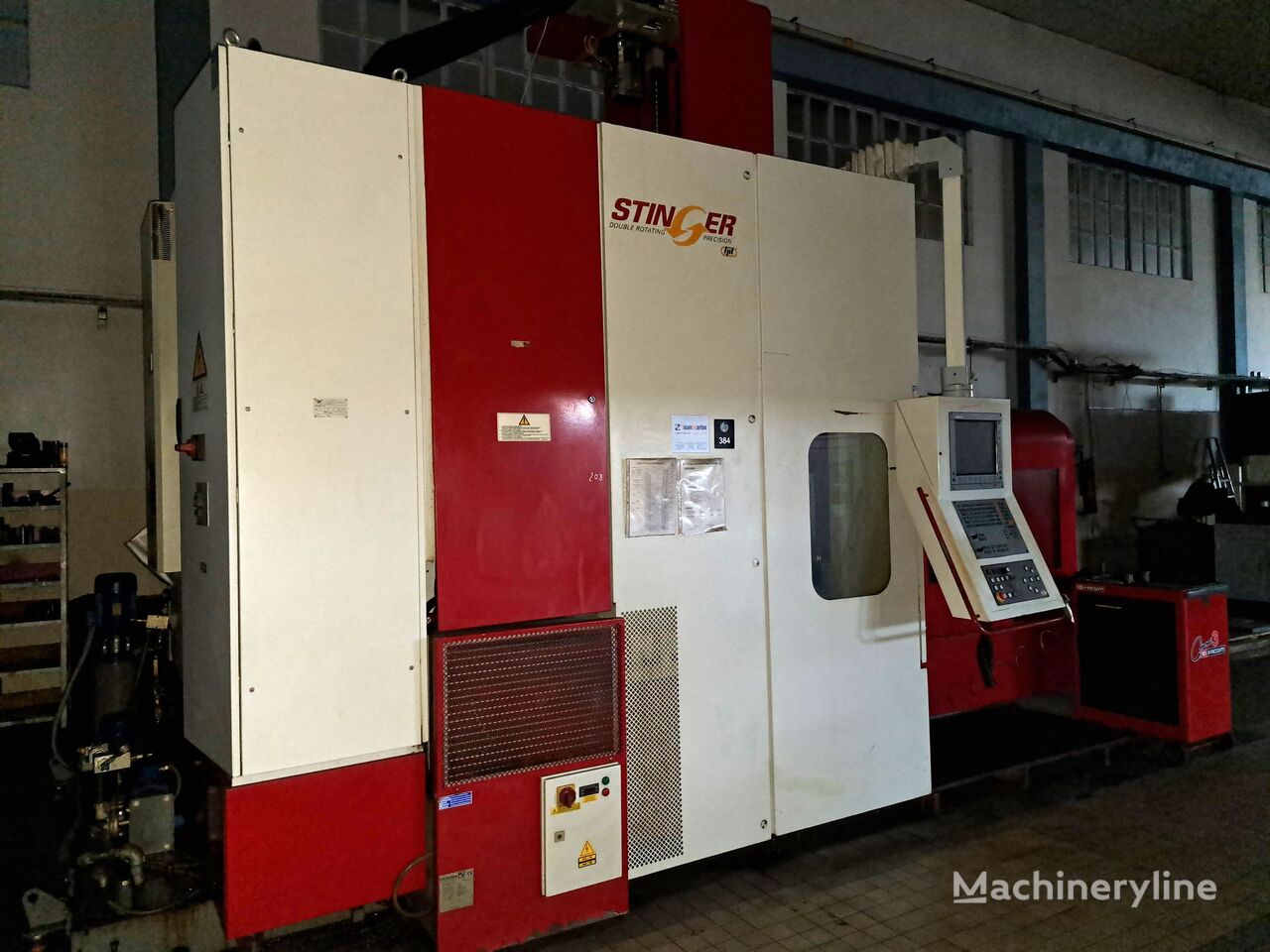

This 2008 FPT Stinger XL is a five-axis machining center — sometimes referred to as a CNC machining center or milling center — a category of precision machine tool used for high-accuracy multi-face cutting, contouring, and complex part production across aerospace, automotive, mould-making, and general engineering applications. FPT is an Italian manufacturer with a long-standing reputation for large-format, high-precision machining centers serving demanding industrial sectors.

The machine is configured for five-axis simultaneous operation, giving it the ability to approach a workpiece from virtually any angle in a single setup. The spindle accepts HSK 63A tooling and runs to a maximum speed of 18,000 rpm, making it well suited to high-speed finishing as well as productive roughing passes. An internal through-spindle coolant system delivers coolant at 25 bar, helping to clear chips, extend tool life, and maintain cutting accuracy at the point of contact. The control system is a Heidenhain TNC 530, a widely respected conversational and ISO-capable CNC platform known for its ease of programming and five-axis suitability.

The working envelope covers 1,750 mm in the X-axis, 1,400 mm in the Y-axis, and 650 mm in the Z-axis, providing a generous volume for medium-to-large components. The table is rated to support a workpiece weight of 3,000 kg, reflecting the machine's industrial-grade build. A 30-position automatic tool magazine allows a broad range of tooling to be held in the carousel and changed automatically without operator intervention, supporting uninterrupted machining cycles. A probing system is also included, enabling in-process measurement and workpiece datum setting directly on the machine.

This unit is offered used, in stock as a single machine, and is currently located in Portugal, listed at $115,000.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
