About this machine

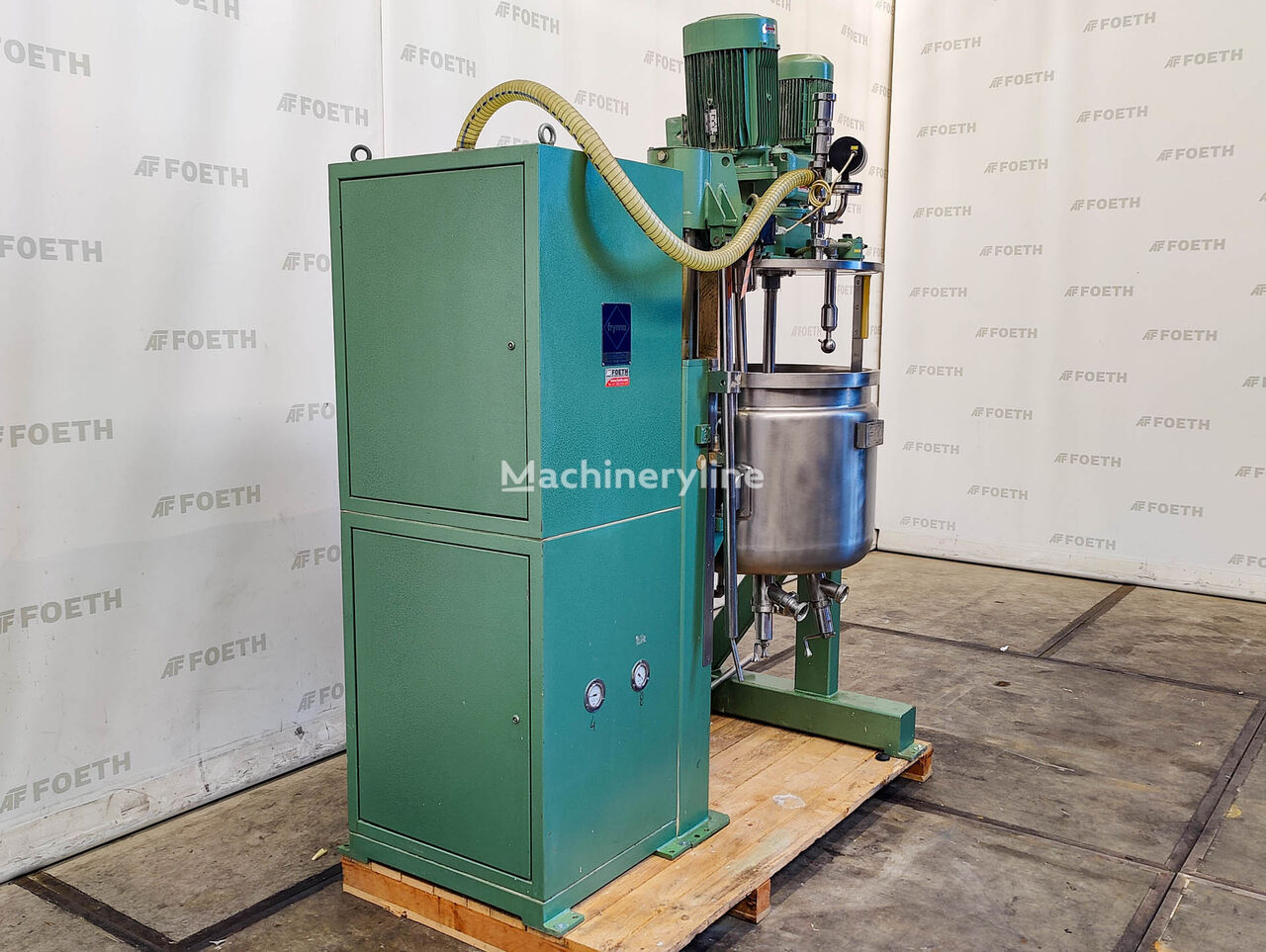

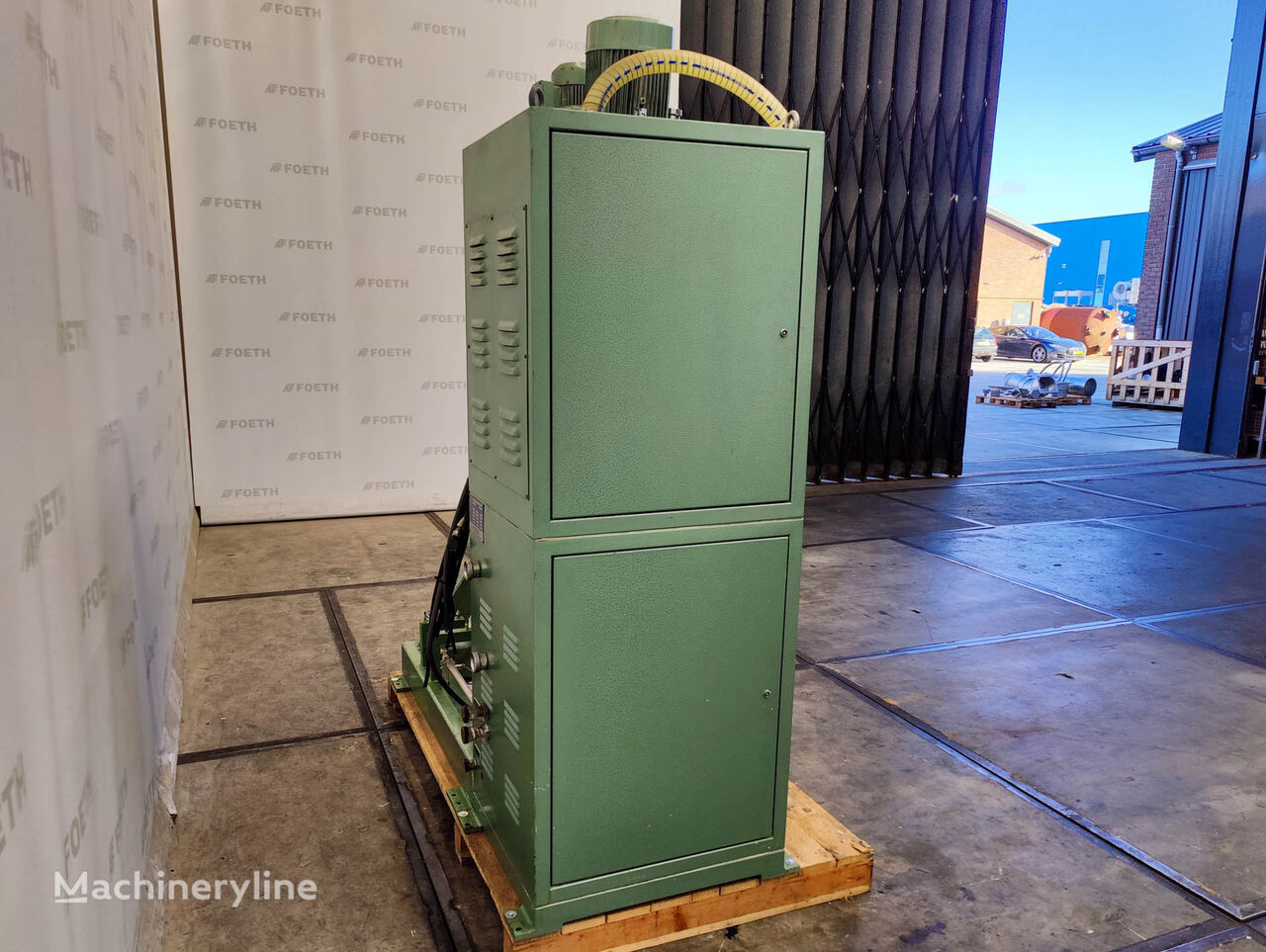

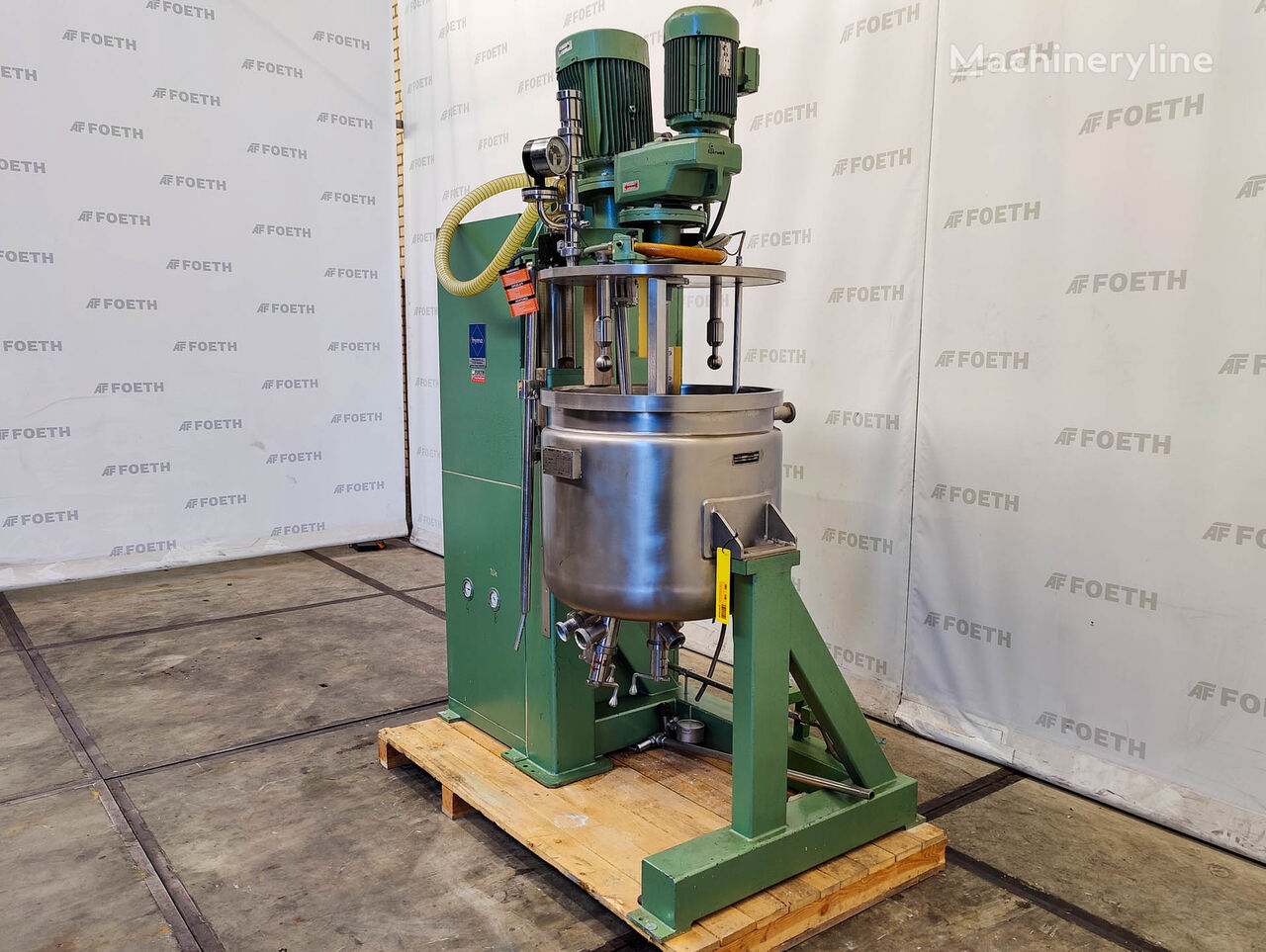

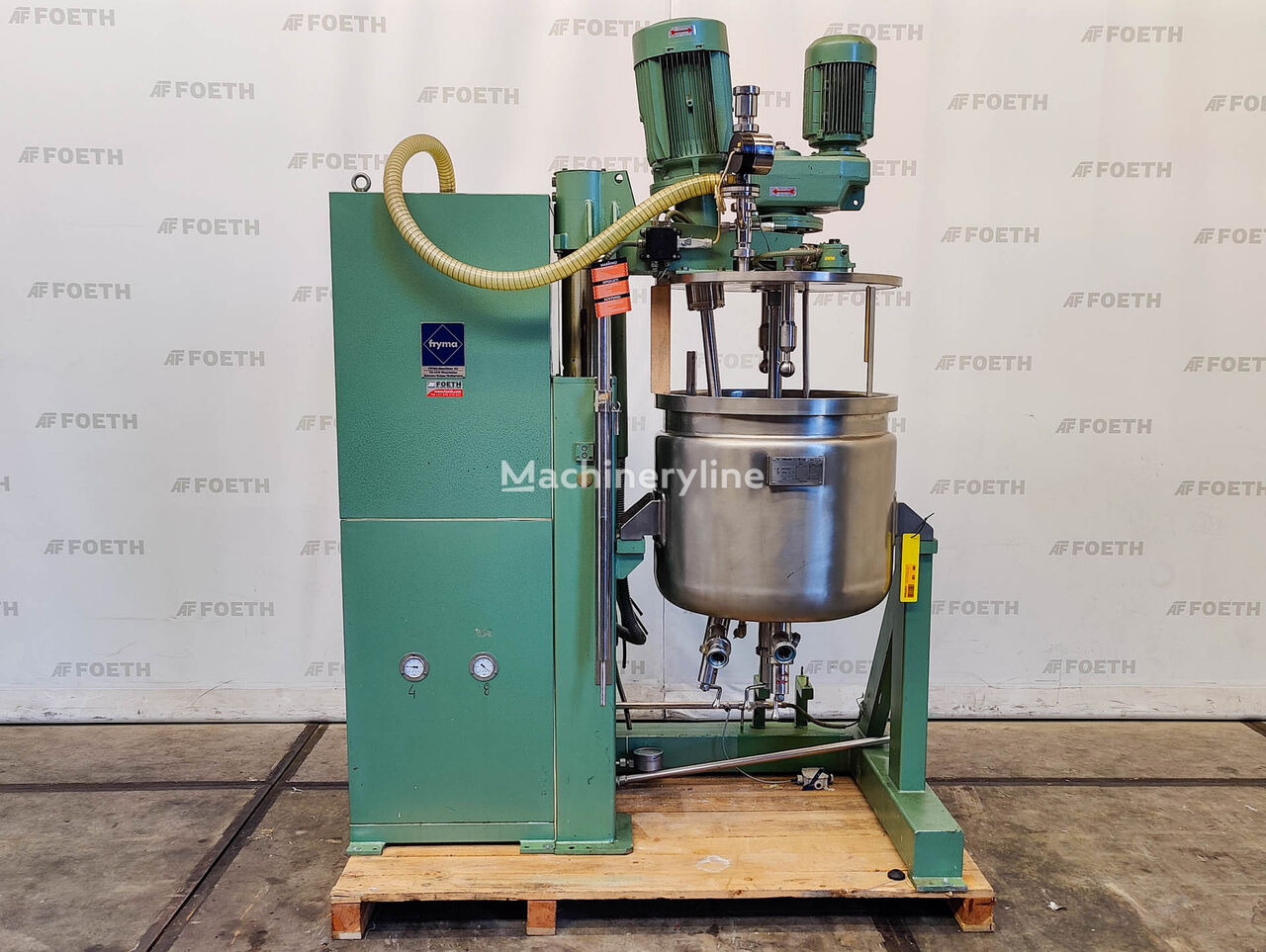

This Fryma Maschinen AG DT-150 is a used mixer and blender — sometimes referred to as a mixing vessel or blending vessel — designed for the batch processing of liquid and semi-liquid products within a closed, jacketed environment. Fryma Maschinen AG is a Swiss manufacturer with a long-established reputation for process equipment serving the pharmaceutical, cosmetic, and food industries, producing machinery designed for mixing, dispersing, and homogenising under controlled conditions.

The vessel has a working capacity of 150 litres and is constructed from stainless steel grade 1.4301 (AISI 304), with a vessel diameter of 650 mm and a height of 600 mm. The bottom is dished and the top is flat, fitted with a cover, and the unit stands at a total height of 1.3 metres with a floor footprint of 1.8 by 1.2 metres. The outlet diameter is 35 mm.

This is a closed stirring vessel with vacuum capability and a surrounding jacket of 21 litres volume, with a jacket working pressure of 3 bar and a maximum operating temperature of 150 °C, making it suitable for heated or cooled processing under controlled atmospheric conditions.

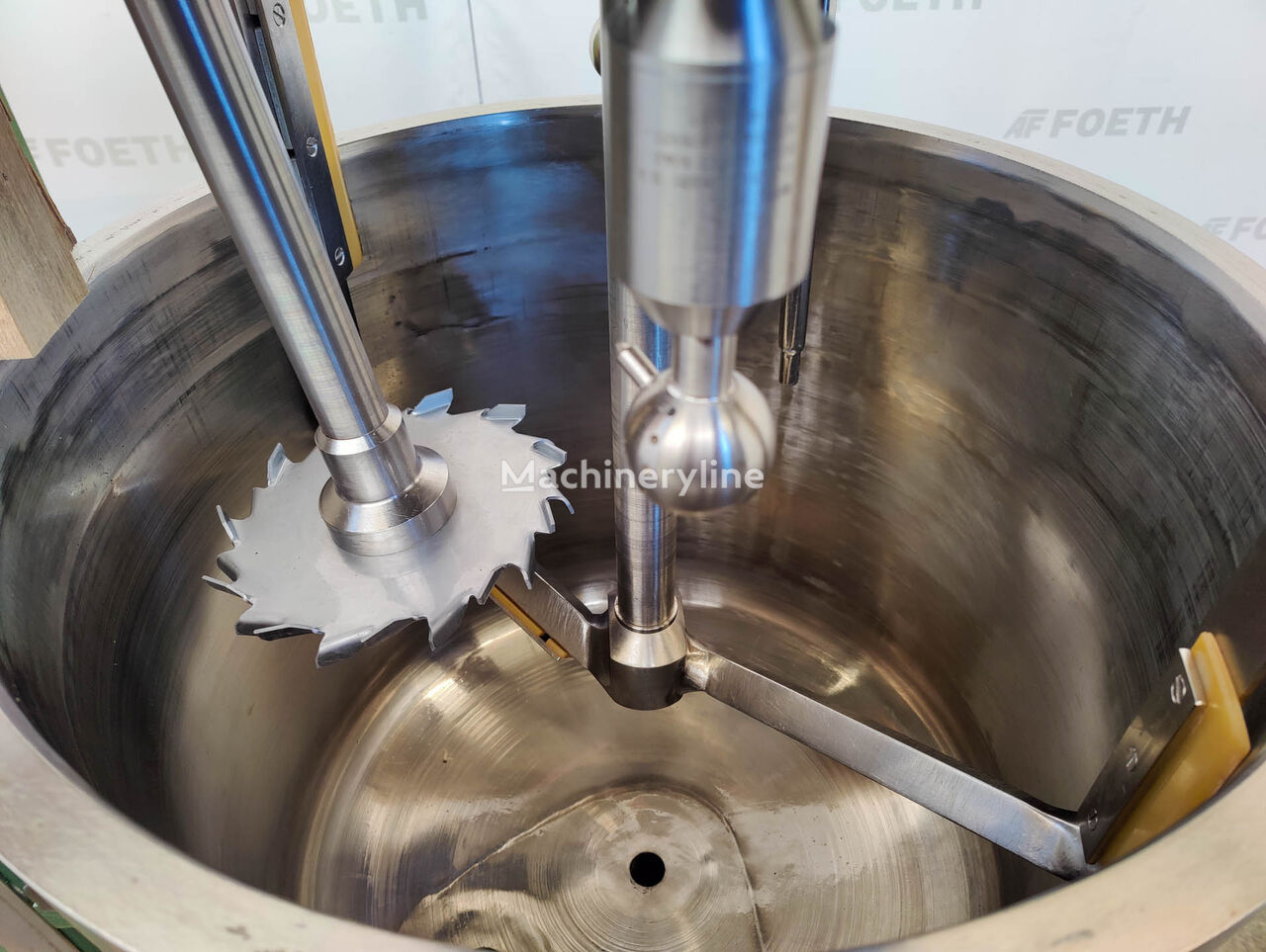

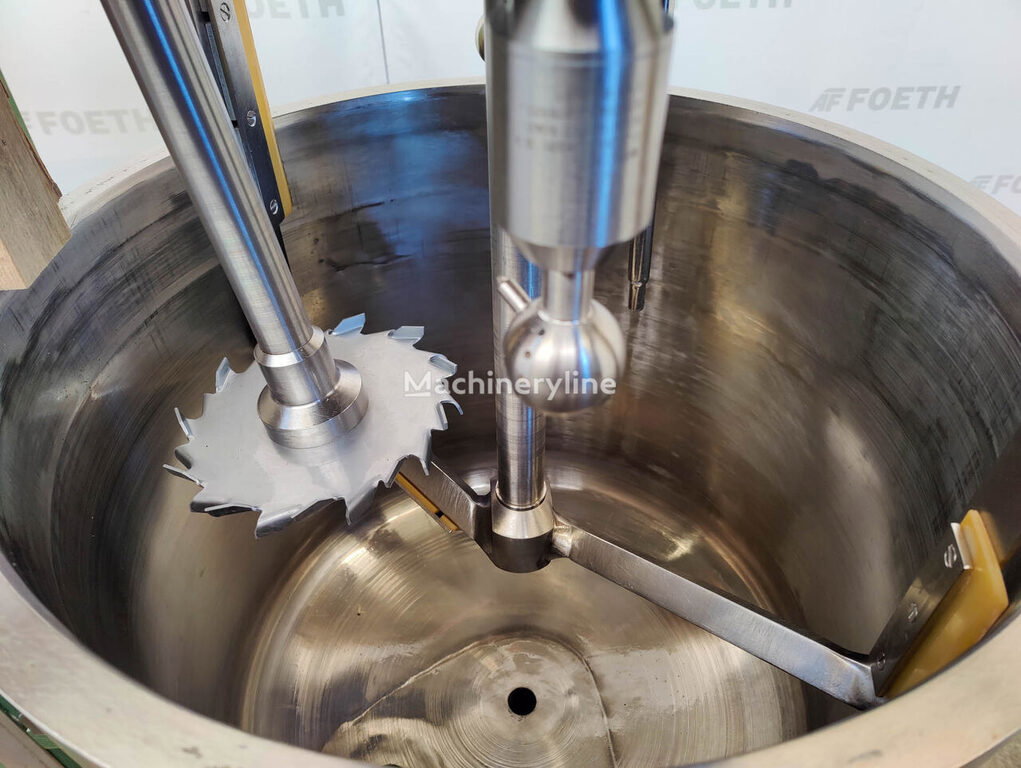

The machine is equipped with three agitation systems: a propeller stirrer, an anchor stirrer, and a dissolver stirrer. The anchor stirrer is driven by a 2.2 kW motor rated for 220/380 V, running at 48 rpm, providing gentle wall-scraping and bulk movement. The dissolver stirrer is powered by a separate 7.5 kW, 380 V motor and operates at 1,450 rpm, delivering high-shear dispersion within the same vessel. This dual-speed, multi-agitator configuration makes the vessel well suited to processes requiring both gentle blending and intensive dispersion in a single contained unit.

The machine dates from 1987, is offered in used condition, and is located in Barneveld, Netherlands. The internal serial reference is M12844.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
