1985 - Fryma VME 400 – Proc Mixer Blender()
- Listing No
- 1182413
- Year
- 1985
- Manufacturer
- Fryma
- Model
- VME 400 - Proc
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-

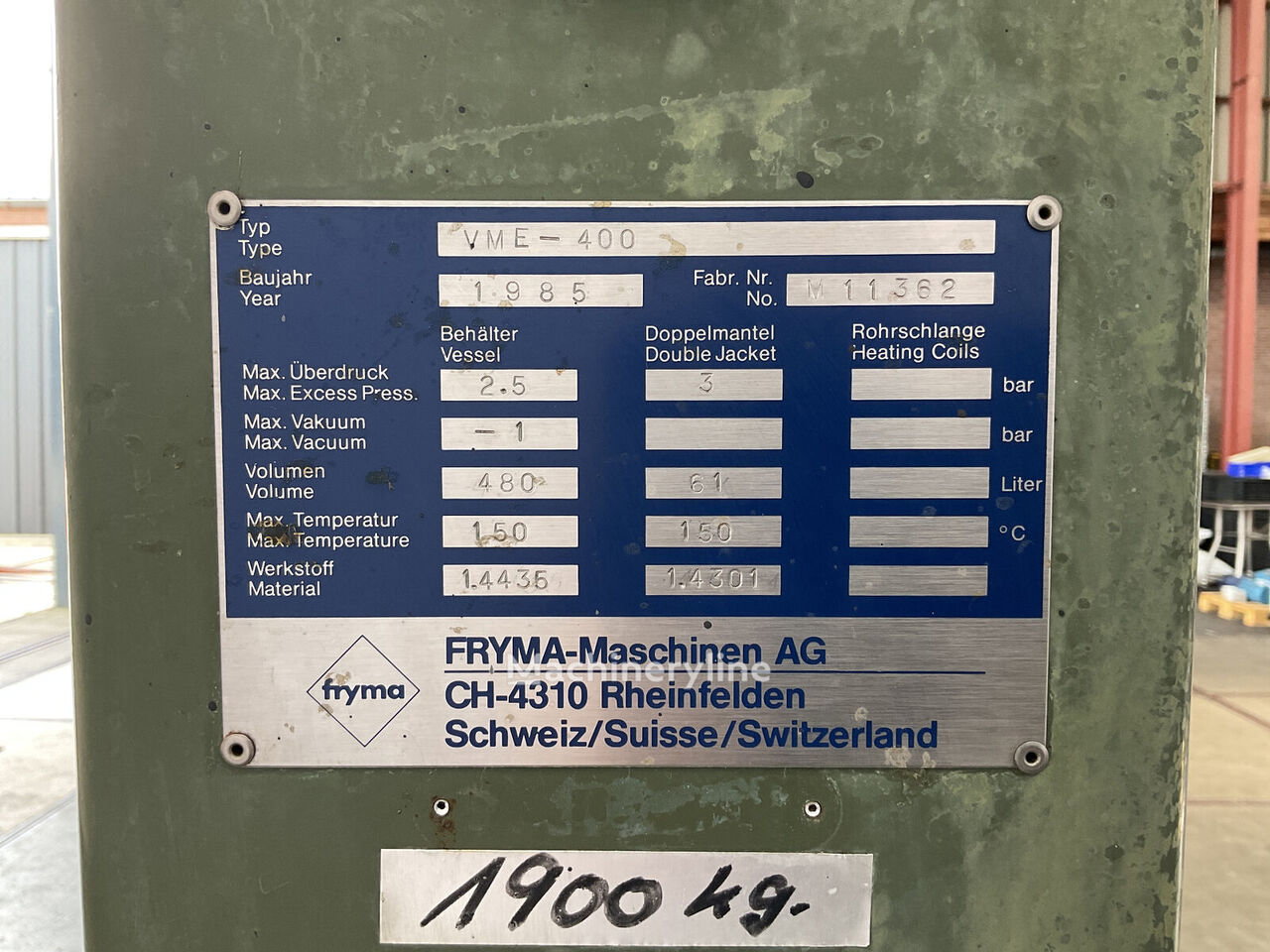

Location: Barneveld Type: VME-400 No: M11362 Working pressure: 2.5 Bar Vacuum possible: check Working pressure jacket: 3 Bar Material: Stainless steel 1.4301 (304), Stainless steel 1.4435 (316L) Volume: 480 Ltr Motor: 5,5 kW, 380 volt, 2910 rpm, (Ex) Closed stirring vessel: check Capacity: 480 l Vessel sizes: Dia. 1000x900 mm Dished bottom: check Flat top side: check With cover: check Manhole: Dia. 900 mm Top connections: check Outlet: DN25 + DN80 With jacket: check volume 61 l Max. temperature: 150°C With anchor stirrer: check With dissolver stirrer: check 6,8 kW, 380 volt, 1485 rpm, (Ex) With homogeniser: check Mounted on legs: check in frame General Pressure Main Features Specified Features - Processing vessel Information With
About this machine

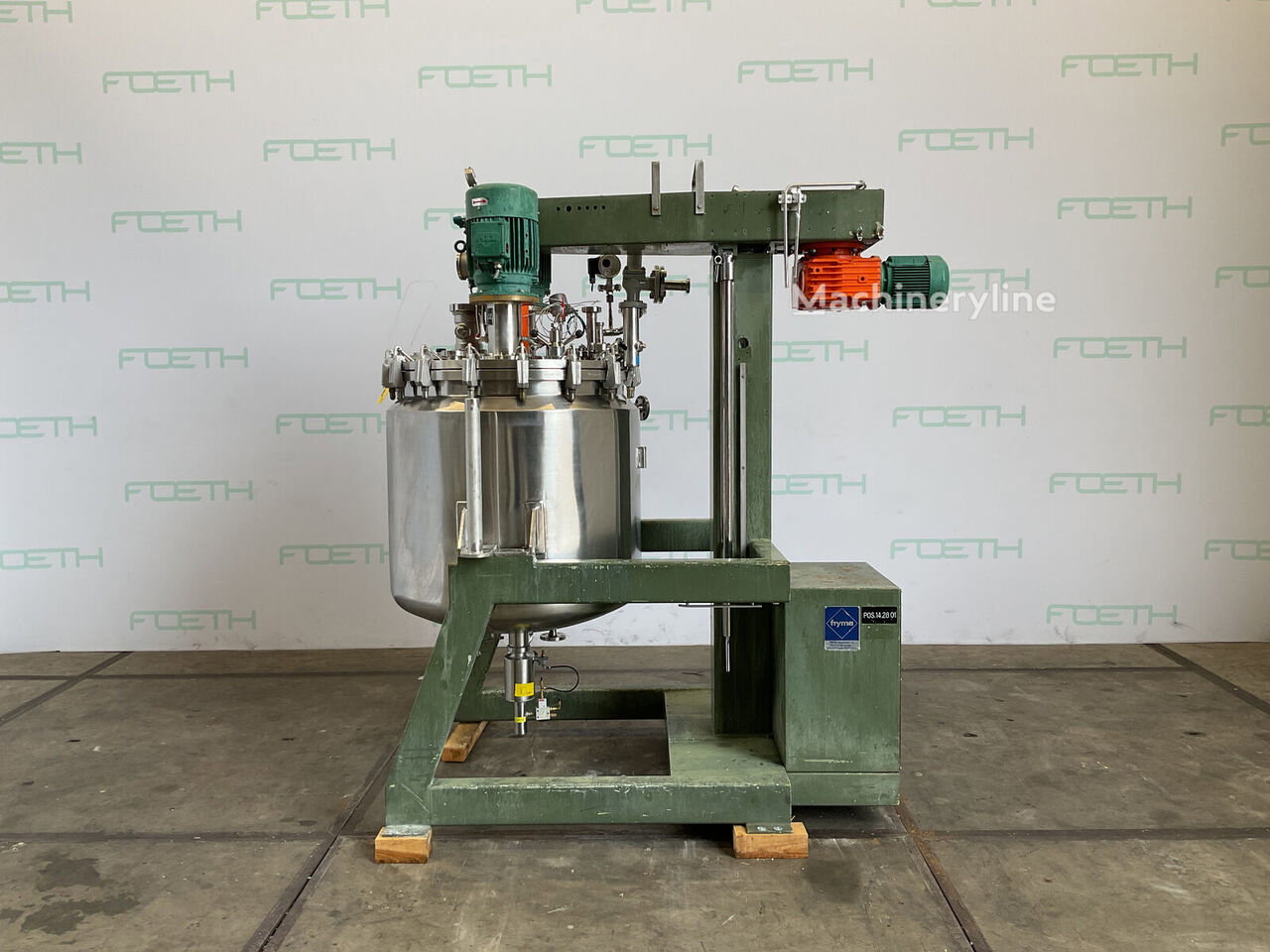

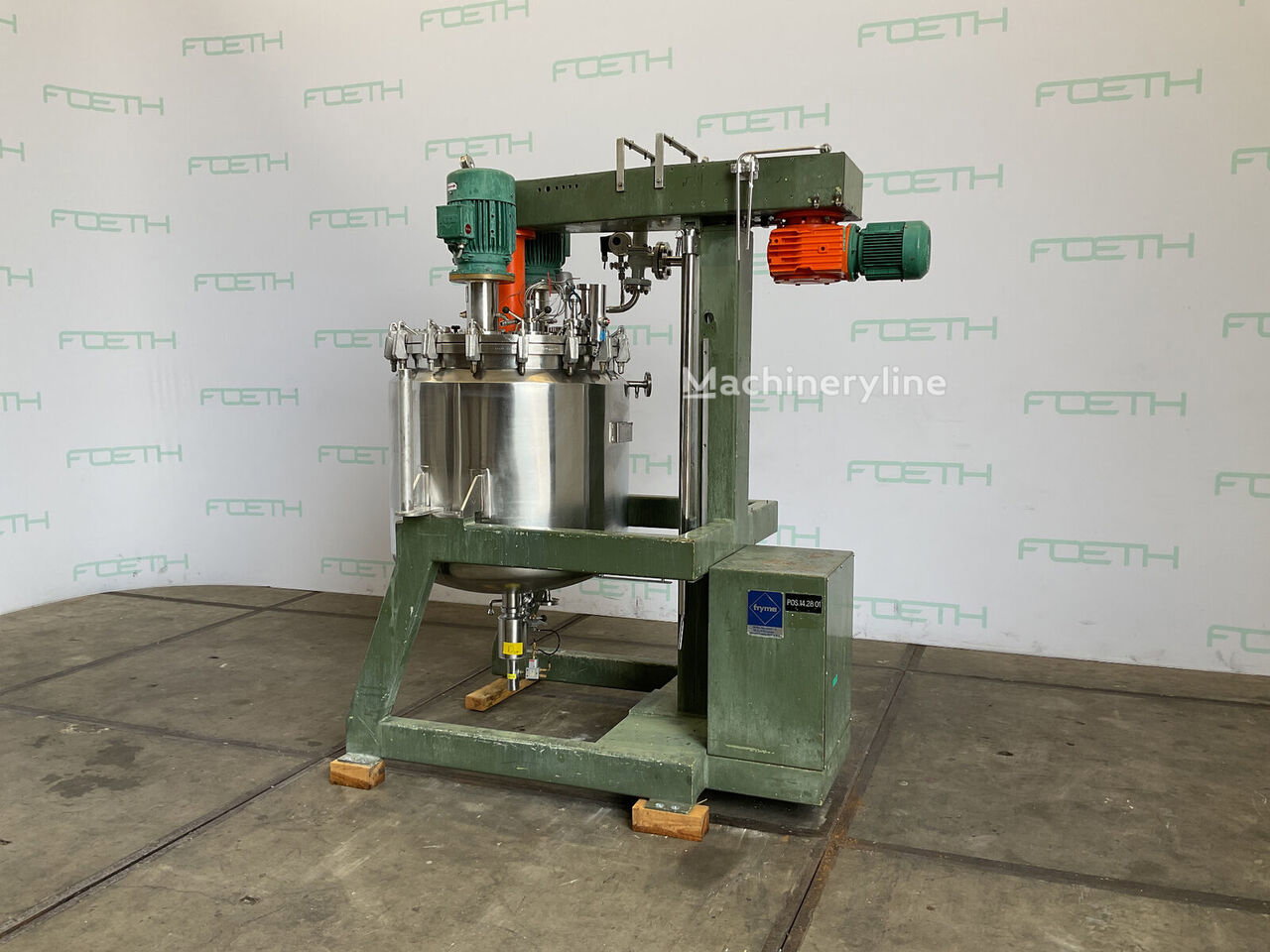

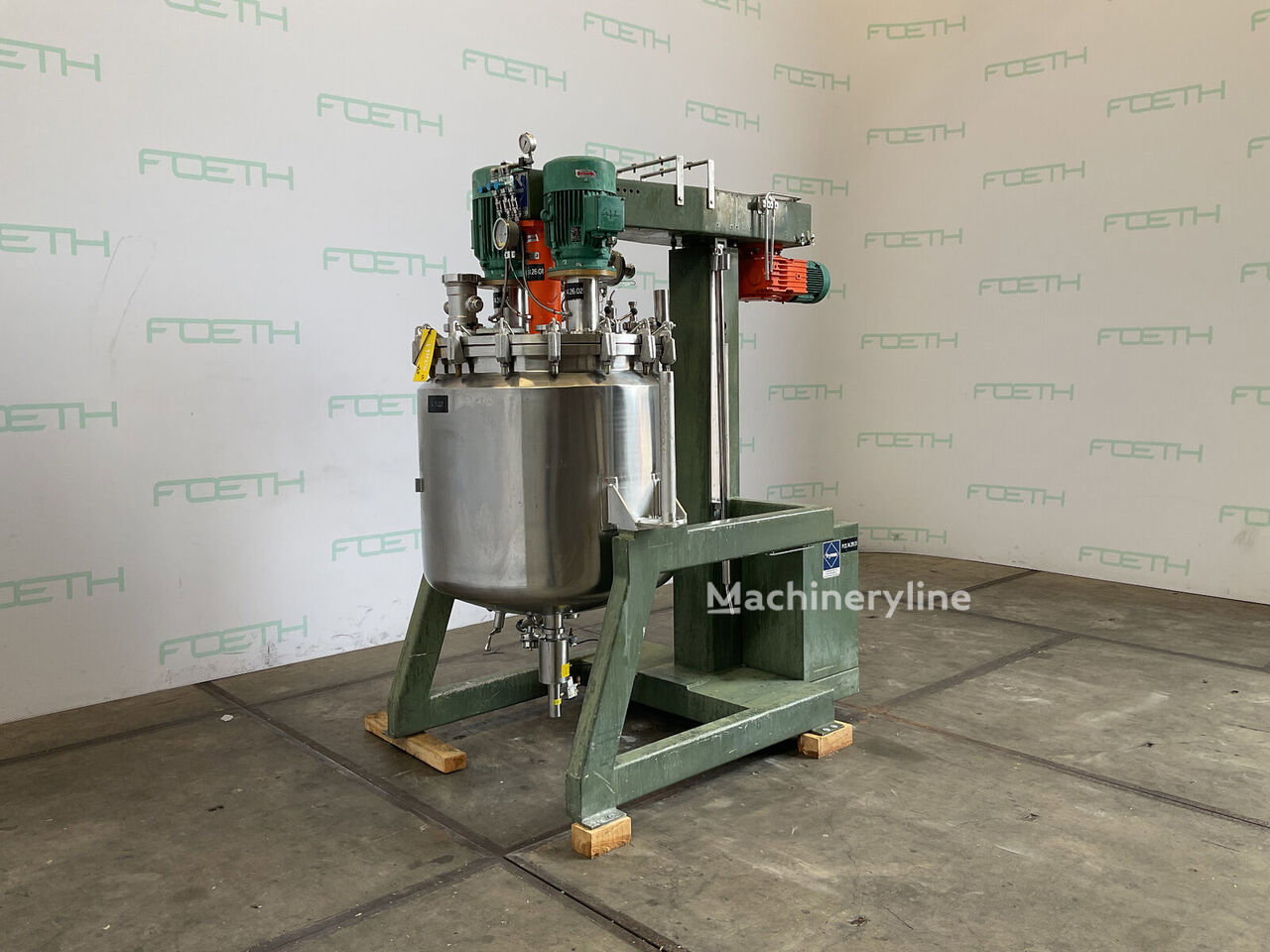

The Fryma VME 400 is a used mixer and blender — sometimes referred to as a process mixing vessel — designed for blending, dispersing, and homogenising liquid and semi-liquid products under controlled pressure and temperature conditions. Fryma is a well-established Swiss manufacturer of processing equipment, known for producing high-quality mixing, emulsifying, and homogenising machinery for the pharmaceutical, cosmetic, and food industries.
This vessel is constructed from a combination of stainless steel ) and L), giving it suitability for applications where corrosion resistance and hygienic surfaces are required. It has a working capacity of 480 litres, housed in a closed stirring vessel with a cylindrical body measuring 1,000 mm in diameter by 900 mm in height, a dished bottom, and a flat top side. A manhole of 900 mm diameter provides access, and the vessel is fitted with a cover. It is mounted on legs within a frame, providing a stable, self-contained installation footprint.
The vessel operates at a maximum working pressure of 2.5 bar and is equipped with a jacket — with a jacket volume of 61 litres — rated to 3 bar, allowing for heating or cooling of the vessel contents up to a maximum temperature of 150°C. Vacuum capability is indicated as available. Connections include top connections, an outlet of DN25, and a second outlet of DN80.
Agitation is provided by three separate systems. An anchor stirrer is fitted for bulk mixing and wall-scraping action. A dissolver stirrer, driven by a 6.8 kW, 380-volt motor running at 1,485 rpm, handles high-shear dispersion duties. A homogeniser is also installed, providing further emulsification and particle-size reduction capability. The main drive motor is rated at 5.5 kW, 380 volts, running at 2,910 rpm. All motors are specified as Ex-rated, meaning they are suitable for use in potentially explosive atmospheres. The machine carries the serial number M11362 and is located in Barneveld, Netherlands, dating from 1985.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
