2010 - Gericke Ingredients DO Mixer Blender()
- Listing No
- 1180074
- Year
- 2010
- Manufacturer
- Gericke
- Model
- Ingredients DO
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: ingredënten dosering Material: Stainless steel 1.4571 (316Ti) Inlet diameter: 250 mm Metering screw: check Screw diameter: 85 Pitch: 85 Shaft diameter: 21 Screw length: 600mm With hopper: check Inlet: Dia: 250mm(2x), Dia: 100mm, 150x150mm Outlet: Dia 145 and 100mm (3x) With motor: 0,55kW, 400Volt, 1400rpm Screw speed: 10,5-104 rpm Mounted on frame: check Floorspace: 2,3x2,1m Total height: 3,1m CE: check Extra Specifications: fitted with Gericke DBW-300 metering belt specifications: length: 1800mm width: 300mm this dosing unit includes 3 dosing screws: #1 Screw Dia: 85mm pitch: 85mm Length:600 with ribbon mixer:± 165mmx75, Length General Main Features Specified Features - Metering screw Metering screws Information
About this machine

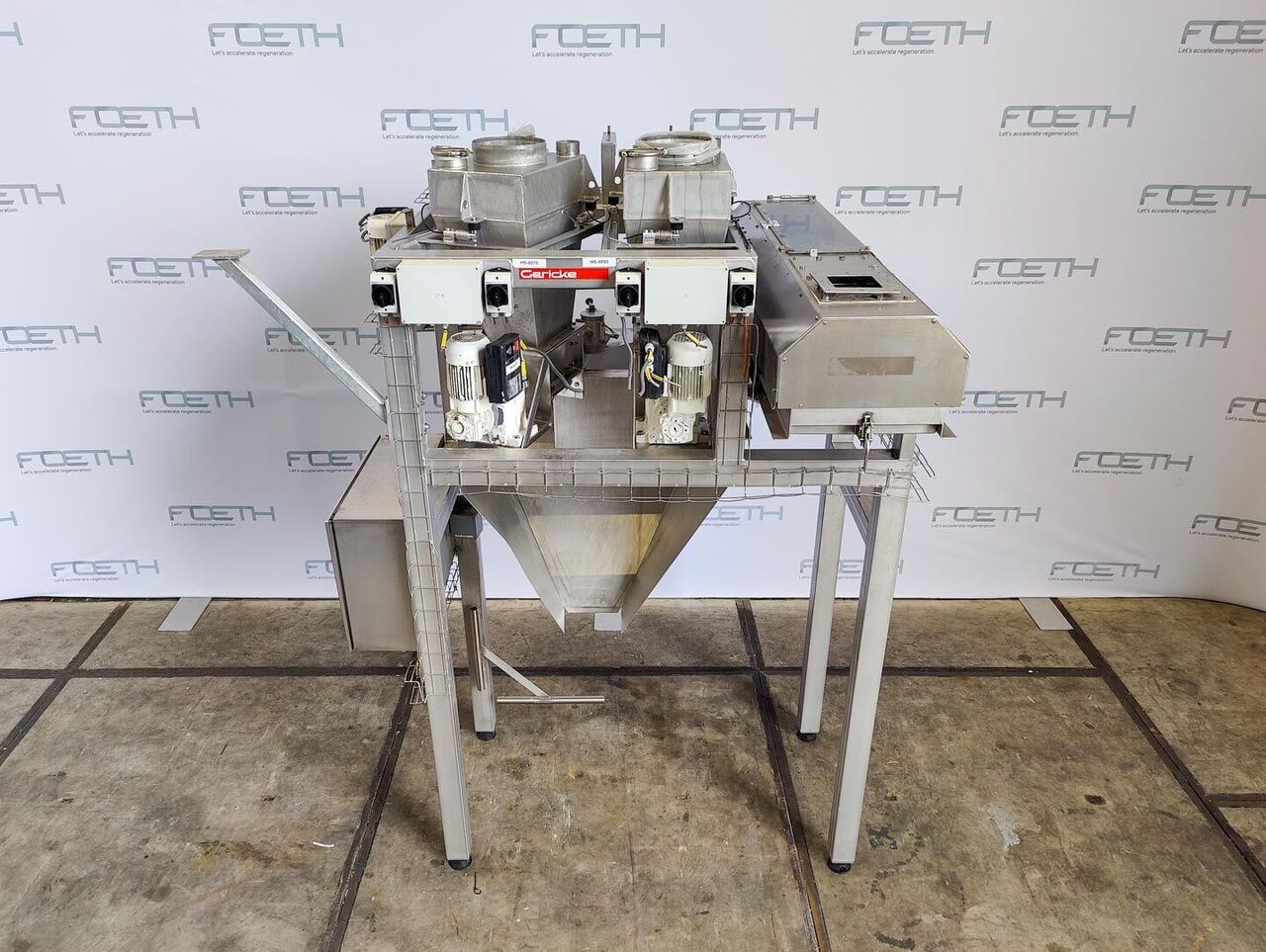

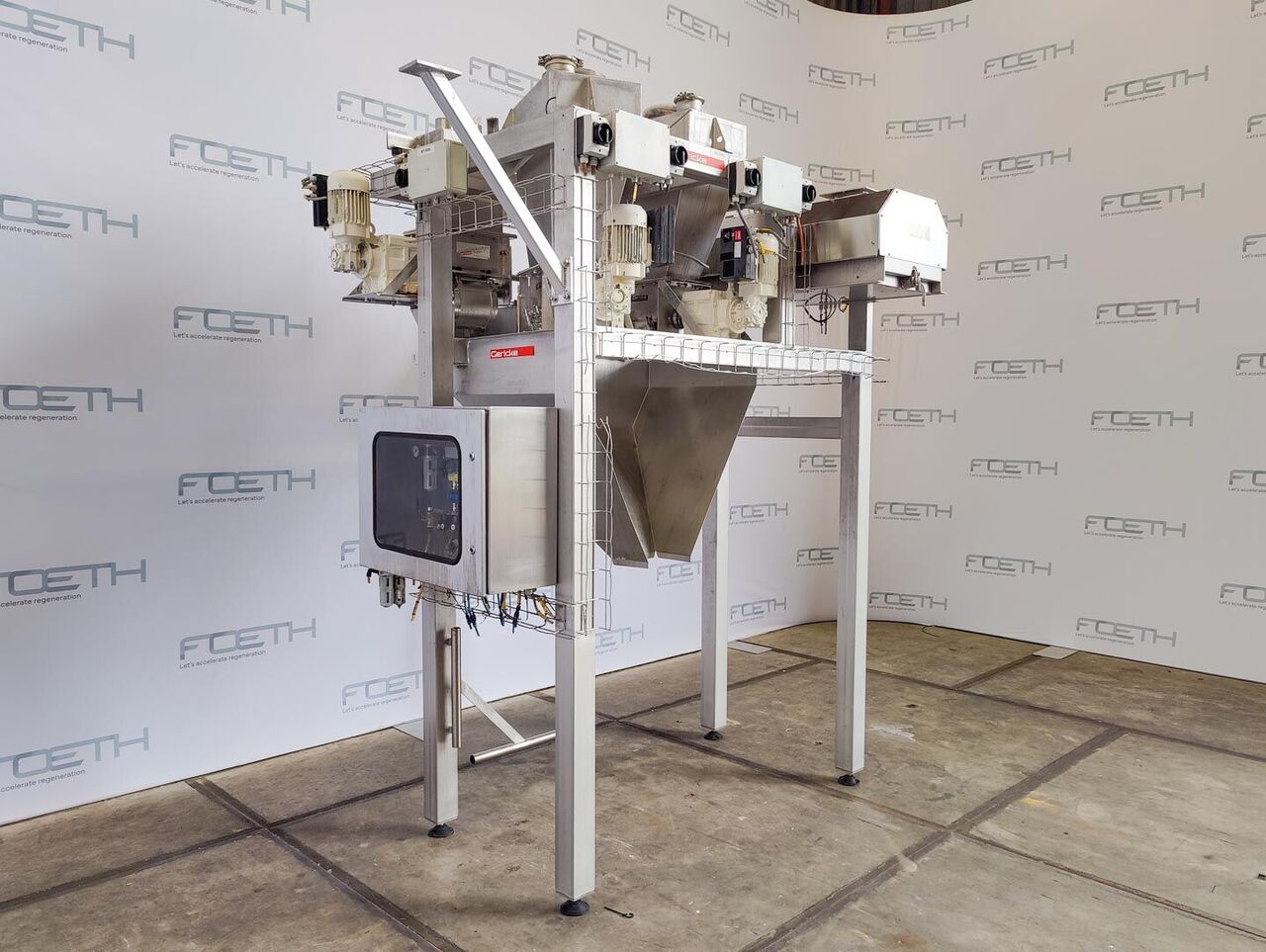

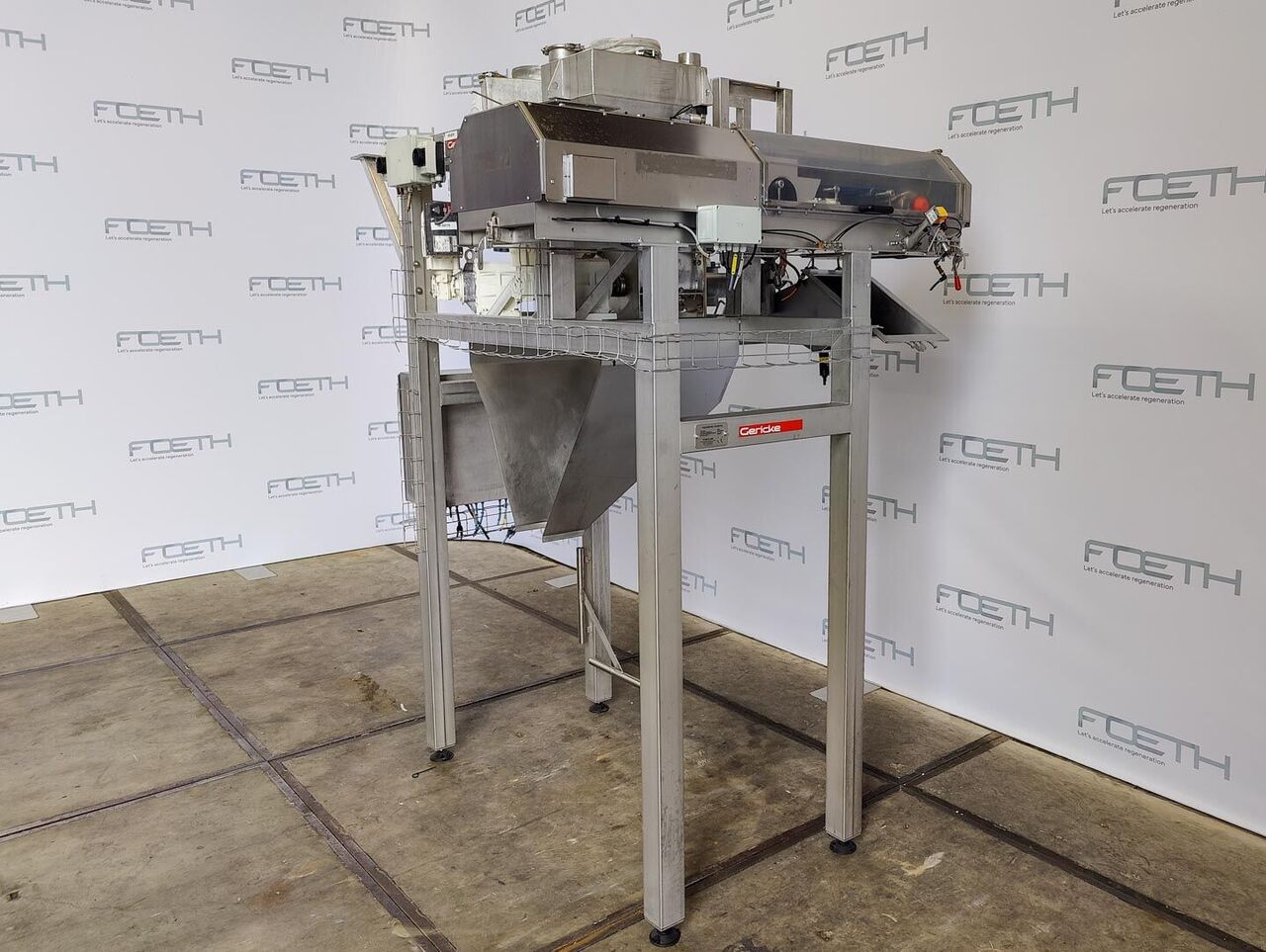

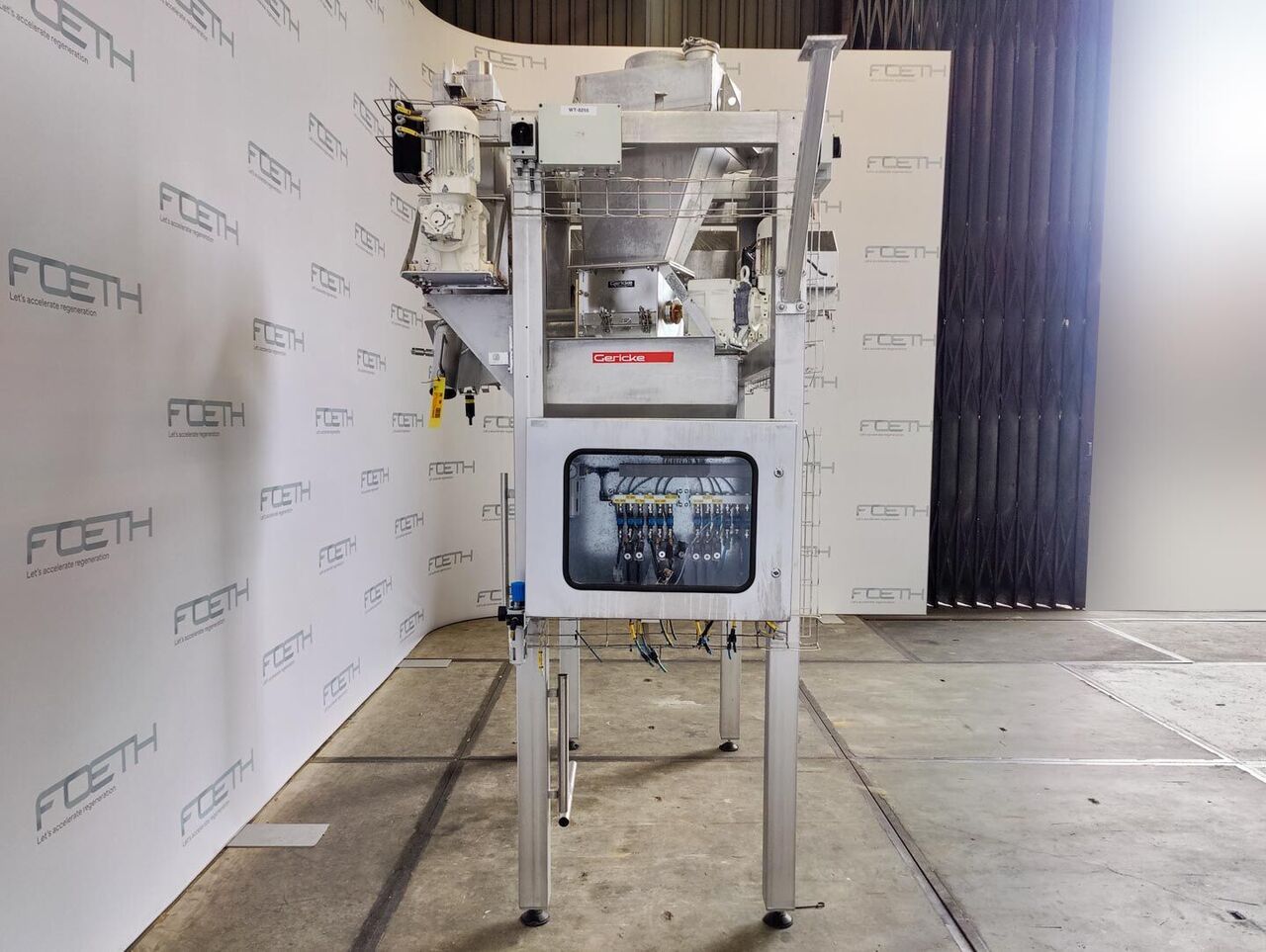

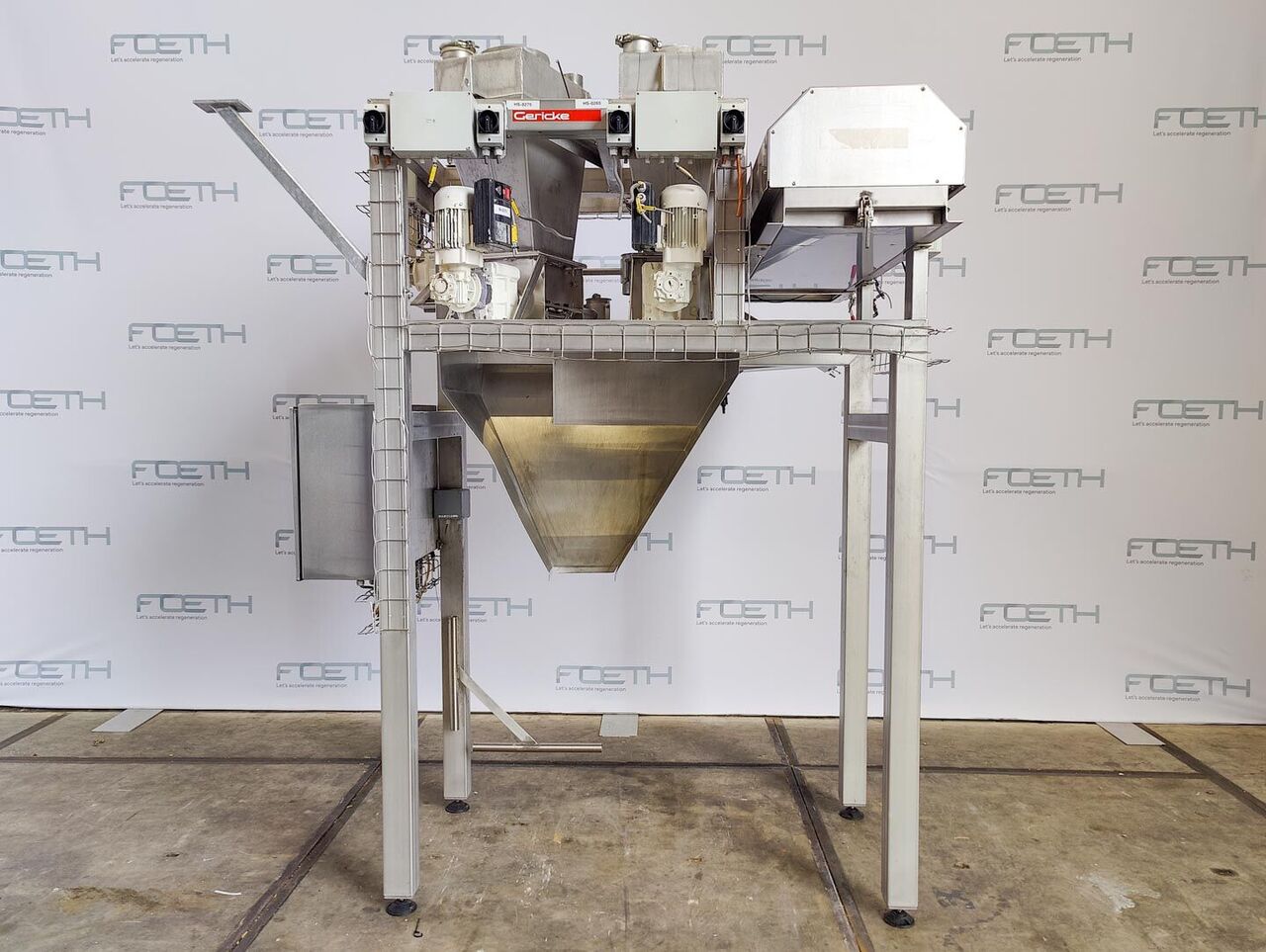

This Gericke Ingredients DO Mixer Blender is a used blender and mixer designed for the precise dosing and blending of ingredients in food, chemical, or pharmaceutical processing applications. Sometimes referred to as a dosing mixer or ingredient blending system, this type of machine combines metering and mixing functions in a single integrated unit. Gericke is a well-established Swiss manufacturer specialising in bulk solids handling and processing equipment, including feeders, mixers, sifters, and pneumatic conveying systems, serving industries such as food production, chemicals, and pharmaceuticals.
This unit dates from 2010 and is located in Barneveld, Netherlands. It is constructed throughout in stainless steel grade Ti), making it suitable for hygienic and corrosion-resistant applications. The machine is CE marked and mounted on a freestanding frame with a floor footprint of 2.3 × 2.1 metres and a total installed height of 3.1 metres.
The system incorporates three dosing screws, each with a screw diameter of 85 mm, a pitch of 85 mm, a shaft diameter of 21 mm, and a screw length of 600 mm. Screw speed is variable, ranging from 10.5 to 104 rpm. The drive motor is rated at 0.55 kW, running on 400 V at 1,400 rpm. The inlet configuration includes two openings of 250 mm diameter, one of 100 mm diameter, and one rectangular inlet of 150 × 150 mm. Outlets consist of one at 145 mm diameter and three further outlets at 100 mm diameter. A hopper is included, with an inlet diameter of 250 mm.
The unit is additionally fitted with a Gericke DBW-300 metering belt. The belt measures 1,800 mm in length and 300 mm in width, providing gravimetric or volumetric dosing capability in line with the screw metering system. One of the dosing screws is equipped with a ribbon mixer element, with approximate ribbon dimensions of 165 × 75 mm and a length consistent with the 600 mm screw assembly, allowing gentle blending of ingredients during the dosing process.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
