1973 - Grenier – Charvet E 15 Mixer Blender()
- Listing No
- 1178078
- Year
- 1973
- Manufacturer
- Model
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Manufacturer: Grenier - Charvet Model: E 15 Year: 1973 ( Conformity certificate in 2001) Type : High viscosity paste mixer Motor power : 15 CV - 11 KW Speed variation: mechanical Previous use : Paint 220 L tank Mixing tool: Ø 705 mm butterfly / cloverleaf type Vessel clamping: pneumatic Vertical movement: hydraulic unit Height in low position: 2040 mm Height in high position: 2880 mm Stroke: 840 mm
About this machine

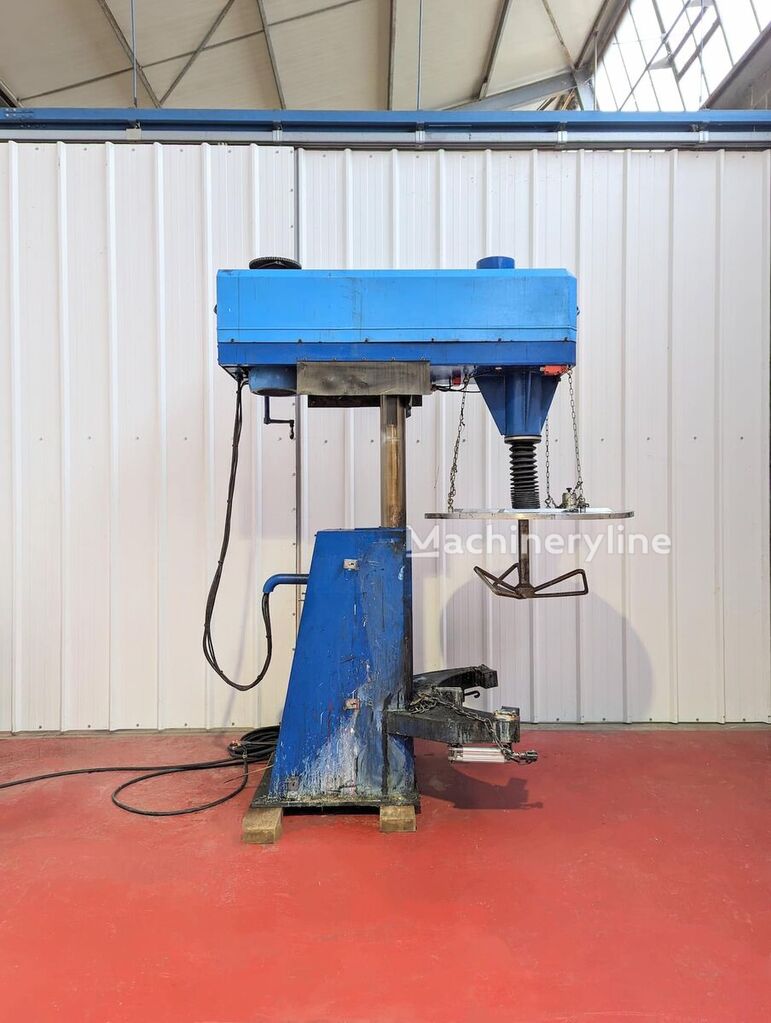

This Grenier-Charvet E 15 is a mixer and blender — sometimes referred to as an industrial mixer or paste mixer — designed specifically for processing high-viscosity materials. Machines of this type are used across a range of industries wherever thick, heavy compounds need to be thoroughly blended, and this particular unit saw previous service in paint production, giving a clear indication of the demanding applications it has handled.

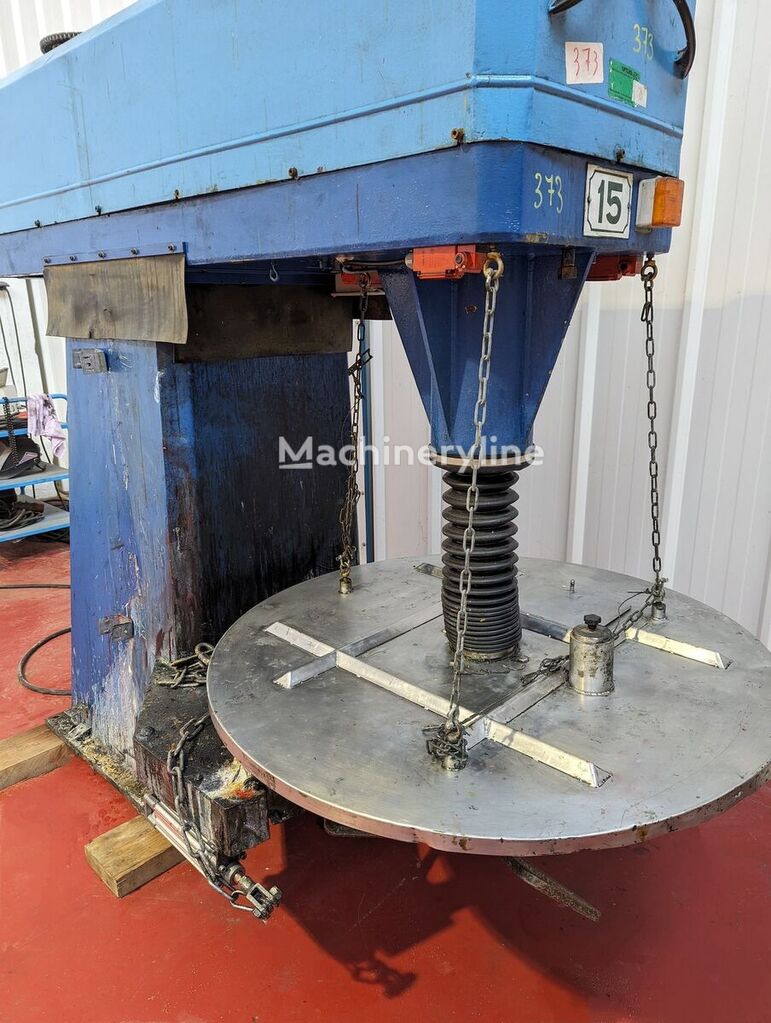

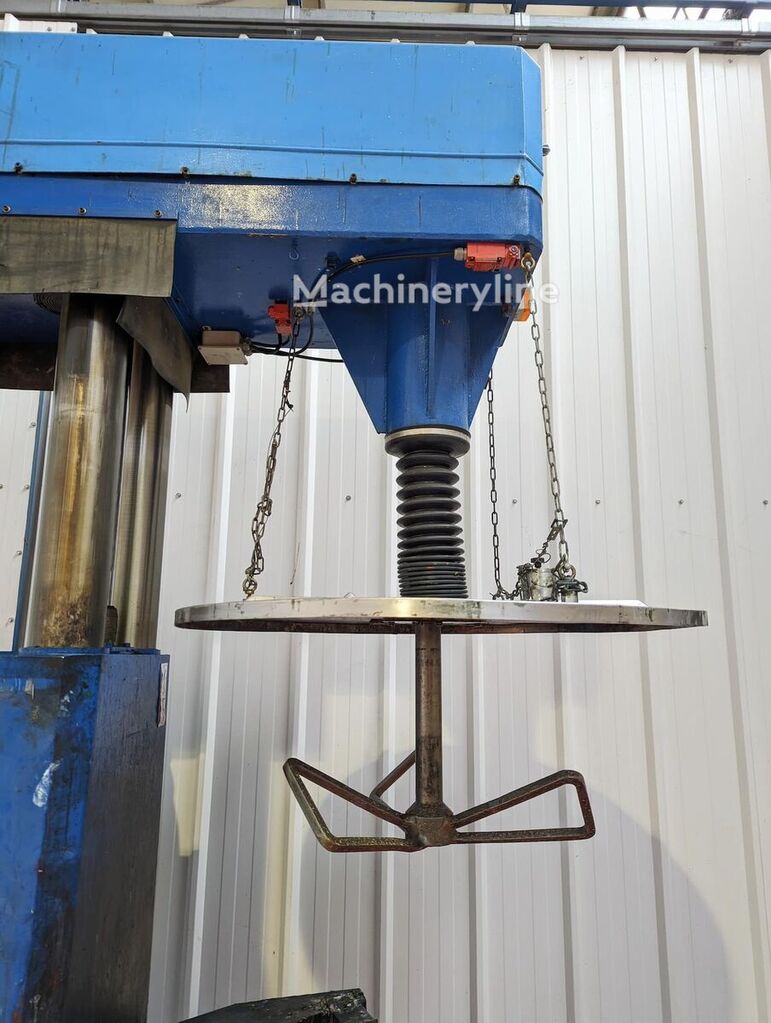

Power is provided by an 11 kW (15 CV) motor, with speed variation controlled mechanically. The mixing tool is a butterfly or cloverleaf-type impeller measuring 705 mm in diameter, a configuration well suited to folding and working dense, viscous pastes rather than low-viscosity fluids. The vessel used in paint production had a capacity of 220 litres, offering useful context for the scale of batches this machine has processed.

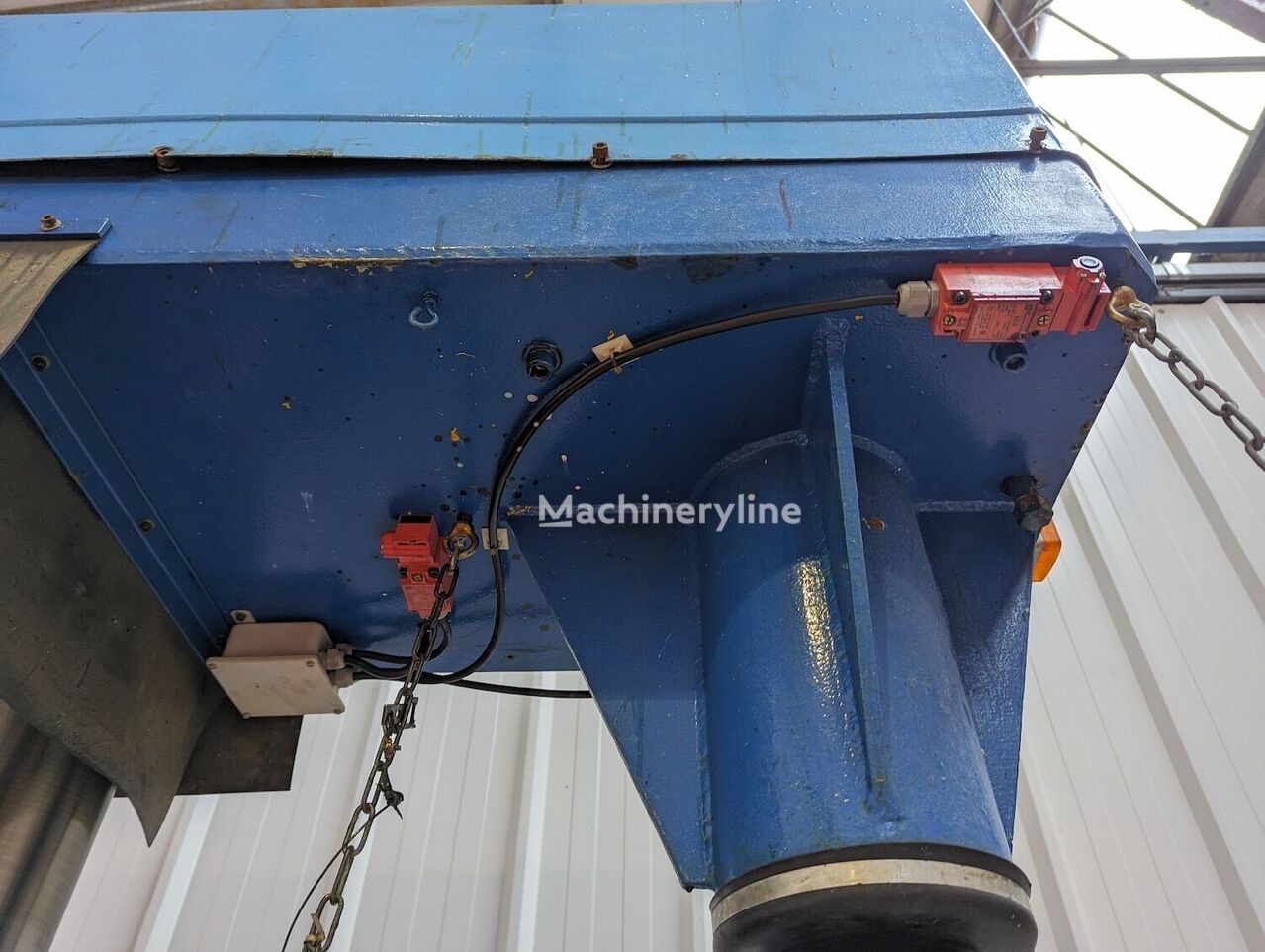

Vessel clamping is pneumatic, allowing secure and repeatable engagement with the mixing tank. Vertical movement of the mixing head is managed by a dedicated hydraulic unit, giving smooth and controlled raising and lowering of the tool into and out of the vessel. In its lowered working position the machine stands 2,040 mm tall, rising to 2,880 mm when fully raised, with a total vertical stroke of 840 mm.
Originally manufactured in 1973, the machine is located in France and is offered in used condition. Notably, it was issued a conformity certificate in 2001, indicating that it was formally assessed and brought into compliance with applicable safety standards at that time.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
