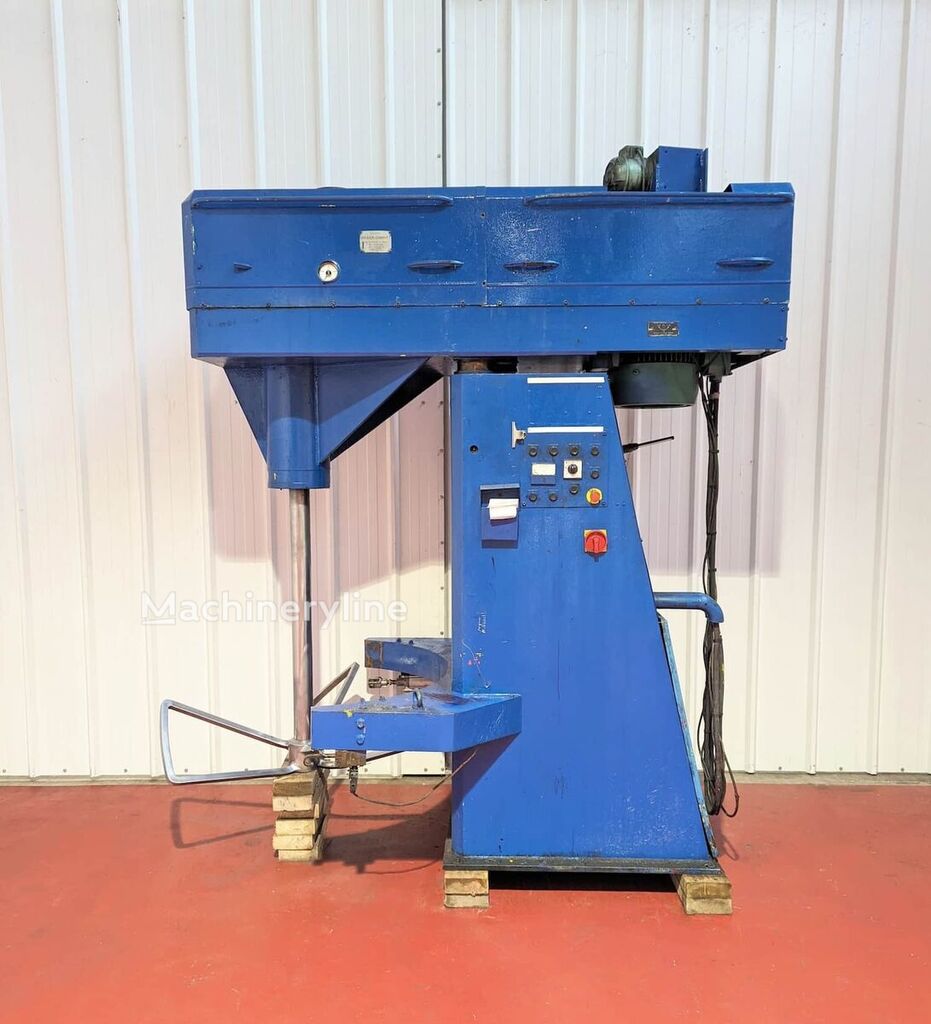

1974 - Grenier – Charvet E 35 Mixer Blender()
- Listing No
- 1178132
- Year
- 1974
- Manufacturer
- Model
- Condition
- Used
- Location
- France
- Price
- POA
- Description
-
Manufacturer: Grenier - Charvet Model: E 35 Year: 1974 ( Compliance file dated 2001) Type : High viscosity paste mixer Motor power : 35 CV - 25 KW Speed variation: mechanical Previous use : Paint tank 1160 L and 440 L Agitation tool: Ø 1260 mm butterfly/clover type (Ø 950 mm possible) Vessel clamping: pneumatic Vertical movement: hydraulic unit Height in low position: 2770 mm Height in high position: 4070 mm Stroke: 1300 mm Technical file available
About this machine
This Grenier-Charvet E 35 is a mixer and blender — also commonly referred to as an industrial mixer — designed for processing high-viscosity paste materials. Machines of this type are widely used in industries such as paints, coatings, adhesives, and chemical manufacturing, where thorough, consistent blending of dense or heavy-bodied products is essential.

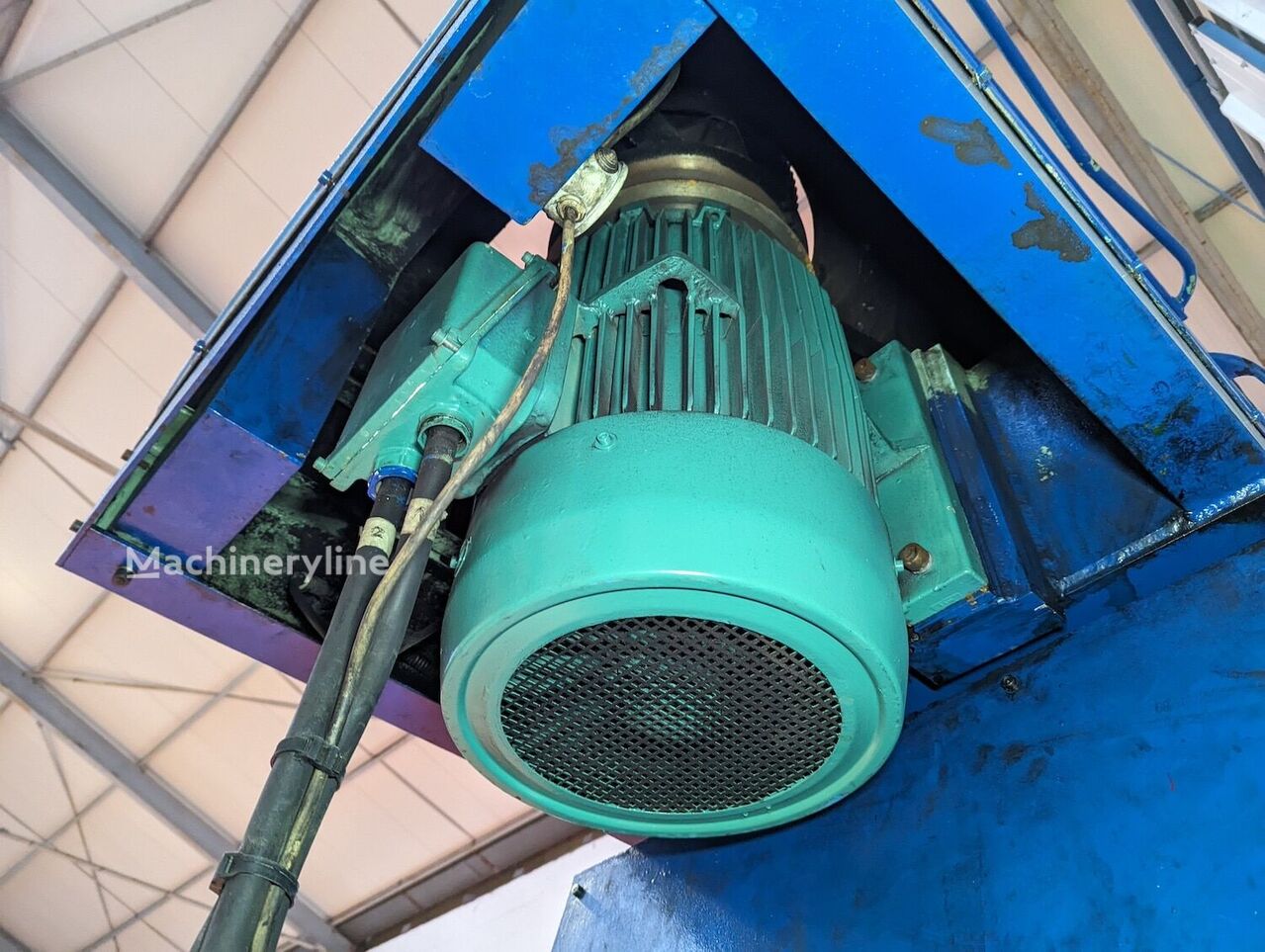

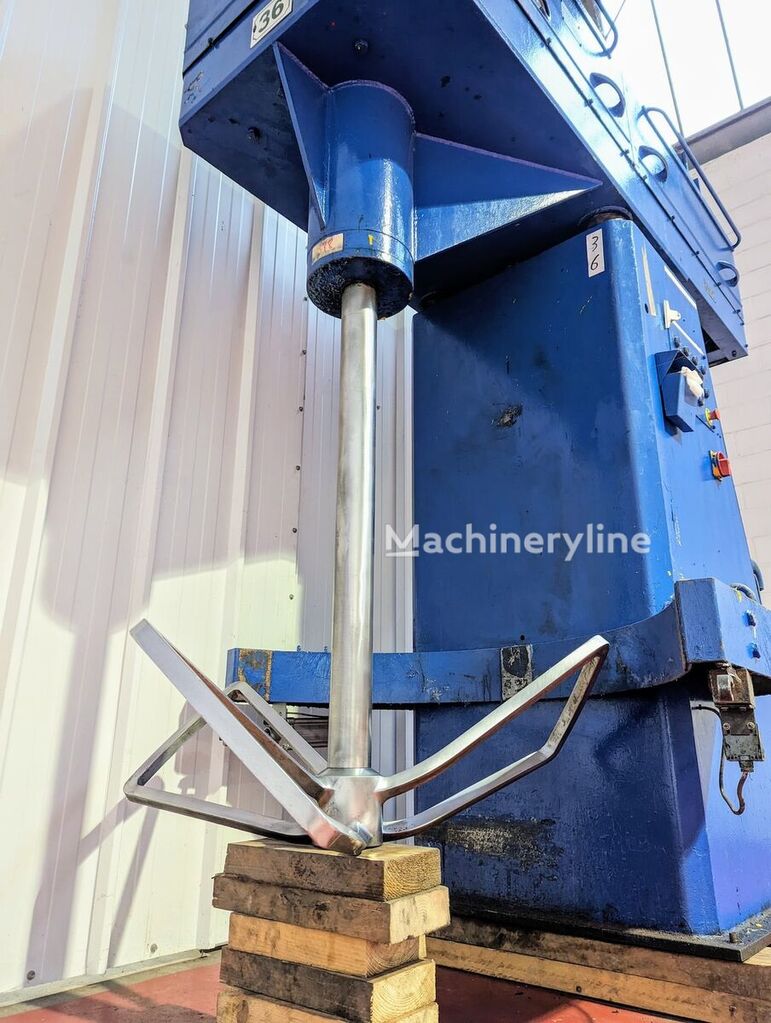

The unit is powered by a 35 CV (25 kW) motor and features mechanical speed variation, giving the operator control over agitation intensity to suit different product viscosities. The primary agitation tool is a butterfly- or clover-type impeller with a diameter of 1,260 mm, with a 950 mm diameter option also available. This style of agitator is well suited to sweeping large volumes of viscous material efficiently within the vessel.
Vessel clamping is handled pneumatically, while vertical movement of the mixing head is provided by a dedicated hydraulic unit. In its lowered position the machine stands 2,770 mm tall, rising to 4,070 mm in the raised position, with a working stroke of 1,300 mm. This range of vertical travel allows the mixer to be used with vessels of varying heights and to be fully raised clear of the tank for cleaning or changeover.
According to the seller's notes, this machine was previously used in paint production, serving tanks of 1,160 litres and 440 litres capacity. The unit dates from 1974, with a compliance file on record dated 2001, and a full technical file is available. It is offered used, located in France.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
