About this machine

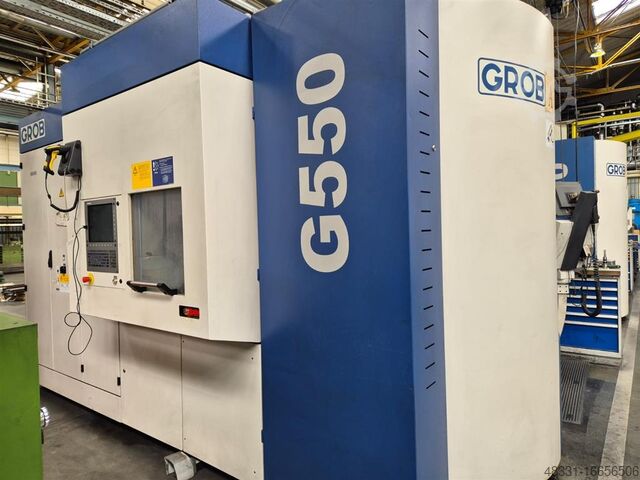

This Grobe Werke Machining Center — sometimes referred to as a CNC machining centre or vertical machining centre — is a five-axis precision machine tool used for the milling, drilling, and complex contouring of metal and composite workpieces across aerospace, automotive, mould-making, and general engineering applications. Grobe Werke, better known simply as GROB, is a well-established German manufacturer recognised for its advanced five-axis machining centres and production systems, serving demanding industries where close tolerances and high dynamic performance are essential.

This 2011 example is offered used from Germany and carries approximately 4,529 spindle hours, providing a useful indication of its working life to date. It is equipped with a single HSK-A63 spindle taper, which is a precision hollow-shank tooling interface widely used in high-speed machining for its rigidity and repeatability. The spindle reaches a maximum speed of 12,000 rpm, and the machine offers a power capacity of 25/35 kW, reflecting a continuous and peak power rating suited to both sustained heavy cuts and intermittent high-demand operations. Feed force is rated at 8 kN.

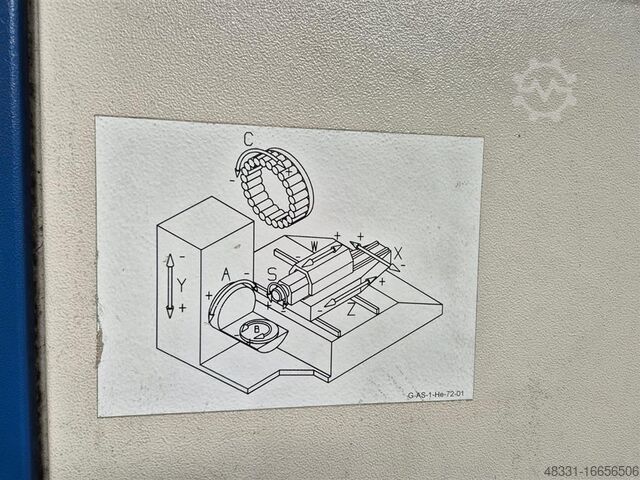

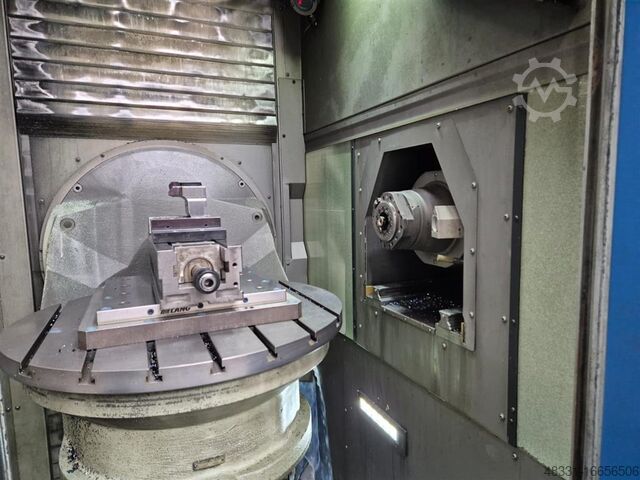

The axis travels are substantial: 800 mm in X, 950 mm in Y, and 1,020 mm in Z, giving the machine a generous working envelope suitable for medium-to-large component sizes. The rotary table has a diameter of 770 mm and supports a maximum table load of 800 kg, accommodating heavy workpieces with confidence. Together with the full five-axis configuration, these dimensions make the machine capable of complex simultaneous contouring without repositioning.

The tool magazine holds 60 tools, allowing extended unmanned operation with a broad range of cutters and drills on hand. Maximum tool length is 465 mm, accommodating long-reach tooling for deep-cavity work. The overall machine weighs approximately 17 tonnes and has a footprint of roughly 6 × 3 metres with a height of approximately 3.2 metres, dimensions that are representative of a robust, production-grade five-axis platform.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
