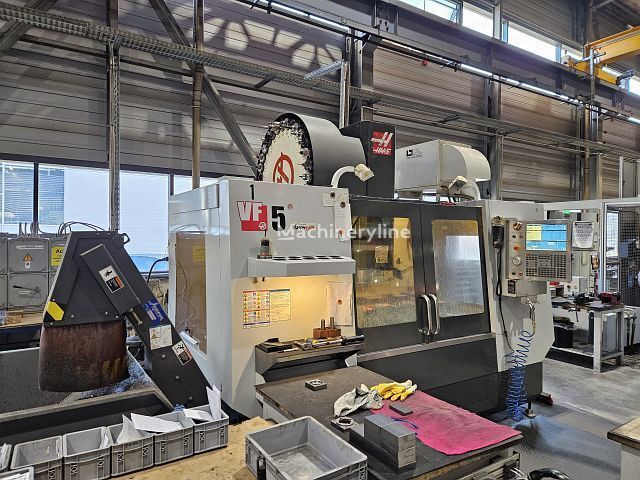

2013 - Haas VF5 50 Machining Center()
- Listing No
- 964197
- Year
- 2013
- Manufacturer
- Haas
- Model
- VF5 50
- Condition
- Used
- Location
- Price
- POA
- Description
-
Working Range -cubic- X-axis travel: 1270 mm Y-axis travel: 660 mm Z-axis travel: 635 mm spindle / head spindle revolutions (max): 7500 /min basic functions number of spindles: 1 number of turrets: 0 live positions: yes number of c-axes: 0 number of y-axes: 1 number of b-axes: 0 attachments chip conveyor: yes Working Range Turning swing diameter (max): 635 mm worpiece length max.: 1372 mm workpiece weight max.: 1814 kg main spindle spindle revolutions (min): 0.001 /min spindle revolutions (max): 7500 /min X/Z slide Z-axis travel: 635 mm X-axis travel: 1270 mm Y-axis travel: 660 mm Tool magazine tool diameter max.: 178 mm tool length max.: 406 mm tool weight max.: 13.6 kg
About this machine
This Haas VF5 50 is a used machining center — sometimes referred to as a CNC machining center or vertical machining center — dating from 2013. Machining centers are precision machine tools designed to perform multiple metal-cutting operations such as milling, drilling, boring, and tapping on a workpiece in a single setup, typically under full computer numerical control. Haas Automation is one of the most widely recognised manufacturers of CNC machine tools in the world, supplying vertical and horizontal machining centers, turning centers, and rotary tables to manufacturers across aerospace, automotive, medical, and general engineering industries.
The machine offers a working envelope of 1,270 mm in X, 660 mm in Y, and 635 mm in Z, providing a substantial cutting volume suited to larger workpieces and complex part programs. The single spindle runs at up to 7,500 RPM, covering a broad range of cutting strategies from heavy roughing passes to finishing operations across a variety of materials.
Tool capacity is well specified: the magazine accepts tools with a maximum diameter of 178 mm, a maximum length of 406 mm, and a maximum individual tool weight of 13.6 kg, accommodating large-diameter face mills and heavy boring heads without issue. Maximum workpiece weight is rated at 1,814 kg, reflecting the robust table and machine structure needed to support substantial castings or fabrications. Maximum swing diameter is given as 635 mm and maximum workpiece length as 1,372 mm, defining the outer limits of the parts that can be accommodated on the table.

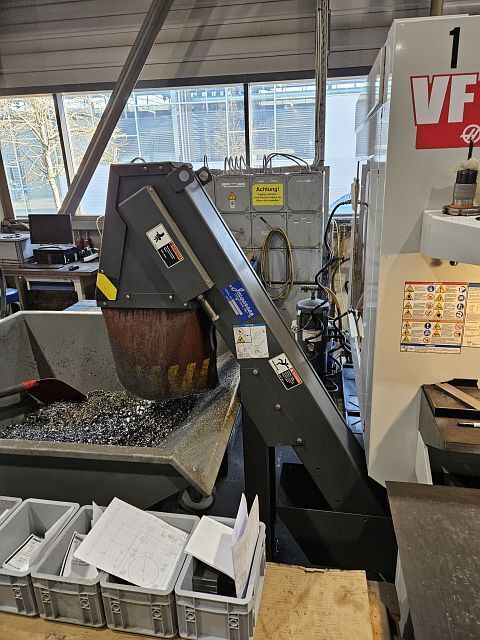

The machine is fitted with a chip conveyor, which assists in managing swarf during continuous production runs and contributes to maintaining consistent cutting conditions. The listing is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
