Heilig 4000 SVD – Conical mixer Mixer Blender()
- Listing No
- 1182966
- Year
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: 4000 SVD Material: Mild steel Volume: 4000 Ltr Motor: 0,55 KW 380 Volt (78rpm) Capacity: 4000 ltr Largest cone diameter: 2500mm Cone height: 3800mm Manhole: ca 1800x700mm Floor space: 2,9x2,9 M Total height: 5,0 M Extra Specifications: outlet with ball valve screw stainless steel merk: Heilig General Main Features Specified Features - Conical mixer Conical mixer Top drive Cantilevered screw Bottom discharge Information
About this machine

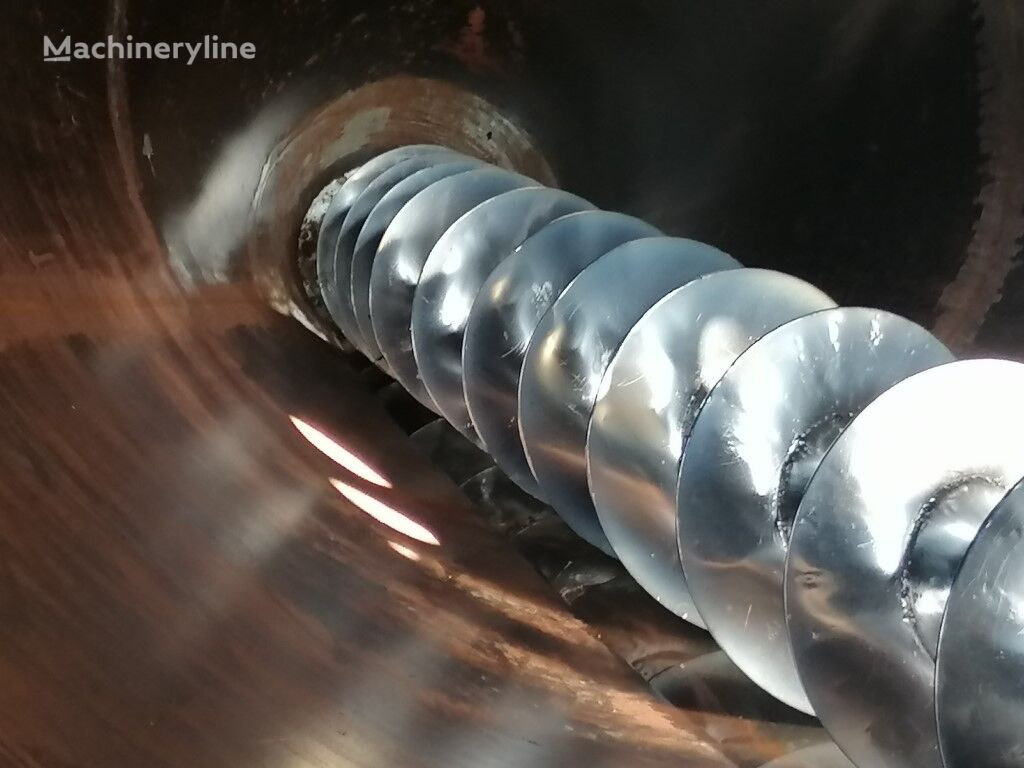

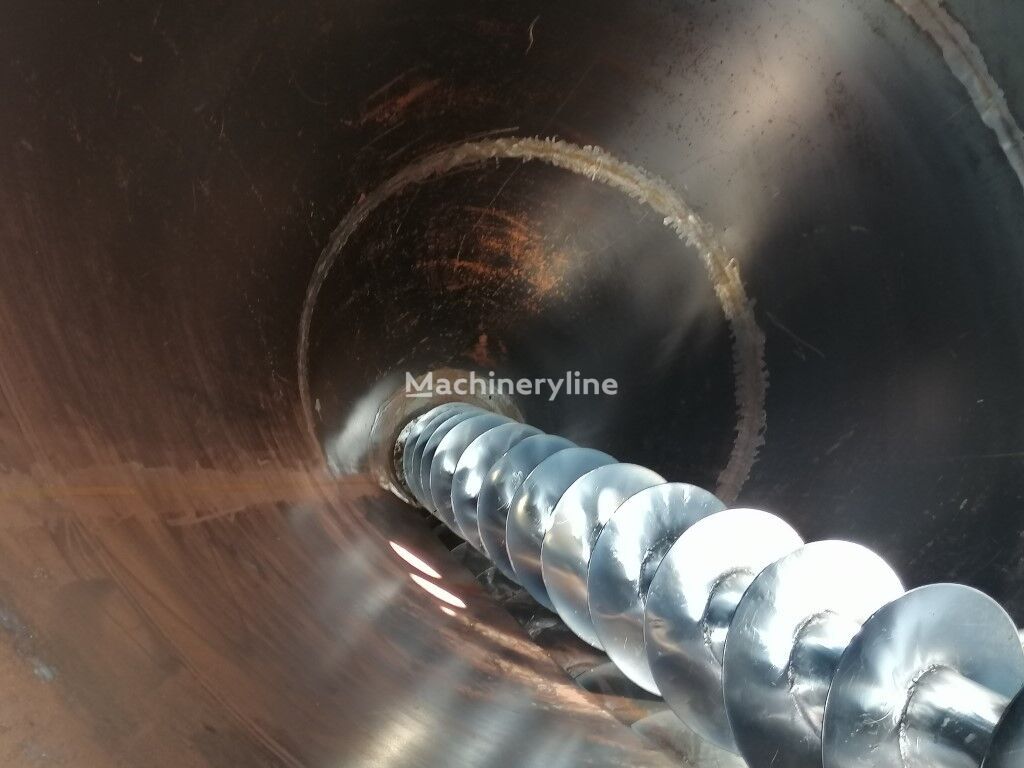

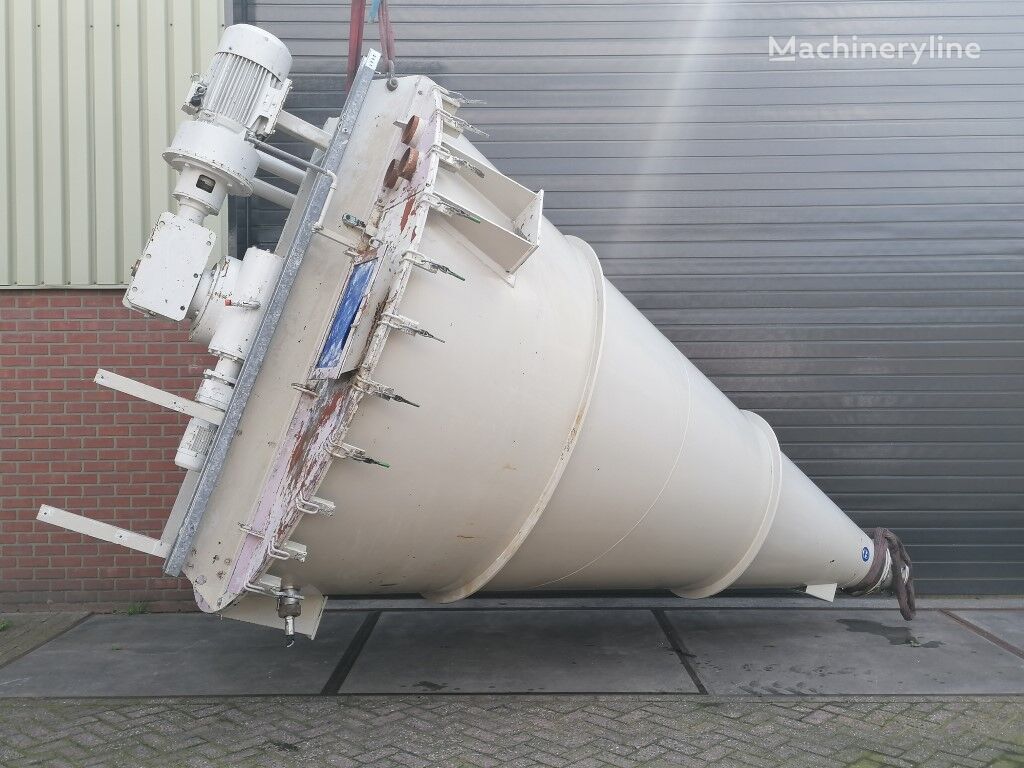

This Heilig 4000 SVD is a used conical mixer — also referred to as a cone mixer or conical blender — a type of mixing and blending machine widely used in bulk processing industries for homogenising powders, granules, and other dry or semi-dry materials. In a conical mixer of this configuration, a cantilevered screw rotates inside a conical vessel, lifting and circulating material gently and thoroughly without segregation or product degradation. Heilig is a recognised Dutch manufacturer of mixing and blending equipment, known for building robust process machinery for food, chemical, and pharmaceutical applications.

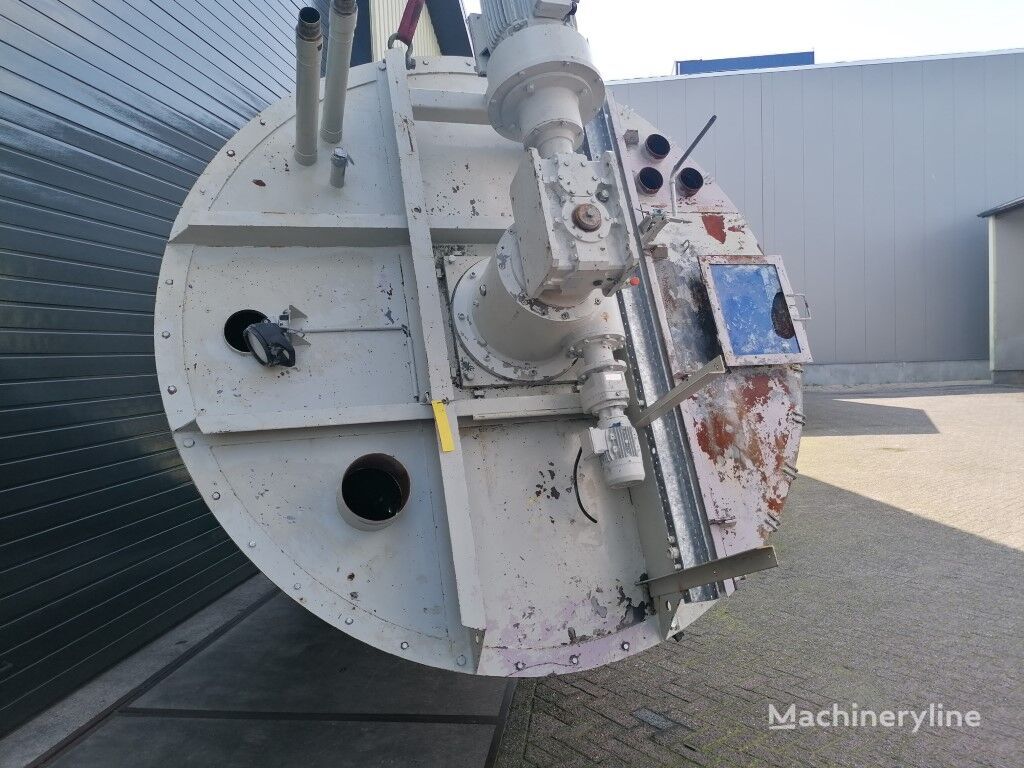

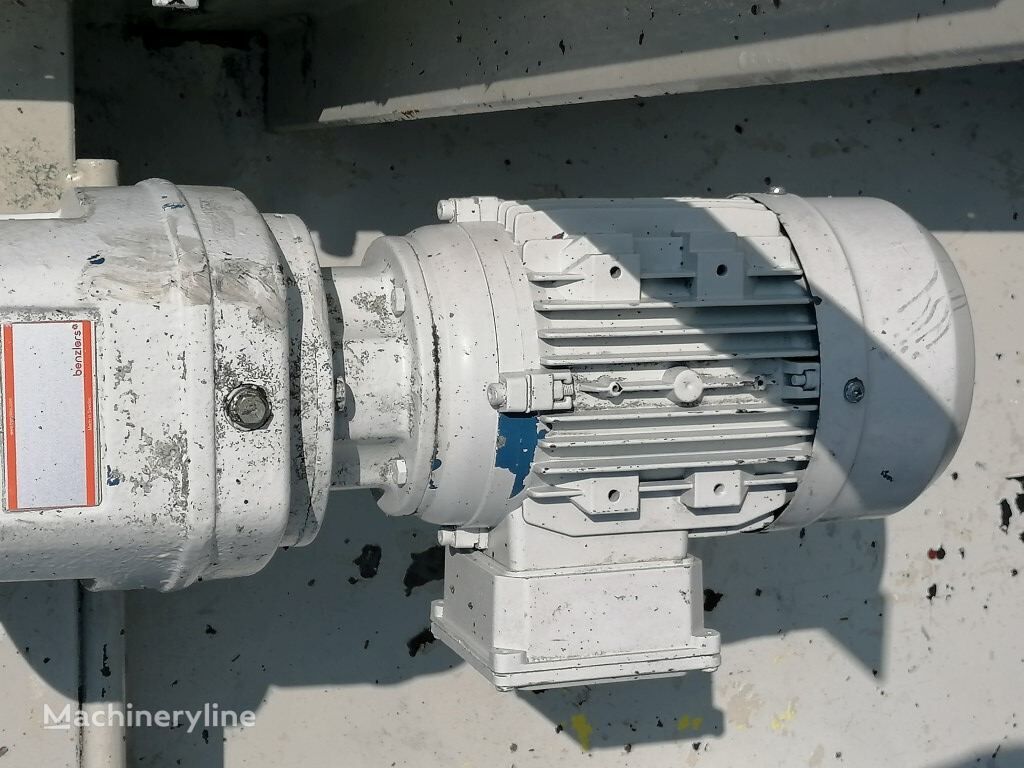

This particular unit is constructed in mild steel and carries a rated volume and capacity of 4,000 litres, making it a substantial production-scale machine. It is powered by a 0.55 kW motor running on 380 V and turning at 78 rpm. The mixing action is delivered by a cantilevered screw driven from the top, and material is discharged from the bottom via an outlet fitted with a stainless steel ball valve screw arrangement.
The cone itself has a largest diameter of 2,500 mm and a cone height of 3,800 mm. Access to the interior is provided by a manhole measuring approximately 1,800 × 700 mm. The machine occupies a floor space of 2.9 × 2.9 m and stands to a total height of 5.0 m, dimensions that should be considered carefully when planning installation and clearance requirements.
The machine is located in Barneveld, Netherlands, and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
