About this machine

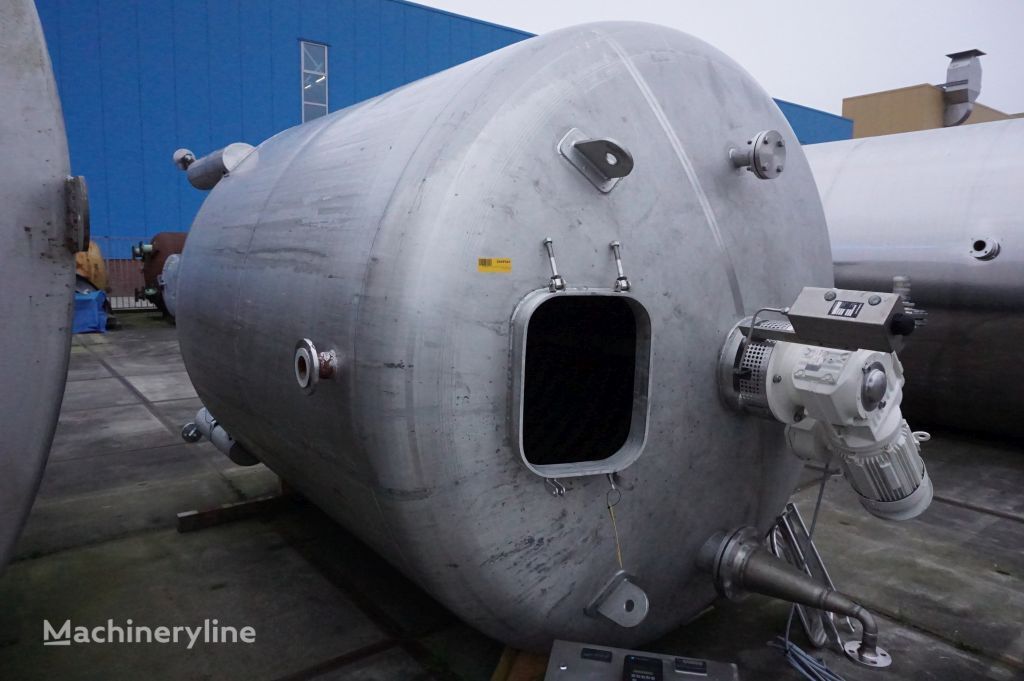

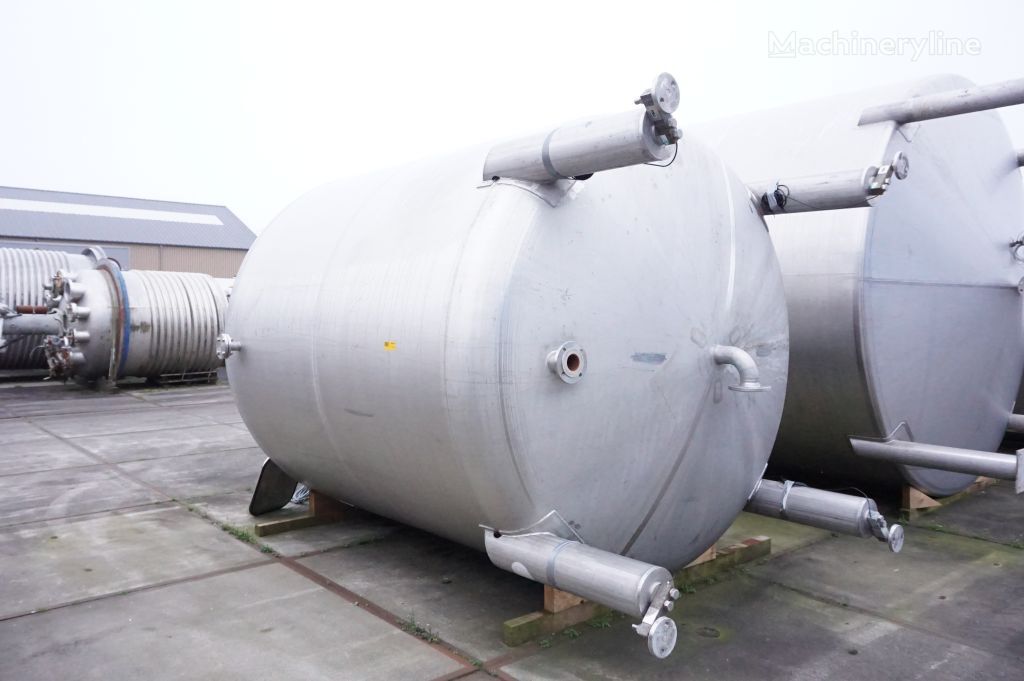

This is a used mixer and blender — sometimes referred to as a mixing vessel or blending tank — manufactured by Het Noorden BV of the Netherlands and dating from 2001. Machines of this type are used across the food, chemical, and pharmaceutical industries for batch mixing, blending, and processing of liquid and semi-liquid products. Het Noorden BV is a Dutch manufacturer with a recognised background in producing stainless steel process vessels and mixing equipment for industrial applications.

The vessel has a working volume and capacity of 15,000 litres, making it a large-scale unit suited to high-throughput production environments. It is constructed from stainless steel grade L), a corrosion-resistant alloy widely specified for contact with aggressive media, cleaning chemicals, and food-grade products. The vessel body measures 2,600 mm in diameter and 3,000 mm in height, with an overall installed height of 4,700 mm and a floor footprint of approximately 3.0 × 3.0 metres. It is mounted on legs and configured as a closed stirring vessel with a dished bottom and a dished top.

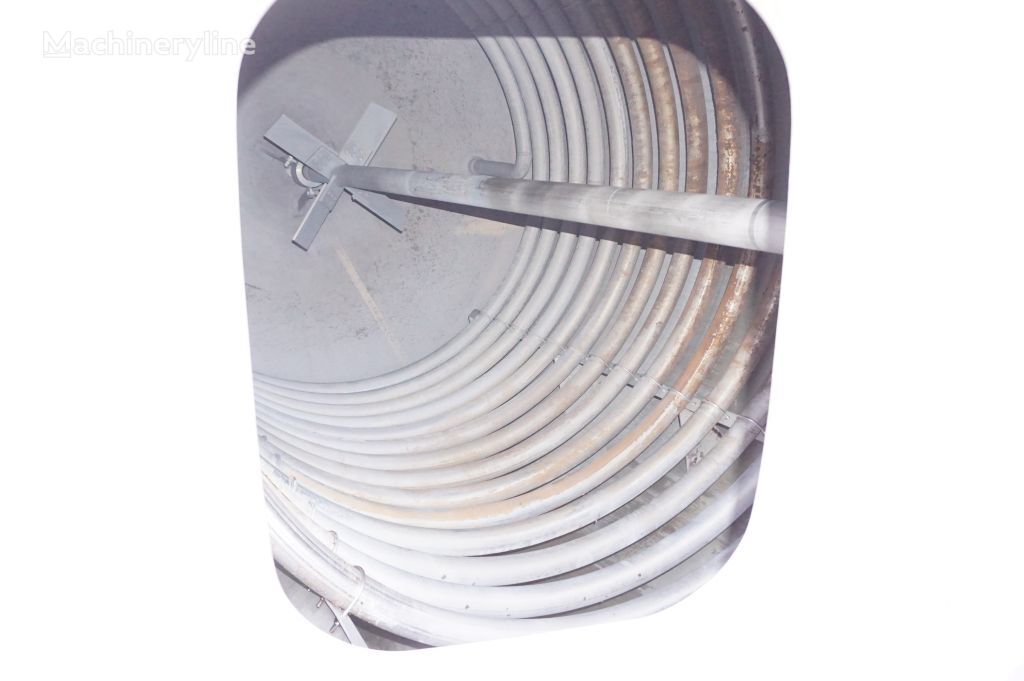

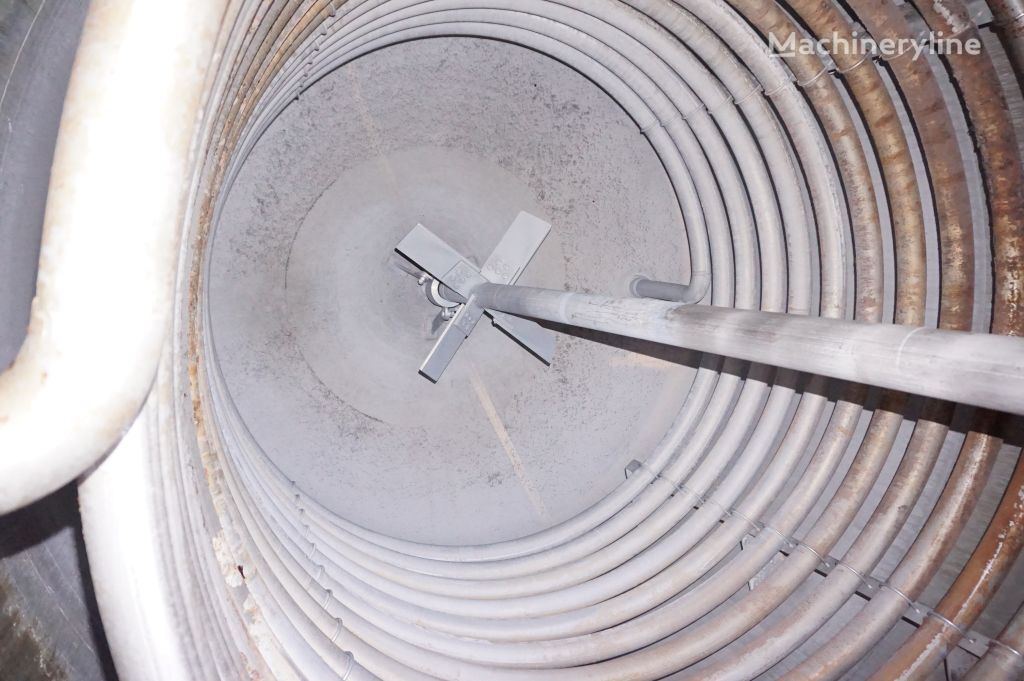

The working pressure of the vessel is rated at 1 bar, and the jacket carries a working pressure of 6 bar. Maximum operating temperature is 100 °C. An internal heating coil is fitted, providing an additional means of temperature control within the vessel. The jacket and coil together give operators flexible heating options suitable for temperature-sensitive processes.

Agitation is provided by a paddle stirrer of the MRSK-MS70 type, driven by a 5.5 kW motor rated at 400/690 V with an Ex II 2D explosion-proof classification, making it suitable for use in dusty or potentially hazardous environments. The mixing shaft runs at 173 rpm. The unit is supplied with its own switchgear.

Process connections are well specified. The top of the vessel is fitted with three connections: one at 150 mm diameter, one at 80 mm, and one at 50 mm. The manhole measures 540 × 410 mm. The bottom outlet is 80 mm in diameter. The internal reference number for this unit is , and the machine is located in Barneveld, Netherlands.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
