1982 - Hosokawa Nauta MBXO-20R – Conical mixer Mixer Blender()
- Listing No
- 1178978
- Year
- 1982
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: MBXO-20R No: M.19065.B Material: Stainless steel 1.4301 (304) Volume: 2000 Ltr Motor: 4 kW, 380/660 volt Conical mixer: check Capacity: 2000 Ltr Largest cone diameter: 1924 mm Cone height: 2700 mm Manhole: DN400 Top drive: check With variable speed drive: 1500 rpm Bottom bearing pintle bearing: check Bottom discharge: check 2x Dia. 200 mm Outlet with sliding valve: check Total height: 3,80 m Floor space: 1,93x1,93 m Extra Specifications: Input diam. 500mm merk: Hosokawa Nauta General Main Features Specified Features - Conical mixer Information
About this machine

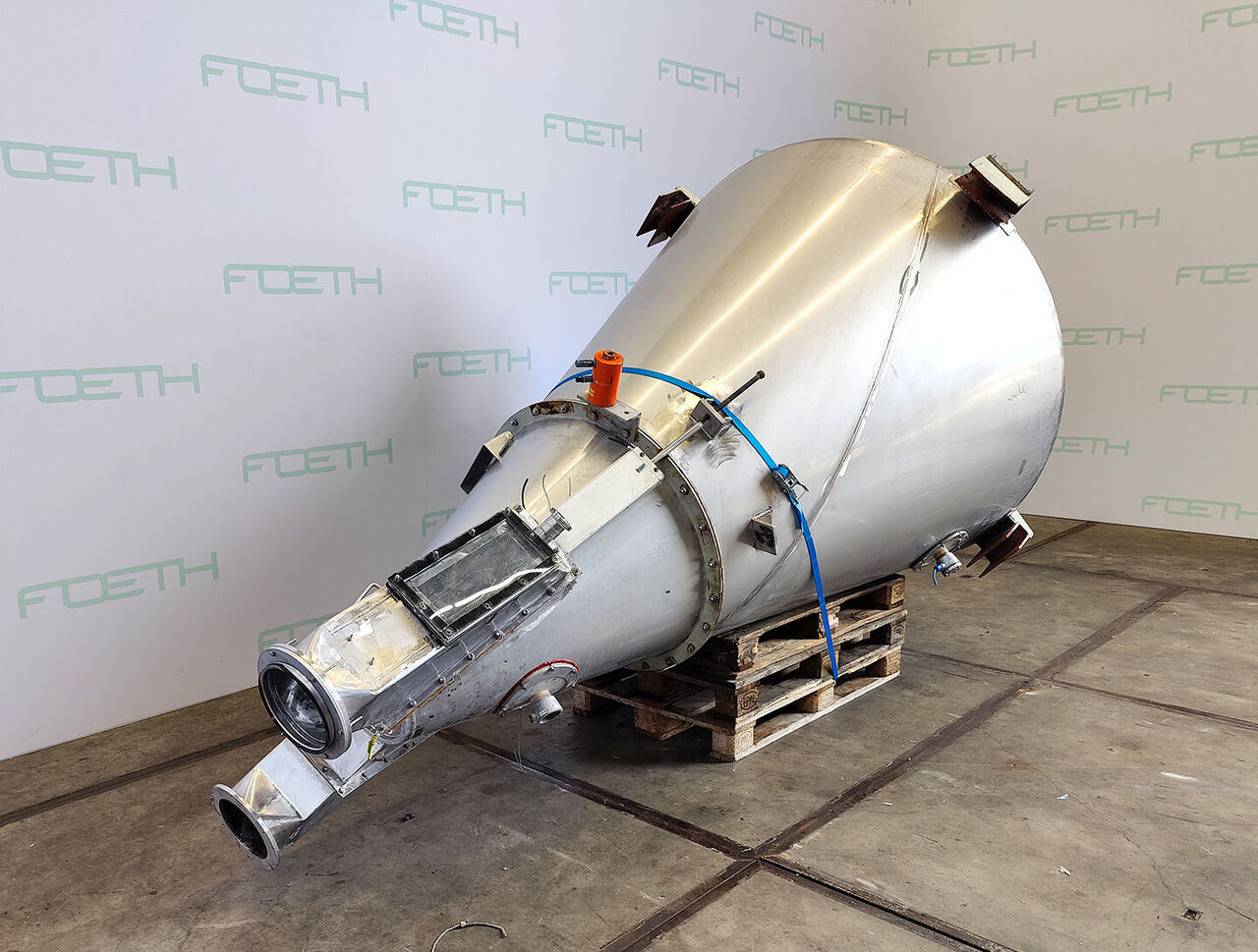

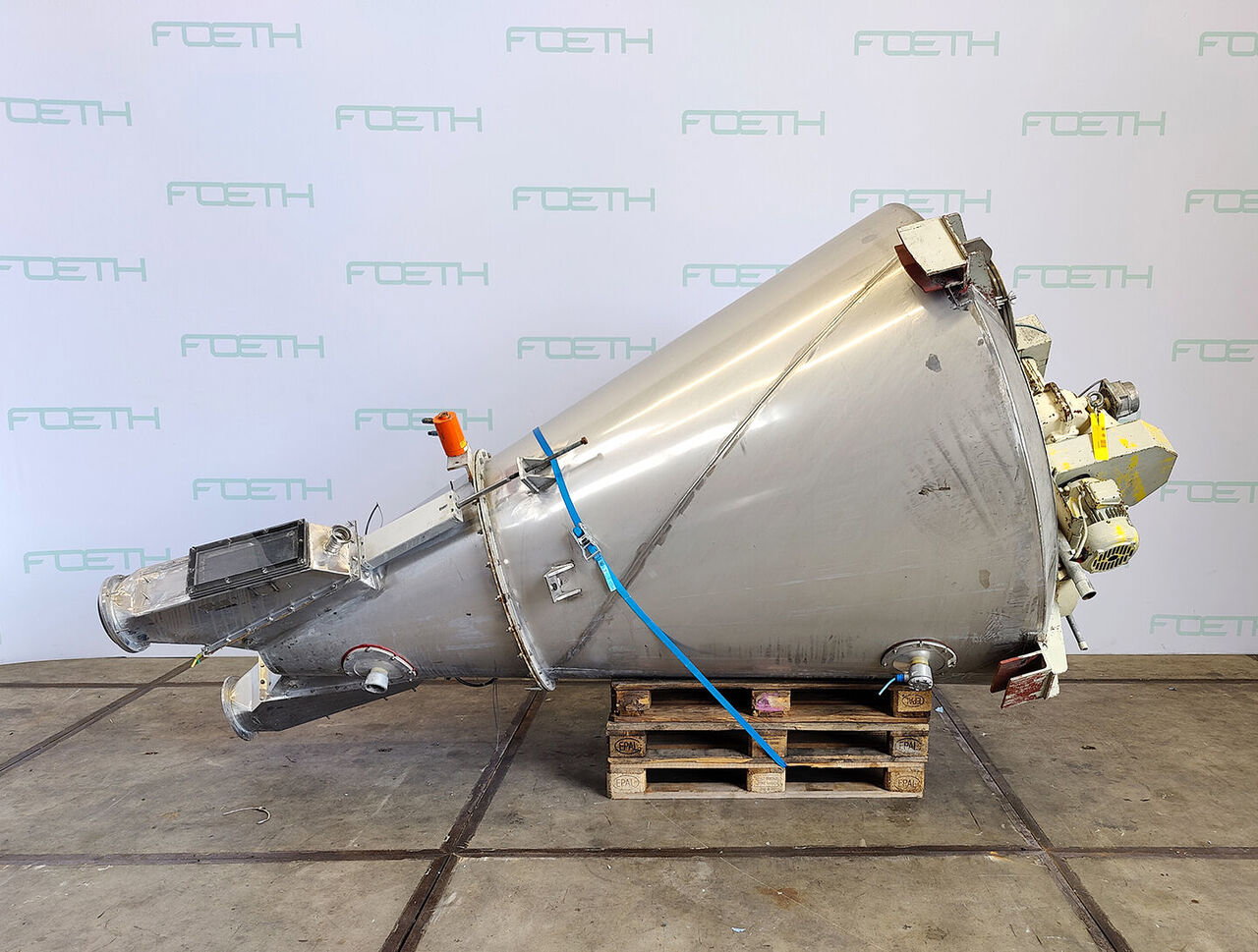

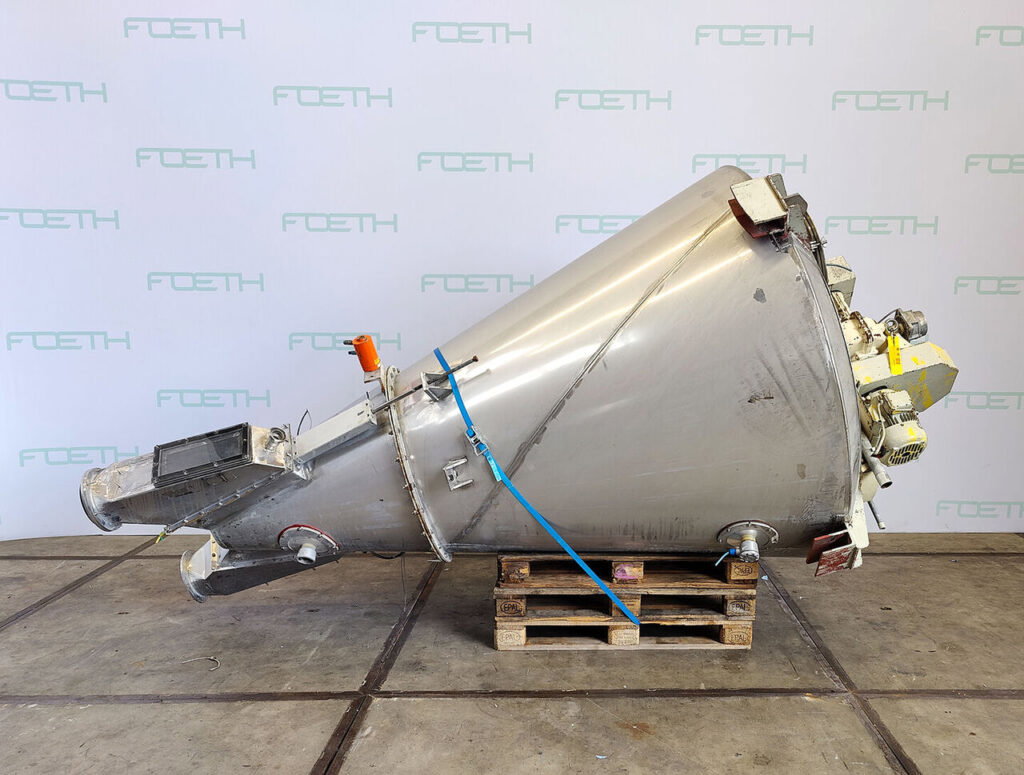

This Hosokawa Nauta MBXO-20R is a conical mixer — sometimes referred to as a Nauta mixer or screw blender — a type of mixer and blender designed to gently and efficiently blend bulk powders, granules, and pastes in industries such as food, pharmaceuticals, chemicals, and plastics. Hosokawa is a well-established manufacturer of powder and particle processing equipment, and the Nauta range of conical mixers is among the company's most recognised product lines, known for thorough mixing with low energy consumption and minimal product degradation.
This unit carries serial number M.19065.B and was manufactured in 1982. It is constructed in stainless steel grade 1.4301 (AISI 304), making it suitable for hygienic and chemically demanding applications. The mixer has a total working volume of 2,000 litres, with a conical vessel measuring 1,924 mm at its largest diameter and standing 2,700 mm in cone height, giving a total machine height of 3,800 mm. The floor footprint is compact at 1.93 × 1.93 m.

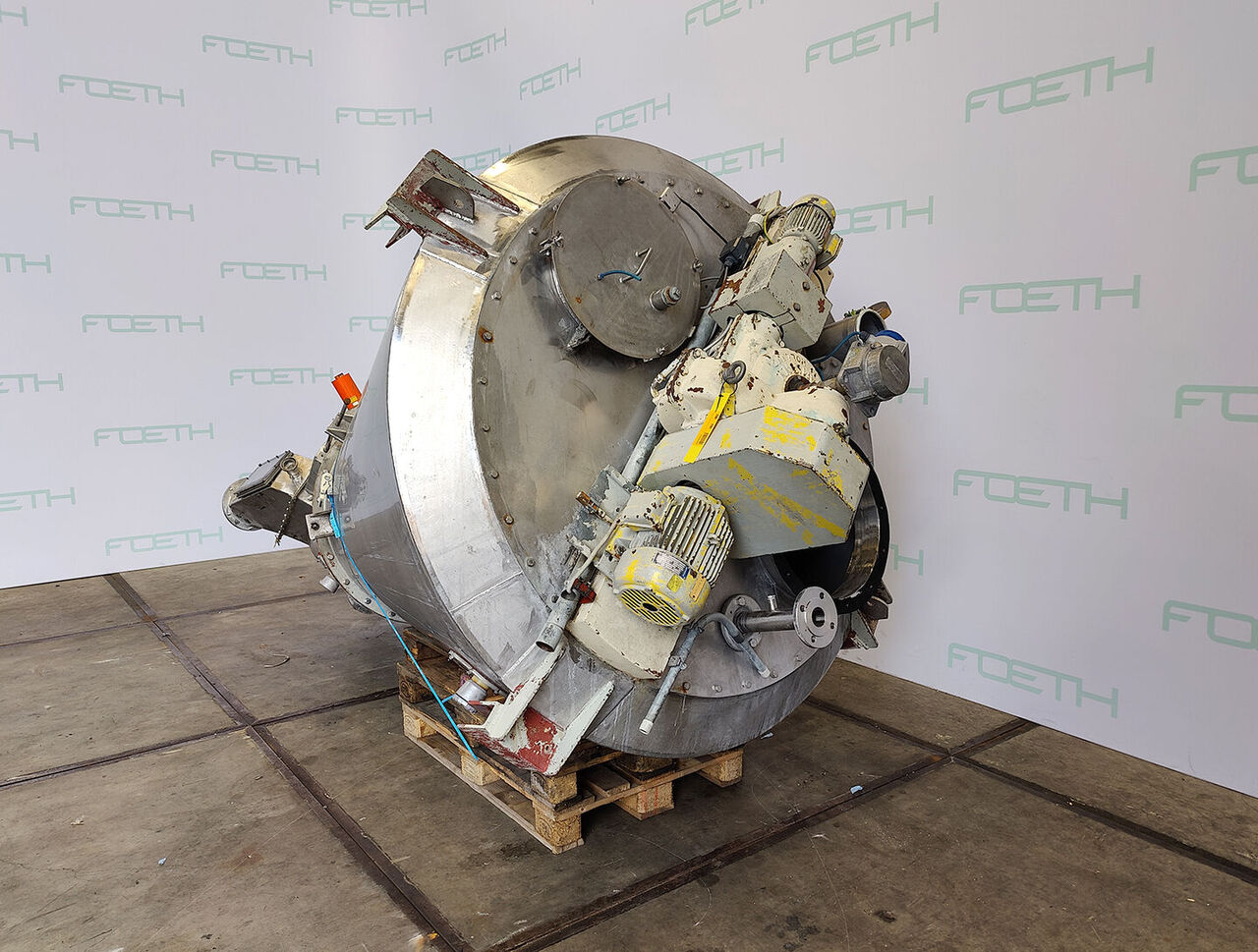

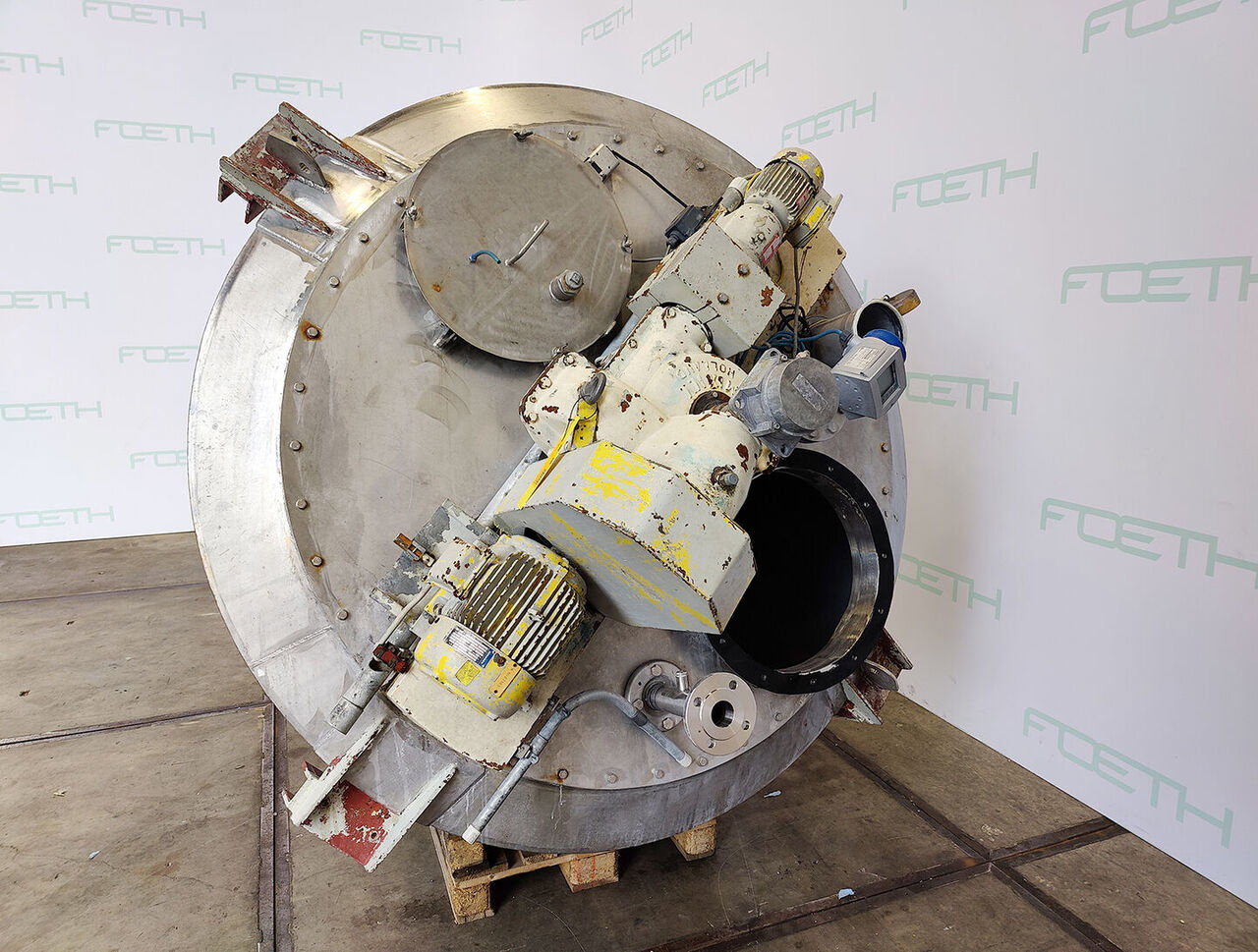

The drive system is positioned at the top of the vessel and is powered by a 4 kW motor rated at 380/660 volt. A variable speed drive is fitted, with a maximum speed of 1,500 rpm, allowing the mixing intensity to be adjusted to suit different materials and process requirements. The bottom of the cone is supported by a pintle bearing arrangement.

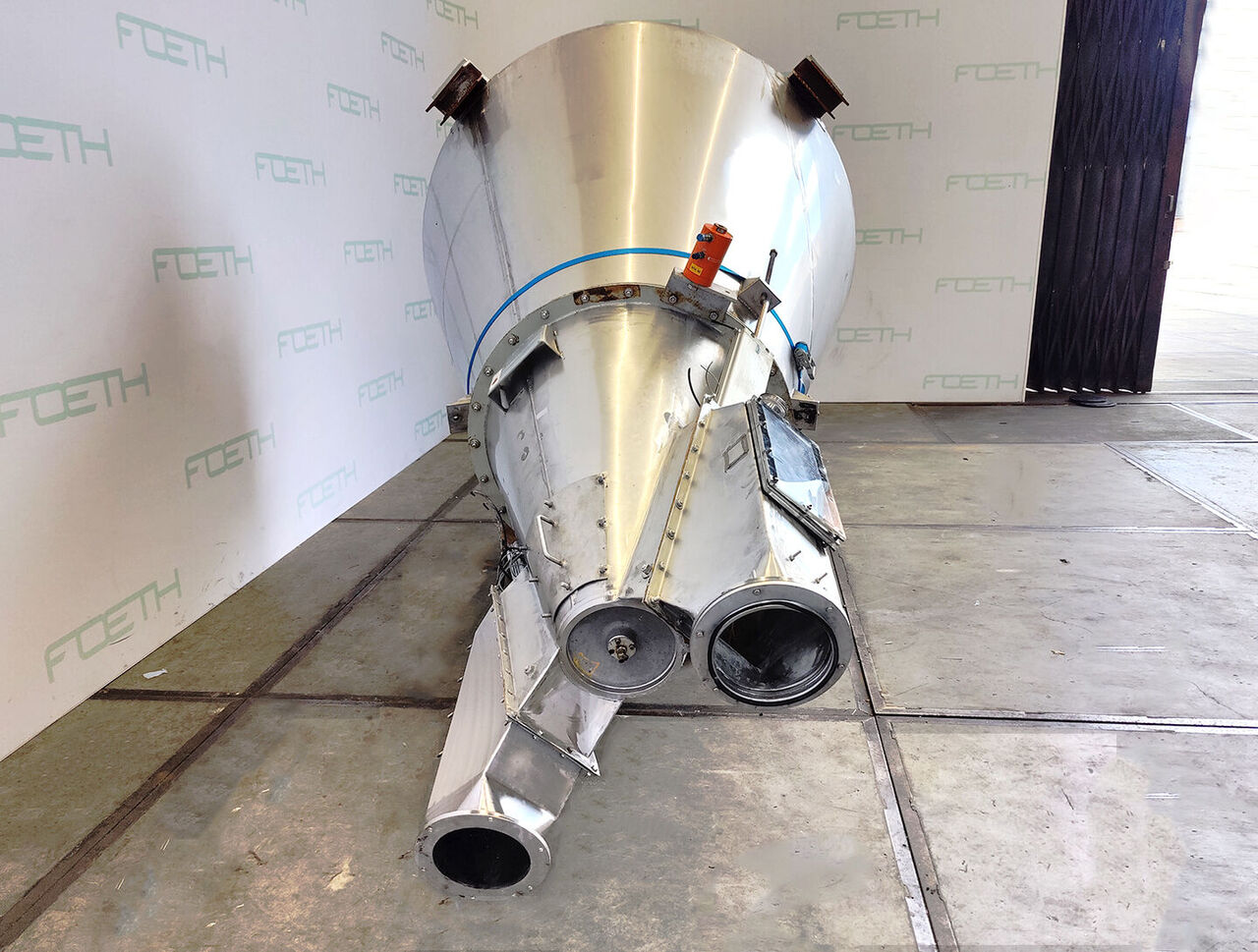

For product loading, the vessel is equipped with a manhole of DN400 and an inlet with a diameter of 500 mm. Discharge is handled by two bottom outlets, each 200 mm in diameter, both fitted with sliding valves to control product flow.
The machine is offered in used condition and is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
