2013 - HPV Ika Dispax DR 2000/5 Mixer Blender()
- Listing No
- 1182084
- Year
- 2013
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: RV Base SO No: 2002-M-1 Material: Stainless steel 1.4404 (316L) Motor: 7,5 kw, 400V, (EX) Continuous reactor: check Rotor sizes: Dia. 75x15 mm Inlet: dia. 40 mm Outlet: Dia. 30 mm Number of stages: 2 Capacity: 0,6m³/h Max. temperature: 160°C With mechanical seal: check With frequency controller: check Rotor speed: 6000 rpm With vessel: check Vessel sizes: DIa. 790x1400 mm With motor: 1,5kW, 400V, 720rpm (EX) 2x With frequency inverter: check Floorspace: 4,0x3,0 m Total height: 2.5 Extra Specifications: Skid mounted stainless steel RV base SO. with: IKA, type Dispax-reactor DR2000/5-ATEX, year 2013, motor merk: HPV General Main Features Specified Features - Inline mixer Inline high shear mixers Information
About this machine
This HPV Ika Dispax DR 2000/5 is an inline mixer and blender — also commonly referred to as an inline high shear mixer — designed for continuous high-intensity mixing, dispersing, and emulsifying of liquids and suspensions in a closed, flowing system. IKA is a well-established German manufacturer of laboratory and industrial mixing and dispersing equipment, widely used across the chemical, pharmaceutical, food, and cosmetics industries. Their Dispax-Reactor range is a recognised line of inline high shear dispersing machines built for demanding continuous-flow applications.
This unit is built around an IKA Dispax-Reactor DR 2000/5-ATEX configuration and is classified as ATEX-rated, making it suitable for use in potentially explosive atmospheres. The machine is constructed entirely from stainless steel grade L), offering strong resistance to corrosion and compatibility with a wide range of process media. It carries serial number 2002-M-1 and was manufactured in 2013.
The dispersing head operates as a two-stage continuous reactor with a rotor diameter of 75 × 15 mm, driven by a 7.5 kW, 400 V ATEX-rated motor at a rotor speed of 6,000 rpm. The inlet diameter is 40 mm and the outlet diameter is 30 mm, with a rated throughput capacity of 0.6 m³/h. The unit is equipped with a mechanical seal and a frequency controller, allowing variable speed adjustment. Maximum operating temperature is 160°C.

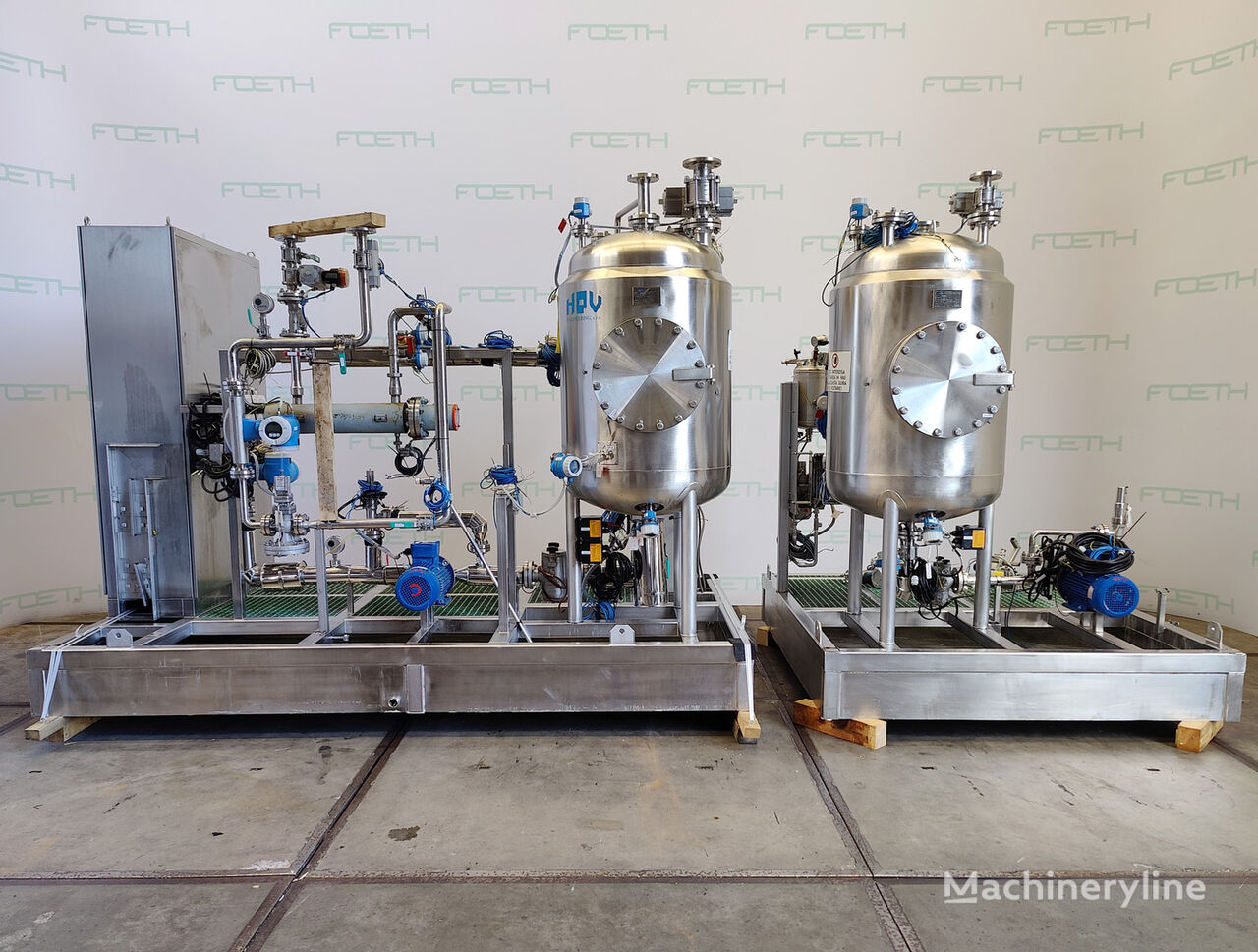

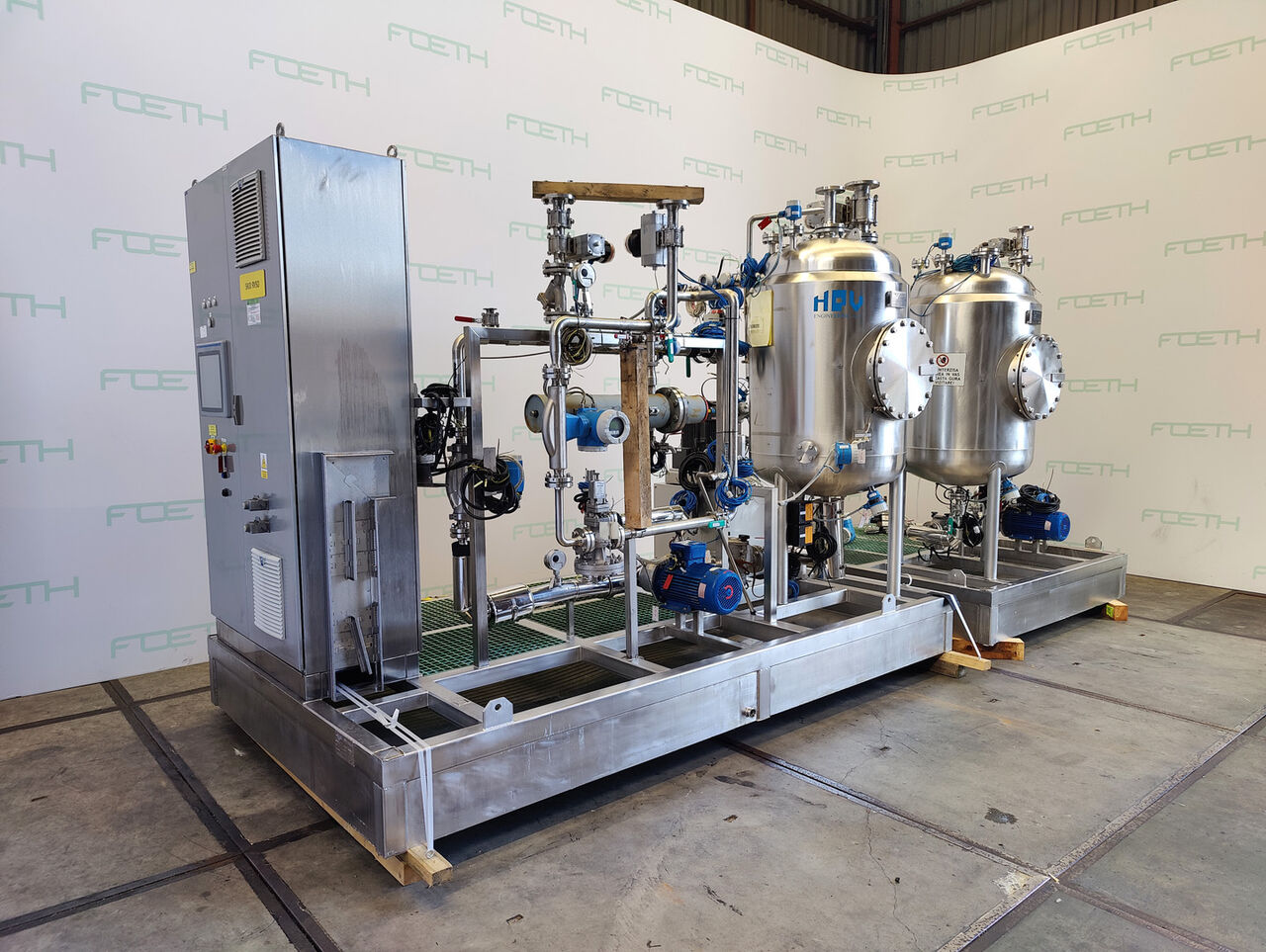

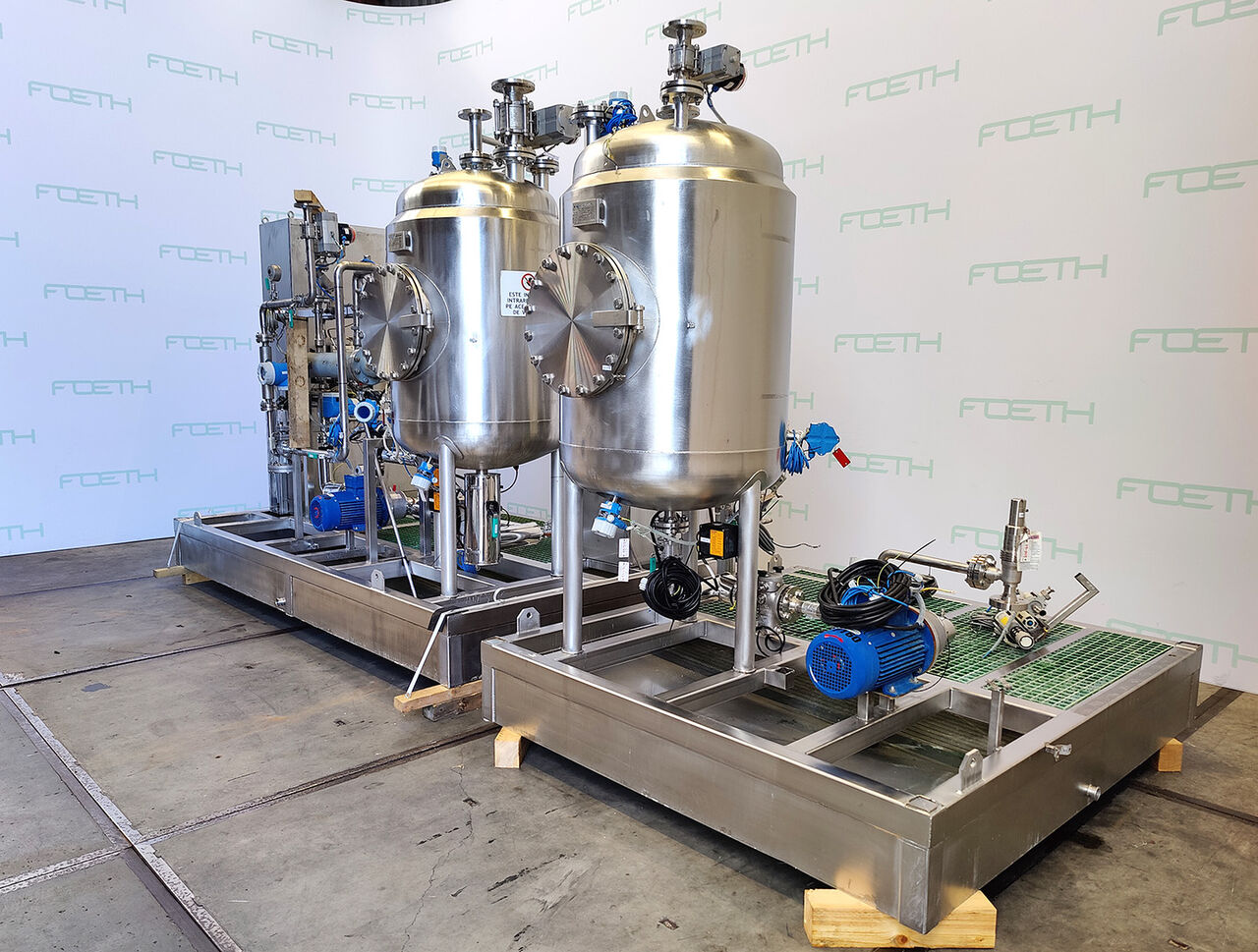

The mixer is skid-mounted on a stainless steel RV base of type SO, giving it a compact, self-contained footprint of 4.0 × 3.0 metres with a total height of 2.5 metres. The skid also includes a vessel measuring 790 mm in diameter by 1,400 mm in height. Two additional ATEX-rated motors rated at 1.5 kW, 400 V, and 720 rpm are fitted to the assembly, each paired with a frequency inverter. The machine is located in Barneveld, Netherlands, and is offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
