1981 - Hubbes HBR-Z-2 DR – Dissolver Mixer Blender()
- Listing No
- 1184039
- Year
- 1981
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: HBR-Z-2 DR No: 1788/80 Pan material: Stainless steel Working pressure pans: 0 Bar Material: Stainless steel Volume: 500 Ltr Motor: 75,0 KW, 380/660 Volt Dissolver: (1x) Shaft length: 600mm Disc diameter: 250mm (2 discs per shaft) With scraper: Motor 6,8 KW Hydraulic drive: (dissolver) With hydraulic unit: (Dim. 1,9x0,9x1,7 M) With pans: (5x) Capacity: 500 Ltr Pan sizes: dia. 1000x700mm Floorspace: 2,8x1,3 M Total height: 2,3 M merk: Hubbes General Material Pressure Main Features Specified Features - Dissolver Double shaft With cover With hydraulic lifting Information Mounted on wheels
About this machine

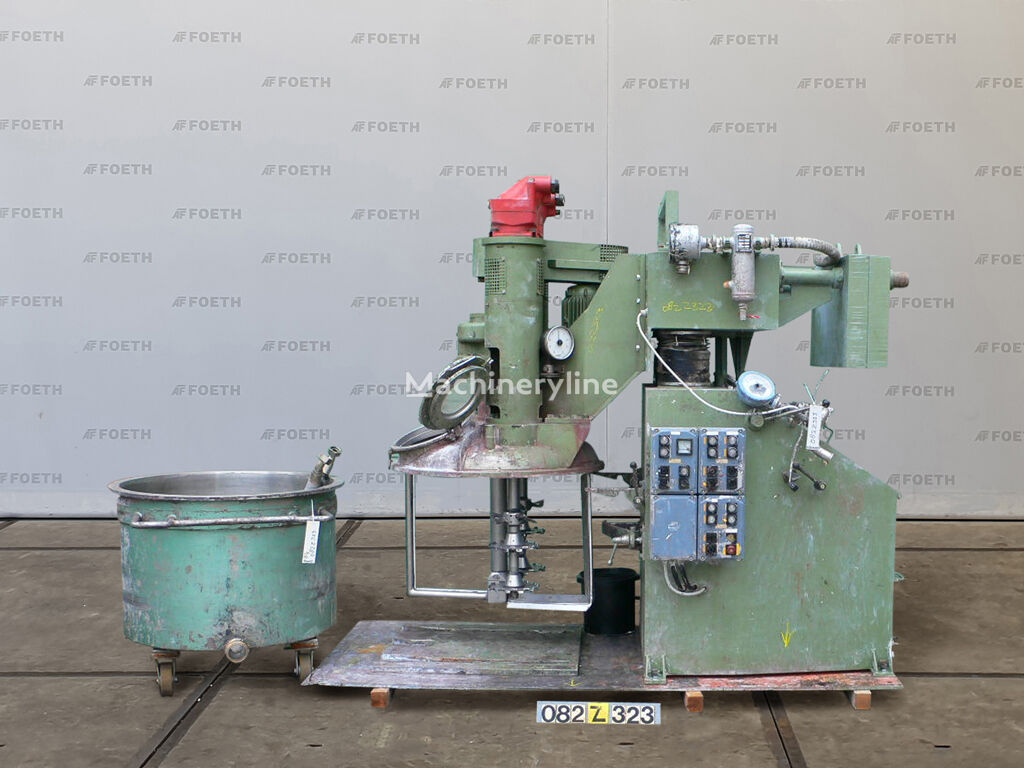

This Hubbes HBR-Z-2 DR is a mixer and blender — sometimes referred to as a dissolver or high-speed disperser — designed for mixing, blending, and dispersing liquid and semi-liquid materials. Machines of this type are widely used in the production of paints, coatings, inks, adhesives, and similar process industries where thorough dispersion of pigments or other solids into a liquid base is required. Hubbes is a Dutch manufacturer with a recognised background in industrial mixing and dissolving equipment for these sectors.
This particular unit dates from 1981 and is offered in used condition from Barneveld, in the Netherlands. It carries serial number 1788/80 and is built throughout in stainless steel, including the mixing pans, making it suitable for product contact applications where hygiene or corrosion resistance is a concern. The pans operate at zero bar working pressure.

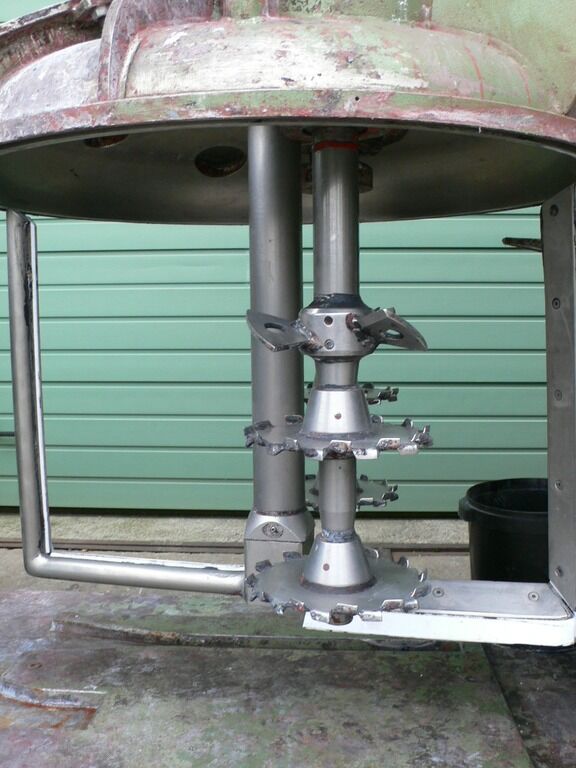

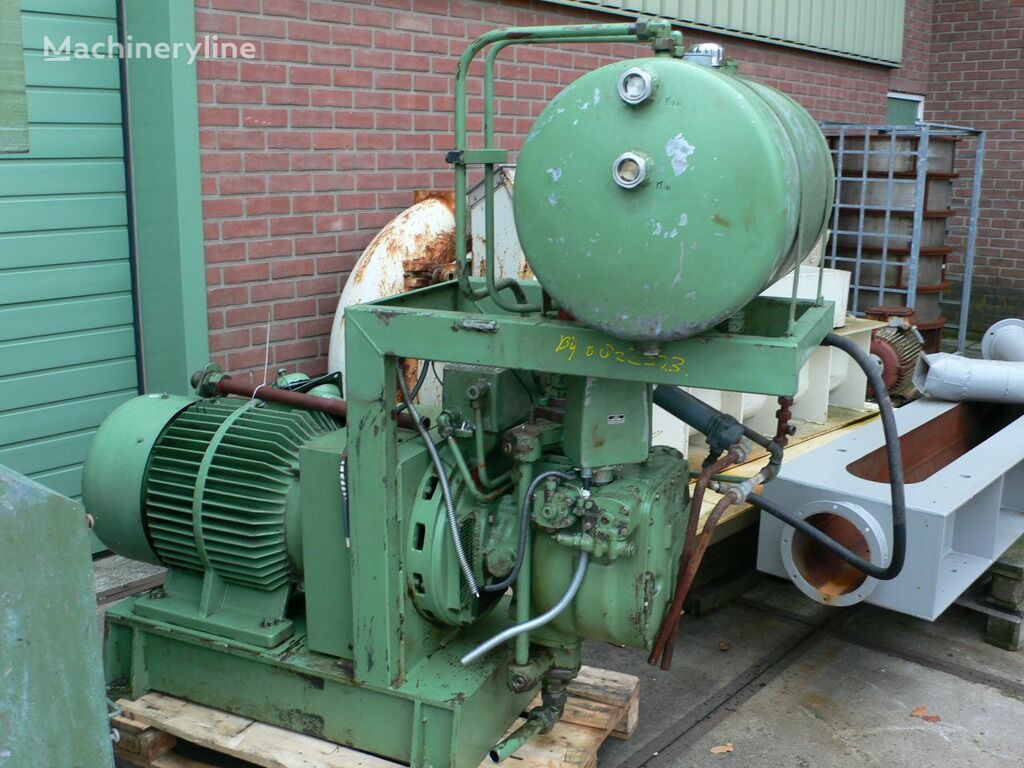

The machine is equipped with a single dissolver shaft, driven hydraulically via an onboard hydraulic unit. The main drive motor is rated at 75.0 kW and is configured for 380/660 volt supply. The dissolver shaft has a length of 600 mm and carries two discs, each 250 mm in diameter. A scraper system is also fitted, powered by a dedicated 6.8 kW motor. The hydraulic lifting system raises and lowers the dissolver head, and a cover is included. The machine is mounted on wheels, allowing it to be repositioned on the production floor.
The unit accommodates pans with a nominal volume of 500 litres. Five pans are included with the listing, each measuring 1,000 mm in diameter by 700 mm in height. The machine itself occupies a floor footprint of 2.8 × 1.3 metres and stands 2.3 metres in total height. The hydraulic unit measures 1.9 × 0.9 × 1.7 metres. Together, the inclusion of five stainless steel pans, the scraper motor, the hydraulic unit, and the wheeled base make this a substantially complete and self-contained installation.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
