Huron KX 20 Machining Center()
- Listing No
- 962410
- Year
- Manufacturer
- Huron
- Model
- KX 20
- Condition
- Used
- Location
- Belgium
- Price
- POA
- Description
-
min/max distance from spindle to table: 250 gt 800 mm Table dimensions: 1400 x 1000 mm Max weight on the table: 2 ton Admission in spindle (ISO): HSK 63A Power on the spindle: 15 kW Control : Siemens Sinumerik Toolchanger: yes Number of toolholders: 60 positions Number of rotations: 10 > 15 000 rpm
About this machine

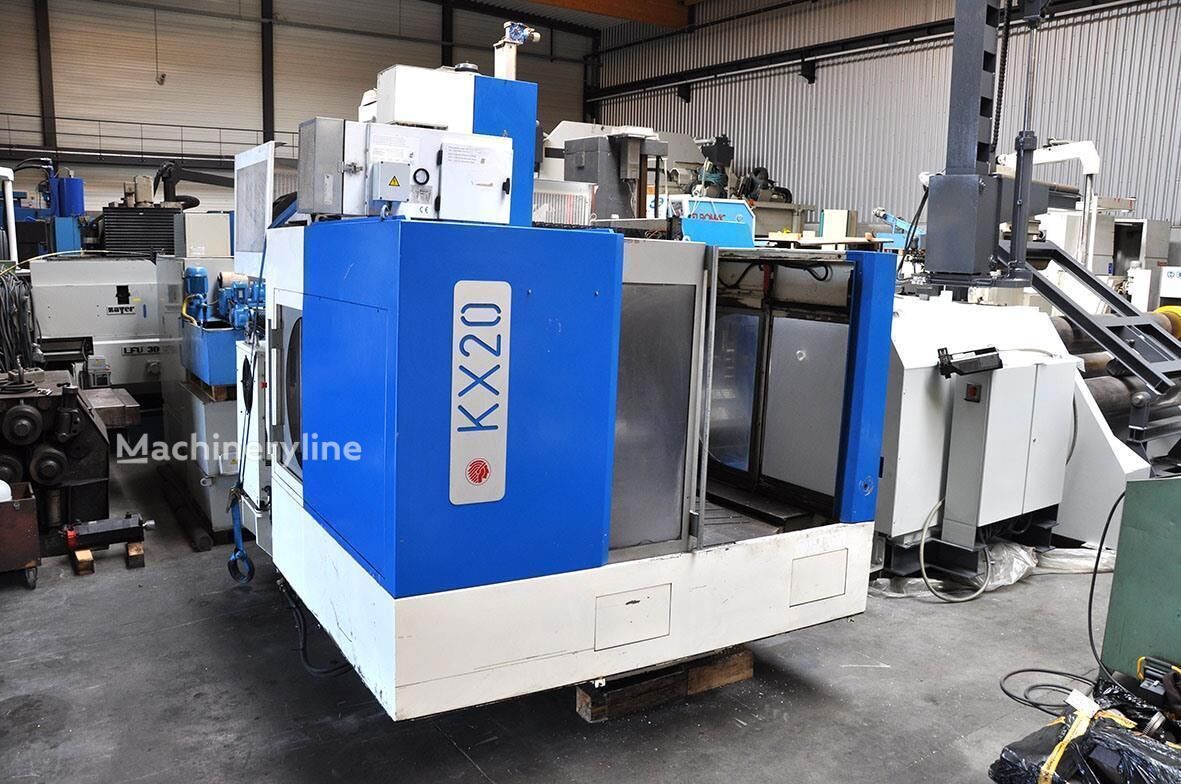

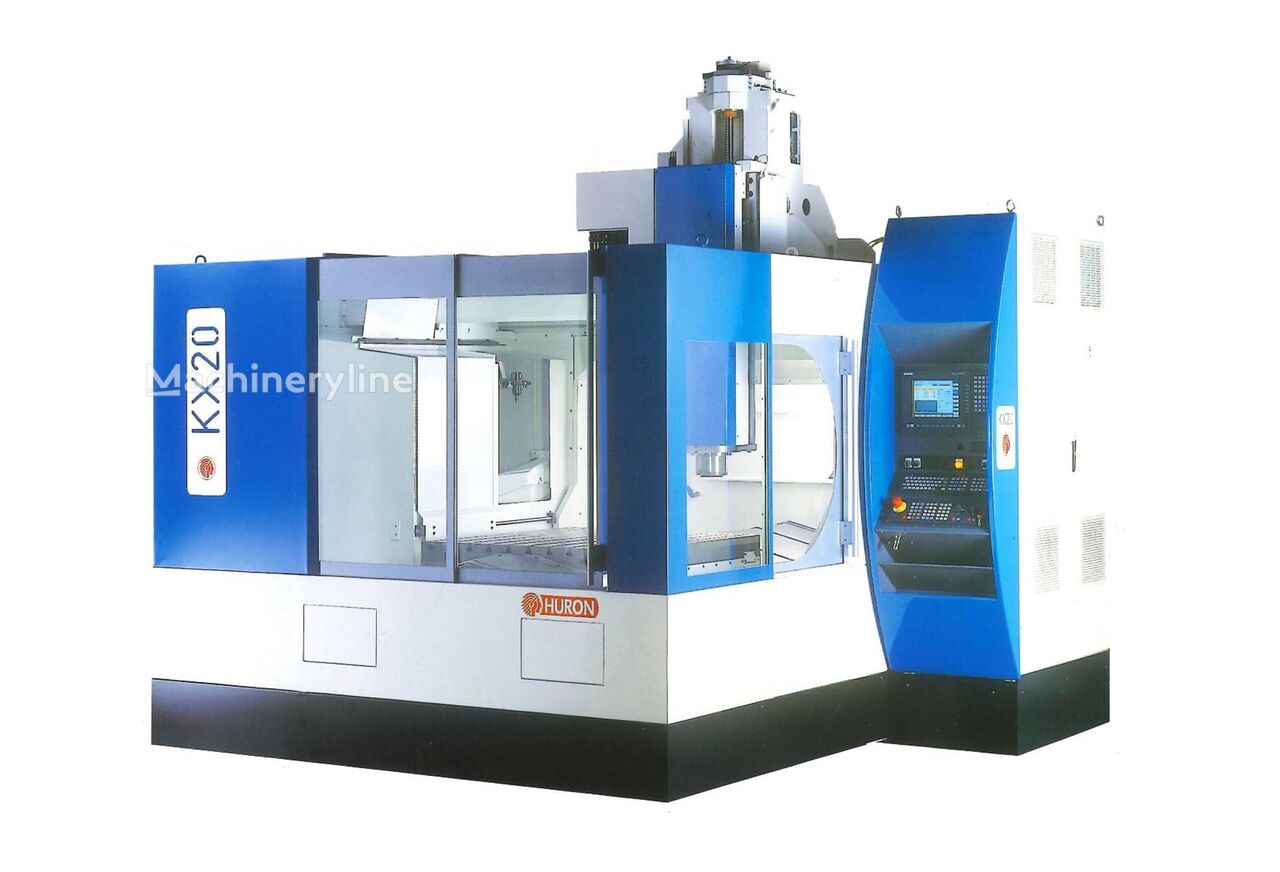

This Huron KX 20 is a used machining center — sometimes referred to as a CNC machining center or machining centre — a versatile metal-cutting machine tool designed to perform milling, drilling, boring, and tapping operations under computer numerical control, typically in a single setup. Huron is a long-established French manufacturer with a heritage in precision machine tools, supplying equipment to the aerospace, automotive, mould-making, and general engineering industries.

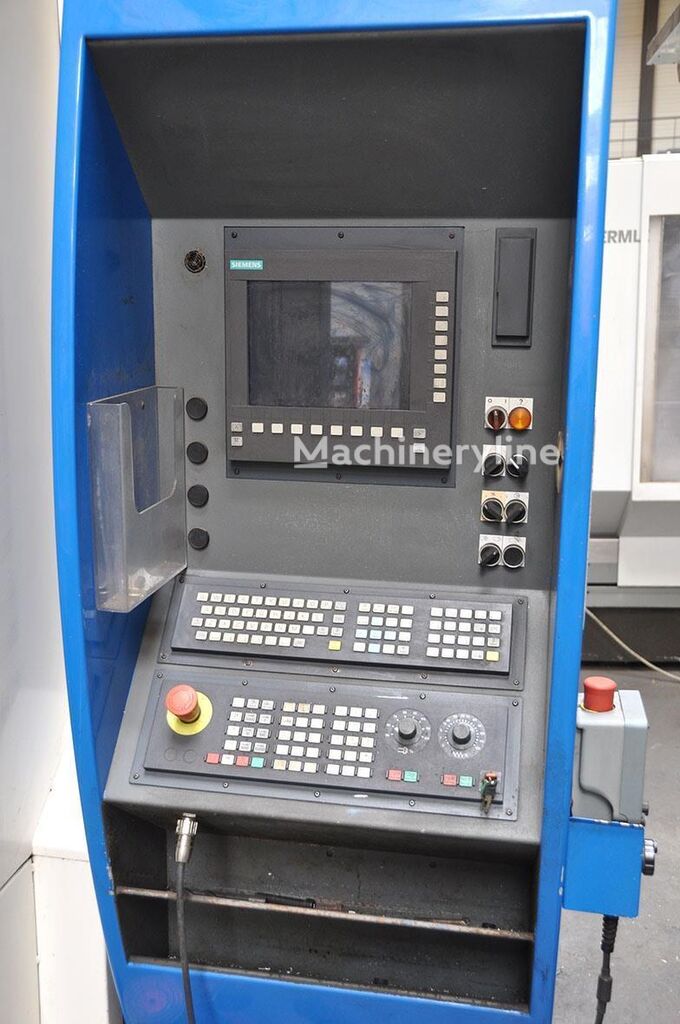

The machine is equipped with a Siemens Sinumerik control system, one of the most widely used and well-regarded CNC platforms in industrial manufacturing, offering a familiar and capable programming environment for operators and programmers alike.
The spindle accepts HSK 63A tooling, a precision hollow-shank taper interface that provides high rigidity and repeatability, particularly suited to high-speed machining applications. Spindle speed ranges from 10 to 15,000 rpm, and the spindle motor delivers 15 kW of power, giving the machine the capacity to handle both light finishing passes at elevated speeds and more demanding material-removal work.
The work envelope is defined by a minimum spindle-to-table distance of 250 mm and a maximum of 800 mm, accommodating a useful range of workpiece heights. The table measures 1,400 × 1,000 mm and is rated to support a maximum workpiece weight of 2 tonnes, making it well suited to medium and large components.
Tool management is handled by an automatic tool changer with a capacity of 60 positions, enabling complex multi-operation jobs to be run with minimal manual intervention and reducing cycle times on production work. The machine is located in Belgium and is offered in used condition.
