About this machine

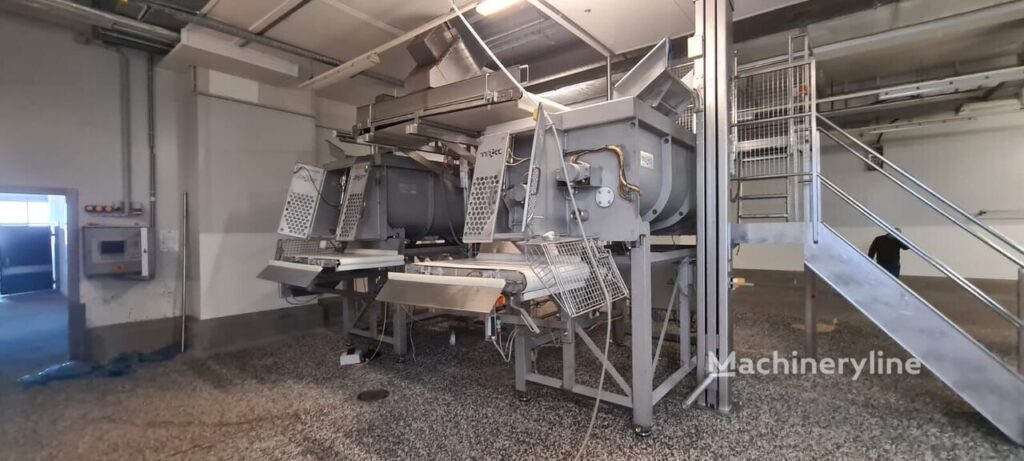

This used Inotec Standardization Mixer Blender is a complete industrial mixing and blending line, sometimes referred to as a batch mixer or paddle blender system, designed for the standardized, high-volume blending of bulk materials. Inotec is a Belgian manufacturer specialising in industrial mixing, dosing, and conveying equipment for the food processing, bakery, and related industries. This line brings together several integrated machines to form a continuous loading, mixing, and discharge system, and the full installation is offered together as a single lot.

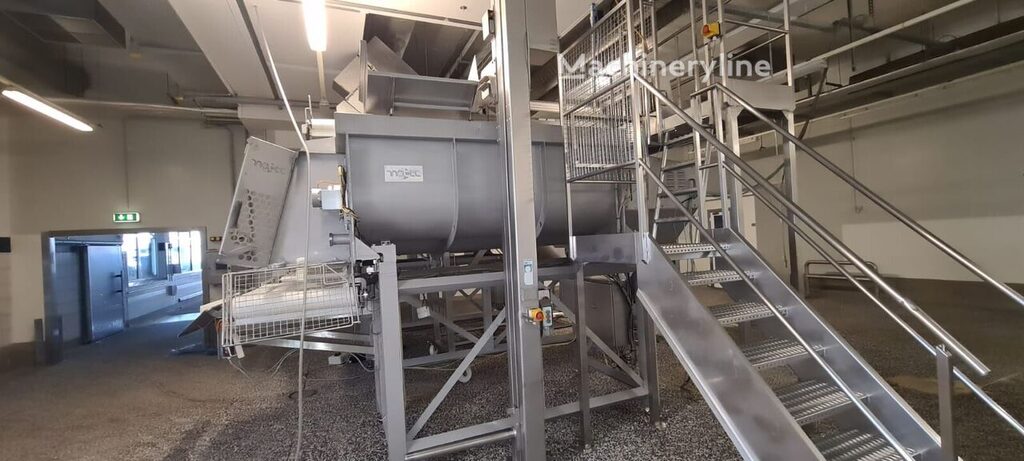

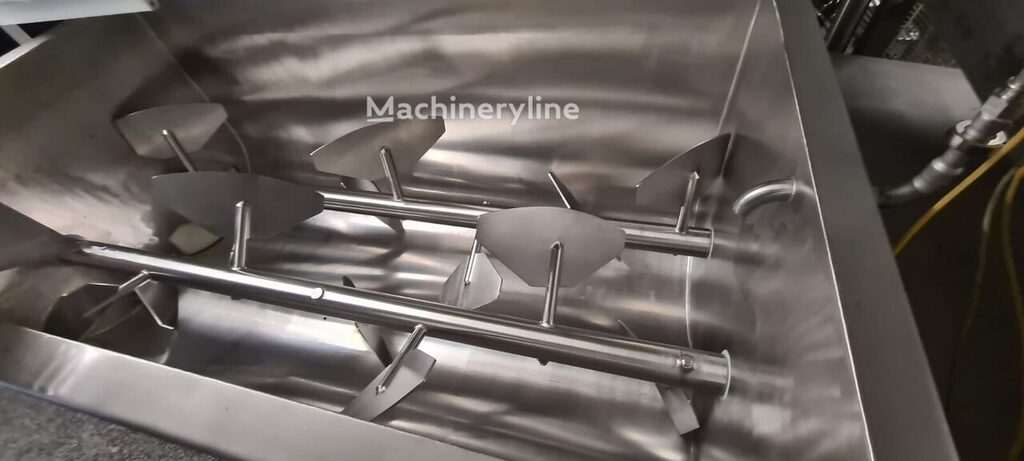

At the heart of the line are two Inotec twin-shaft paddle mixers, Type IPM 2000, each with a useful capacity of 2,000 litres and a total tank volume of 2,600 litres. Both units are constructed entirely in stainless steel and feature an intermeshing twin-shaft paddle configuration, which ensures thorough and homogeneous blending across the full working volume. Each mixer is fitted with a front discharge guard and incorporates weighing cells for in-process batch control. Each unit draws 18 kW and measures approximately 4,100 × 1,500 × 2,700 mm (L × W × H).

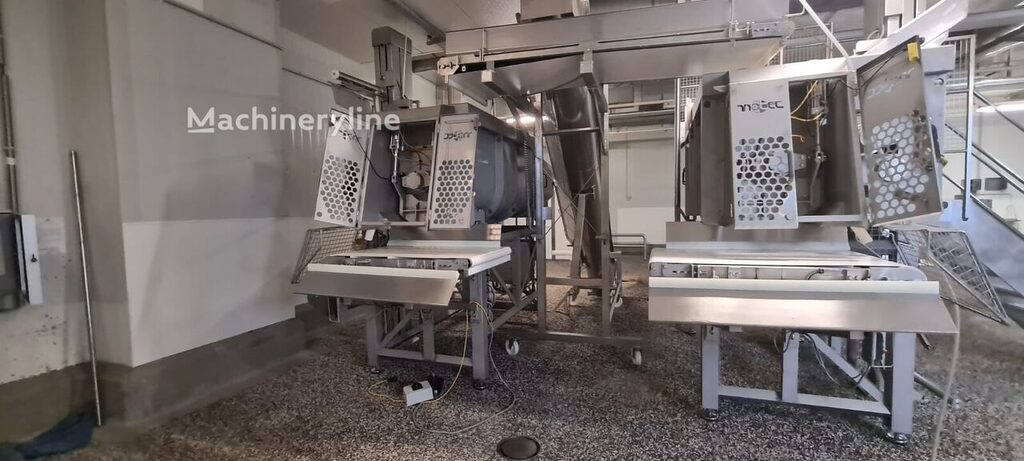

Discharge from each mixer is handled by a dedicated outfeed conveyor belt, Type IFB 1300/800, also in all-stainless construction and fitted with a plastic belt. These conveyors sit directly beneath the discharge guards of the respective mixers and deliver product to a eurobin or Dolav container at an outfeed height of approximately 1,200 mm. Each belt motor draws 0.7 kW.

Loading of eurobins into the system is managed by two Inotec eurobin loaders, Type IHV , each capable of handling 200-litre or 300-litre eurobins. These units are fully stainless steel, rated at 1.6 kW each, and measure approximately 900 × 1,300 × 4,020 mm (L × W × H).

Raw material is conveyed upward into the mixers by an elevating spiral screw, Type IFS 5600/400, again in all-stainless steel. The screw has a diameter of 400 mm, a loading height of 800 mm, and an unloading height of 3,200 mm, giving considerable vertical reach. Its motor is rated at 5.3 kW and the unit measures approximately 5,200 × 2,500 × 4,450 mm (L × W × H). This screw is fed by a stainless steel infeed belt equipped with a white PVC belt, 700 mm wide and 2,500 mm long, with an unloading height of 2,800 mm.

The entire line is controlled through a Siemens S7-300 PLC with a Simatic OP270 operator panel, housed in a Type IPL 05-02-N control cabinet measuring approximately 1,800 × 550 × 1,800 mm. The system operates on a 3-phase 400 V / 50 Hz supply drawing 98 A, with a total installed power of 58 kW. An inspection platform is also included with the line. The equipment was manufactured in 2003 and is located in Belgium.

This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
