2010 - Jentec GmbH Processing vessel Mixer Blender()
- Listing No
- 1181964
- Year
- 2010
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: 720 & 100 Ltr. (2x) No: A: 103, B: 104, C: 105 Working pressure: 3 Bar Vacuum possible: check Working pressure jacket: 3 Bar Vacuum possible jacket: check Material: Stainless steel Volume: 720 Ltr Motor: A: 1,5 kW 220-240/380-415 Volt (Ex); B&C: 3 kW 380-415/660-720 Volt (Ex) Closed stirring vessel: check Capacity: A: 600 Ltr. (max. 720 Ltr.), B&C: 70 Ltr. (max. 100 Ltr.) Vessel sizes: A: dia. 1200x833, B&C: dia. 638x569 mm With cover: check Top connections: DN25, DN50 With jacket: A: 150 Ltr., B&C: 40 Ltr Max. temperature: A, B, C: max. 0-140 °C With paddle stirrer: check (A&C) With turbo stirrer: check (B) Speed mixing shaft: A: max. 56 rpm, B: max. 1410 rpm, C: max. 98 rpm With homogeniser: check (A) merk: Jentec GmbH General Pressure Main Features Specified Features - Processing vessel
About this machine
This Jentec GmbH Processing Vessel is a mixer and blender — sometimes referred to as a mixing vessel or blending tank — designed for the controlled blending, mixing, and processing of liquid or semi-liquid products under pressure or vacuum conditions. Jentec GmbH is a manufacturer known for producing industrial processing and mixing equipment for the food, chemical, and pharmaceutical industries.

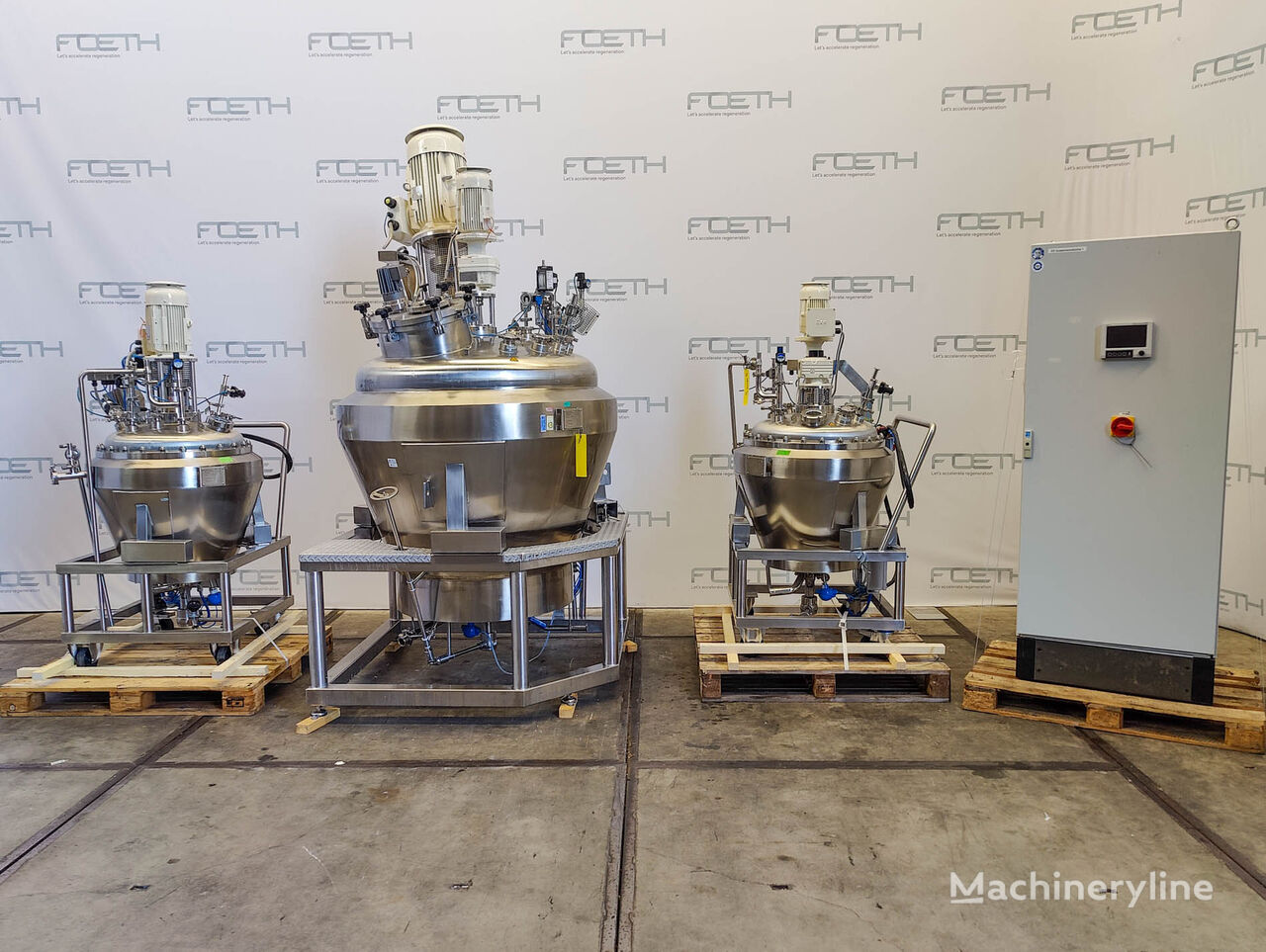

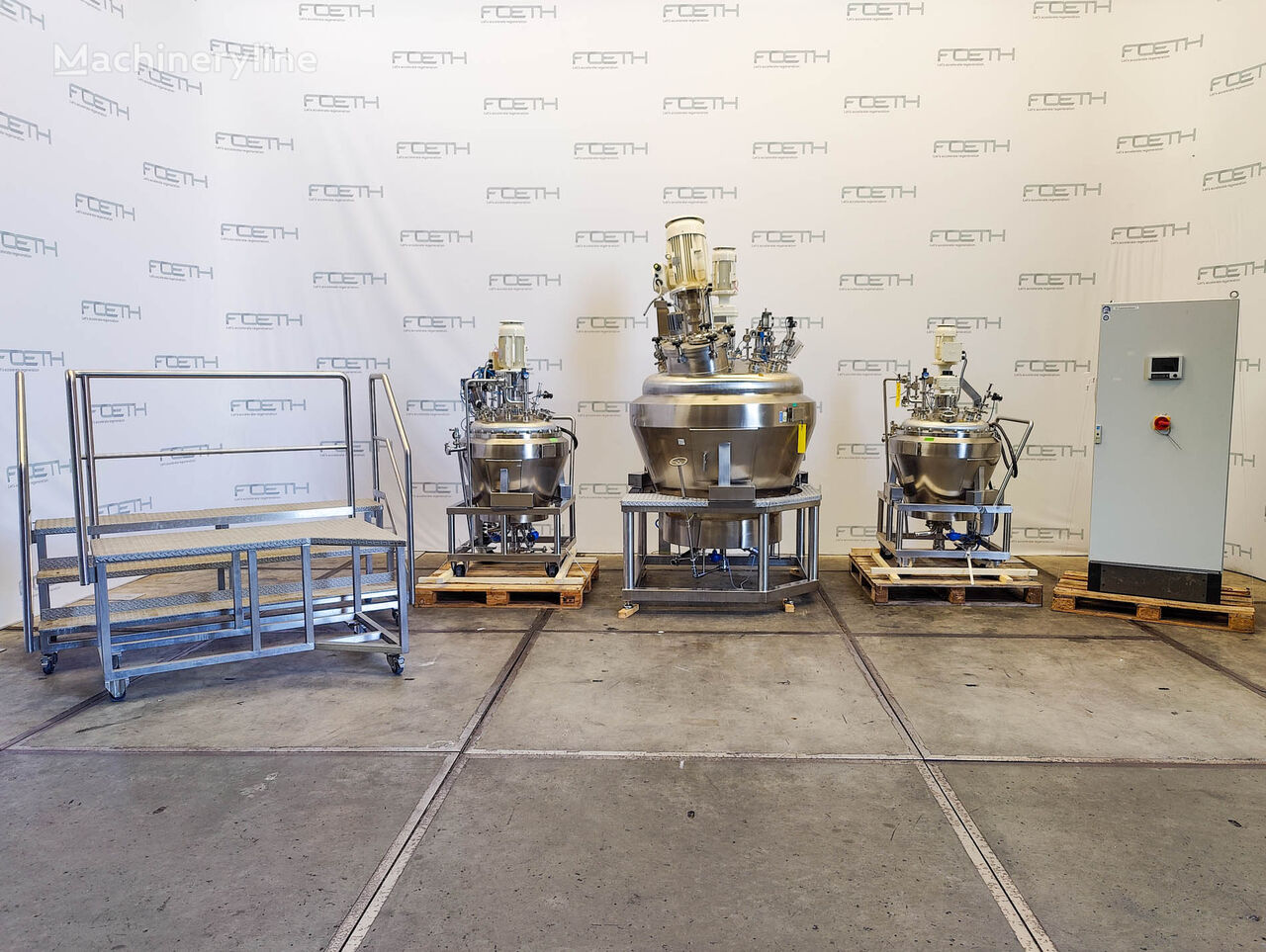

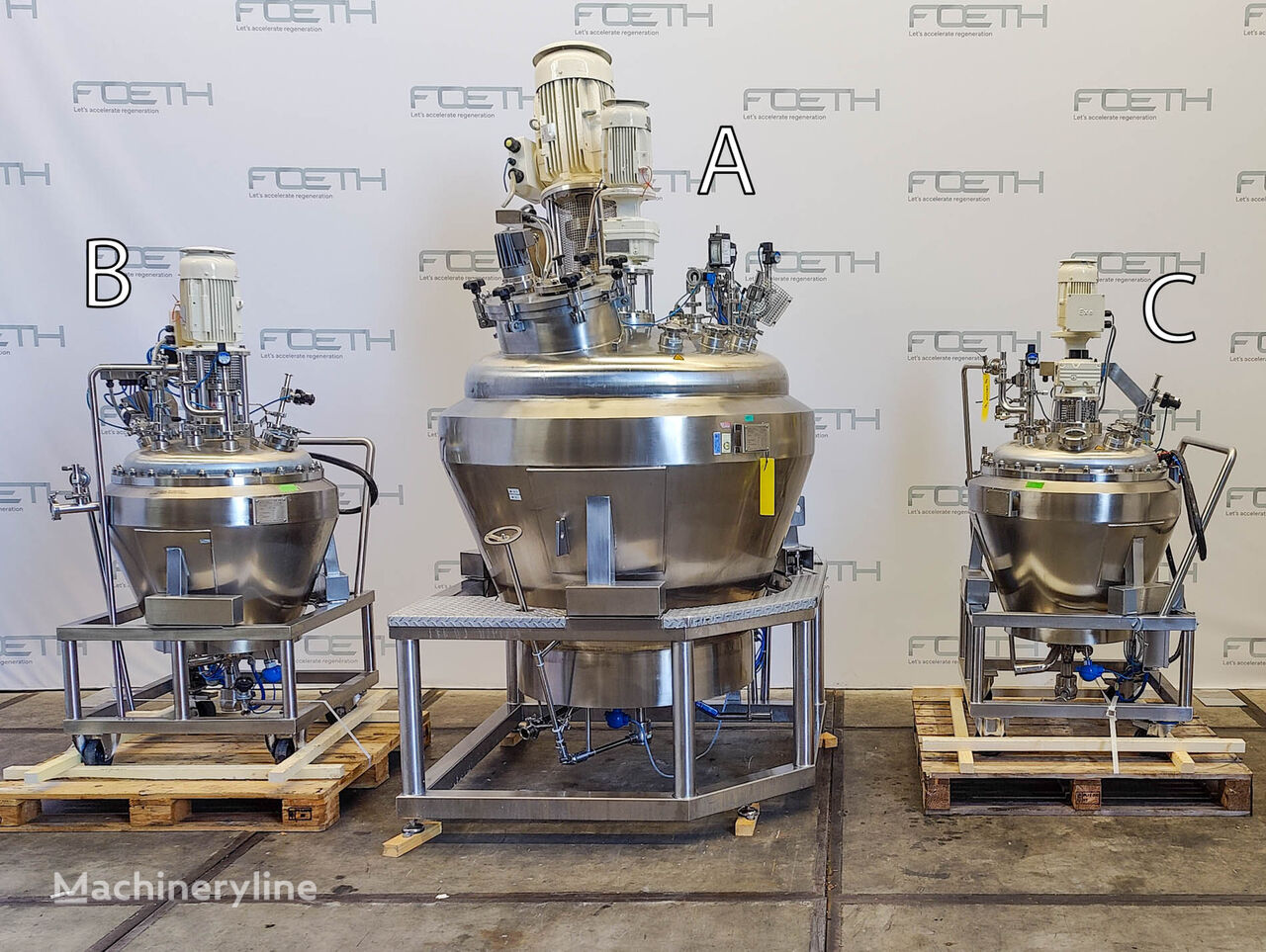

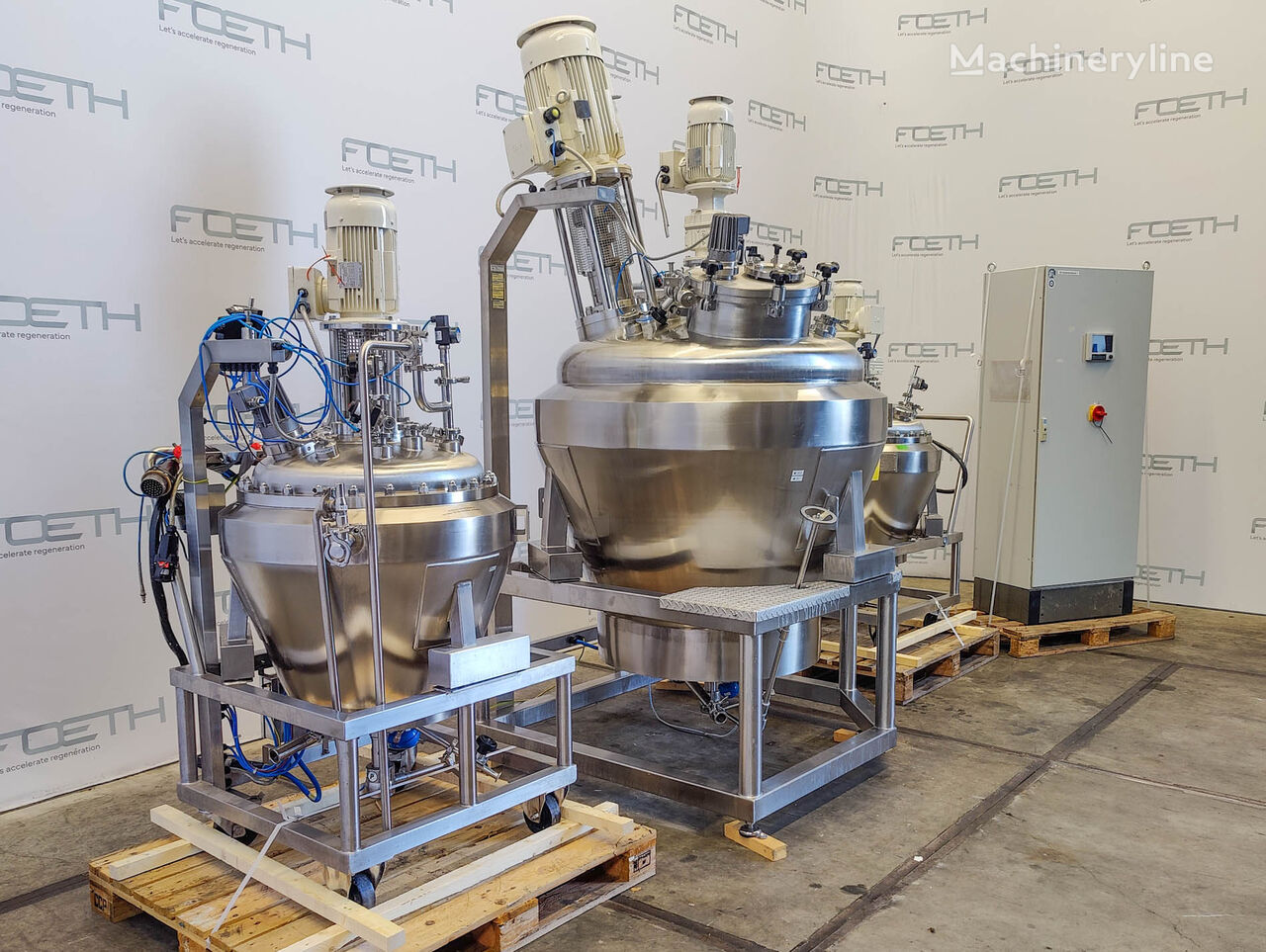

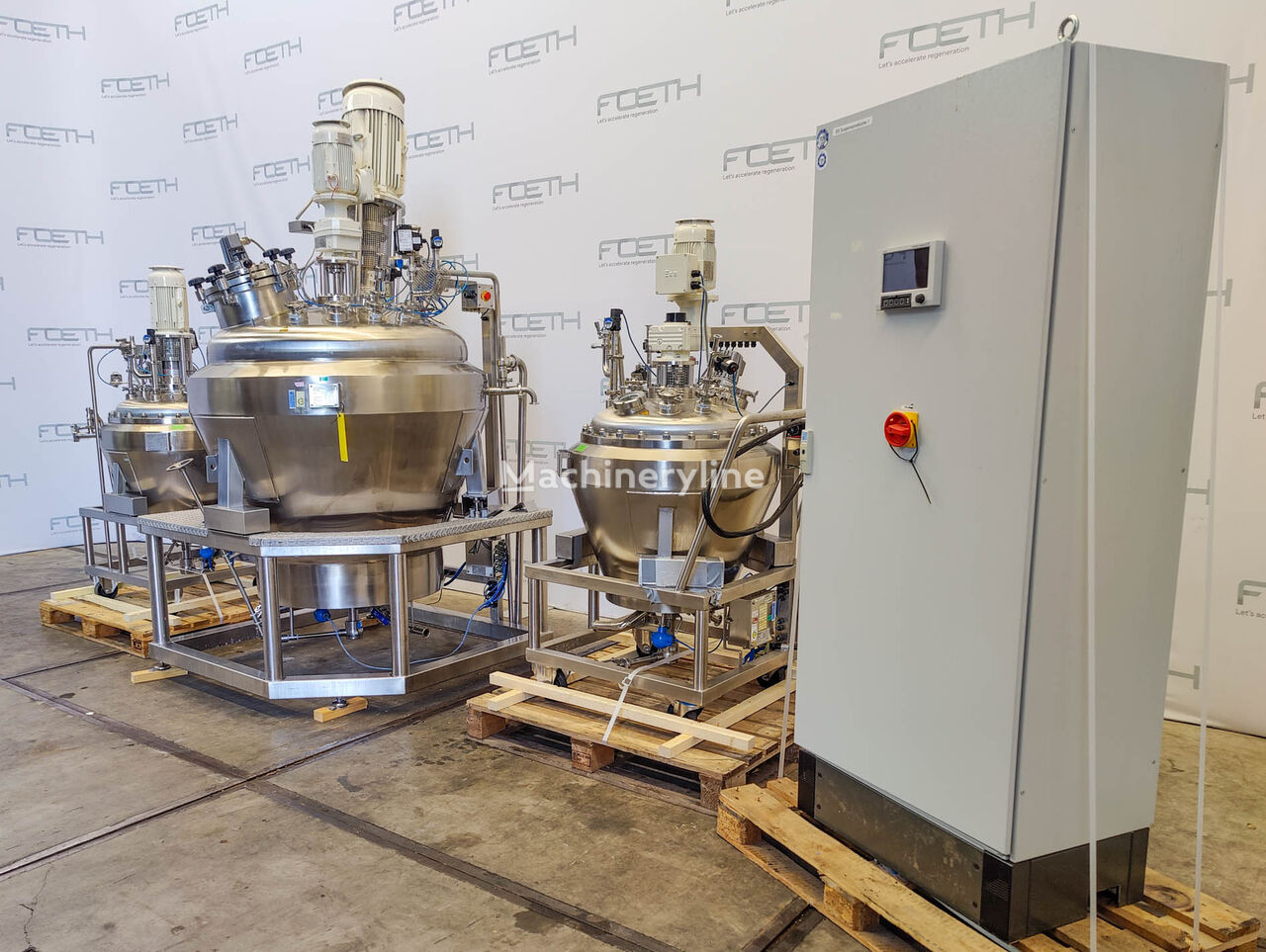

This listing comprises three separate closed stirring vessels, designated A, B, and C, all manufactured in stainless steel and located in Barneveld, Netherlands. Vessel A has a working capacity of 600 litres (maximum 720 litres) and measures 1,200 mm in diameter by 833 mm in height. Vessels B and C are the smaller units, each with a working capacity of 70 litres (maximum 100 litres) and measuring 638 mm in diameter by 569 mm in height. All three vessels are fitted with covers and include top connections at DN25 and DN50.
Each vessel is jacketed, supporting both working pressure and vacuum operation. The working pressure for both the vessel and jacket is rated at 3 bar across all units. Vessel A carries a jacket volume of 150 litres, while vessels B and C each have a jacket volume of 40 litres. The temperature range for all three vessels runs from 0 °C to a maximum of 140 °C.
The agitation configuration differs across the three units. Vessels A and C are equipped with paddle stirrers, while vessel B is fitted with a turbo stirrer. Additionally, vessel A includes an integrated homogeniser. Mixing shaft speeds vary accordingly: vessel A runs at a maximum of 56 rpm, vessel B at a maximum of 1,410 rpm, and vessel C at a maximum of 98 rpm.
Motor specifications are explosion-proof (Ex-rated) throughout. Vessel A is driven by a 1.5 kW motor rated at 220–240/380–415 V, while vessels B and C are each powered by a 3 kW motor rated at 380–415/660–720 V. All three vessels were built in 2010 and are offered in used condition.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
