1983 - Jorns Mixer Blender()
- Listing No
- 1179103
- Year
- 1983
- Manufacturer
- Jorns
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld No: 31959/1 Material: Stainless steel Volume: 5000 Ltr Horizontal tank: check Capacity: 5000 Ltr Sizes: 1420x1560x2620 mm Dished fronts: check Manhole: dia. 400 mm Top connections: DN 65, DN 40 Outlet: DN 65 Max. temperature: 50 °C With propellor stirrer: check Motor: 2,6/7 kW 380 Volt Speed mixing shaft: 470/950 rpm Mounted on legs: check Floorspace: 1,5x2,7 m Total height: 2,2 m General Main Features Specified Features - Horizontal tank Information
About this machine

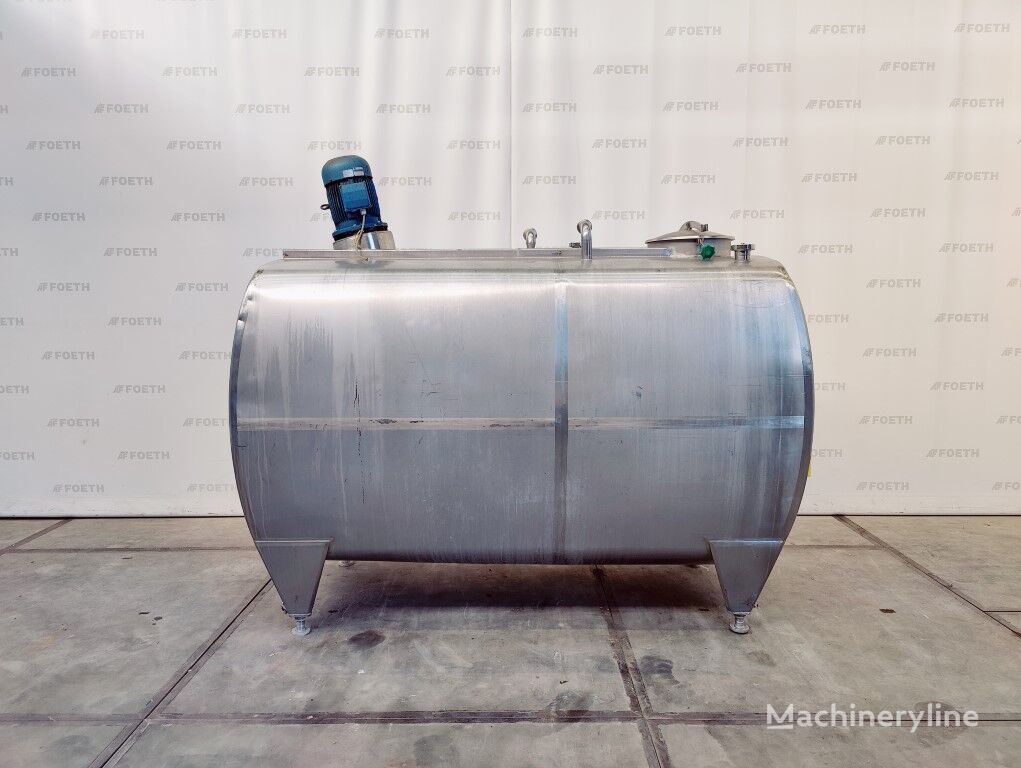

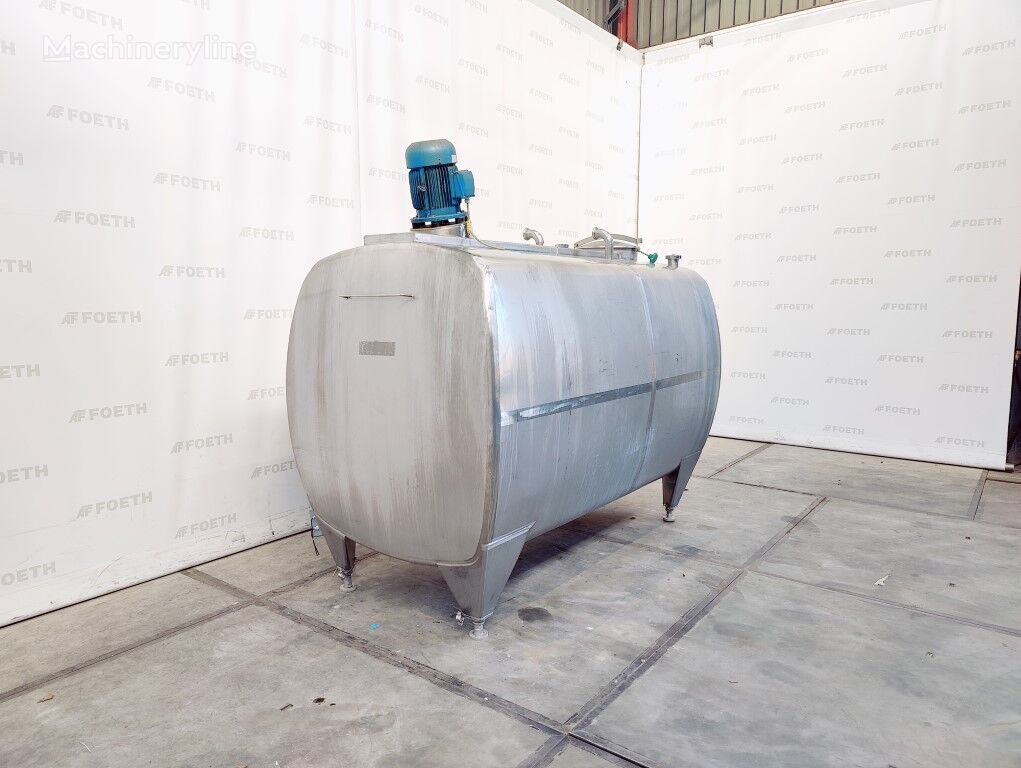

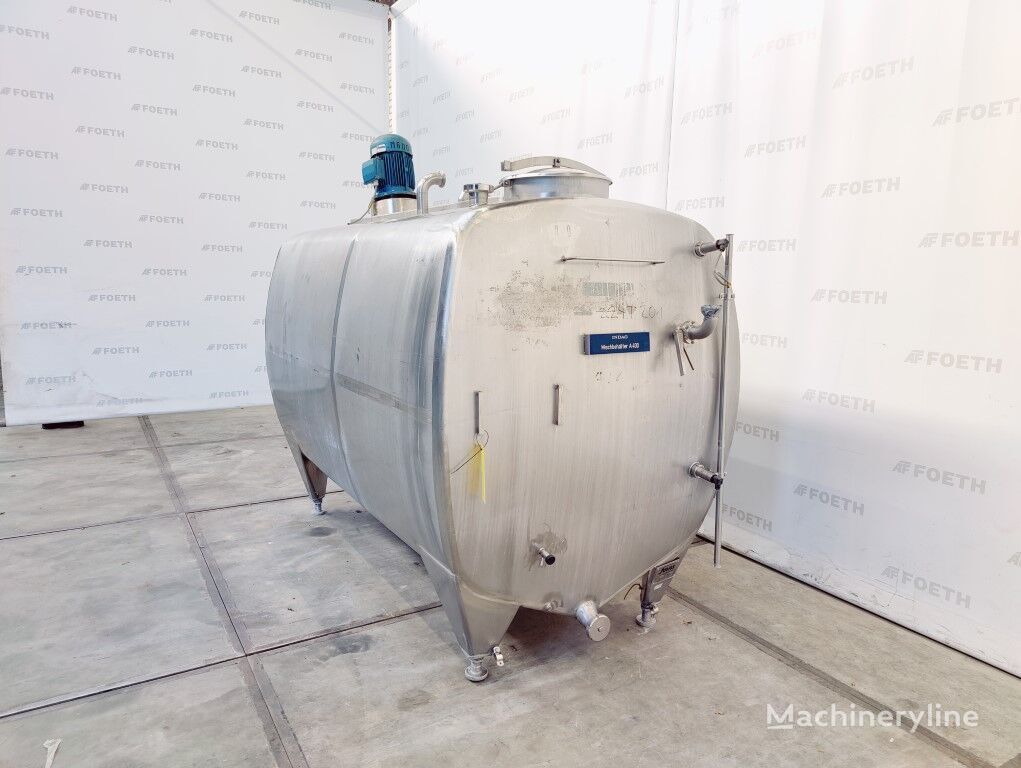

This Jorns mixer and blender — sometimes referred to as a mixing tank or blending vessel — is a horizontal stainless steel tank designed for the blending and agitation of liquid products. Jorns is a Dutch manufacturer with a history of producing process and storage equipment for the food, dairy, and chemical industries, and this unit is a practical example of their industrial mixing range.
The tank has a total volume of 5,000 litres and is configured horizontally, mounted on legs that elevate it above floor level. The vessel is constructed entirely in stainless steel and features dished ends, which is a standard design in process vessels as it distributes internal pressure evenly and facilitates complete drainage. A manhole with a diameter of 400 mm provides access to the interior for inspection and cleaning. Pipe connections on the top of the vessel are sized at DN 65 and DN 40, while the outlet is DN 65. The maximum operating temperature is rated at 50 °C.

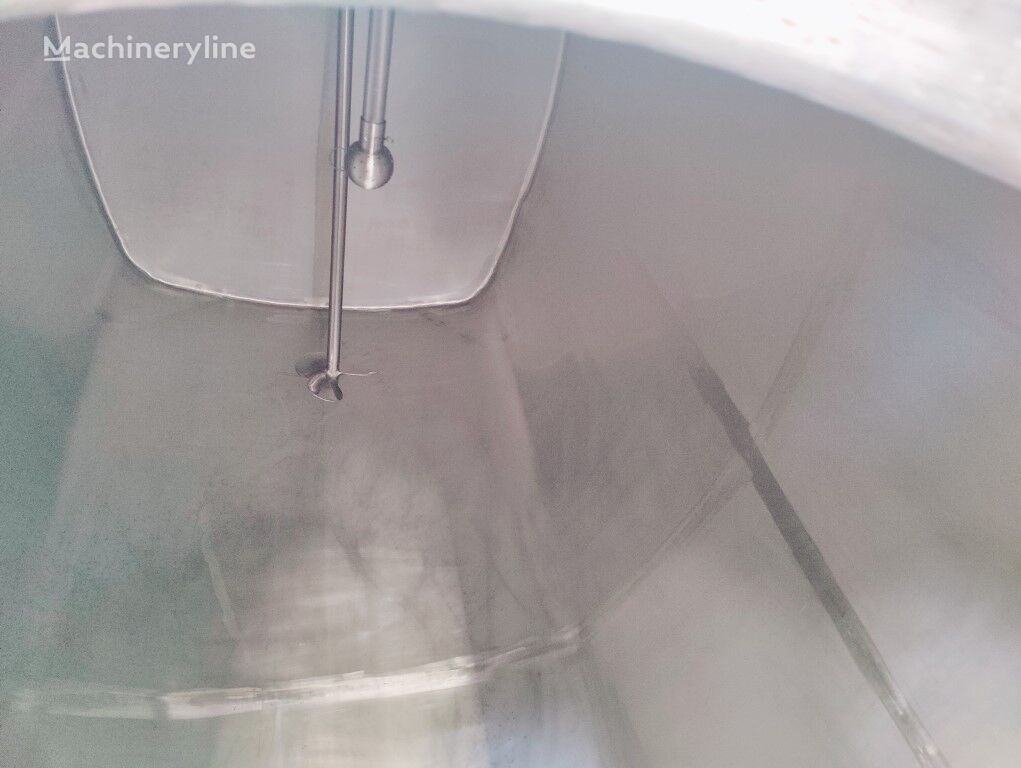

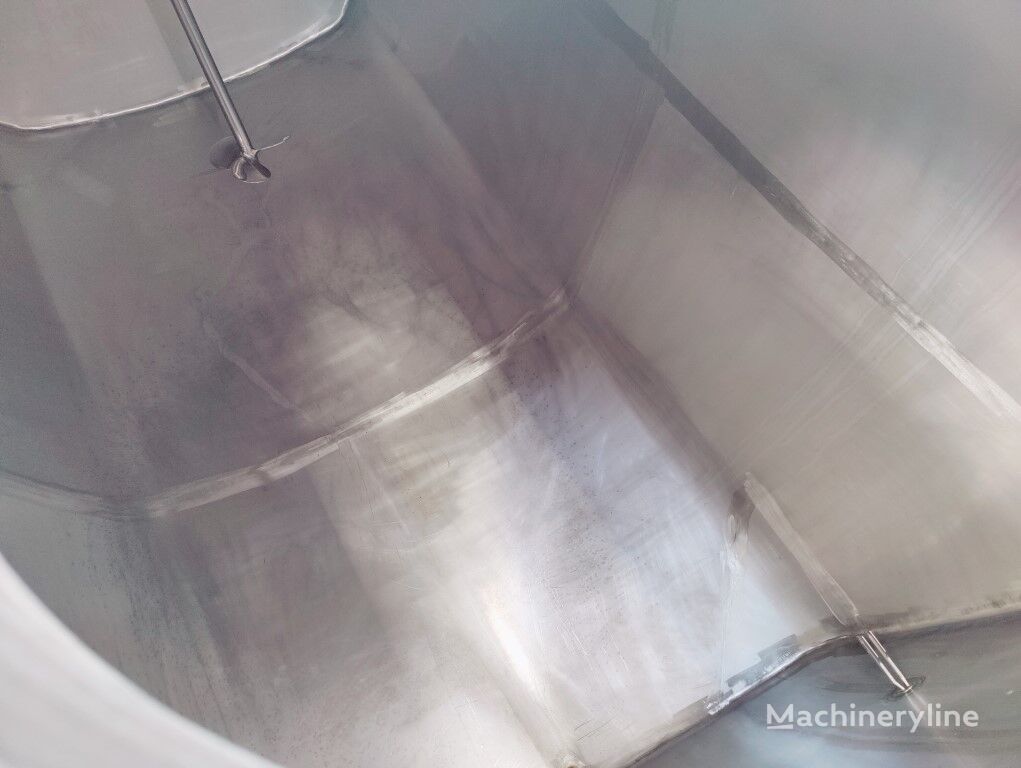

Agitation is provided by a propeller stirrer driven by a two-speed motor rated at 2.6 / 7 kW, running on 380 Volt supply. The mixing shaft operates at either 470 or 950 rpm depending on the selected speed, allowing the operator to match agitation intensity to the product being processed. The external dimensions of the vessel itself measure 1,420 × 1,560 × 2,620 mm, the total installed height is 2.2 metres, and the unit occupies a floor area of approximately 1.5 × 2.7 metres.
This machine dates from 1983, is offered in used condition, and is located in Barneveld, Netherlands. It is listed under internal reference number 31959/1.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
