K Tron K-ML-KT35 Atex Mixer Blender()
- Listing No
- 1166973
- Year
- Manufacturer
- K Tron
- Model
- K-ML-KT35 Atex
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: K-ML-KT35 Atex No: 310358/MO-73640 Material: Stainless steel 1.4301 (304) Inlet diameter: 150 mm Metering screw: check Screw diameter: 2x 35 mm Pitch: 10 mm Shaft diameter: 40 mm Screw length: 400 mm With hopper: check Capacity: ± 50 l Hopper sizes: ø 200/400x880 mm Inlet: ø 150 mm Outlet: ø 100 mm With DC motor: check 0,45 kW, 200 volt, 2000 rpm With breaking/mixing shaft: check Total height: 1,30 m CE: check Floorspace: 1,10 x 0,70 m Extra Specifications: With LWF D5 platform scale General Main Features Specified Features - Metering screw Metering screws Information
About this machine
This K Tron K-ML-KT35 Atex is a used mixer and blender — sometimes referred to as a mixing blender or dosing mixer — designed to blend and meter bulk materials in a controlled, continuous process. K Tron is a well-established manufacturer of precision feeding and mixing equipment, serving industries such as plastics, chemicals, food processing, and pharmaceuticals, where accurate material handling and dosing are critical.

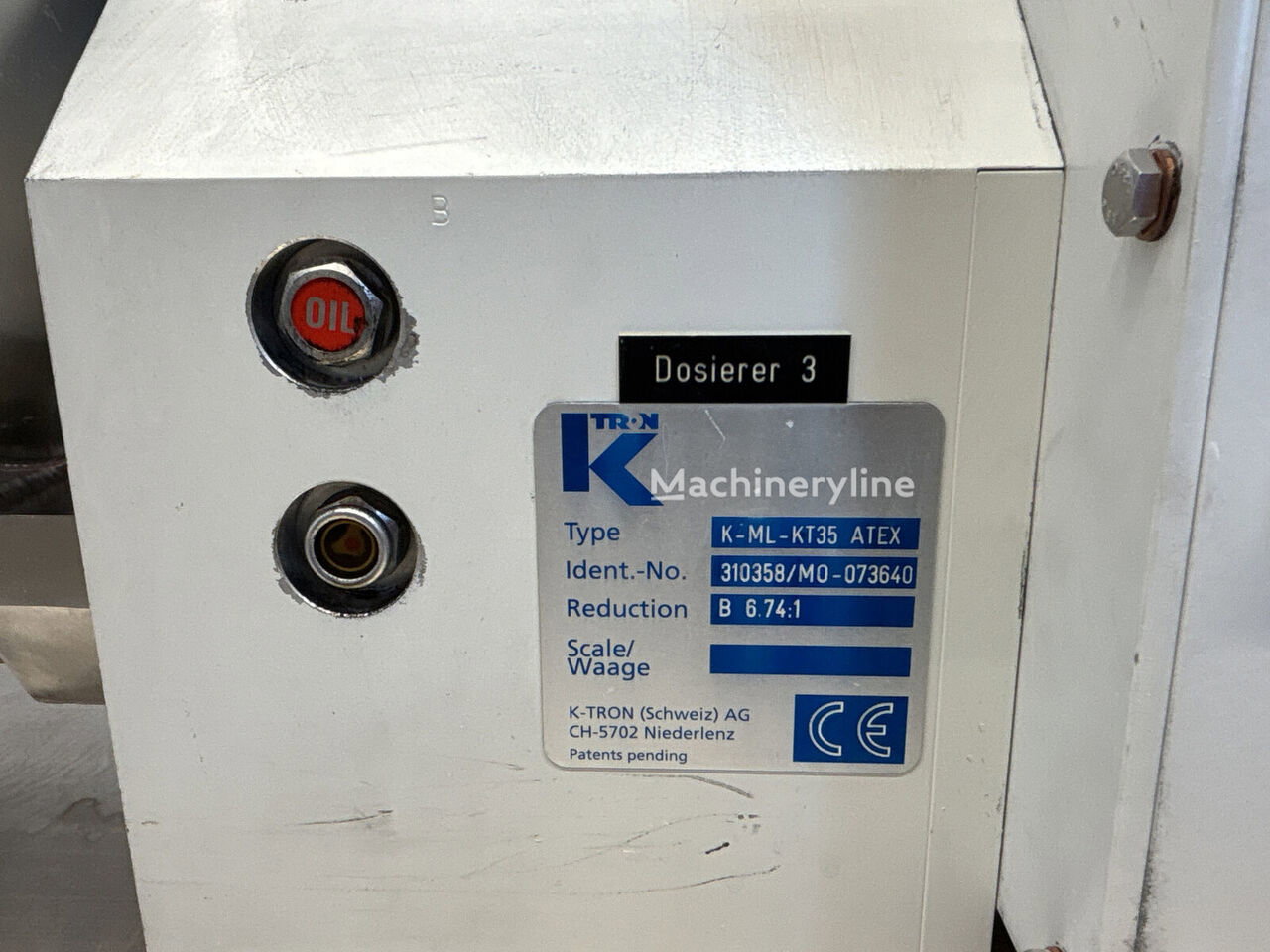

The machine is built from stainless steel grade ), making it suitable for applications requiring hygienic or corrosion-resistant contact surfaces. It carries serial number 310358/MO-73640 and bears CE certification, confirming compliance with European safety standards. The Atex designation indicates the unit is rated for use in potentially explosive atmospheres, which is an important consideration for environments handling flammable dusts or gases.
The metering system is configured with two screws, each 35 mm in diameter, with a pitch of 10 mm, a shaft diameter of 40 mm, and a screw length of 400 mm. The inlet diameter measures 150 mm and the outlet 100 mm. A breaking and mixing shaft is also fitted, supporting thorough blending of incoming material before it is metered out. Drive is provided by a DC motor rated at 0.45 kW, operating at 200 volts and 2,000 rpm.

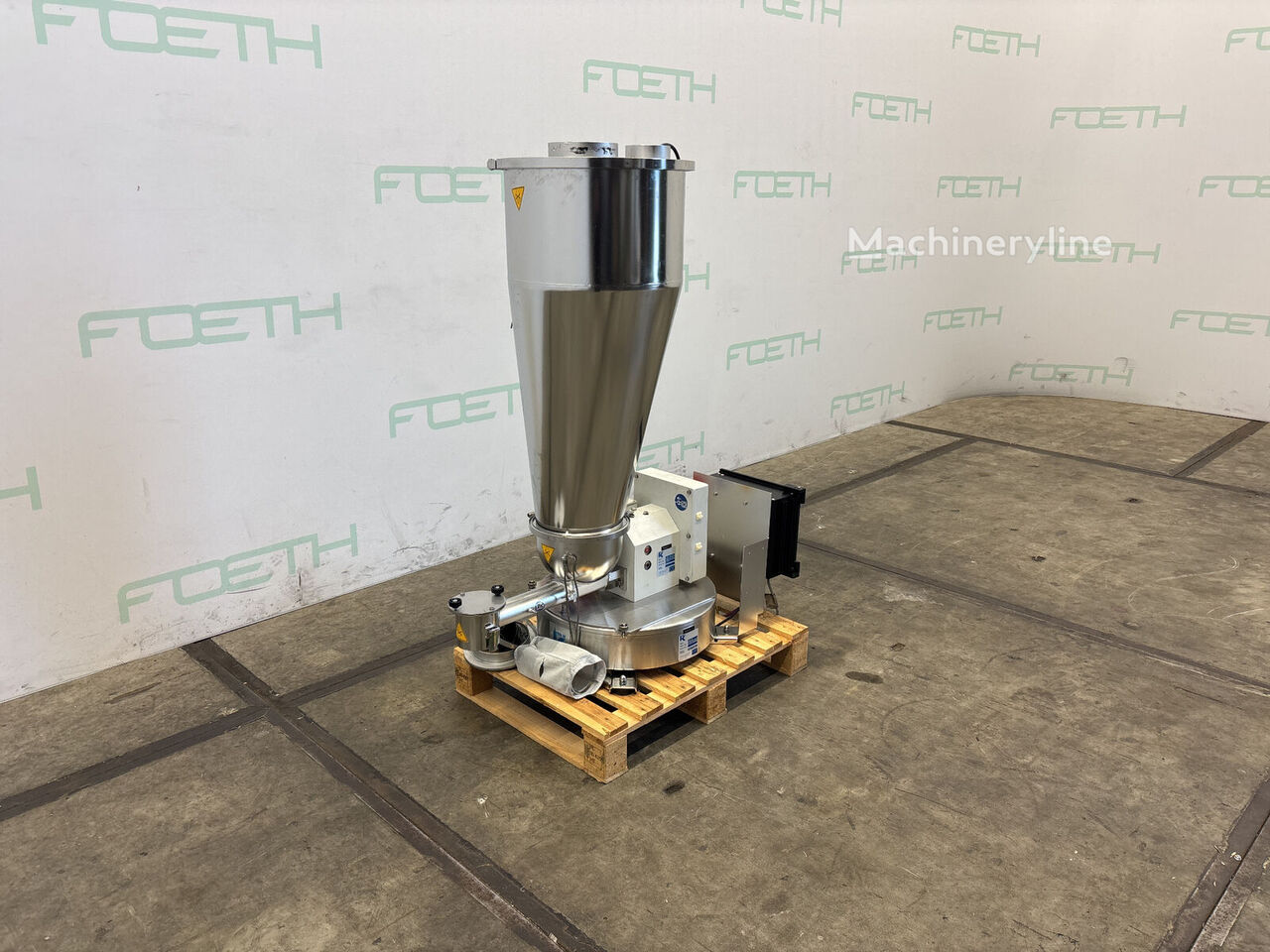

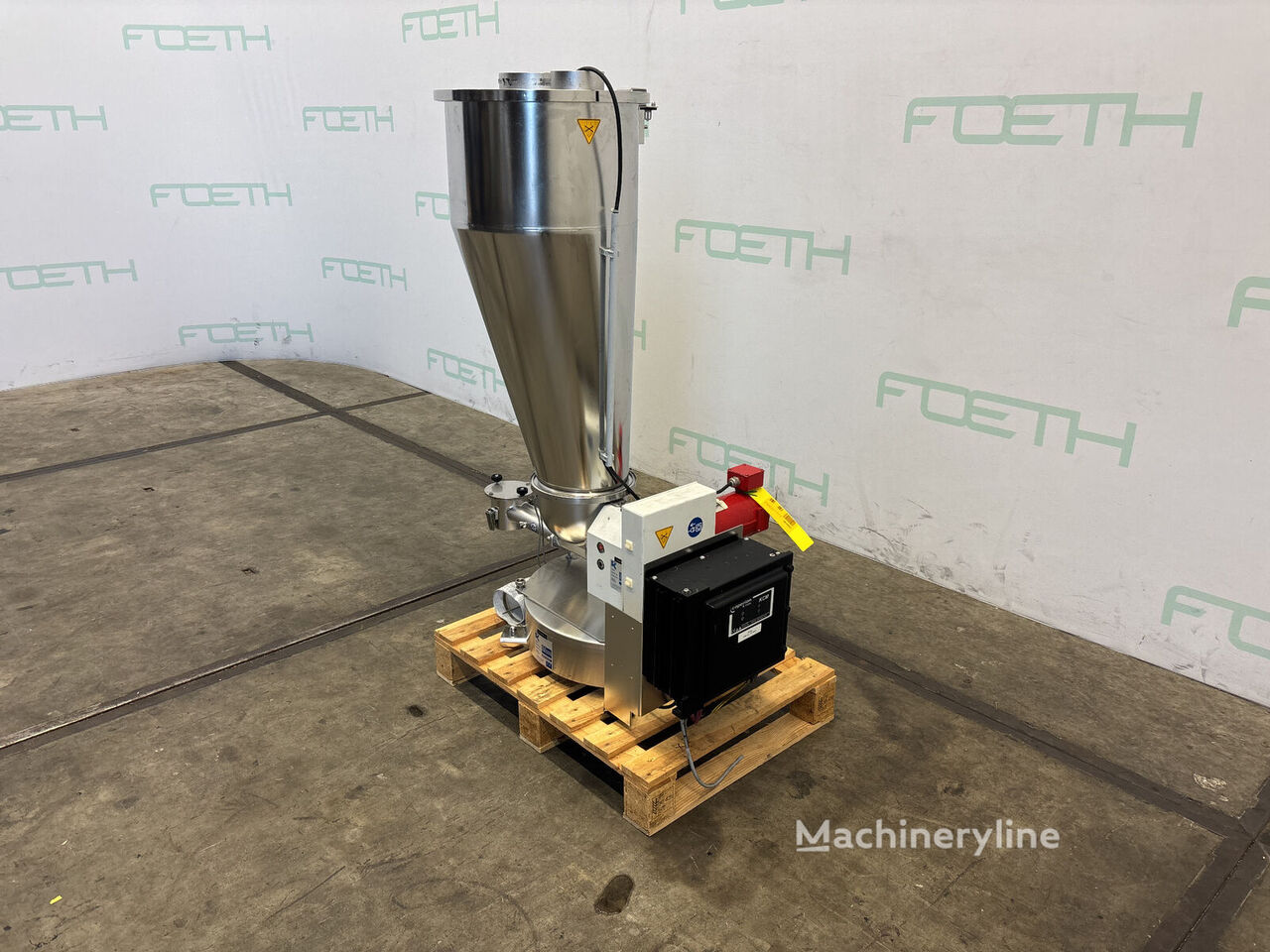

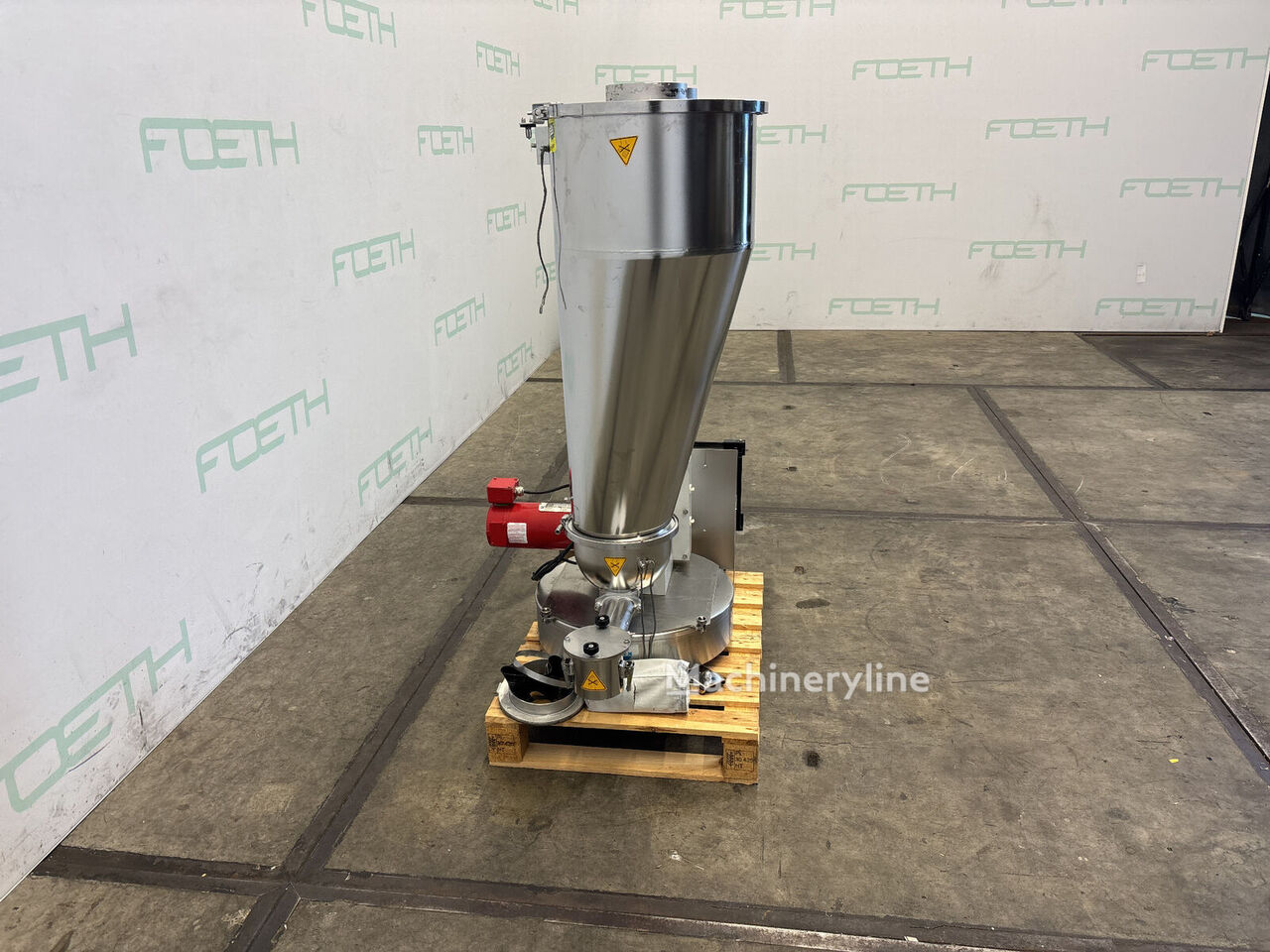

A hopper with a capacity of approximately 50 litres is included, sized at ø 200/400 × 880 mm. The overall machine height is 1.30 m, and its footprint measures 1.10 × 0.70 m, making it a relatively compact unit. The listing also includes an LWF D5 platform scale, enabling gravimetric dosing or batch weighing as part of the feeding process.
The machine is located in Barneveld, Netherlands.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
