2015 - K-tron K2-ML-T35 Mixer Blender()
- Listing No
- 1182107
- Year
- 2015
- Manufacturer
- Model
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: K2-ML-T35-DR-PU No: 609481/913774 Material: Stainless steel 1.4301 (304) Motor: check Inlet diameter: 100 mm Metering screw: check Screw diameter: 38 mm (2x) Pitch: 20 mm Shaft diameter: 22 mm Screw length: 350 mm With hopper: check Capacity: 40 l Inlet: Dia. 100 mm Outlet: 2 x Dia. 38 mm With motor: check With DC motor: 0.45 kW, 200 volt, 2000 rpm Screw speed: 120-600rpm With breaking/mixing shaft: check Mounted on frame: check Mounted on wheels: check With switchgear: check Floorspace: 0,8 x 1,4 m CE: check Total height: 1,7 m Extra Specifications: Scale LWF D5-S - Serial number # 11138195/267980 - Type WMOD merk: K-tron General Main Features Specified Features - Metering screw Metering screws Information
About this machine

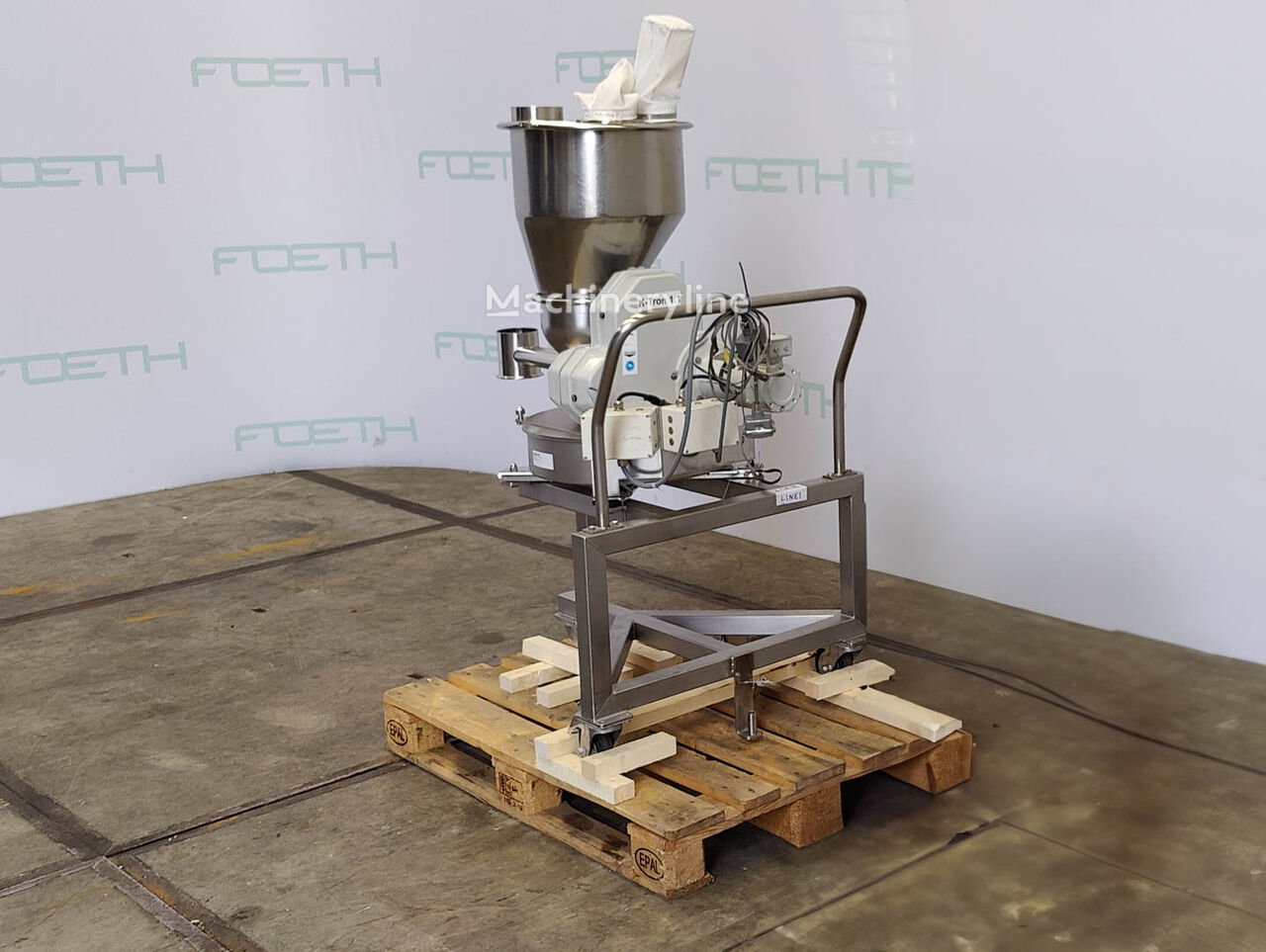

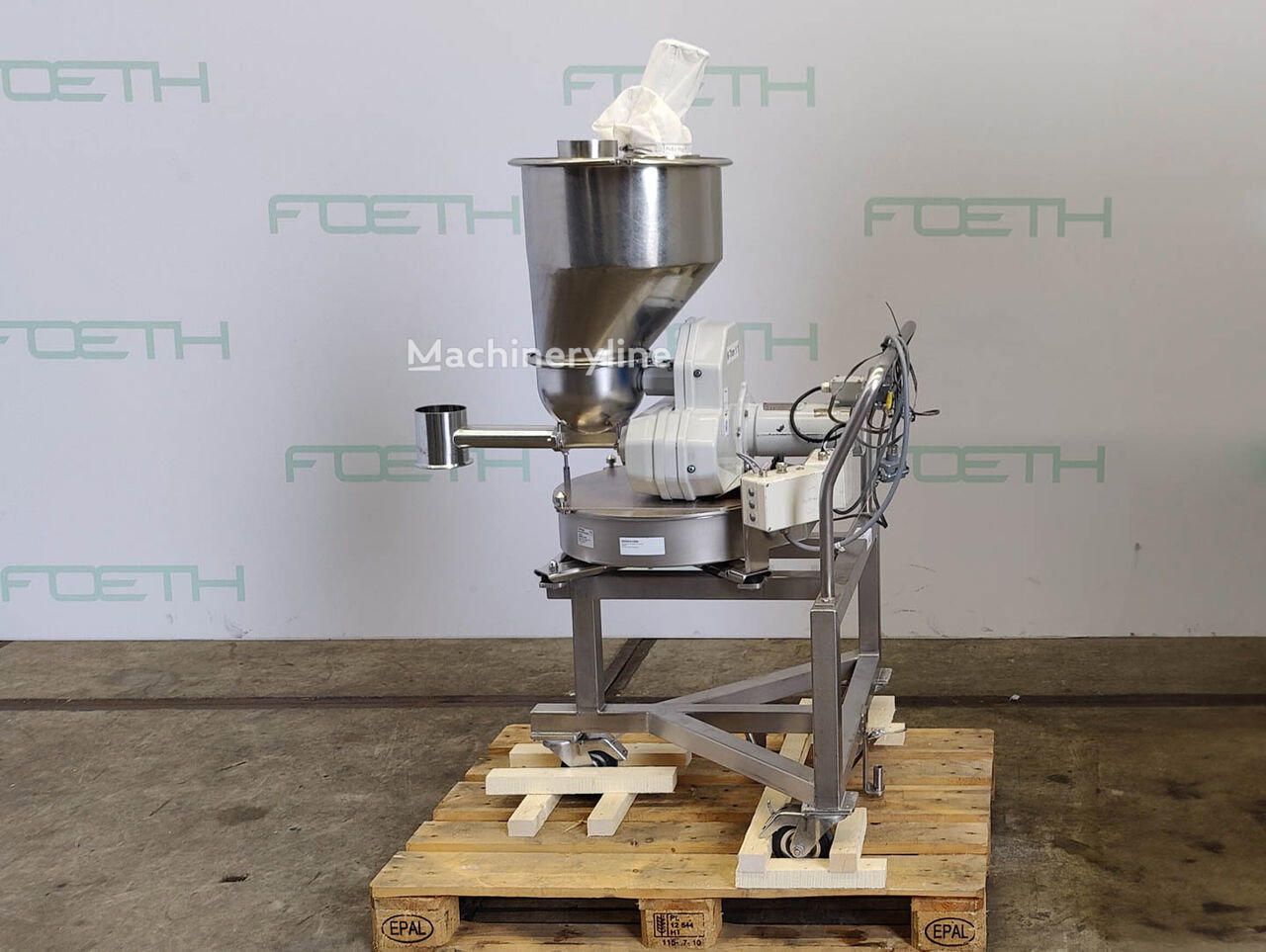

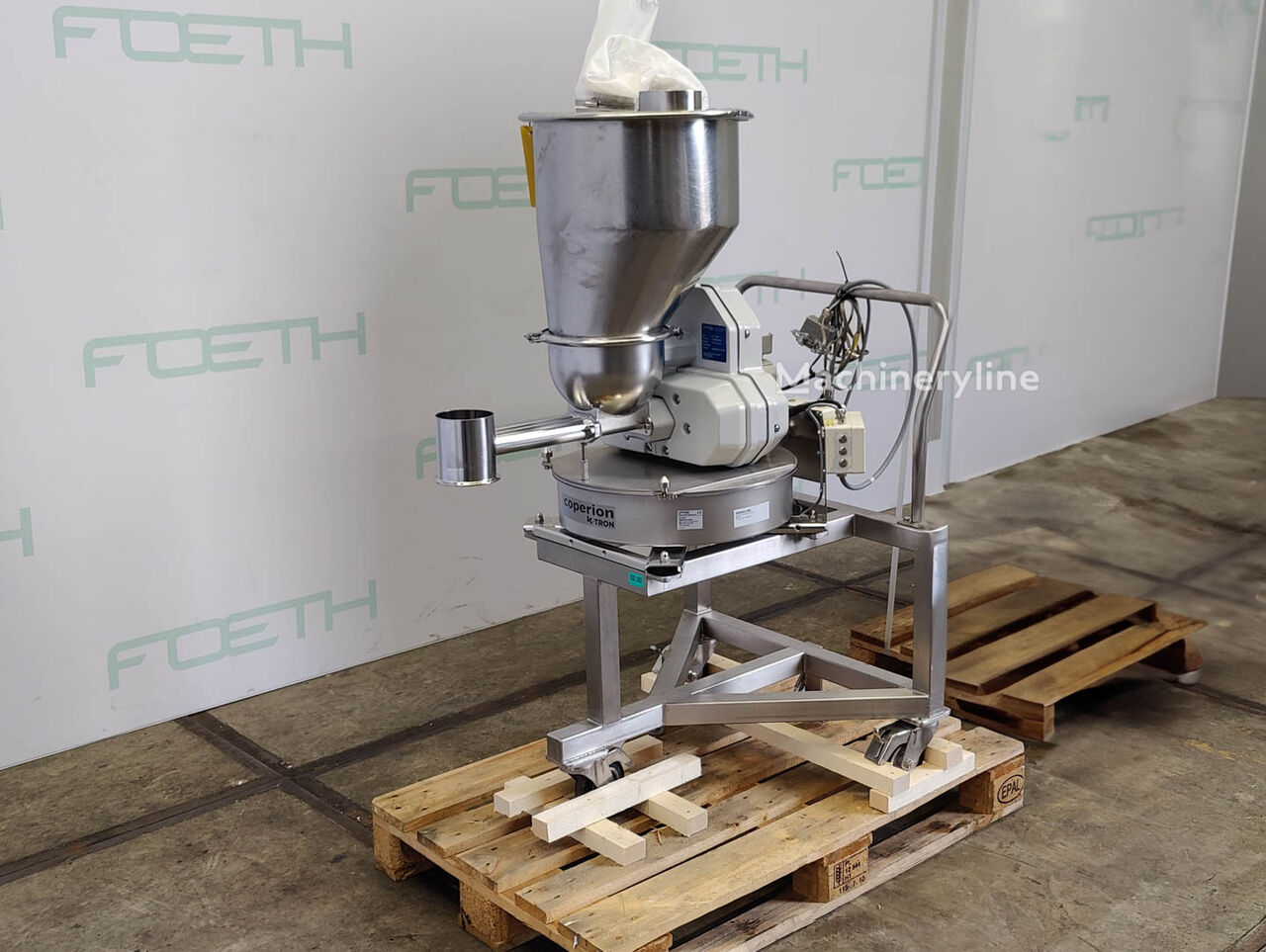

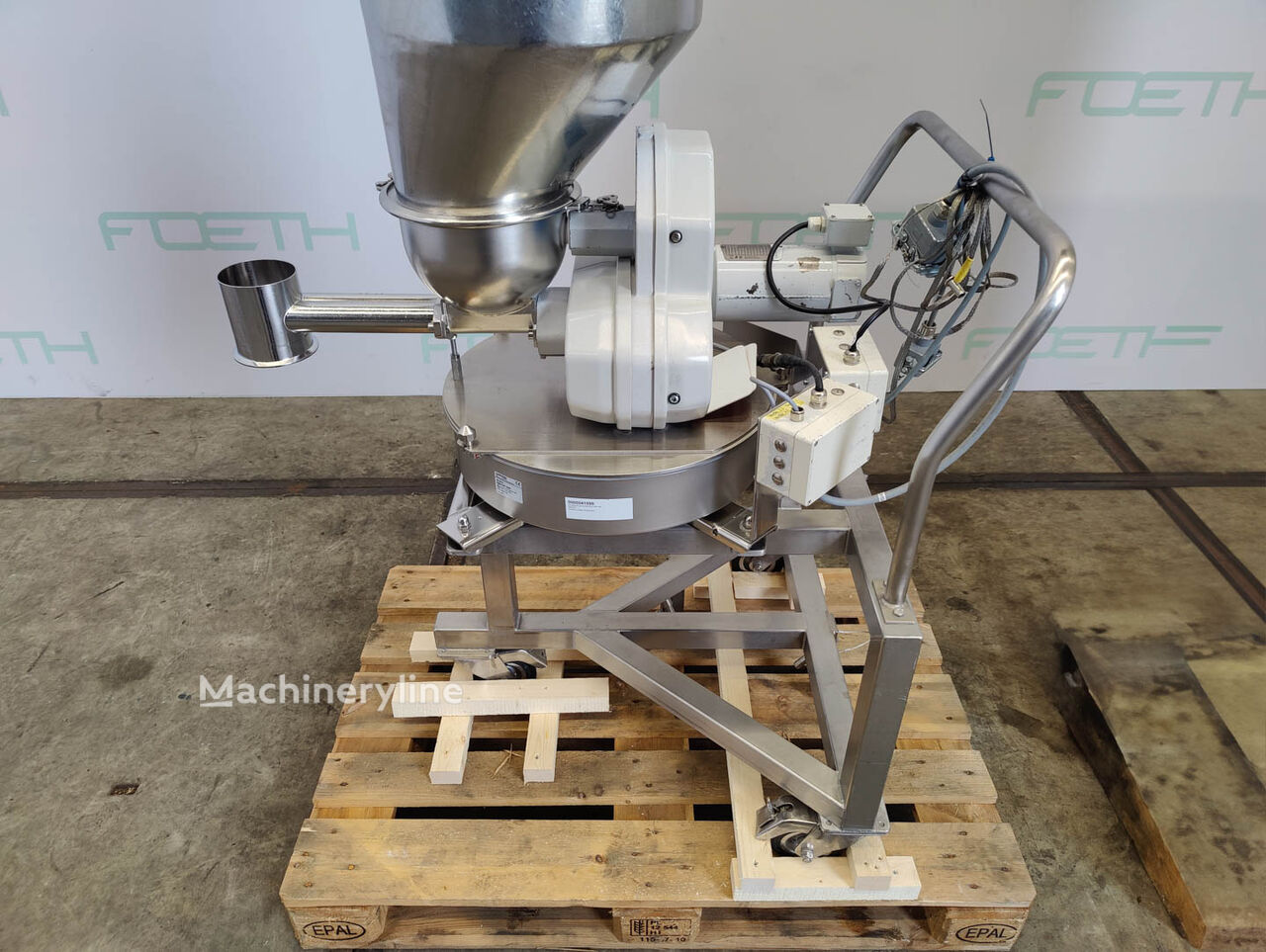

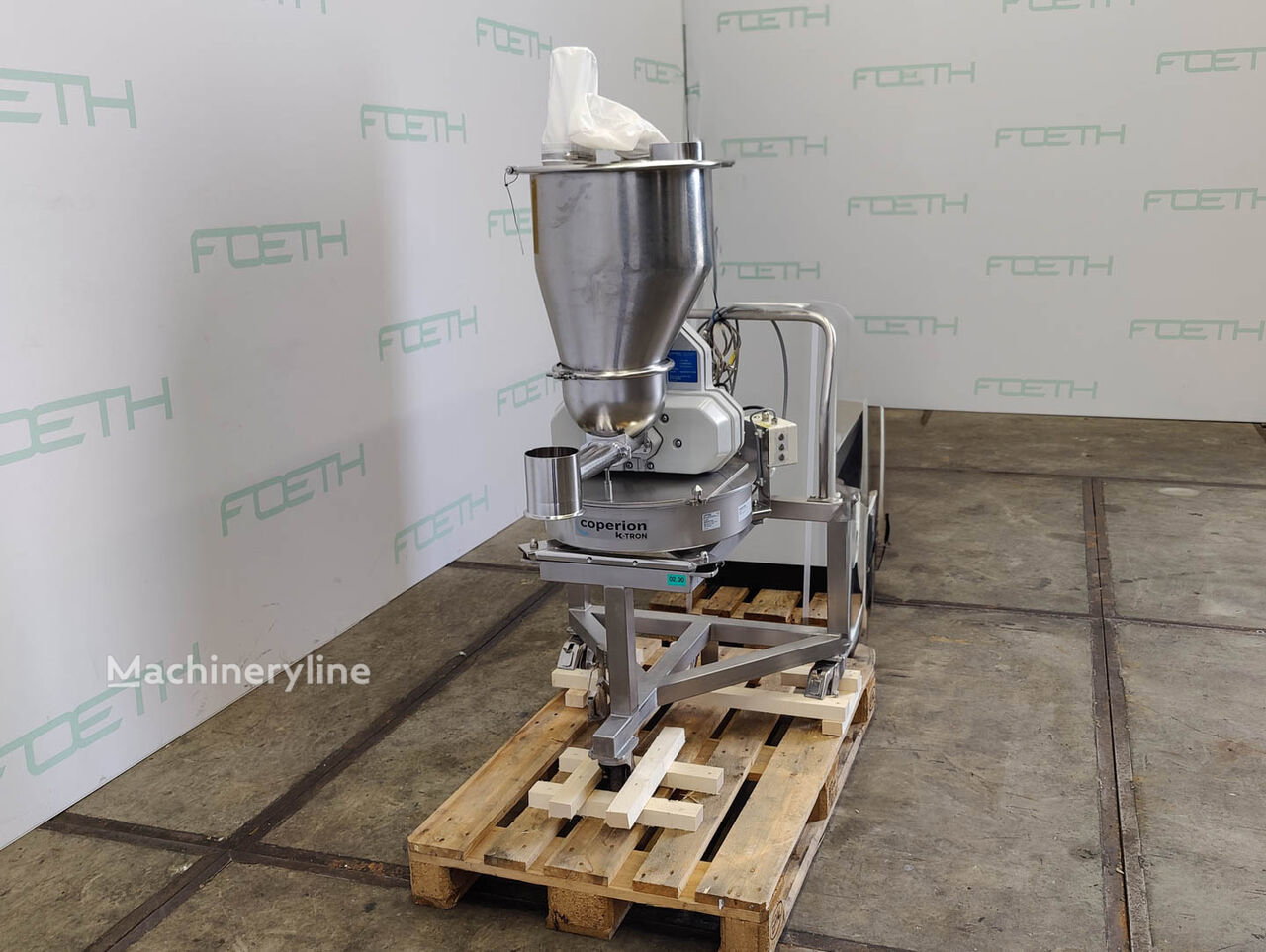

This K-tron K2-ML-T35 is a used mixer and blender — sometimes referred to as a loss-in-weight feeder blender — designed to meter and mix bulk materials with precision. K-tron is a well-established Swiss manufacturer of gravimetric and volumetric feeding equipment, widely recognised across the plastics, food, chemical, and pharmaceutical processing industries for producing highly accurate screw feeders and blending systems.
This particular unit is configured as a twin-screw metering blender, type K2-ML-T35-DR-PU, carrying serial numbers 609481/913774. The housing and all product-contact surfaces are constructed from stainless steel grade ), making it suitable for hygienic or chemically resistant applications. The machine is mounted on a wheeled frame, giving it a floor footprint of 0.8 × 1.4 metres and an overall height of 1.7 metres, which makes it reasonably compact and repositionable on the production floor.
Material is fed through a single inlet with a diameter of 100 mm into a 40-litre hopper. From there, two metering screws — each 38 mm in diameter with a 20 mm pitch, a 22 mm shaft diameter, and a screw length of 350 mm — convey and blend the material toward two discharge outlets, each 38 mm in diameter. The twin-screw arrangement also incorporates a breaking and mixing shaft, which helps to condition and homogenise the material during the metering process.
Drive is provided by a DC motor rated at 0.45 kW, running at 200 volts and 2,000 rpm. The metering screws themselves operate across a variable speed range of 120 to 600 rpm, allowing the feed rate to be adjusted to suit the process. A switchgear cabinet is included, and the unit holds CE certification.
An integrated scale is fitted — a K-tron LWF D5-S type WMOD, serial number /267980 — which enables gravimetric loss-in-weight control of the feeding process. The machine is located in Barneveld, Netherlands, and is offered in used condition from a 2015 build year.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
