K Tron K2M-T35 Mixer Blender()
- Listing No
- 1184063
- Year
- Manufacturer
- K Tron
- Model
- K2M-T35
- Condition
- Used
- Location
- Netherlands
- Price
- POA
- Description
-
Location: Barneveld Type: K2m-T35 No: 11240198/800890 Material: Stainless steel 1.4571 (316Ti) Inlet diameter: 220 mm Metering screw: check Screw diameter: 35 mm Pitch: 50 mm Shaft diameter: 15 mm Screw length: 250 mm Inlet: Dia. 220 mm Outlet: Dia. 110 mm With DC motor: 0,45kW, 200V, 2000RPM Without control: check Screw speed: 120-600rpm With breaking/mixing shaft: check Floorspace: 0,85x0,45 m CE: check Total height: 0,4 m jaar: unknown General Main Features Specified Features - Metering screw Metering screws Information
About this machine

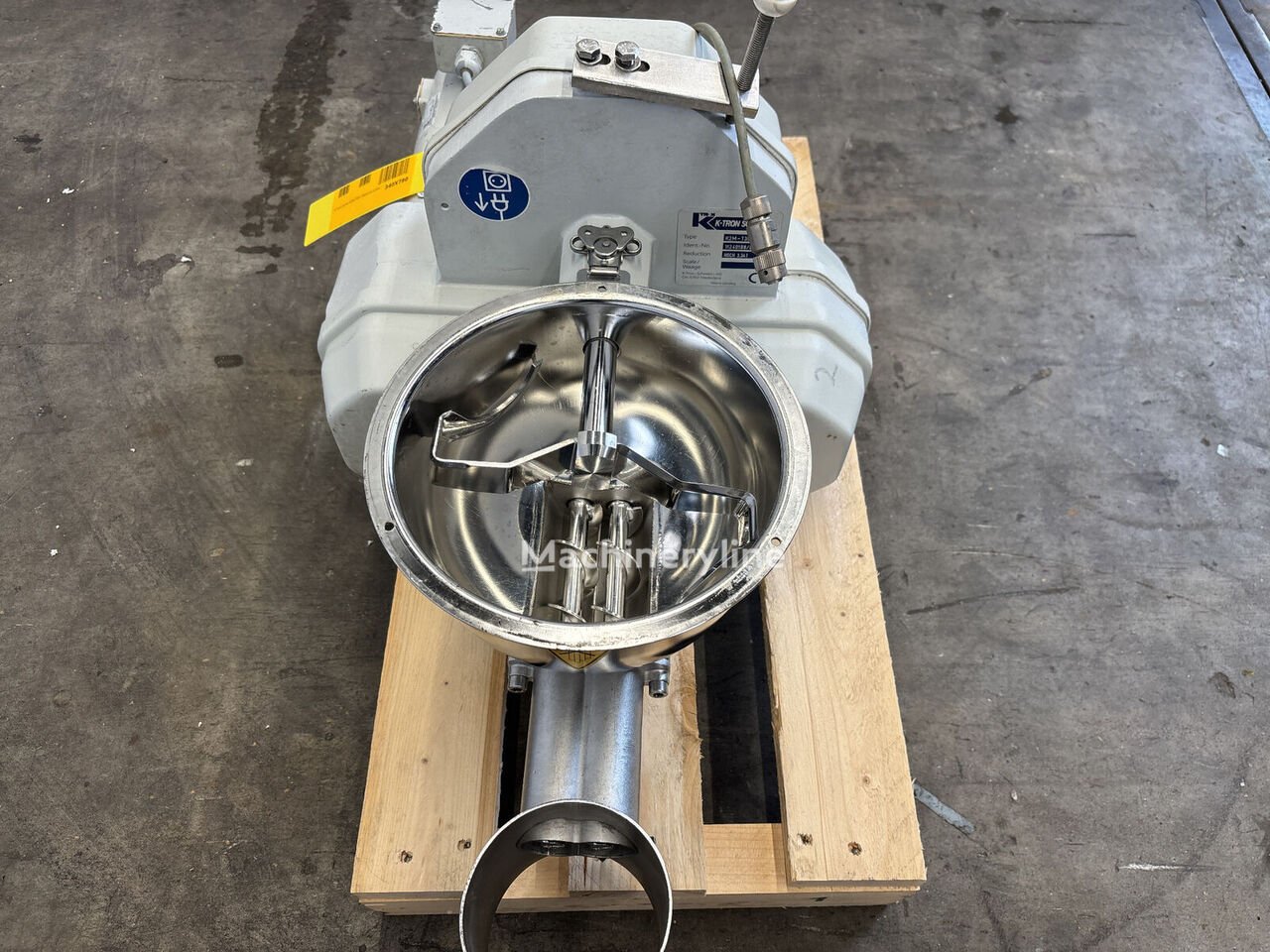

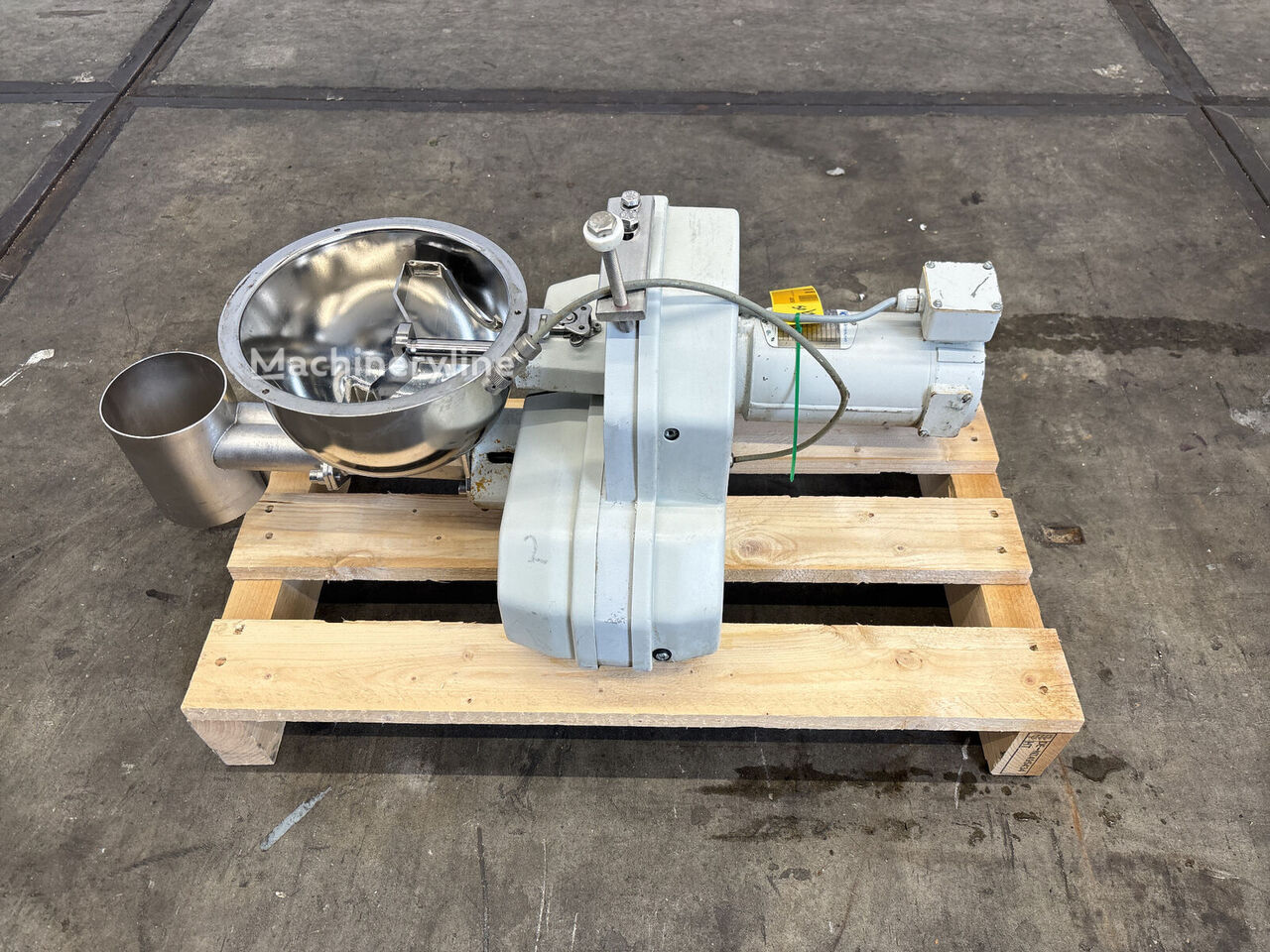

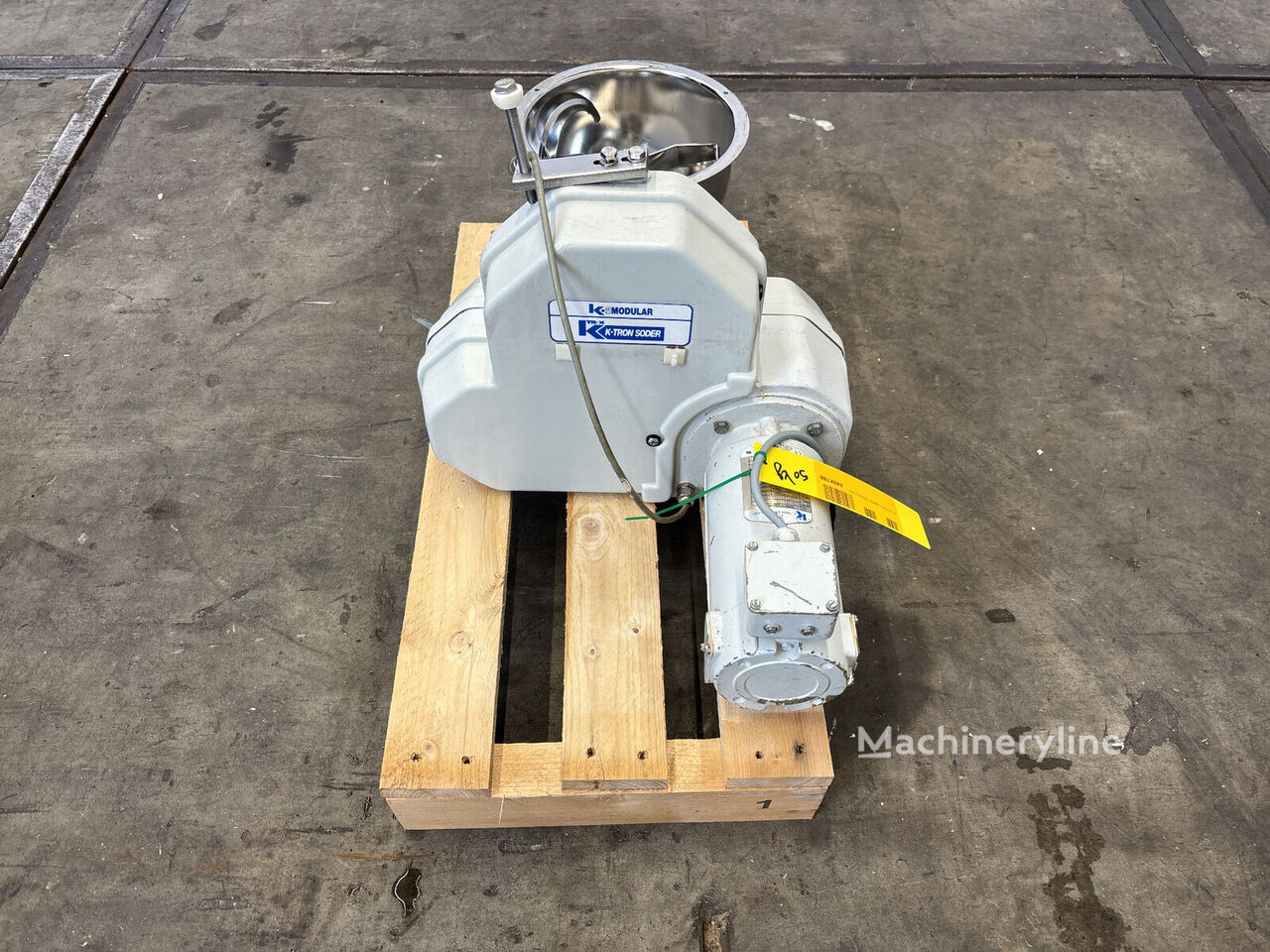

This K-Tron K2M-T35 is a used mixer and blender — sometimes referred to as a mixing blender or metering mixer — designed to meter, convey, and blend bulk materials in controlled quantities. K-Tron is a well-established Swiss manufacturer of feeding and conveying equipment, widely recognised in the plastics, food processing, pharmaceutical, and chemical industries for precision gravimetric and volumetric feeding systems.

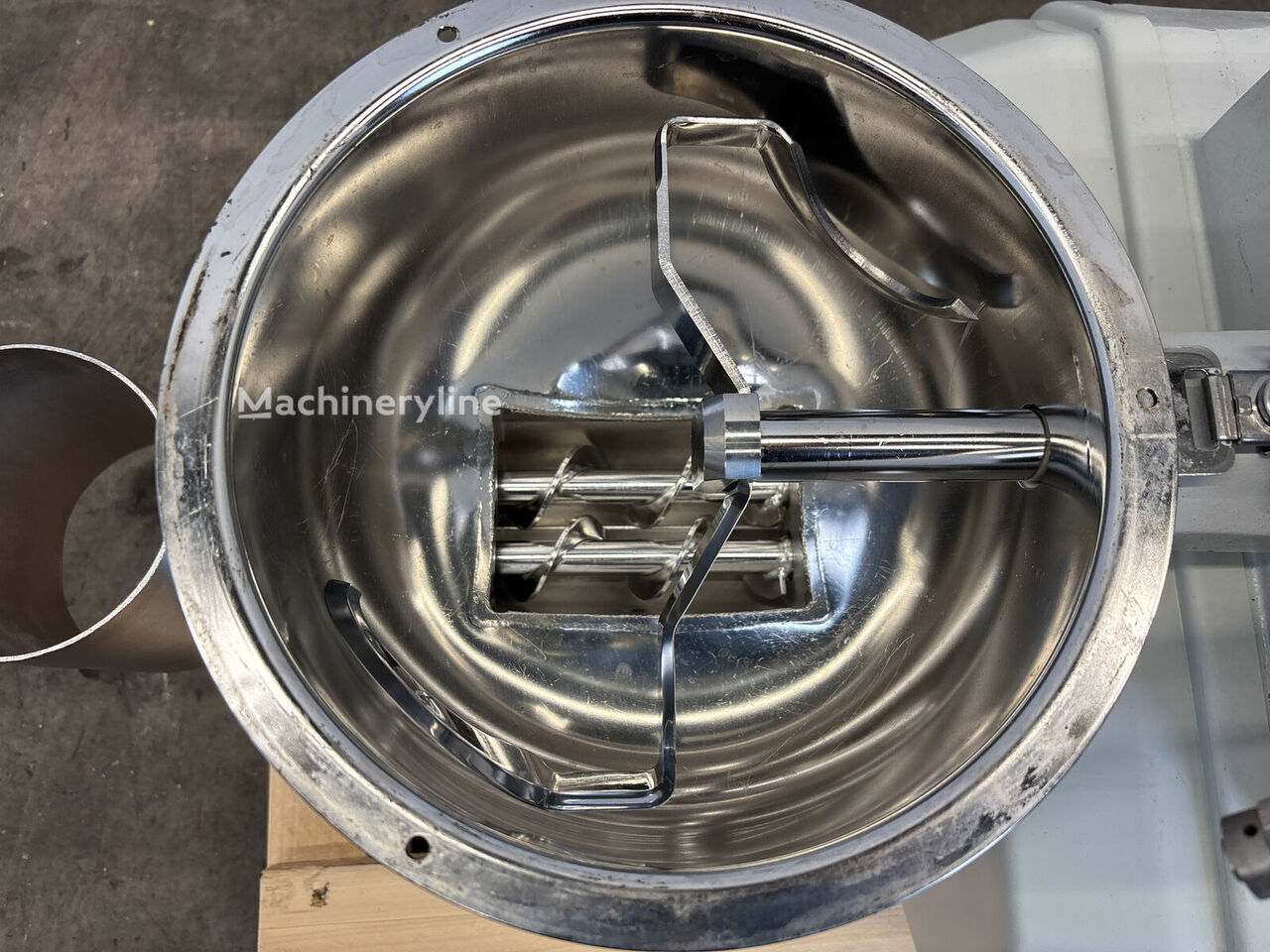

This unit is constructed entirely from stainless steel grade 1.4571, the European designation for AISI 316Ti, a titanium-stabilised austenitic steel commonly specified in demanding processing environments where corrosion resistance and hygienic standards are important. The machine is equipped with a metering screw measuring 35 mm in diameter with a pitch of 50 mm and a screw length of 250 mm, mounted on a 15 mm shaft. The inlet has a diameter of 220 mm and the outlet a diameter of 110 mm. The unit also includes a breaking and mixing shaft, which assists in preventing bridging and ensuring consistent material flow into the screw.
Drive is provided by a DC motor rated at 0.45 kW, operating at 200 V and a nominal speed of 2,000 RPM. The metering screw speed is variable between 120 and 600 RPM. The machine is supplied without a control unit. It carries CE marking in accordance with applicable European directives.
The machine has a compact footprint of 0.85 × 0.45 metres and a total height of 0.40 metres. The serial number is /800890. The unit is located in Barneveld, Netherlands. The year of manufacture is not known.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
