2018 - KEN A Vision SE-2112 Machining Center()
- Listing No
- 957407
- Year
- 2018
- Manufacturer
- Model
- SE-2112
- Condition
- Used
- Location
- Portugal
- Price
- $175,000
- Description
-
AXIS C: Yes Command: HEIDENHAIN 640 Command: HEIDENHAIN 640 DIELECTRIC VOLUME: 1600 L Diesel: CNC MACHINE DIMENSION: 3550x3950x2960 MM MAXIMUM PIECE WEIGHT: 4200 KG Spindle Power: 15/18 kW Spindle Speed: 15000 rps TABLE DIMENSION: 1200 x 800 MM table size: 2300X1100 mm Tank height: 410 mm Tank length: 1195 mm Tank width: 800 mm Tool storage capacity: 24 Tool warehouse capacity: 24 Type: CNC WEIGHT: 5300 KG Work hours: 19560 Work hours: 19560 X axis: 2100 mm X/Y/Z COURSES: 800/600/500 MM Y axis: 1200 mm Z axis: 1000 mm VISION WIDE SE-2112 machining center.
About this machine

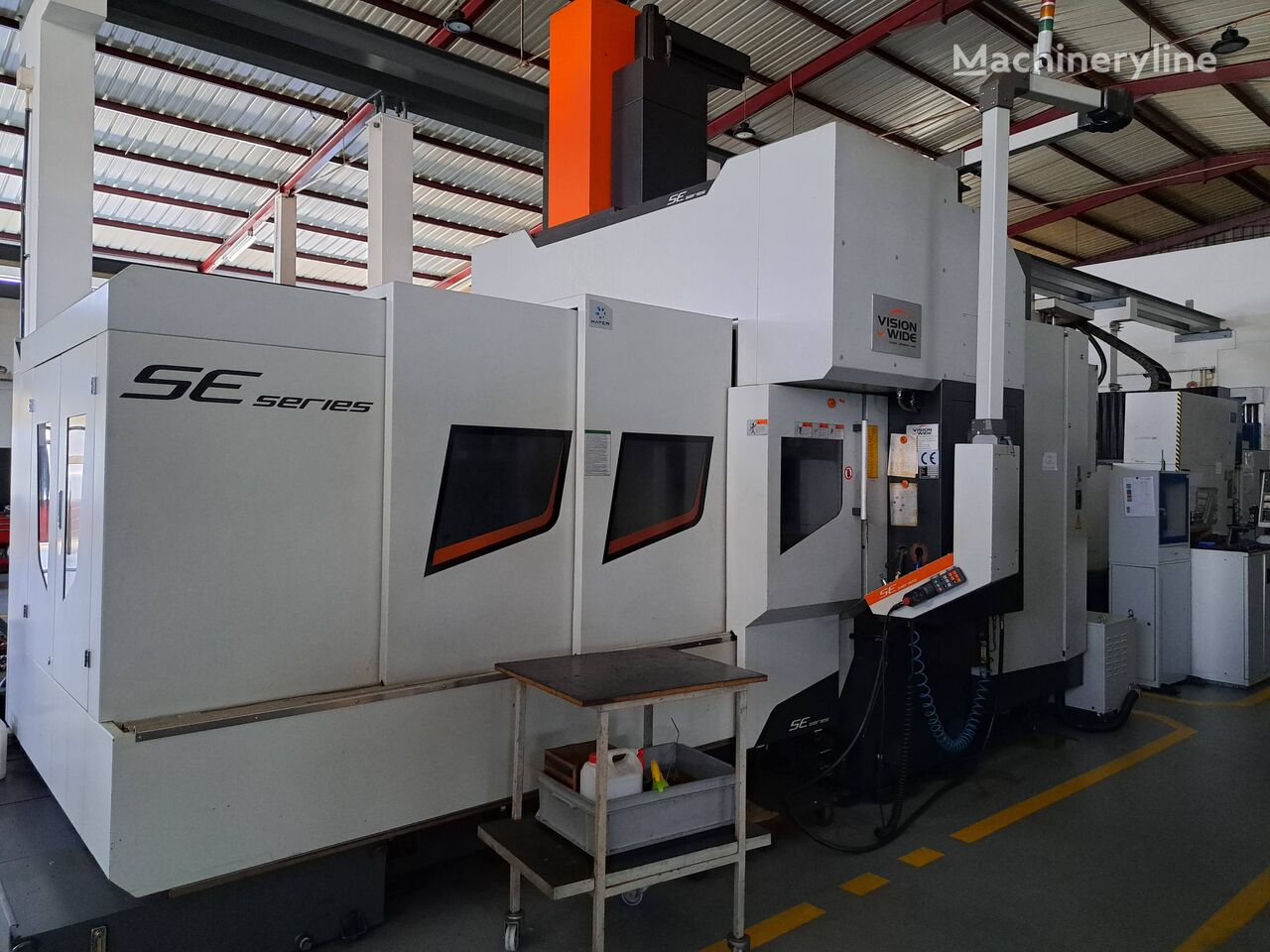

The KEN A Vision SE-2112 is a used machining center — sometimes referred to as a CNC machining center or mill-drill center — a computer-numerically controlled machine tool designed for high-precision multi-axis cutting, milling, drilling, and boring operations on metal and other materials. This example was built in 2018 and is currently located in Portugal, offered at $175,000.

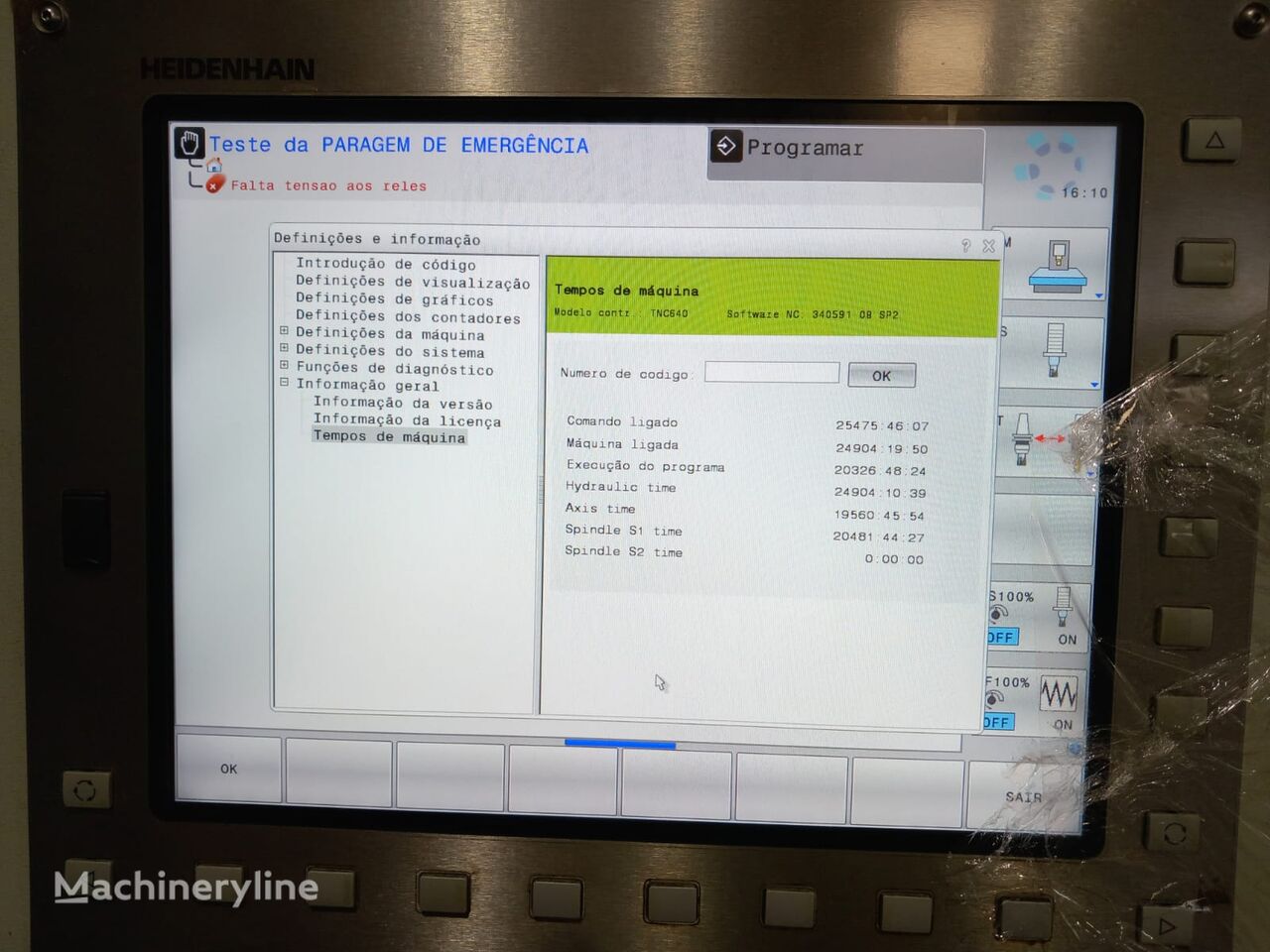

The machine runs on a Heidenhain TNC 640 control system, a high-end conversational and ISO CNC controller widely regarded for its precision positioning and programming capabilities in demanding machining environments. Spindle power is rated at 15/18 kW, with a spindle speed reaching 15,000 rpm, making it well suited to both heavy stock removal and fine-finish work. An automatic tool changer with a capacity of 24 tools supports uninterrupted operation across complex multi-step programs.
Axis travels are substantial: the X axis covers 2,100 mm, the Y axis 1,200 mm, and the Z axis 1,000 mm, giving the machine a generous working envelope for large or complex workpieces. The table measures 1,200 × 800 mm with a maximum workpiece weight capacity of 4,200 kg, indicating the machine is built to handle heavy-duty components. A C axis is fitted, enabling rotational positioning and expanding the range of features that can be machined in a single setup. The machine's overall footprint is 3,550 × 3,950 × 2,960 mm, and its own weight is 5,300 kg.
Additional data points noted in the listing include a dielectric volume of 1,600 litres, a tank measuring 1,195 × 800 mm with a height of 410 mm, and a recorded 19,560 hours of operation. The machine has a total weight of 5,300 kg and has accumulated 19,560 working hours from its 2018 manufacture date.
This description was generated automatically from the listing details and may not reflect every specification. Please confirm with the seller before purchase.
