About this machine

This Kinematica Polytron Mixer Blender is a used mixer and blender — sometimes referred to as a laboratory or process homogeniser — designed for intensive mixing, blending, and dispersing of liquid and semi-liquid materials in closed, pressure-rated vessels. Kinematica is a well-established Swiss manufacturer known for precision homogenising and mixing equipment widely used in pharmaceutical, chemical, food, and laboratory processing industries.

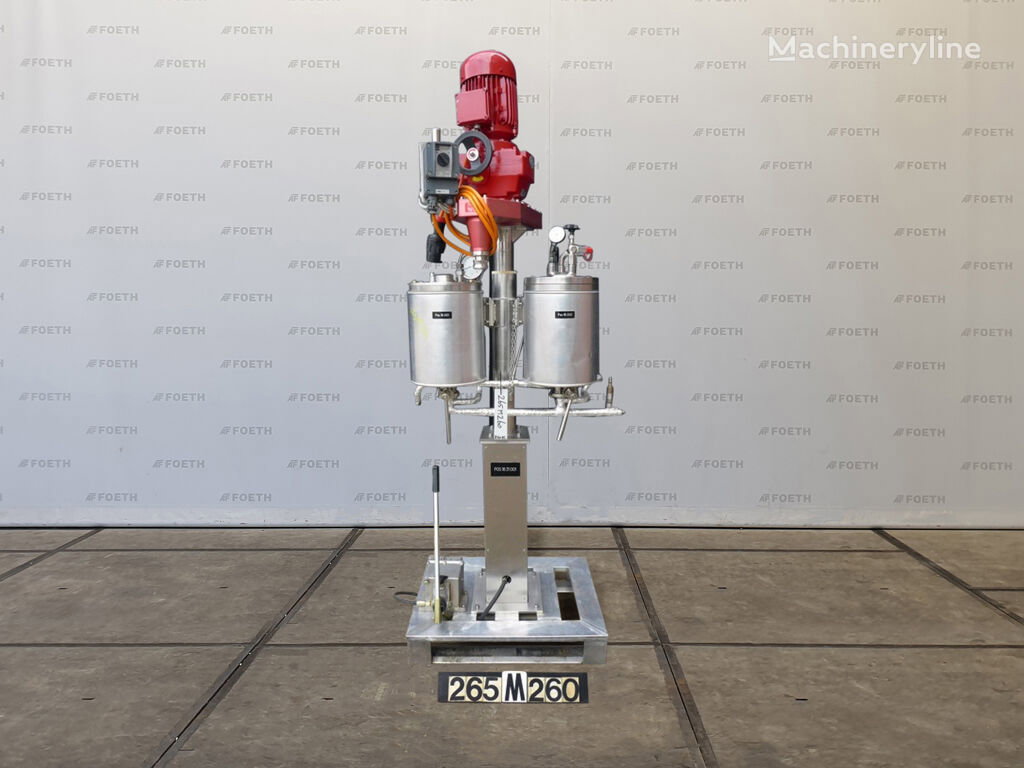

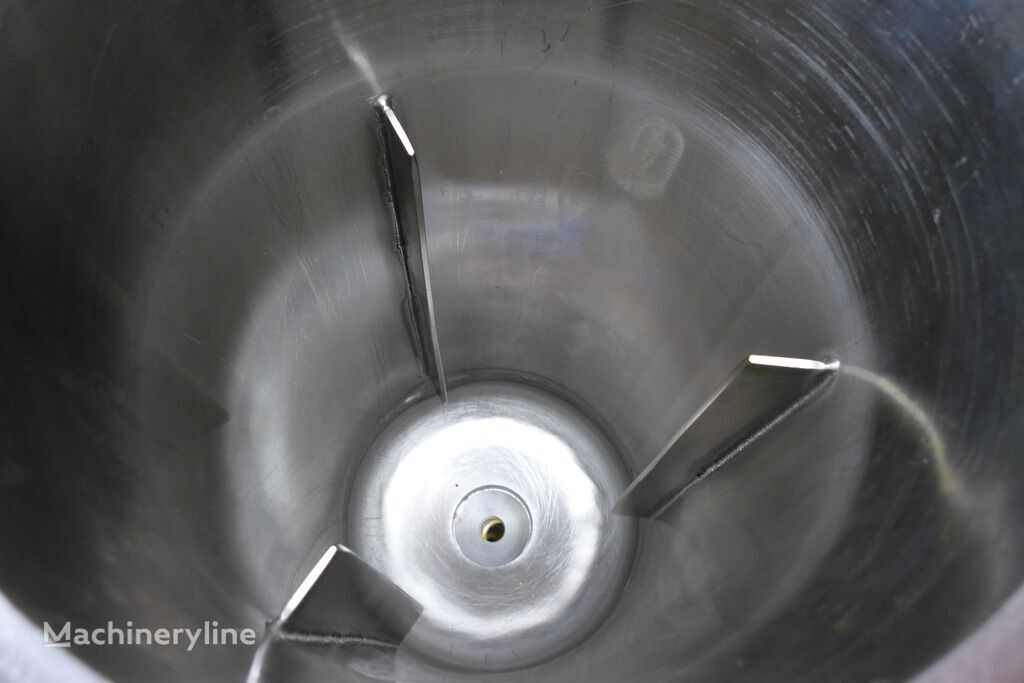

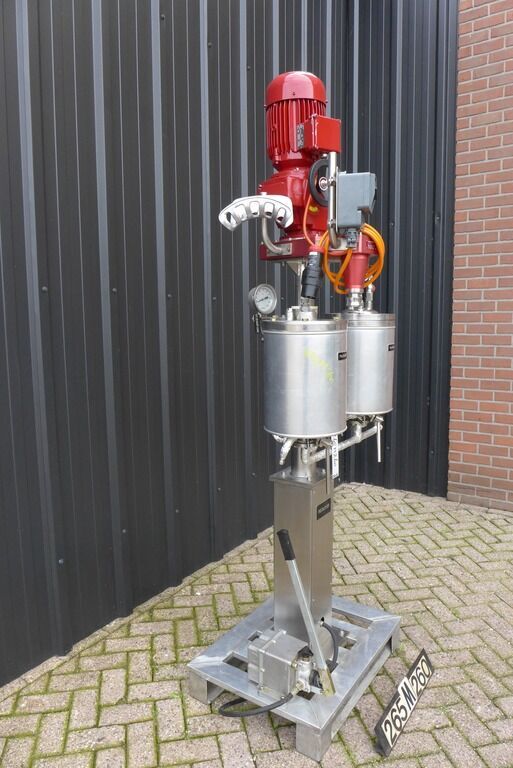

This unit is identified as a Polytron PT D-ex S 800, serial number P 45 127, and is located in Barneveld, Netherlands. The machine is built from stainless steel and is configured as a closed stirring vessel system mounted on a single frame, comprising two pressure vessels each with a capacity of 5 litres, giving a combined capacity of 10 litres. Each vessel measures 150 × 300 mm and features a dished bottom, a dished top, and a cover. Both vessels are fitted with a jacket, allowing for temperature-controlled processing, though the maximum working temperature and working pressure are not specified. A 10 mm diameter outlet is present on each vessel. It should be noted that the stirrer and mixing shaft are currently missing and would need to be sourced separately.

The drive unit is powered by a 2.5 kW motor rated at 380/660 Volt and is ATEX-compatible, making this system suitable for use in potentially explosive atmospheres — a significant feature for chemical and solvent-related applications. The mixing shaft speed is variable, with a range of approximately 700 to 3,500 RPM. The drive unit can be raised and lowered hydraulically, facilitating vessel access and cleaning.

The machine occupies a floor footprint of 1.0 × 0.8 metres and stands 2.4 metres in total height. Year of manufacture is not known. The unit is offered in used condition.
